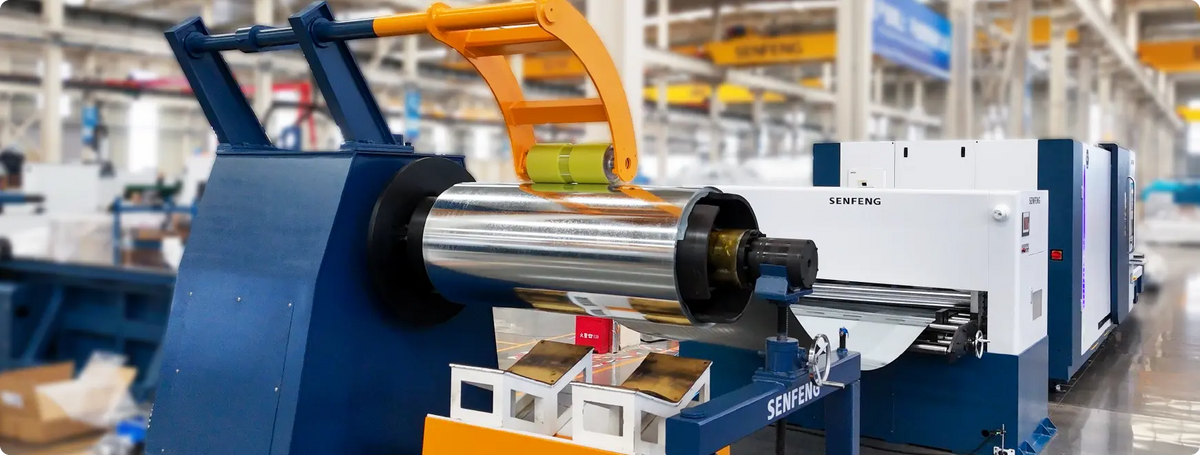

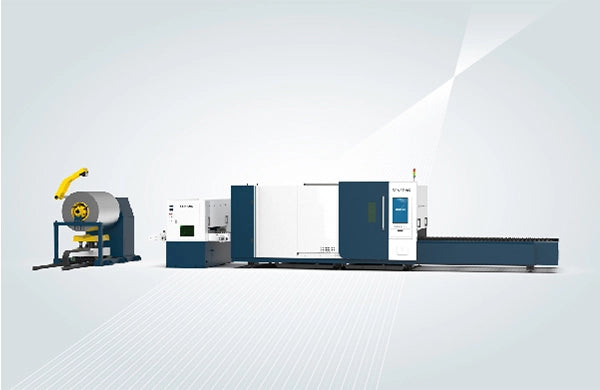

SENFENG coil-fed laser cutting line

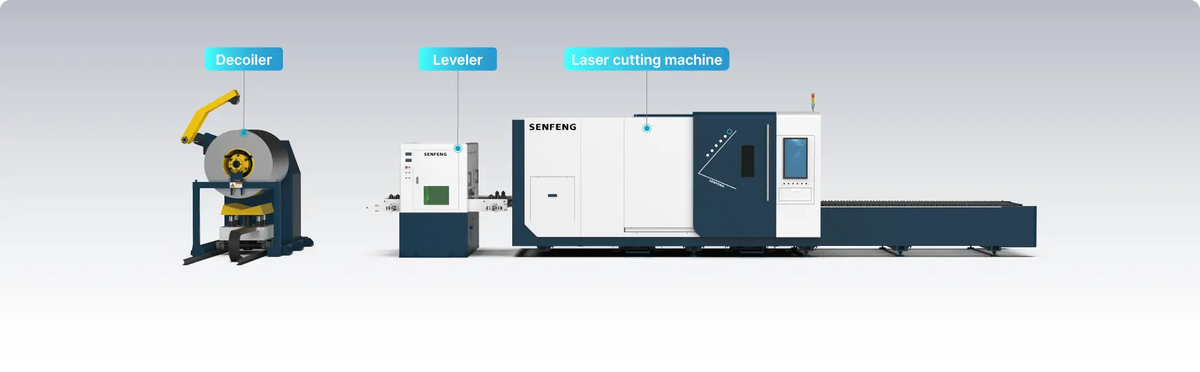

SENFENG coil-fed laser cutting line
SENFENG coil-fed laser cutting line

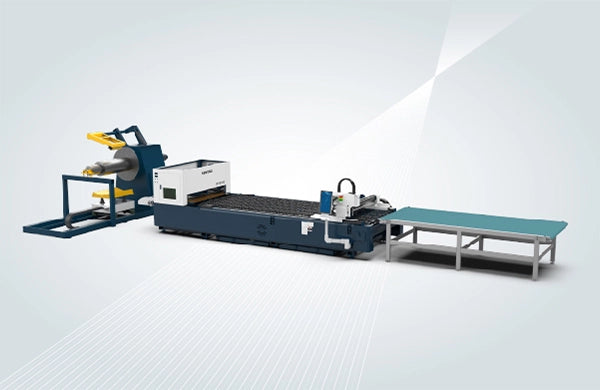

SENFENG SF15015C coil laser cutting machine

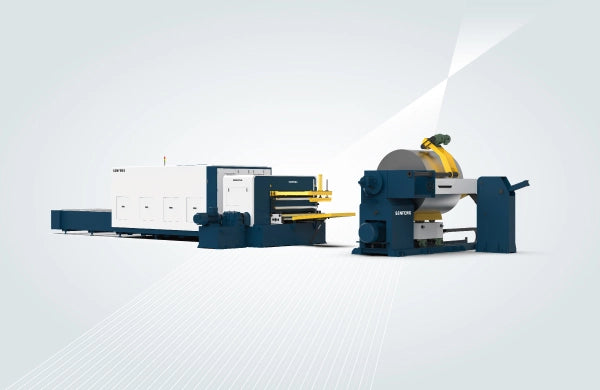

SENFENG SF1503CH coil laser cutting machine
SENFENG coil-fed laser cutting line
SENFENG coil-fed laser cutting line
SENFENG coil-fed laser cutting line
SENFENG SF15015C coil laser cutting machine
SENFENG SF1503CH coil laser cutting machine
SENFENG

SENFENG Coil-Fed Laser Cutting Lines for 0.6–3 mm Sheet

Out of stock
SKU: SF15015C
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF15015C SKUSF15015C

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG coil-fed laser cutting lines uncoil, level, feed and laser-cut thin coil in one continuous line, with no shearing to blanks first. Nesting straight from the coil cuts material cost by up to 50% and automatic feeding saves at least one operator. Open (C) and fully enclosed (CH) versions for steel, plus the CLH for aluminium coil.

Supplied on quotation. Choose the line above and tell us your coil widths, thicknesses, coil weights and materials in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Uncoiling, levelling, feeding, cutting and unloading in one line
  • Servo fixed-length feeding with loop control
  • Real-time intelligent levelling
  • Nesting from coil, up to 50% material saving
  • Belt unloading reduces scratches; truss, robot or sorting unloading optional
  • Enclosed versions contain fume and dust

Technical data

Model SF15015C SF1502C SF1502CH SF1503CH SF1503CLH
Coil thickness (mm) 0.8–1.2 0.6–2 0.6–2 0.8–3 0.6–3 (aluminium)
Laser power (kW) 1.5 / 3 3 3–6 3–6 6
Working area (mm) 3000×1500 3000×1500 / 6000×1500 3000×1500 / 4000×1500 3000×1500 3000×1500
Coil width (mm) 800–1500 up to 1500 up to 1500 up to 1500 up to 1500
Coil inner Ø (mm) 508 / 610 508 508 508 508
Max. coil outer Ø (mm) 800–1500 1400 1400 1400 1400
Max. coil weight (t) 3 / 8 / 10 / 15 10 8–10 15 10
Max. feed speed (m/min) 15 15 10 15 10
Levelling accuracy (mm/m²) ±2 ±1.5 ±2 ±2 ±1.5
Enclosure Open Open Enclosed Enclosed Enclosed
Power supply 3-phase 380 V, 50/60 Hz

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
