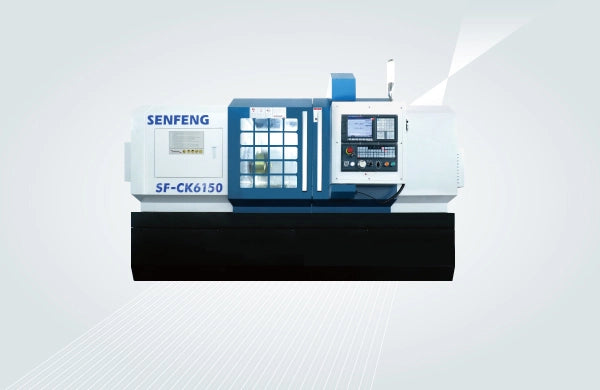

SENFENG CK Series flat-bed CNC lathe
SENFENG CK Series flat-bed CNC lathe
SENFENG

SENFENG CK Series Flat-Bed CNC Lathe

Out of stock
SKU: SF-CK6140
Price on request
Price on request

Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.

ModelSF-CK6140 SKUSF-CK6140

Prefer email? info@latheland.com · Contact us

Need a complete solution? Loading and unloading automation, installation, training and after-sales support can be included in your quote – tell us what you need.

Questions about this product, a larger quantity or a shipping quote? Contact us.

SENFENG CK Series flat-bed CNC lathes are built for large and heavy workpieces. The rigid cast-iron flat bed damps vibration, and the 4-station turret changes tools automatically for continuous turning, threading, taper work, drilling, reaming and tapping. Five models cover swings from Ø400 to Ø1700 mm and up to 8 m between centres.

Supplied on quotation. Choose the model above and tell us the distance between centres you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.

Key features

  • Resin-sand cast flat bed with ribbed structure for high rigidity and vibration resistance
  • 4-station vertical electric turret with automatic tool change
  • FANUC CNC control
  • Hydraulic chuck and hydraulic tailstock to support long shafts
  • Automatic timed lubrication with low-oil alarm

Technical data

Model SF-CK6140 SF-CK6150 SF-CK6180 SF-CK61125 SF-CK61160
Swing over bed (mm) Ø400 Ø500 Ø800 Ø1350 Ø1700
Swing over cross slide (mm) Ø200 Ø275 Ø480 Ø850 Ø1100
Distance between centres (mm) 750 / 1000 1000–2000 1000–4000 1500–8000 1500–5000
Max. turning dia. (mm) Ø400 Ø500 Ø800 Ø1250 Ø1600
Standard chuck Ø200 3-jaw Ø250 3-jaw Ø630 4-jaw ind. Ø1000 4-jaw ind. Ø1250 4-jaw ind.
Spindle speed (rpm) 50–2000 60–1600 10–950 10–350 10–315
Spindle bore (mm) Ø52 Ø82 Ø105 Ø130 Ø130
Tool shank (mm) 20×20 25×25 32×32 40×40 40×40
X / Z rapid (mm/min) 6000 / 8000 6000 / 8000 4000 / 6000 4000 / 6000 4000 / 6000

Data from SENFENG; please confirm the final specification on your quotation.

SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
