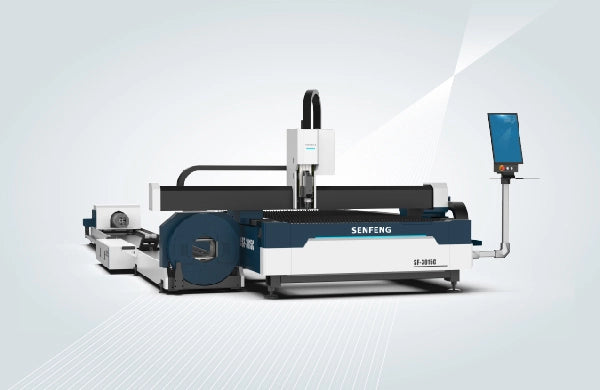

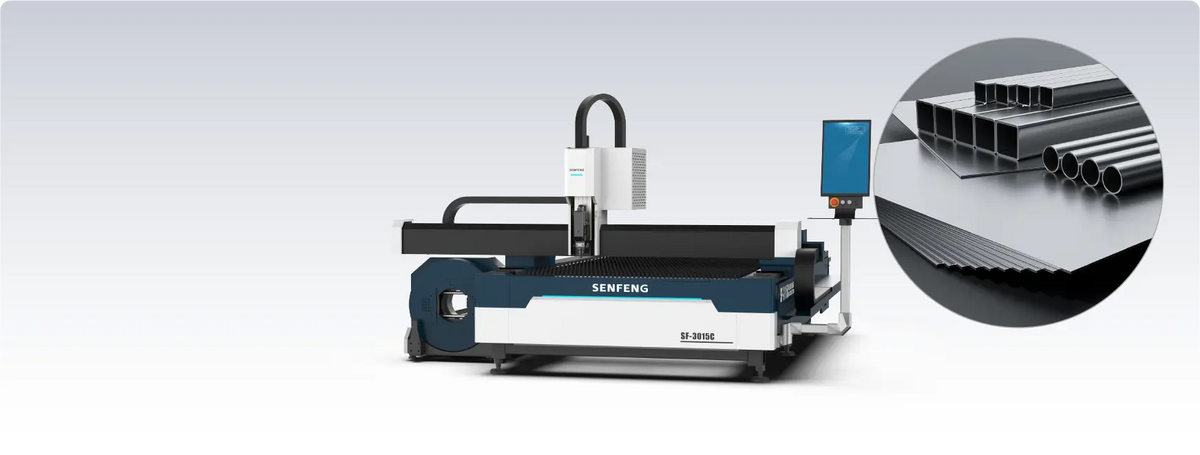

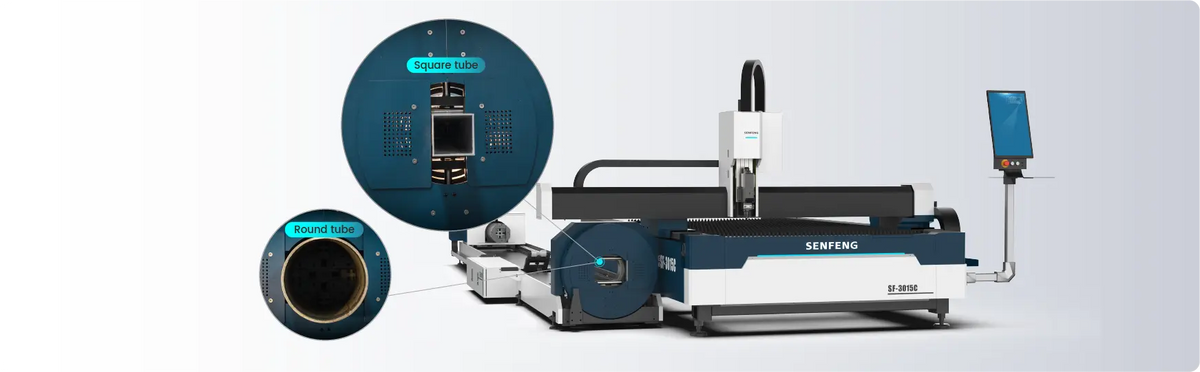

SENFENG C Series (SF3015C family) is an affordable, open-style fibre laser that cuts sheet and small-to-medium tube on one compact machine, with 1.5–6 kW sources. A self-centring pneumatic chuck holds round tubes Ø20–220 mm, 500–6000 mm long.
Supplied on quotation. Choose the table size above and tell us the laser power you need in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | SF3015C | SF4015C | SF4020C | SF6015C | SF6020C |
|---|---|---|---|---|---|
| Laser power (kW) | 1.5–6 | ||||
| Sheet working area (mm) | 3050×1530 | 4050×1530 | 4050×2030 | 6050×1530 | 6050×2030 |
| Round tube Ø (mm) | 20–220 | ||||
| Tube length (mm) | 500–6000 | ||||
| Max. table load (kg) | 1100 | 1400 | 1870 | 2100 | 2800 |
| Max. no-load speed (m/min) | 100 | ||||
| Positioning accuracy (mm) | ±0.05 | ||||
| Repeatability (mm) | ±0.02 | ||||
| Overall size L×W×H (mm) | 8500×3740×2100 | 8500×3740×2100 | 8600×4200×2100 | 8800×3740×2100 | 8800×4200×2100 |
| Power supply | 3-phase 380 V, 50/60 Hz | ||||
Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
