Built to order and supplied on quotation. Choose the model above and send the form. We reply with the machine price, freight to your door (UK or worldwide) and lead time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

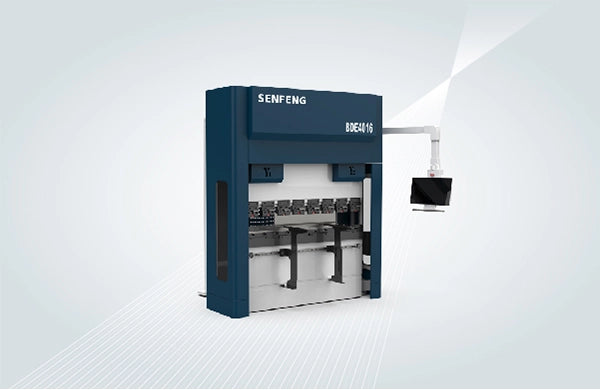

SENFENG all-electric press brake drives the ram with servo motors instead of hydraulics: compact, quiet and quick, with no oil to change. Dual linear scales close the loop on ram position and CNC crowning keeps angles within ±0.5°. Six models from a 60 kN bench-size machine to 1300 kN and 3200 mm.
Supplied on quotation. Choose the model above and tell us the materials, thicknesses and bend lengths you work with in the quote form. We reply with the machine price, freight to your door (UK or worldwide) and lead time.
| Model | BDE0604 | BDE2010 | BDE4016 | BDE6020 | BDE10025 | BDE13032 |
|---|---|---|---|---|---|---|
| Bending force (kN) | 60 | 200 | 400 | 600 | 1000 | 1300 |
| Bending length (mm) | 400 | 1000 | 1600 | 2000 | 2500 | 3200 |
| Throat depth (mm) | 160 | 300 | 200 | 300 | 400 | 400 |
| Distance between columns (mm) | 370 | 830 | 1200 | 1800 | 2100 | 2600 |
| Open height (mm) | 430 | 430 | 480 | 470 | 490 | 480 |
| Approach speed (mm/s) | 200 | 200 | 200 | 180 | 160 | 200 |
| Bending speed (mm/s) | 0–30 | 1–30 | 0–30 | 0–30 | 0–20 | 0–30 |
| Return speed (mm/s) | 200 | 200 | 200 | 180 | 160 | 200 |
| Overall size L×W×H (mm) | 900×800×2000 | 1500×1000×2200 | 2100×2290×1730 | 2500×1960×2560 | 3000×1980×2660 | 3900×1980×2660 |
| Weight (kg) | 630 | 2300 | 4200 | 4800 | 6500 | 8600 |
Data from SENFENG; please confirm the final specification on your quotation.
SENFENG machines are made by Jinan Senfeng Laser Technology Co., Ltd., China, and supplied in the UK by LATHELAND.
