NEXFLOW FFRIGID-X™ Tool Cooler 57030FD

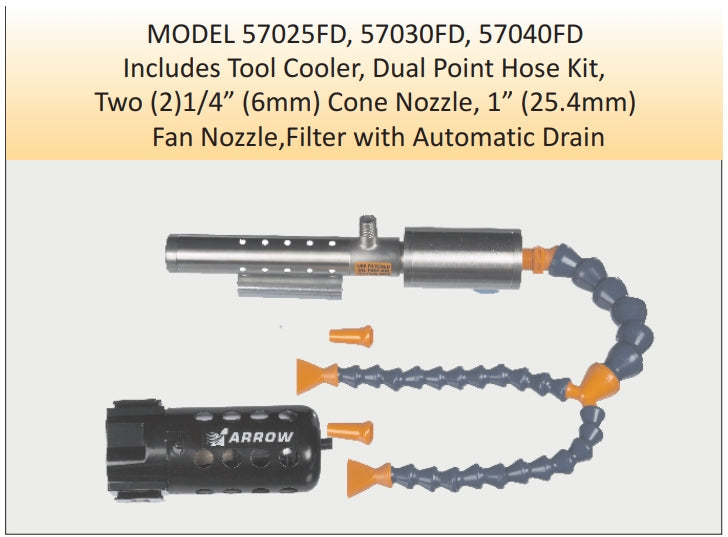

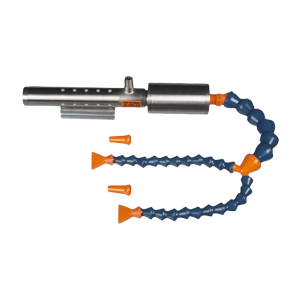

Tool Cooling System includes 30 SCFM Tool Cooler plus filter with automatic drain and dual point hose kit.

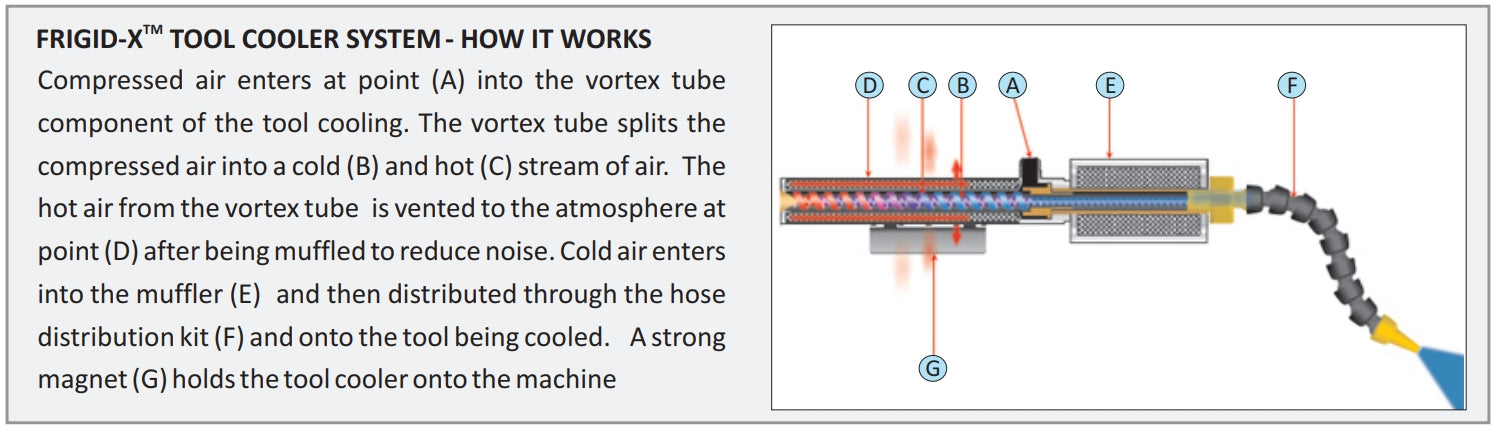

Frigid-X™ Tool Cooling System for dry machining applications - replaces polluting and often toxic mist systems to improve dry machining operations. No mess, no residue and low in cost. It is efficient and can improve dry machining operations and assist in spot cooling applications for a variety of industrial machining processes by increasing machining rates and extending tool life. Produces cold air at approximately 50 F  (28 C) below supply air temperature. The unit is muffled for quiet operation. No moving parts assures long life, maintenance-free operation while extending tool life and
improving production rates. It can prevent smearing of metal or plastics and eliminates wheel loading. Factory set for optimum cooling effect and to prevent freeze up. Can often replace costly mist coolants and certainly improves the quality and output of all types of dry machining operations from
metals to plastics. Unit is low cost, no electricity with no
moving parts and is essentially maintenance free.

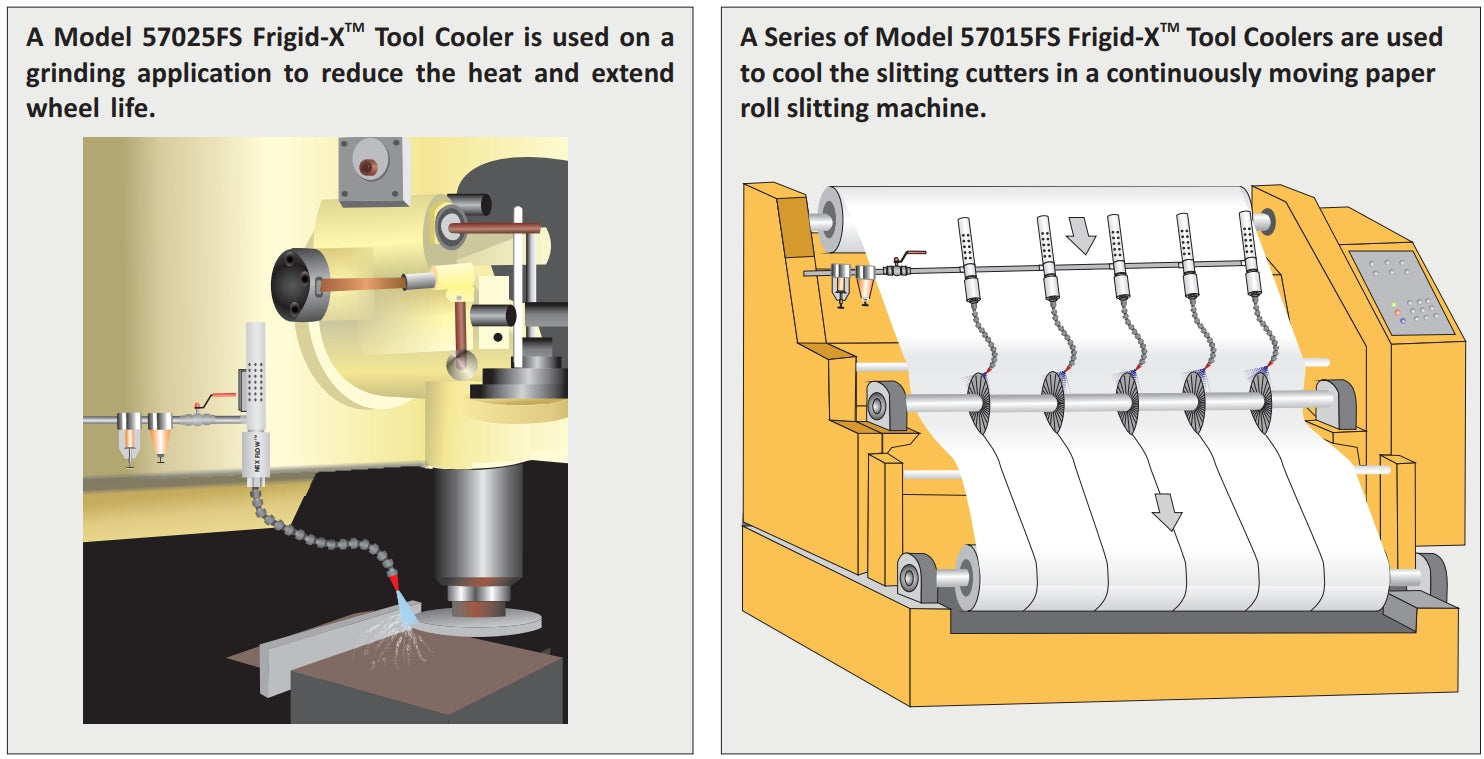

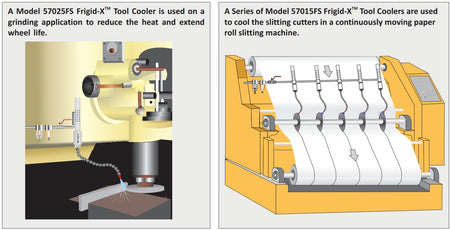

FRIGID-X TOOL COOLER APPLICATIONS:

• Routing
• Machining Plastics
• Drill and cutter grinding
• Milling, Drilling, Routing and Surface Grinding
• Plunge & Form Grinding
• Setting Hot Melt Adhesives
• Laser Cutting
• Tire and Rubber Grinding
• Band Saw Blade Cooling
• Chill Roll Nip Cooling

FRIGID-X Tool COOLER ADVANTAGES:

• No moving parts.
• Quiet
• Driven by air not electricity.
• Small and lightweight - portable.
• Low in cost compared to most others
• Superior design and performance
• Maintenance free operation
• Made of durable stainless steel and metal arts – no cheap plastic parts
• Improves production rates and finished part remains dry
• Prevents burning
• Improves tolerance control
• Eliminates coolant costs
• System uses strong magnetic base

INLET PRESSURE PSIG (Bar) : 100 (6.9)

AIR CONSUMPTION SCFM (SLPM): 30 (850)

SOUND LEVEL dBA : 82

Comes with: Filter with automatic drain - 1/4” NPT, 43 SCFM (1359 SLPM)

See datasheet. If you need other models please contact us.
