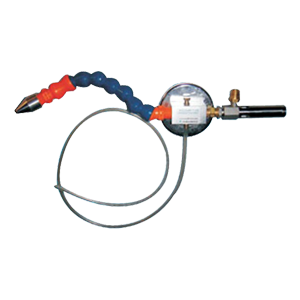

NEXFLOW FRIGID-X Mist System Type 58208

FRIGID-X SUB-ZERO VORTEX TOOL COOLING MIST SYSTEM

When lubrication is required as well as cooling, lubricating mist can be reduced and cooling enhanced.

Heavy coolant can be messy, costly and must be carefully  maintained. In addition, dry machining is not always possible due to the need for lubrication or additional

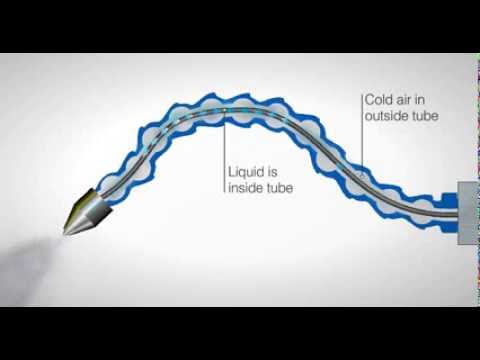

cooling that cold air alone cannot provide. The unique low-cost Frigid-X Sub-Zero Vortex Tool Cooling Mist System is ideal for such applications. The unit is comprised of a coolant/lubricant suction system which draws any water based liquid into a specially designed delivery system. This cools the liquid to deliver a very cold fluid “mist” at around 40 degrees F (5 degrees C). This cooling allows for as much as 20% less coolant needed, faster production rates and improved quality.

Frigid-X Sub-Zero Vortex Advantages

• No electricity required – simplicity in design
• low cost
• reduces coolant/lubricant cost by using  less fluid
• improves safety with less mist
• no moving parts except for an adjusting screw for the fluid
• small and lightweight, portable
• maintenance-free operation

Frigid-X Sub-Zero Vortex Uses

• wherever lubrication is required in machining
• when cooling is required beyond the capability of
  cold air alone
