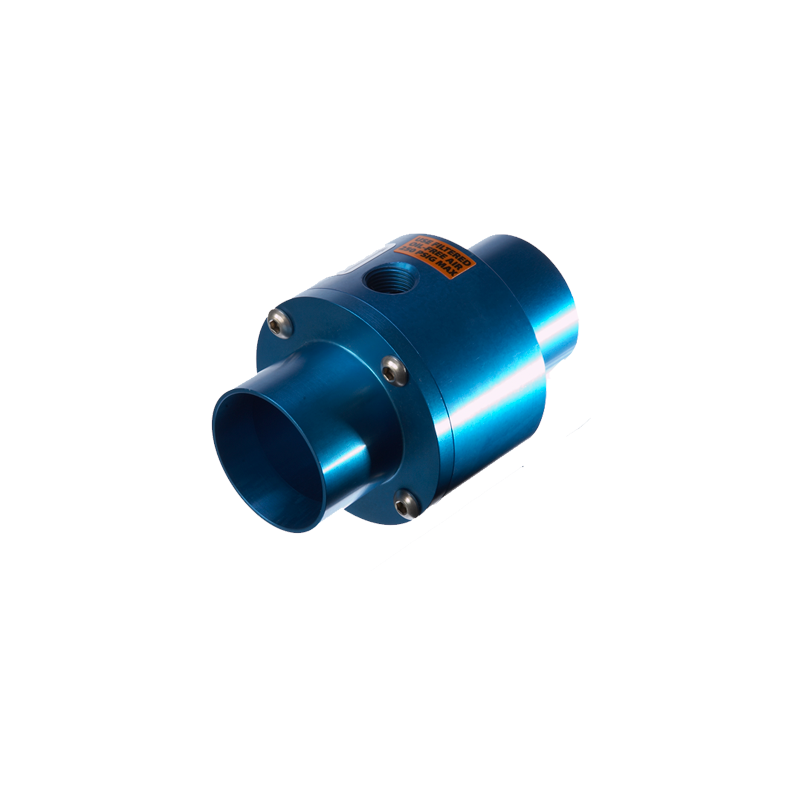

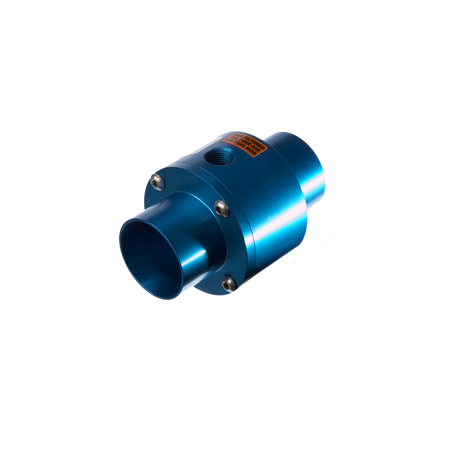

NEXFLOW 2” Ring Vac

RING VAC
Convey solid materials, waste, trim, and small parts with virtually no moving parts.

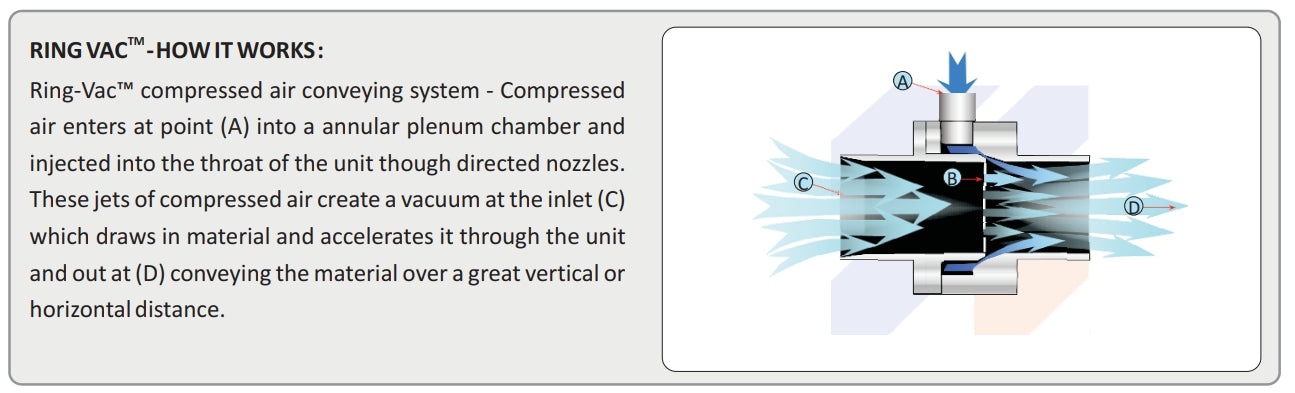

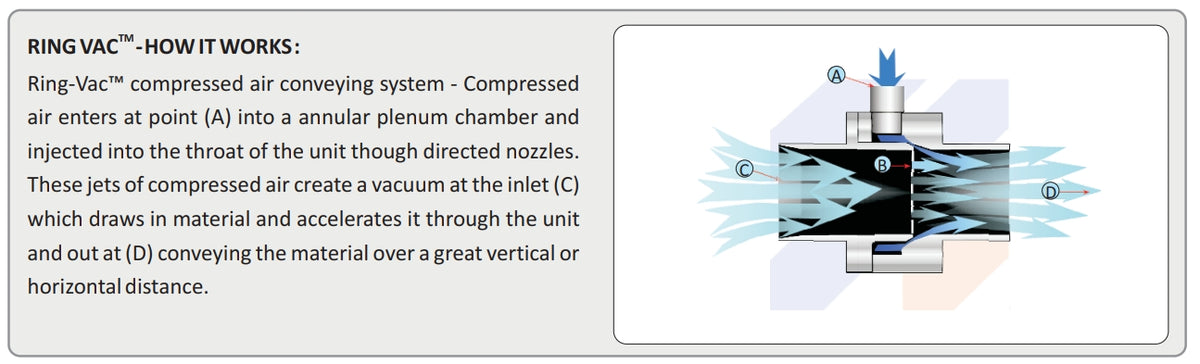

The Ring Vac™ - Pneumatic Conveying System has virtually no moving parts, conveys material at high rates and over long distances. They utilize only compressed air for a powerful, efficient venturi action along its length in a compact design for
high capacity conveying over large distances. Ring Vacs are available in both coated aluminum or stainless steel. Simply clamp a standard hose size to each end of the Ring Vac™ to create this high energy conveying system. Threaded versions may be connected into standard pipe thread. No moving parts for maintenance free operation with capacity and flow controlled with a pressure regulator. Sizes are 3/4" (19mm), 1" (24.4mm), 1-1/4" (32mm), 1-1/2" (38mm) and 2" (51mm) and 3" (76.2mm). Any size beyond that can be prohibitive for most applications due to high compressed air requirements. Beyond 3”, the vacuum ability begins to drop significantly except for highly intermittent applications. However 3” units
are available for such applications. Larger sizes are available on
special order. Anodized aluminum and high temperature stainless steel Ring Vac™ air conveyor can convey all types of solids in large volumes over great distances with no moving parts.

RINGVAC FEATURES & BENEFITS:

• Made of anodized aluminum with no moving parts. Regular and high temperature stainless steel models are available for higher temperature and corrosive environments.
• Standard sizes to fit standard hose diameter for easy clamping. Threaded versions connect easily to regular pipe thread : 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (51mm). Special sizes can be manufactured if required.
  Utilizing a pressure regulator will control the flow material.
• Instant on/off with no moving parts, no electricity or explosion hazard.
• Longer life in difficult environments than competitive models.
• Ease of use.
• Simple and easy control of material flow.
• Maintenance-free operation.

APPLICATIONS:

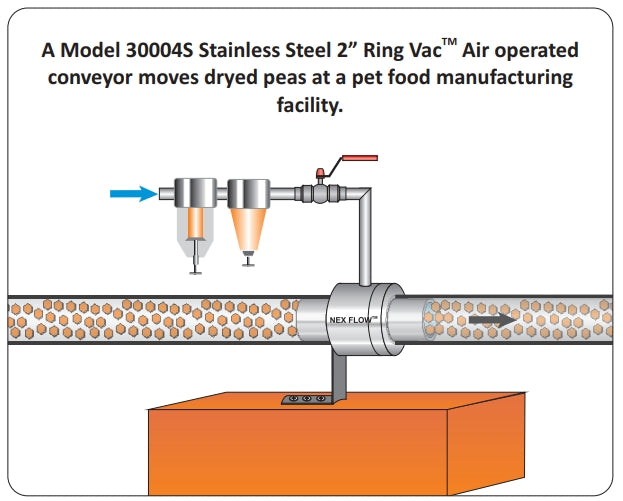

•  Hopper Loading
• Trim Removal
• Filling Operations
• Material Conveying
• Transfer Parts
• Thread/fiber Tensioning

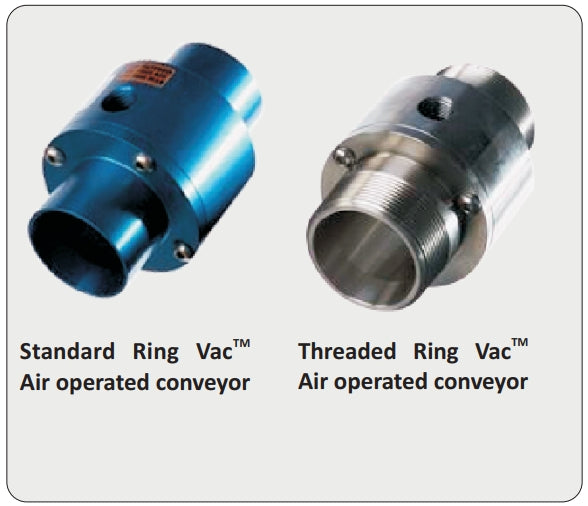

TYPES OF RING VACS

The Ring Vac™ Pneumatic Conveying System is available in anodized aluminum, 303/304 stainless steel and in 316L stainless steel. Our special high temperature stainless version  is rated to 1200 F (649 C) Regular models connect to a standard hose or tube to provide
a powerful and simply in-line conveying system. Threaded versions thread directly into threaded pipe. Special materials can be utilized for unique applications. If

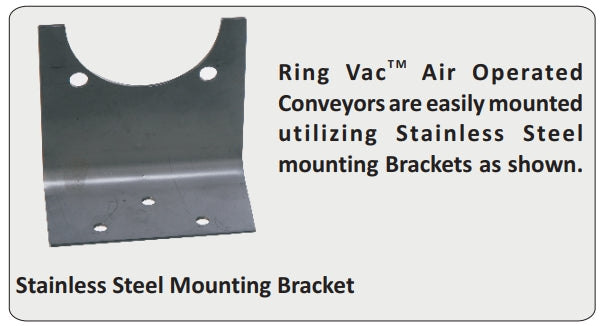

greater conveying force is required the conveying “generator” can be machined for higher capacities although they will use more compressed air. An optional bracket allows for easy mounting.

SELECTION

The Ring Vac is available in a wide variety of sizes depending on your application. There are certain criteria to determine the size you need:

• Diameter of the parts that need to be conveyed
• Rate required for conveying (by weight or volume)
• Diameter of the tube, pipe or hose used
• Material- Aluminum, stainless or high temperature (To 1200 F(650 C)) stainless
• Hose connection with clamp or threaded unit

Available in many other sizes. Please contact to specify the right product.
