Lyndon

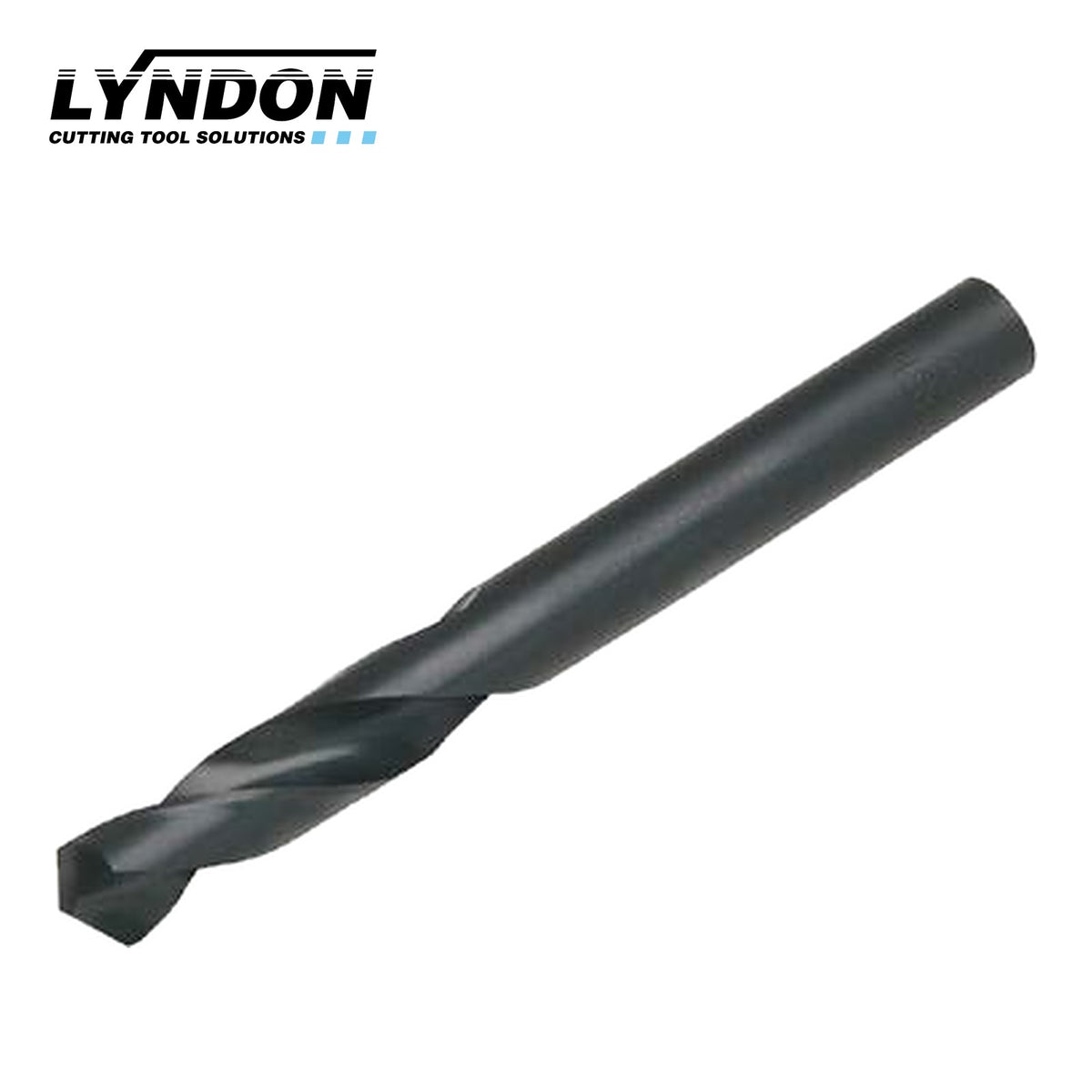

Lyndon HSS Stub Drills – Metric

In stock

SKU: LSD/010

£1.33 GBP

Sale ~~£2.66 GBP~~ £1.33 GBP

Diameter

Questions about this product, a larger quantity or a shipping quote? Contact us.

Lyndon HSS Stub Drills – Metric. Short, rigid drills for portable drills, turret and automatic lathes. 34 metric sizes from 1.0 mm to 16.0 mm.

Introductory offer: 50% off the RRP until 30 November 2026. The RRP is shown crossed out next to the offer price. All prices exclude VAT.

Diameter	Flute length (mm)	Overall length (mm)	Lyndon code
1.0 mm	6	26	LSD/010
1.5 mm	9	32	LSD/015
2.0 mm	12	38	LSD/020
2.5 mm	14	43	LSD/025
3.0 mm	16	46	LSD/030
3.3 mm	18	49	LSD/033
3.5 mm	20	52	LSD/035
4.0 mm	22	55	LSD/040
4.1 mm	22	55	LSD/041
4.2 mm	22	55	LSD/042
4.5 mm	24	58	LSD/045
4.9 mm	26	62	LSD/049
5.0 mm	26	62	LSD/050
5.5 mm	28	66	LSD/055
6.0 mm	28	66	LSD/060
6.5 mm	31	70	LSD/065
6.8 mm	34	74	LSD/068
7.0 mm	34	74	LSD/070
7.5 mm	34	74	LSD/075
8.0 mm	37	79	LSD/080
8.5 mm	37	79	LSD/085
9.0 mm	40	84	LSD/090
9.5 mm	40	84	LSD/095
10.0 mm	43	89	LSD/100
10.2 mm	43	89	LSD/102
10.5 mm	43	89	LSD/105
11.0 mm	47	95	LSD/110
11.5 mm	47	95	LSD/115
12.0 mm	51	102	LSD/120
12.5 mm	51	102	LSD/125
13.0 mm	51	102	LSD/130
14.0 mm	54	107	LSD/140
15.0 mm	56	111	LSD/150
16.0 mm	58	115	LSD/160
