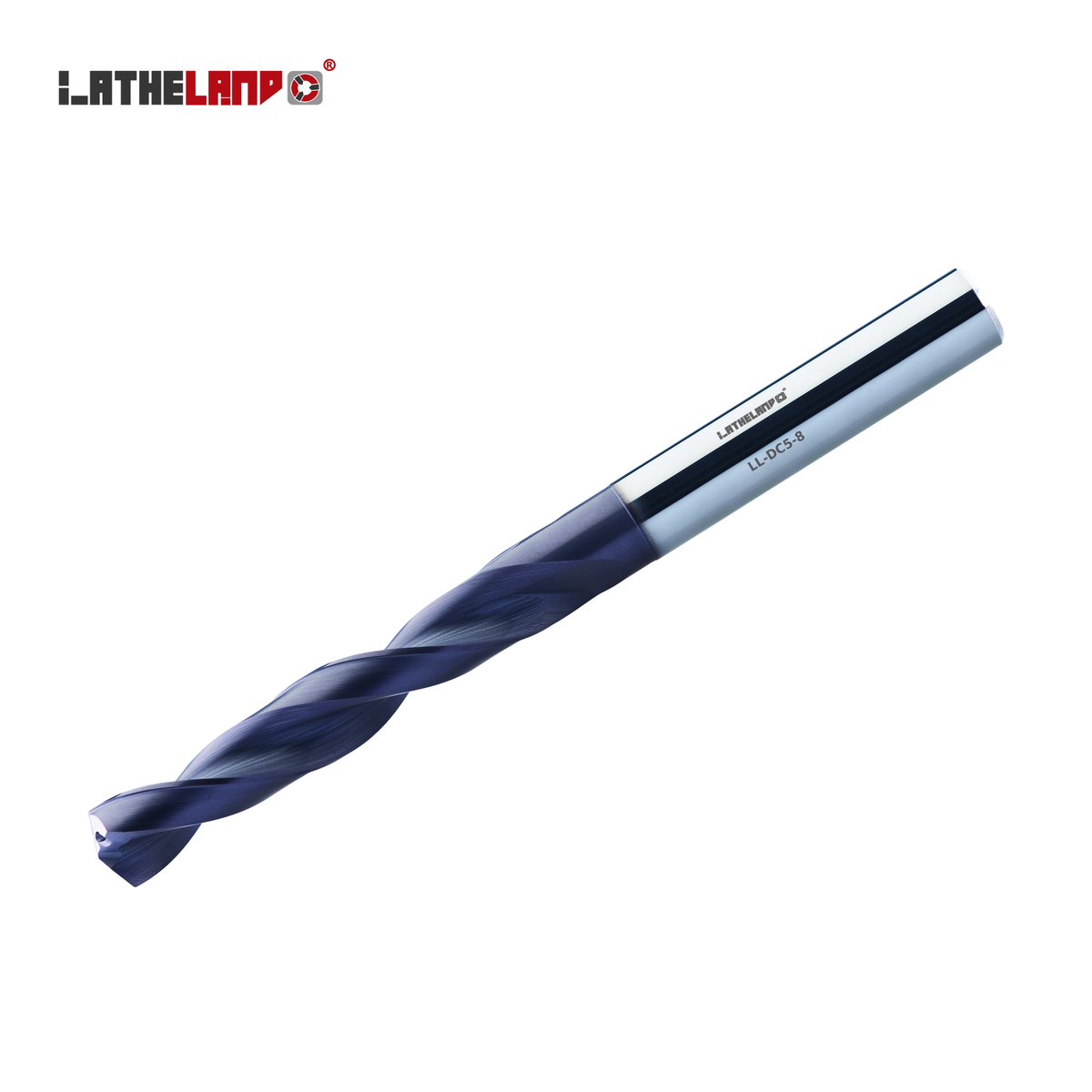

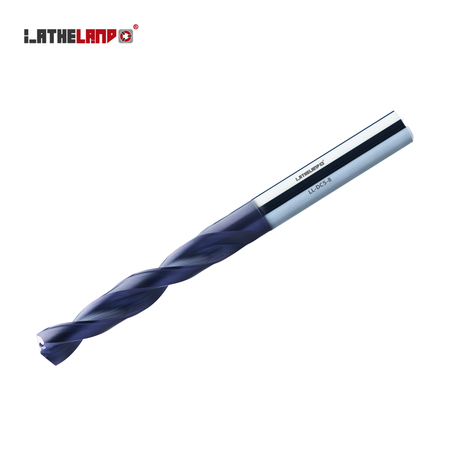

LATHELAND® solid carbide coolant-through drill 5×D, DIN 6537L, 140° point, TiAlN coated

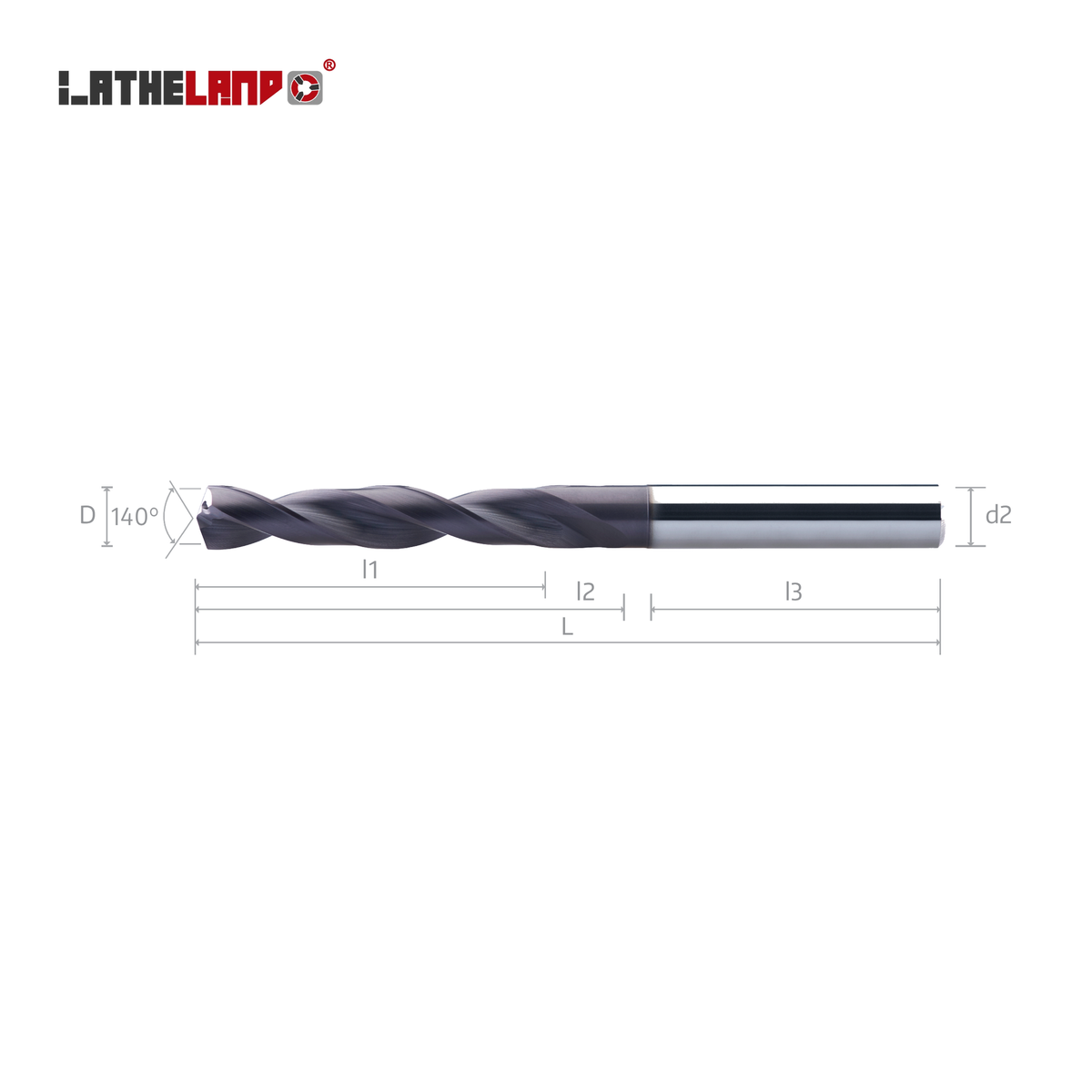

LATHELAND® 5×D coolant-through drill – dimension drawing (D, 140°, l1, l2, l3, L, d2)

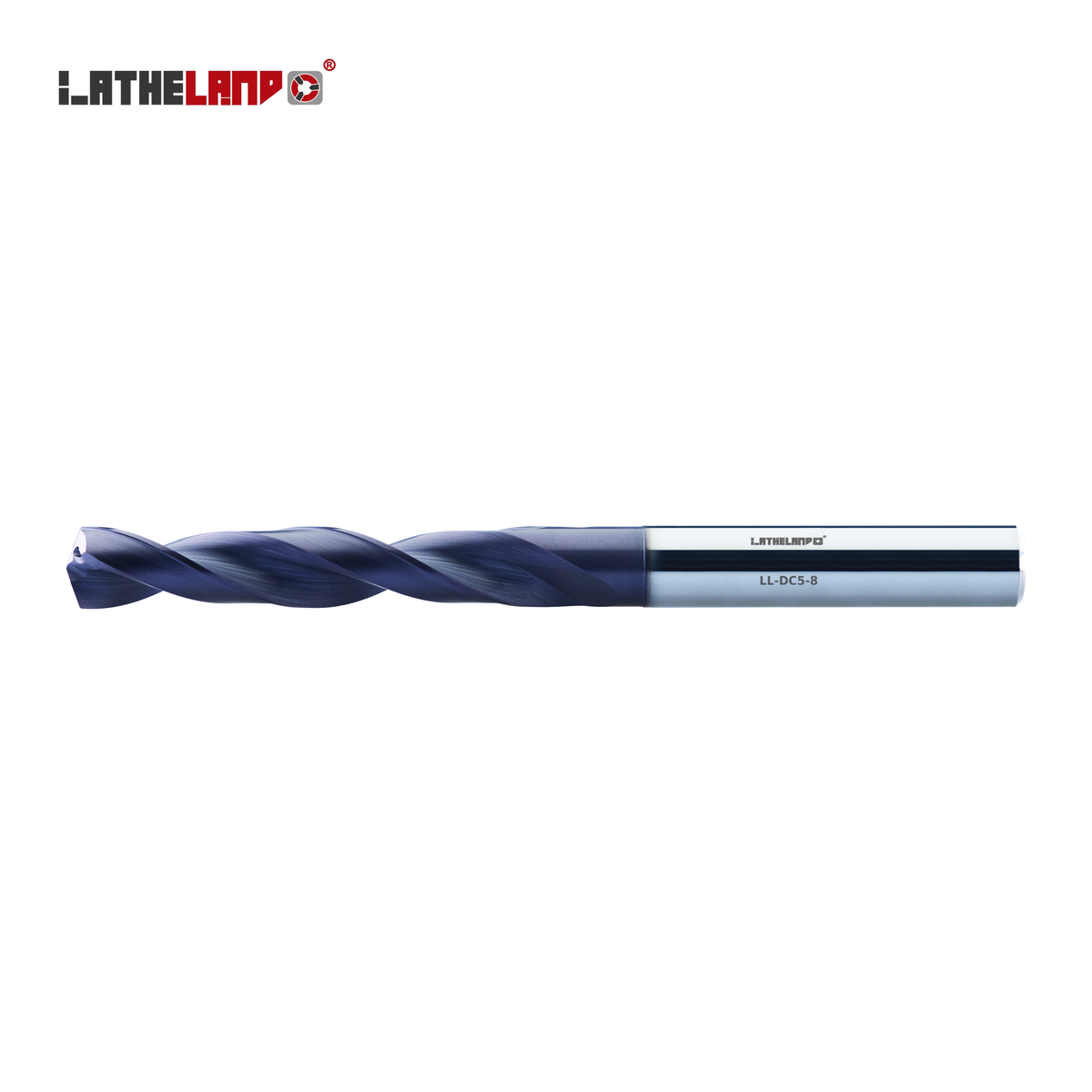

LATHELAND® solid carbide coolant-through drill 5×D, DIN 6537L, 140° point, TiAlN coated – side view

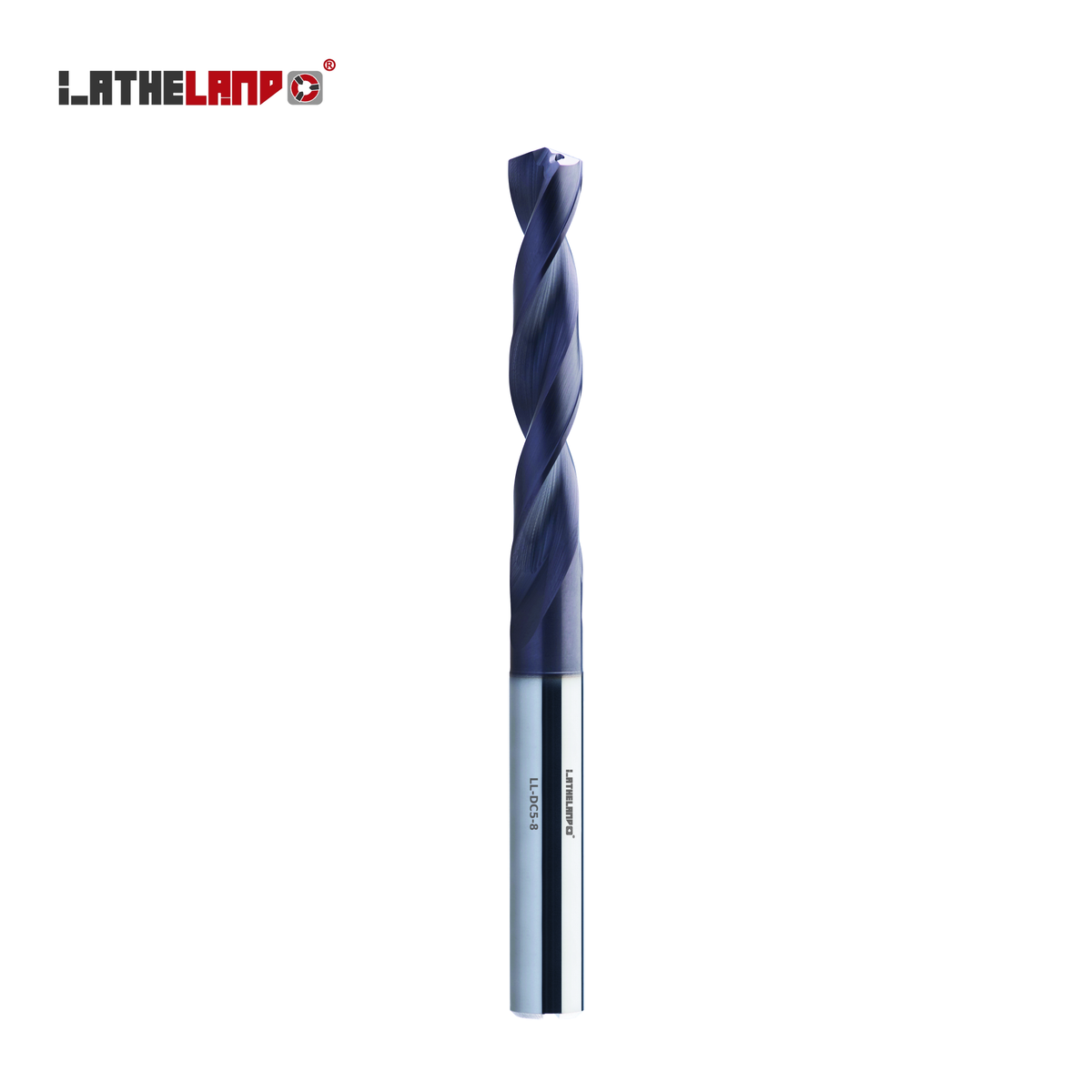

LATHELAND® solid carbide coolant-through drill 5×D, DIN 6537L, 140° point, TiAlN coated – vertical view
LATHELAND® solid carbide coolant-through drill 5×D, DIN 6537L, 140° point, TiAlN coated
LATHELAND® 5×D coolant-through drill – dimension drawing (D, 140°, l1, l2, l3, L, d2)
LATHELAND® solid carbide coolant-through drill 5×D, DIN 6537L, 140° point, TiAlN coated – side view
LATHELAND® solid carbide coolant-through drill 5×D, DIN 6537L, 140° point, TiAlN coated – vertical view
LATHELAND

LATHELAND® Solid Carbide Coolant-Through Drill 5×D, DIN 6537L

In stock
SKU: LL-DC5-3-S3
£52.94 GBP

Questions about this product, a larger quantity or a shipping quote? Contact us.

Solid carbide twist drill with internal coolant channels, for hole depths up to 5×D to DIN 6537L.

Specifications

Material Solid carbide
Coating TiAlN multilayer (hardness 3,300 HV, oxidation resistance up to 900 °C)
Flutes 2
Helix angle 30°
Point angle 140°
Standard DIN 6537L
Shank tolerance h6
Workpiece hardness up to 45 HRC
Sizes available 142

Features

  • Through-tool coolant to the cutting edges for deeper holes and higher feeds
  • 140° point angle for accurate centring
  • 30° helix for efficient chip evacuation
  • Cylindrical shank to DIN 6535 HA
  • For workpieces up to 45 HRC

Size table (all dimensions in mm)

SKU Ø D l1 usable l2 flute l3 shank L overall d2 shank
LL-DC5-3-S3 3 23 28 36 66 3
LL-DC5-3-S6 3 23 28 36 66 6
LL-DC5-3.1-S3 3.1 23 28 36 66 3
LL-DC5-3.1-S6 3.1 23 28 36 66 6
LL-DC5-3.2-S3 3.2 23 28 36 66 3
LL-DC5-3.2-S6 3.2 23 28 36 66 6
LL-DC5-3.3 3.3 23 28 36 66 6
LL-DC5-3.4 3.4 23 28 36 66 6
LL-DC5-3.5 3.5 23 28 36 66 6
LL-DC5-3.6 3.6 23 28 36 66 6
LL-DC5-3.7 3.7 23 28 36 66 6
LL-DC5-3.8 3.8 29 36 36 74 6
LL-DC5-3.9 3.9 29 36 36 74 6
LL-DC5-4-S4 4 29 36 36 74 4
LL-DC5-4-S6 4 29 36 36 74 6
LL-DC5-4.1-S4 4.1 29 36 36 74 4
LL-DC5-4.1-S6 4.1 29 36 36 74 6
LL-DC5-4.2-S4 4.2 29 36 36 74 4
LL-DC5-4.2-S6 4.2 29 36 36 74 6
LL-DC5-4.3 4.3 29 36 36 74 6
LL-DC5-4.4 4.4 29 36 36 74 6
LL-DC5-4.5 4.5 29 36 36 74 6
LL-DC5-4.6 4.6 29 36 36 74 6
LL-DC5-4.7 4.7 29 36 36 74 6
LL-DC5-4.8 4.8 35 44 36 82 6
LL-DC5-4.9 4.9 35 44 36 82 6
LL-DC5-5 5 35 44 36 82 6
LL-DC5-5.1 5.1 35 44 36 82 6
LL-DC5-5.2 5.2 35 44 36 82 6
LL-DC5-5.3 5.3 35 44 36 82 6
LL-DC5-5.4 5.4 35 44 36 82 6
LL-DC5-5.5 5.5 35 44 36 82 6
LL-DC5-5.6 5.6 35 44 36 82 6
LL-DC5-5.7 5.7 35 44 36 82 6
LL-DC5-5.8 5.8 35 44 36 82 6
LL-DC5-5.9 5.9 35 44 36 82 6
LL-DC5-6 6 35 44 36 82 6
LL-DC5-6.1-S6 6.1 35 44 36 82 6
LL-DC5-6.1-S8 6.1 43 53 36 91 8
LL-DC5-6.2 6.2 43 53 36 91 8
LL-DC5-6.3 6.3 43 53 36 91 8
LL-DC5-6.4 6.4 43 53 36 91 8
LL-DC5-6.5 6.5 43 53 36 91 8
LL-DC5-6.6 6.6 43 53 36 91 8
LL-DC5-6.7 6.7 43 53 36 91 8
LL-DC5-6.8 6.8 43 53 36 91 8
LL-DC5-6.9 6.9 43 53 36 91 8
LL-DC5-7 7 43 53 36 91 8
LL-DC5-7.1 7.1 43 53 36 91 8
LL-DC5-7.2 7.2 43 53 36 91 8
LL-DC5-7.3 7.3 43 53 36 91 8
LL-DC5-7.4 7.4 43 53 36 91 8
LL-DC5-7.5 7.5 43 53 36 91 8
LL-DC5-7.6 7.6 43 53 36 91 8
LL-DC5-7.7 7.7 43 53 36 91 8
LL-DC5-7.8 7.8 43 53 36 91 8
LL-DC5-7.9 7.9 43 53 36 91 8
LL-DC5-8 8 43 53 36 91 8
LL-DC5-8.1-S8 8.1 43 53 36 91 8
LL-DC5-8.1-S10 8.1 49 61 40 103 10
LL-DC5-8.2 8.2 49 61 40 103 10
LL-DC5-8.3 8.3 49 61 40 103 10
LL-DC5-8.4 8.4 49 61 40 103 10
LL-DC5-8.5 8.5 49 61 40 103 10
LL-DC5-8.6 8.6 49 61 40 103 10
LL-DC5-8.7 8.7 49 61 40 103 10
LL-DC5-8.8 8.8 49 61 40 103 10
LL-DC5-8.9 8.9 49 61 40 103 10
LL-DC5-9 9 49 61 40 103 10
LL-DC5-9.1 9.1 49 61 40 103 10
LL-DC5-9.2 9.2 49 61 40 103 10
LL-DC5-9.3 9.3 49 61 40 103 10
LL-DC5-9.4 9.4 49 61 40 103 10
LL-DC5-9.5 9.5 49 61 40 103 10
LL-DC5-9.6 9.6 49 61 40 103 10
LL-DC5-9.7 9.7 49 61 40 103 10
LL-DC5-9.8 9.8 49 61 40 103 10
LL-DC5-9.9 9.9 49 61 40 103 10
LL-DC5-10 10 49 61 40 103 10
LL-DC5-10.1 10.1 56 71 45 118 12
LL-DC5-10.2 10.2 56 71 45 118 12
LL-DC5-10.3 10.3 56 71 45 118 12
LL-DC5-10.4 10.4 56 71 45 118 12
LL-DC5-10.5 10.5 56 71 45 118 12
LL-DC5-10.6 10.6 56 71 45 118 12
LL-DC5-10.7 10.7 56 71 45 118 12
LL-DC5-10.8 10.8 56 71 45 118 12
LL-DC5-10.9 10.9 56 71 45 118 12
LL-DC5-11 11 56 71 45 118 12
LL-DC5-11.1 11.1 56 71 45 118 12
LL-DC5-11.2 11.2 56 71 45 118 12
LL-DC5-11.3 11.3 56 71 45 118 12
LL-DC5-11.4 11.4 56 71 45 118 12
LL-DC5-11.5 11.5 56 71 45 118 12
LL-DC5-11.6 11.6 56 71 45 118 12
LL-DC5-11.7 11.7 56 71 45 118 12
LL-DC5-11.8 11.8 56 71 45 118 12
LL-DC5-11.9 11.9 56 71 45 118 12
LL-DC5-12 12 56 71 45 118 12
LL-DC5-12.1 12.1 60 77 45 124 14
LL-DC5-12.2 12.2 60 77 45 124 14
LL-DC5-12.3 12.3 60 77 45 124 14
LL-DC5-12.4 12.4 60 77 45 124 14
LL-DC5-12.5 12.5 60 77 45 124 14
LL-DC5-12.6 12.6 60 77 45 124 14
LL-DC5-12.7 12.7 60 77 45 124 14
LL-DC5-12.8 12.8 60 77 45 124 14
LL-DC5-12.9 12.9 60 77 45 124 14
LL-DC5-13 13 60 77 45 124 14
LL-DC5-13.2 13.2 60 77 45 124 14
LL-DC5-13.3 13.3 60 77 45 124 14
LL-DC5-13.5 13.5 60 77 45 124 14
LL-DC5-13.6 13.6 60 77 45 124 14
LL-DC5-13.7 13.7 60 77 45 124 14
LL-DC5-13.8 13.8 60 77 45 124 14
LL-DC5-13.9 13.9 60 77 45 124 14
LL-DC5-14 14 60 77 45 124 14
LL-DC5-14.1 14.1 63 83 48 133 16
LL-DC5-14.2 14.2 63 83 48 133 16
LL-DC5-14.5 14.5 63 83 48 133 16
LL-DC5-14.7 14.7 63 83 48 133 16
LL-DC5-15 15 63 83 48 133 16
LL-DC5-15.2 15.2 63 83 48 133 16
LL-DC5-15.3 15.3 63 83 48 133 16
LL-DC5-15.5 15.5 63 83 48 133 16
LL-DC5-15.6 15.6 63 83 48 133 16
LL-DC5-15.7 15.7 63 83 48 133 16
LL-DC5-15.8 15.8 63 83 48 133 16
LL-DC5-15.9 15.9 63 83 48 133 16
LL-DC5-16 16 63 83 48 133 16
LL-DC5-16.5 16.5 71 93 48 143 18
LL-DC5-16.7 16.7 71 93 48 143 18
LL-DC5-17 17 71 93 48 143 18
LL-DC5-17.5 17.5 71 93 48 143 18
LL-DC5-17.7 17.7 71 93 48 143 18
LL-DC5-18 18 71 93 48 143 18
LL-DC5-18.5 18.5 77 101 50 153 20
LL-DC5-18.7 18.7 77 101 50 153 20
LL-DC5-19 19 77 101 50 153 20
LL-DC5-19.5 19.5 77 101 50 153 20
LL-DC5-19.7 19.7 77 101 50 153 20
LL-DC5-20 20 77 101 50 153 20

Recommended cutting data

Starting values for stable conditions with good coolant supply. Adjust for your machine, set-up and workholding. For diameters between the listed values, interpolate between the neighbouring rows.
Spindle speed n = Vc × 1000 / (π × D)  ·  Feed rate vf = n × fz × z (drills: vf = n × fn).

Drilling – conventional (through-coolant)
Workpiece material Carbon steel Alloy steel
520–1200 N/mm² 		Prehardened steel
35–45 HRC 		Stainless steel
high machinability 		Stainless steel
low machinability 		Grey cast iron Ductile cast iron Titanium alloy Nickel alloy Wrought aluminium
Si < 9% 		Cast aluminium
Si ≥ 9% 		Copper alloy
ISO group P01 P02 P03 M01 M02 K01 K02 S01 S02 N01 N02 N03
Vc (m/min) 110 80 40 35 30 85 65 22 15 240 200 160
Ø D (mm) fn (mm/rev)
3 0.069 0.065 0.073 0.039 0.044 0.058 0.046 0.046 0.038 0.069 0.065 0.079
4 0.099 0.095 0.100 0.057 0.067 0.081 0.063 0.067 0.058 0.097 0.091 0.109
5 0.131 0.128 0.130 0.074 0.080 0.104 0.081 0.080 0.070 0.127 0.120 0.141
6 0.166 0.166 0.162 0.089 0.100 0.128 0.100 0.108 0.088 0.159 0.150 0.176
7 0.204 0.208 0.196 0.113 0.121 0.156 0.120 0.118 0.100 0.195 0.184 0.212
8 0.244 0.253 0.230 0.129 0.142 0.185 0.142 0.156 0.133 0.232 0.216 0.250
9 0.288 0.303 0.268 0.146 0.164 0.210 0.165 0.175 0.133 0.273 0.254 0.290
10 0.334 0.357 0.307 0.158 0.180 0.239 0.186 0.188 0.160 0.314 0.292 0.332
11 0.384 0.414 0.348 0.182 0.211 0.276 0.211 0.214 0.160 0.359 0.334 0.376
12 0.436 0.476 0.390 0.200 0.225 0.309 0.222 0.250 0.200 0.406 0.370 0.422
13 0.459 0.488 0.416 0.222 0.225 0.333 0.250 0.250 0.200 0.431 0.400 0.446
14 0.481 0.496 0.440 0.250 0.257 0.345 0.267 0.250 0.200 0.451 0.417 0.469
15 0.499 0.499 0.463 0.238 0.243 0.353 0.279 0.300 0.200 0.475 0.437 0.491
16 0.517 0.498 0.486 0.271 0.283 0.388 0.300 0.280 0.267 0.492 0.460 0.510
17 0.532 0.493 0.507 0.271 0.283 0.406 0.300 0.280 0.267 0.511 0.474 0.529
18 0.546 0.484 0.526 0.257 0.267 0.394 0.317 0.350 0.267 0.521 0.489 0.545
19 0.557 0.471 0.545 0.300 0.267 0.413 0.345 0.350 0.267 0.532 0.506 0.560
20 0.565 0.452 0.562 0.283 0.300 0.429 0.336 0.325 0.233 0.541 0.522 0.573
Drilling – high performance (through-coolant)
Workpiece material Carbon steel Alloy steel
520–1200 N/mm² 		Prehardened steel
35–45 HRC 		Stainless steel
high machinability 		Stainless steel
low machinability 		Grey cast iron Ductile cast iron Titanium alloy Nickel alloy Wrought aluminium
Si < 9% 		Cast aluminium
Si ≥ 9% 		Copper alloy
ISO group P01 P02 P03 M01 M02 K01 K02 S01 S02 N01 N02 N03
Vc (m/min) 175 120 65 60 50 140 105 40 35 310 220 190
Ø D (mm) fn (mm/rev)
3 0.063 0.068 0.080 0.048 0.054 0.073 0.071 0.047 0.026 0.076 0.073 0.077
4 0.090 0.098 0.110 0.067 0.075 0.104 0.099 0.066 0.039 0.107 0.102 0.107
5 0.119 0.132 0.143 0.085 0.094 0.136 0.128 0.085 0.048 0.140 0.134 0.139
6 0.151 0.171 0.178 0.106 0.115 0.172 0.160 0.105 0.058 0.176 0.169 0.172
7 0.185 0.214 0.215 0.125 0.135 0.211 0.194 0.126 0.075 0.216 0.204 0.206
8 0.222 0.261 0.253 0.150 0.160 0.252 0.230 0.156 0.086 0.256 0.244 0.245
9 0.262 0.312 0.294 0.168 0.178 0.297 0.268 0.173 0.092 0.301 0.287 0.281
10 0.304 0.368 0.337 0.190 0.206 0.344 0.308 0.208 0.108 0.347 0.327 0.324
11 0.349 0.427 0.382 0.217 0.220 0.394 0.351 0.233 0.118 0.397 0.377 0.369
12 0.396 0.491 0.429 0.250 0.236 0.447 0.395 0.255 0.130 0.446 0.424 0.408
13 0.417 0.503 0.457 0.267 0.254 0.472 0.415 0.280 0.133 0.471 0.450 0.434
14 0.437 0.511 0.484 0.279 0.275 0.495 0.433 0.270 0.150 0.486 0.461 0.452
15 0.454 0.515 0.509 0.292 0.291 0.517 0.449 0.289 0.150 0.505 0.483 0.472
16 0.470 0.514 0.534 0.317 0.320 0.537 0.463 0.313 0.157 0.516 0.500 0.499
17 0.484 0.509 0.557 0.308 0.320 0.554 0.475 0.313 0.157 0.522 0.505 0.513
18 0.496 0.499 0.578 0.336 0.344 0.570 0.485 0.300 0.157 0.536 0.526 0.531
19 0.506 0.485 0.599 0.327 0.344 0.585 0.494 0.329 0.183 0.544 0.532 0.548
20 0.514 0.466 0.618 0.350 0.375 0.597 0.500 0.314 0.183 0.540 0.525 0.549
