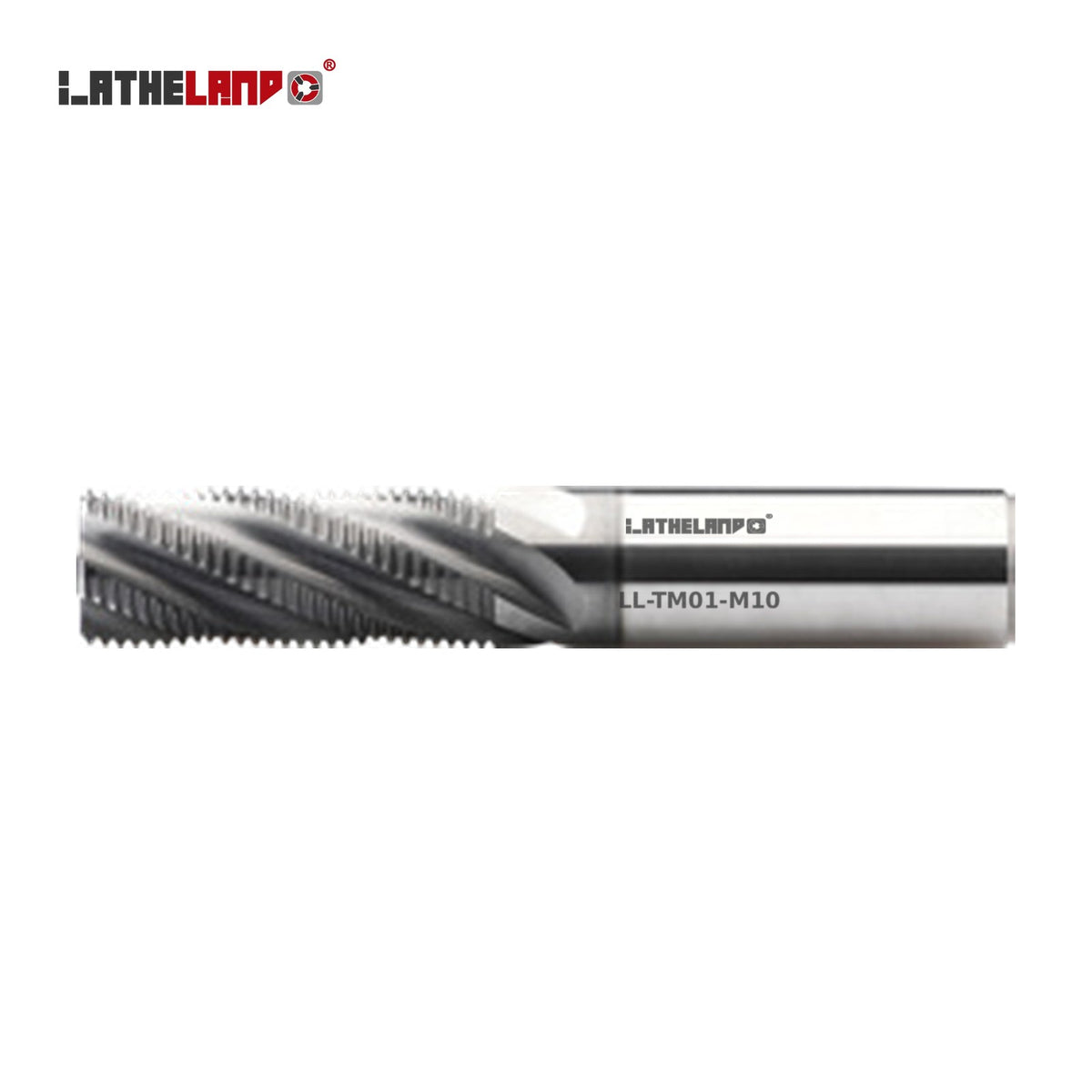

LATHELAND® Thread Mill, metric coarse & fine – TM01

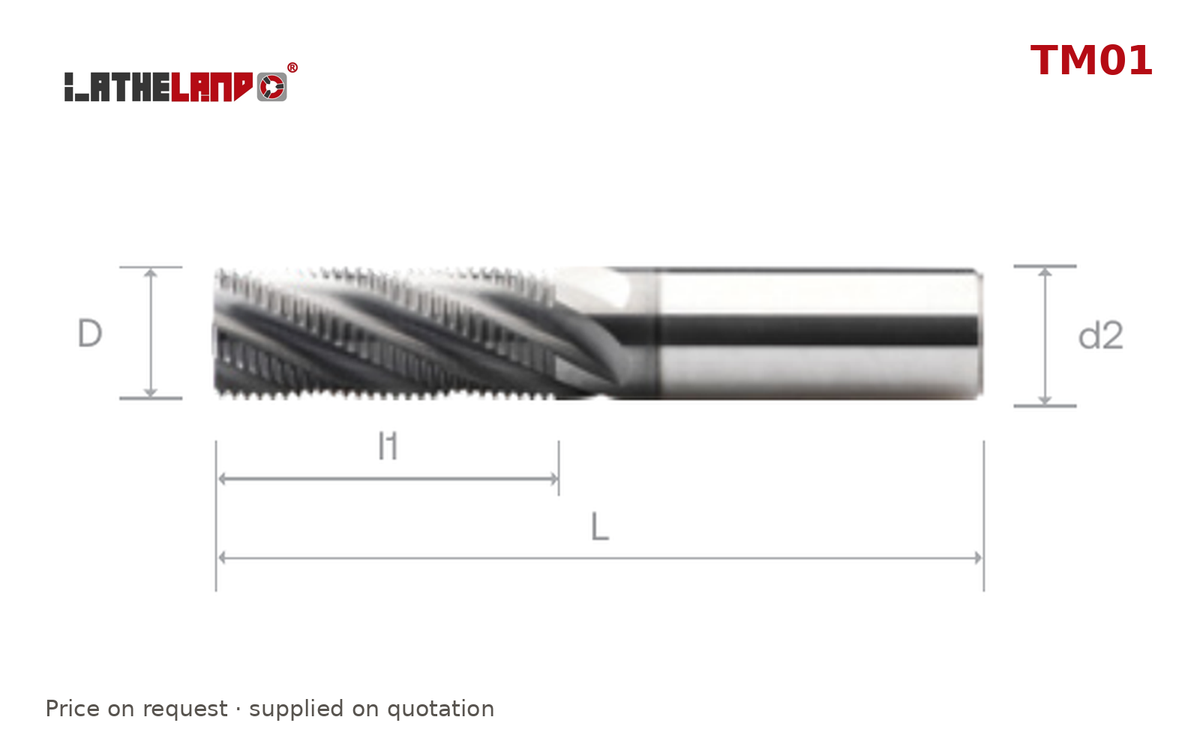

LATHELAND® Thread Mill, metric coarse & fine – TM01 – dimension drawing
LATHELAND® Thread Mill, metric coarse & fine – TM01
LATHELAND® Thread Mill, metric coarse & fine – TM01 – dimension drawing
LATHELAND

LATHELAND® Thread Mill, metric coarse & fine – TM01

Out of stock
SKU: LL-TM01-M6
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTM01 – AlCrN, coolant-through / M6 SKULL-TM01-M6

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Thread mills: Solid carbide thread mills for metric coarse and fine threads, with or without coolant-through.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series TM01
Material Solid carbide
Coating AlCrN
Flutes 3/4/5
Helix angle 30°
Best for steel, stainless steel, cast iron, aluminium & non-ferrous, titanium & superalloys
Range M6–M20
Sizes available 20
Price On request – supplied on quotation

Versions

Version Specification Sizes
TM01 AlCrN, coolant-through 6
TM01MF AlCrN, coolant-through, fine pitch 14

Size table (all dimensions in mm)

SKU Ø D L d2
LL-TM01-M6 M6
LL-TM01-M8 M8
LL-TM01-M10 M10
LL-TM01-M12 M12
LL-TM01-M14 M14
LL-TM01-M16 M16
LL-TM01MF-M8 M8
LL-TM01MF-M8x57-S6 M8 57 6
LL-TM01MF-M10 M10
LL-TM01MF-M12 M12
LL-TM01MF-M12x72 M12 72
LL-TM01MF-M12x72-S10 M12 72 10
LL-TM01MF-M14 M14
LL-TM01MF-M14x83-S10 M14 83 10
LL-TM01MF-M16 M16
LL-TM01MF-M16x83-S12 M16 83 12
LL-TM01MF-M18 M18
LL-TM01MF-M18x90-S14 M18 90 14
LL-TM01MF-M20 M20
LL-TM01MF-M20x92-S16 M20 92 16

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
