This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.
Stainless, titanium & superalloys: Variable-helix, chip-breaker and roughing end mills that resist chatter in tough, sticky materials.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | ST07 |
| Material | Solid carbide |
| Coating | AlCrN |
| Flutes | 4 |
| Helix angle | 40° |
| Workpiece hardness | up to 45 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys |
| Range | Ø3–20 mm |
| Sizes available | 204 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| ST07 | AlCrN | 115 |
| ST07W | AlCrN, Weldon shank | 89 |

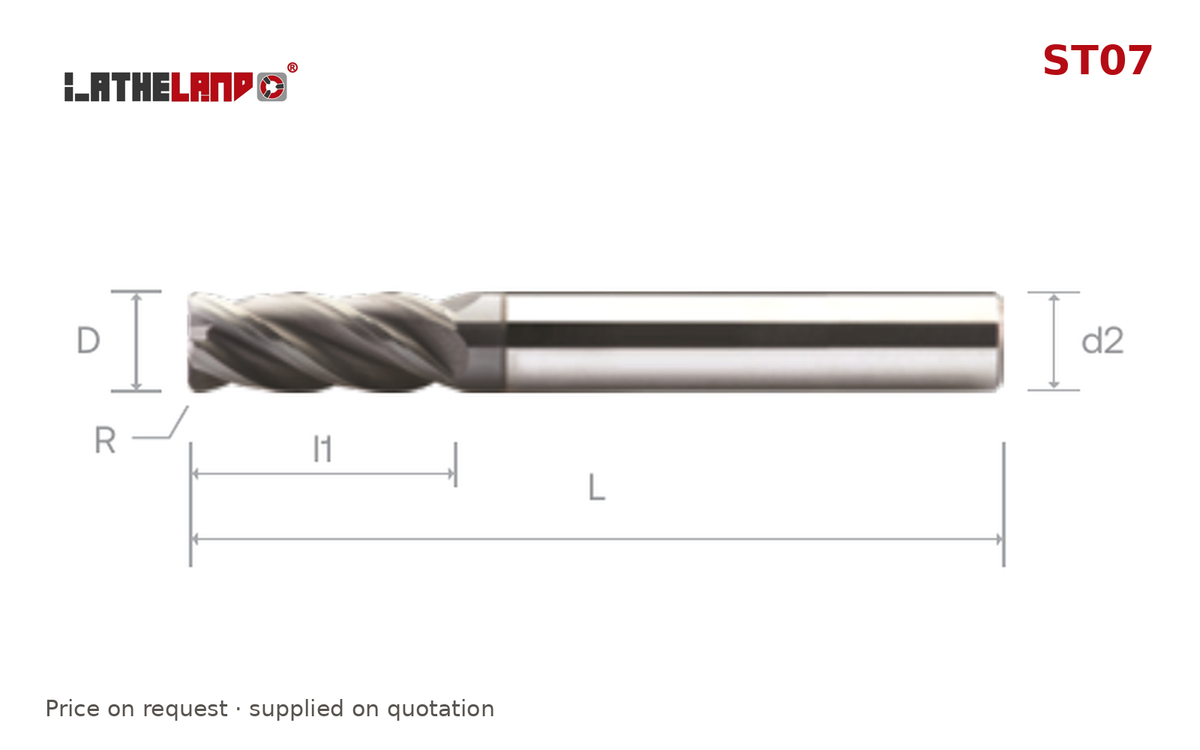

| SKU | Ø D | R | l1 | L | d2 |
|---|---|---|---|---|---|
| LL-ST07-3R0.3x40-S3 | 3 | 0.3 | 9 | 40 | 3 |
| LL-ST07-3R0.5x40-S3 | 3 | 0.5 | 9 | 40 | 3 |
| LL-ST07-3R0.3x40-S4 | 3 | 0.3 | 9 | 40 | 4 |
| LL-ST07-3R0.5x40-S4 | 3 | 0.5 | 9 | 40 | 4 |
| LL-ST07-3R0.3x50-S6 | 3 | 0.3 | 9 | 50 | 6 |
| LL-ST07-3R0.5x50-S6 | 3 | 0.5 | 9 | 50 | 6 |
| LL-ST07-3R0.3x57-S6 | 3 | 0.3 | 9 | 57 | 6 |
| LL-ST07-3R0.5x57-S6 | 3 | 0.5 | 9 | 57 | 6 |
| LL-ST07-4R0.3x50-S4 | 4 | 0.3 | 12 | 50 | 4 |
| LL-ST07-4R0.5x50-S4 | 4 | 0.5 | 12 | 50 | 4 |
| LL-ST07-4R1x50-S4 | 4 | 1 | 12 | 50 | 4 |
| LL-ST07-4R0.3x50-S6 | 4 | 0.3 | 12 | 50 | 6 |
| LL-ST07-4R0.5x50-S6 | 4 | 0.5 | 12 | 50 | 6 |
| LL-ST07-4R1x50-S6 | 4 | 1 | 12 | 50 | 6 |
| LL-ST07-4R0.3x57-S6 | 4 | 0.3 | 12 | 57 | 6 |
| LL-ST07-4R0.5x57-S6 | 4 | 0.5 | 12 | 57 | 6 |
| LL-ST07-4R1x57-S6 | 4 | 1 | 12 | 57 | 6 |
| LL-ST07-5R0.3x50-S5 | 5 | 0.3 | 15 | 50 | 5 |
| LL-ST07-5R0.5x50-S5 | 5 | 0.5 | 15 | 50 | 5 |
| LL-ST07-5R1x50-S5 | 5 | 1 | 15 | 50 | 5 |
| LL-ST07-5R0.3x50-S6 | 5 | 0.3 | 15 | 50 | 6 |
| LL-ST07-5R0.5x50-S6 | 5 | 0.5 | 15 | 50 | 6 |
| LL-ST07-5R1x50-S6 | 5 | 1 | 15 | 50 | 6 |
| LL-ST07-5R0.3x57-S6 | 5 | 0.3 | 15 | 57 | 6 |
| LL-ST07-5R0.5x57-S6 | 5 | 0.5 | 16 | 57 | 6 |
| LL-ST07-5R1x57-S6 | 5 | 1 | 57 | 6 | |
| LL-ST07-6R0.3x50-S6 | 6 | 0.3 | 16 | 50 | 6 |
| LL-ST07-6R0.5x50-S6 | 6 | 0.5 | 16 | 50 | 6 |
| LL-ST07-6R1x50-S6 | 6 | 1 | 16 | 50 | 6 |
| LL-ST07-6R0.3x57-S6 | 6 | 0.3 | 16 | 57 | 6 |
| LL-ST07-6R0.5x57-S6 | 6 | 0.5 | 16 | 57 | 6 |
| LL-ST07-6R1x57-S6 | 6 | 1 | 16 | 57 | 6 |
| LL-ST07-6R0.3x60-S6 | 6 | 0.3 | 20 | 60 | 6 |
| LL-ST07-6R0.5x60-S6 | 6 | 0.5 | 20 | 60 | 6 |
| LL-ST07-6R1x60-S6 | 6 | 1 | 20 | 60 | 6 |
| LL-ST07-8R0.3x64-S8 | 8 | 0.3 | 20 | 64 | 8 |
| LL-ST07-8R0.5x64-S8 | 8 | 0.5 | 20 | 64 | 8 |
| LL-ST07-8R1x64-S8 | 8 | 1 | 20 | 64 | 8 |
| LL-ST07-8R1.5x64-S8 | 8 | 1.5 | 20 | 64 | 8 |
| LL-ST07-8R2x64-S8 | 8 | 2 | 20 | 64 | 8 |
| LL-ST07-10R0.3x70-S10 | 10 | 0.3 | 20 | 70 | 10 |
| LL-ST07-10R0.5x70-S10 | 10 | 0.5 | 22 | 70 | 10 |
| LL-ST07-10R1x70-S10 | 10 | 1 | 22 | 70 | 10 |
| LL-ST07-10R1.5x70-S10 | 10 | 1.5 | 22 | 70 | 10 |
| LL-ST07-10R2x70-S10 | 10 | 2 | 22 | 70 | 10 |
| LL-ST07-10R0.3x72-S10 | 10 | 0.3 | 22 | 72 | 10 |
| LL-ST07-10R0.5x72-S10 | 10 | 0.5 | 22 | 72 | 10 |
| LL-ST07-10R1x72-S10 | 10 | 1 | 22 | 72 | 10 |
| LL-ST07-10R0.3x75-S10 | 10 | 0.3 | 22 | 75 | 10 |
| LL-ST07-10R0.5x75-S10 | 10 | 0.5 | 22 | 75 | 10 |
| LL-ST07-10R1x75-S10 | 10 | 1 | 22 | 75 | 10 |
| LL-ST07-10R1.5x75-S10 | 10 | 1.5 | 25 | 75 | 10 |
| LL-ST07-10R2x75-S10 | 10 | 2 | 25 | 75 | 10 |
| LL-ST07-12R0.3x75-S12 | 12 | 0.3 | 25 | 75 | 12 |
| LL-ST07-12R0.5x75-S12 | 12 | 0.5 | 25 | 75 | 12 |
| LL-ST07-12R1x75-S12 | 12 | 1 | 25 | 75 | 12 |
| LL-ST07-12R1.5x75-S12 | 12 | 1.5 | 25 | 75 | 12 |
| LL-ST07-12R2x75-S12 | 12 | 2 | 25 | 75 | 12 |
| LL-ST07-12R2.5x75-S12 | 12 | 2.5 | 25 | 75 | 12 |
| LL-ST07-12R3x75-S12 | 12 | 3 | 25 | 75 | 12 |
| LL-ST07-12R0.3x83-S12 | 12 | 0.3 | 25 | 83 | 12 |
| LL-ST07-12R0.5x83-S12 | 12 | 0.5 | 26 | 83 | 12 |
| LL-ST07-12R1x83-S12 | 12 | 1 | 26 | 83 | 12 |
| LL-ST07-12R2x83-S12 | 12 | 2 | 26 | 83 | 12 |
| LL-ST07-12R2.5x83-S12 | 12 | 2.5 | 26 | 83 | 12 |
| LL-ST07-12R3x83-S12 | 12 | 3 | 26 | 83 | 12 |
| LL-ST07-14R0.3x83-S14 | 14 | 0.3 | 26 | 83 | 14 |
| LL-ST07-14R0.5x83-S14 | 14 | 0.5 | 26 | 83 | 14 |
| LL-ST07-14R1x83-S14 | 14 | 1 | 83 | 14 | |
| LL-ST07-14R1.5x83-S14 | 14 | 1.5 | 83 | 14 | |
| LL-ST07-14R2x83-S14 | 14 | 2 | 83 | 14 | |
| LL-ST07-14R3x83-S14 | 14 | 3 | 83 | 14 | |
| LL-ST07-14R0.5x90-S14 | 14 | 0.5 | 90 | 14 | |
| LL-ST07-14R1x90-S14 | 14 | 1 | 32 | 90 | 14 |
| LL-ST07-14R1.5x90-S14 | 14 | 1.5 | 90 | 14 | |
| LL-ST07-14R2x90-S14 | 14 | 2 | 32 | 90 | 14 |
| LL-ST07-14R3x90-S14 | 14 | 3 | 32 | 90 | 14 |
| LL-ST07-16R0.5x90-S16 | 16 | 0.5 | 32 | 90 | 16 |
| LL-ST07-16R1x90-S16 | 16 | 1 | 32 | 90 | 16 |
| LL-ST07-16R1.5x90-S16 | 16 | 1.5 | 32 | 90 | 16 |
| LL-ST07-16R2x90-S16 | 16 | 2 | 32 | 90 | 16 |
| LL-ST07-16R2.5x90-S16 | 16 | 2.5 | 32 | 90 | 16 |
| LL-ST07-16R3x90-S16 | 16 | 3 | 32 | 90 | 16 |
| LL-ST07-16R4x90-S16 | 16 | 4 | 32 | 90 | 16 |
| LL-ST07-16R0.3x92-S16 | 16 | 0.3 | 92 | 16 | |
| LL-ST07-16R0.5x92-S16 | 16 | 0.5 | 92 | 16 | |
| LL-ST07-16R1x92-S16 | 16 | 1 | 92 | 16 | |
| LL-ST07-16R2x92-S16 | 16 | 2 | 92 | 16 | |
| LL-ST07-16R2.5x92-S16 | 16 | 2.5 | 92 | 16 | |
| LL-ST07-16R3x92-S16 | 16 | 3 | 92 | 16 | |
| LL-ST07-16R4x92-S16 | 16 | 4 | 92 | 16 | |
| LL-ST07-18R0.3x92-S18 | 18 | 0.3 | 92 | 18 | |
| LL-ST07-18R0.5x92-S18 | 18 | 0.5 | 92 | 18 | |
| LL-ST07-18R1x92-S18 | 18 | 1 | 92 | 18 | |
| LL-ST07-18R2x92-S18 | 18 | 2 | 92 | 18 | |
| LL-ST07-18R3x92-S18 | 18 | 3 | 92 | 18 | |
| LL-ST07-18R0.5x100-S18 | 18 | 0.5 | 100 | 18 | |
| LL-ST07-18R1x100-S18 | 18 | 1 | 100 | 18 | |
| LL-ST07-18R1.5x100-S18 | 18 | 1.5 | 38 | 100 | 18 |
| LL-ST07-18R2x100-S18 | 18 | 2 | 38 | 100 | 18 |
| LL-ST07-18R3x100-S18 | 18 | 3 | 38 | 100 | 18 |
| LL-ST07-20R0.5x100-S20 | 20 | 0.5 | 100 | 20 | |
| LL-ST07-20R1x100-S20 | 20 | 1 | 38 | 100 | 20 |
| LL-ST07-20R1.5x100-S20 | 20 | 1.5 | 38 | 100 | 20 |
| LL-ST07-20R2x100-S20 | 20 | 2 | 38 | 100 | 20 |
| LL-ST07-20R2.5x100-S20 | 20 | 2.5 | 38 | 100 | 20 |
| LL-ST07-20R3x100-S20 | 20 | 3 | 38 | 100 | 20 |
| LL-ST07-20R4x100-S20 | 20 | 4 | 38 | 100 | 20 |
| LL-ST07-20R0.3x104-S20 | 20 | 0.3 | 104 | 20 | |
| LL-ST07-20R0.5x104-S20 | 20 | 0.5 | 104 | 20 | |
| LL-ST07-20R1x104-S20 | 20 | 1 | 104 | 20 | |
| LL-ST07-20R2x104-S20 | 20 | 2 | 104 | 20 | |
| LL-ST07-20R2.5x104-S20 | 20 | 2.5 | 104 | 20 | |
| LL-ST07-20R3x104-S20 | 20 | 3 | 104 | 20 | |
| LL-ST07-20R4x104-S20 | 20 | 4 | 104 | 20 | |
| LL-ST07W-6R0.3x50 | 6 | 0.3 | 16 | 50 | 6 |
| LL-ST07W-6R0.5x50 | 6 | 0.5 | 16 | 50 | 6 |
| LL-ST07W-6R1x50 | 6 | 1 | 16 | 50 | 6 |
| LL-ST07W-6R0.3x57 | 6 | 0.3 | 16 | 57 | 6 |
| LL-ST07W-6R0.5x57 | 6 | 0.5 | 16 | 57 | 6 |
| LL-ST07W-6R1x57 | 6 | 1 | 16 | 57 | 6 |
| LL-ST07W-6R0.3x60 | 6 | 0.3 | 20 | 60 | 6 |
| LL-ST07W-6R0.5x60 | 6 | 0.5 | 20 | 60 | 6 |
| LL-ST07W-6R1x60 | 6 | 1 | 20 | 60 | 6 |
| LL-ST07W-8R0.3x64 | 8 | 0.3 | 20 | 64 | 8 |
| LL-ST07W-8R0.5x64 | 8 | 0.5 | 20 | 64 | 8 |
| LL-ST07W-8R1x64 | 8 | 1 | 20 | 64 | 8 |
| LL-ST07W-8R1.5x64 | 8 | 1.5 | 20 | 64 | 8 |
| LL-ST07W-8R2x64 | 8 | 2 | 20 | 64 | 8 |
| LL-ST07W-10R0.3x70 | 10 | 0.3 | 20 | 70 | 10 |
| LL-ST07W-10R0.5x70 | 10 | 0.5 | 22 | 70 | 10 |
| LL-ST07W-10R1x70 | 10 | 1 | 22 | 70 | 10 |
| LL-ST07W-10R1.5x70 | 10 | 1.5 | 22 | 70 | 10 |
| LL-ST07W-10R2x70 | 10 | 2 | 22 | 70 | 10 |
| LL-ST07W-10R0.3x72 | 10 | 0.3 | 22 | 72 | 10 |
| LL-ST07W-10R0.5x72 | 10 | 0.5 | 22 | 72 | 10 |
| LL-ST07W-10R1x72 | 10 | 1 | 22 | 72 | 10 |
| LL-ST07W-10R0.3x75 | 10 | 0.3 | 22 | 75 | 10 |
| LL-ST07W-10R0.5x75 | 10 | 0.5 | 22 | 75 | 10 |
| LL-ST07W-10R1x75 | 10 | 1 | 22 | 75 | 10 |
| LL-ST07W-10R1.5x75 | 10 | 1.5 | 25 | 75 | 10 |
| LL-ST07W-10R2x75 | 10 | 2 | 25 | 75 | 10 |
| LL-ST07W-12R0.3x75 | 12 | 0.3 | 25 | 75 | 12 |
| LL-ST07W-12R0.5x75 | 12 | 0.5 | 25 | 75 | 12 |
| LL-ST07W-12R1x75 | 12 | 1 | 25 | 75 | 12 |
| LL-ST07W-12R1.5x75 | 12 | 1.5 | 25 | 75 | 12 |
| LL-ST07W-12R2x75 | 12 | 2 | 25 | 75 | 12 |
| LL-ST07W-12R2.5x75 | 12 | 2.5 | 25 | 75 | 12 |
| LL-ST07W-12R3x75 | 12 | 3 | 25 | 75 | 12 |
| LL-ST07W-12R0.3x83 | 12 | 0.3 | 25 | 83 | 12 |
| LL-ST07W-12R0.5x83 | 12 | 0.5 | 26 | 83 | 12 |
| LL-ST07W-12R1x83 | 12 | 1 | 26 | 83 | 12 |
| LL-ST07W-12R2x83 | 12 | 2 | 26 | 83 | 12 |
| LL-ST07W-12R2.5x83 | 12 | 2.5 | 26 | 83 | 12 |
| LL-ST07W-12R3x83 | 12 | 3 | 26 | 83 | 12 |
| LL-ST07W-14R0.3x83 | 14 | 0.3 | 26 | 83 | 14 |
| LL-ST07W-14R0.5x83 | 14 | 0.5 | 26 | 83 | 14 |
| LL-ST07W-14R1x83 | 14 | 1 | 83 | 14 | |
| LL-ST07W-14R1.5x83 | 14 | 1.5 | 83 | 14 | |
| LL-ST07W-14R2x83 | 14 | 2 | 83 | 14 | |
| LL-ST07W-14R3x83 | 14 | 3 | 83 | 14 | |
| LL-ST07W-14R0.5x90 | 14 | 0.5 | 90 | 14 | |
| LL-ST07W-14R1x90 | 14 | 1 | 32 | 90 | 14 |
| LL-ST07W-14R1.5x90 | 14 | 1.5 | 32 | 90 | 14 |
| LL-ST07W-14R2x90 | 14 | 2 | 32 | 90 | 14 |
| LL-ST07W-14R3x90 | 14 | 3 | 32 | 90 | 14 |
| LL-ST07W-16R0.5x90 | 16 | 0.5 | 32 | 90 | 16 |
| LL-ST07W-16R1x90 | 16 | 1 | 32 | 90 | 16 |
| LL-ST07W-16R1.5x90 | 16 | 1.5 | 32 | 90 | 16 |
| LL-ST07W-16R2x90 | 16 | 2 | 32 | 90 | 16 |
| LL-ST07W-16R2.5x90 | 16 | 2.5 | 32 | 90 | 16 |
| LL-ST07W-16R3x90 | 16 | 3 | 32 | 90 | 16 |
| LL-ST07W-16R4x90 | 16 | 4 | 32 | 90 | 16 |
| LL-ST07W-16R0.3x92 | 16 | 0.3 | 92 | 16 | |
| LL-ST07W-16R0.5x92 | 16 | 0.5 | 92 | 16 | |
| LL-ST07W-16R1x92 | 16 | 1 | 92 | 16 | |
| LL-ST07W-16R2x92 | 16 | 2 | 92 | 16 | |
| LL-ST07W-16R2.5x92 | 16 | 2.5 | 92 | 16 | |
| LL-ST07W-16R3x92 | 16 | 3 | 92 | 16 | |
| LL-ST07W-16R4x92 | 16 | 4 | 92 | 16 | |
| LL-ST07W-18R0.3x92 | 18 | 0.3 | 92 | 18 | |
| LL-ST07W-18R0.5x92 | 18 | 0.5 | 92 | 18 | |
| LL-ST07W-18R1x92 | 18 | 1 | 92 | 18 | |
| LL-ST07W-18R2x92 | 18 | 2 | 92 | 18 | |
| LL-ST07W-18R3x92 | 18 | 3 | 92 | 18 | |
| LL-ST07W-18R0.5x100 | 18 | 0.5 | 100 | 18 | |
| LL-ST07W-18R1x100 | 18 | 1 | 100 | 18 | |
| LL-ST07W-18R1.5x100 | 18 | 1.5 | 38 | 100 | 18 |
| LL-ST07W-18R2x100 | 18 | 2 | 38 | 100 | 18 |
| LL-ST07W-18R3x100 | 18 | 3 | 38 | 100 | 18 |
| LL-ST07W-20R0.5x100 | 20 | 0.5 | 38 | 100 | 20 |
| LL-ST07W-20R1x100 | 20 | 1 | 38 | 100 | 20 |
| LL-ST07W-20R1.5x100 | 20 | 1.5 | 38 | 100 | 20 |
| LL-ST07W-20R2x100 | 20 | 2 | 38 | 100 | 20 |
| LL-ST07W-20R2.5x100 | 20 | 2.5 | 38 | 100 | 20 |
| LL-ST07W-20R3x100 | 20 | 3 | 38 | 100 | 20 |
| LL-ST07W-20R4x100 | 20 | 4 | 38 | 100 | 20 |
| LL-ST07W-20R0.3x104 | 20 | 0.3 | 104 | 20 | |
| LL-ST07W-20R0.5x104 | 20 | 0.5 | 104 | 20 | |
| LL-ST07W-20R1x104 | 20 | 1 | 104 | 20 | |
| LL-ST07W-20R2x104 | 20 | 2 | 104 | 20 | |
| LL-ST07W-20R2.5x104 | 20 | 2.5 | 104 | 20 | |
| LL-ST07W-20R3x104 | 20 | 3 | 104 | 20 | |
| LL-ST07W-20R4x104 | 20 | 4 | 104 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
