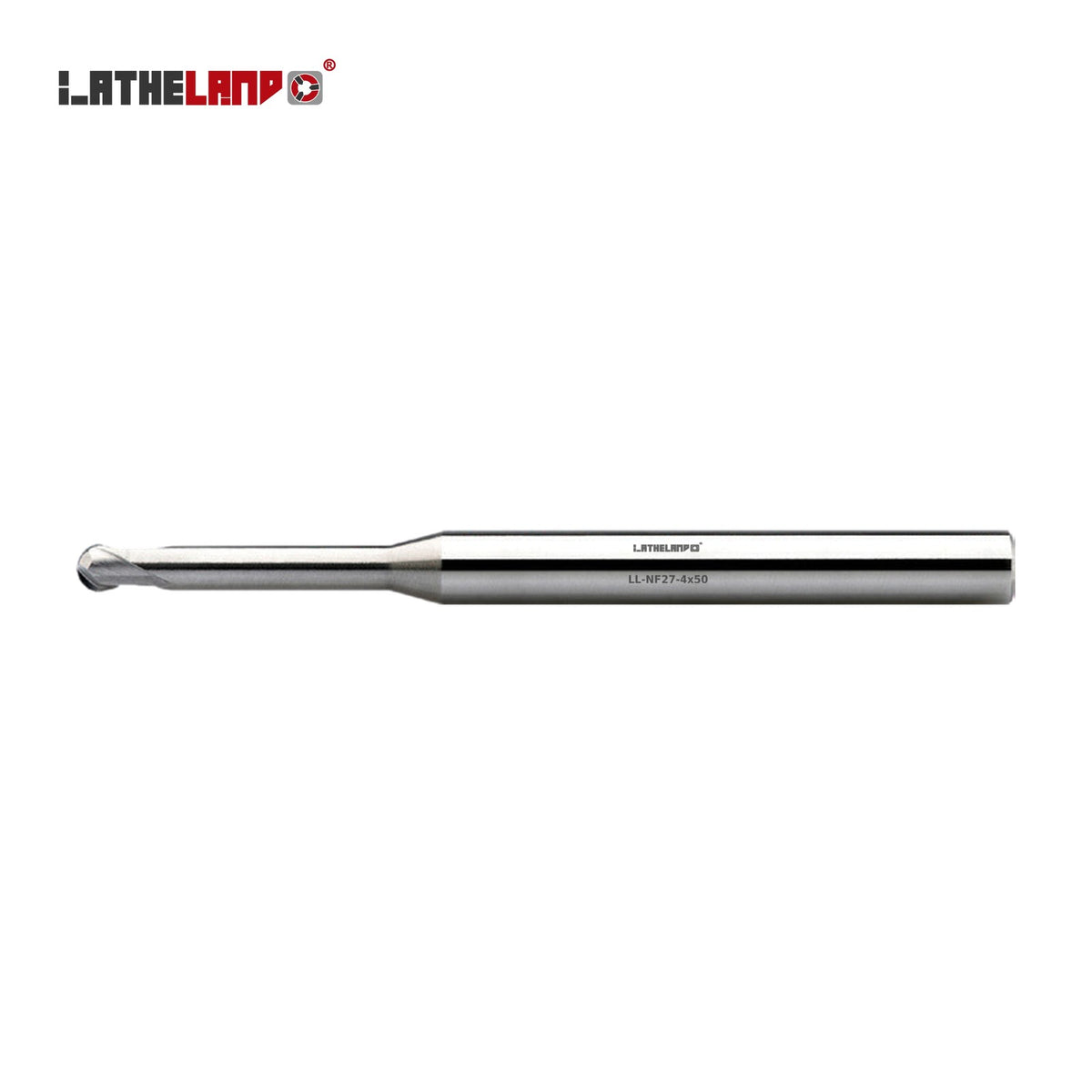

LATHELAND® Miniature Aluminium Ball Nose Cutter with Long Neck, 2 Flutes – NF27

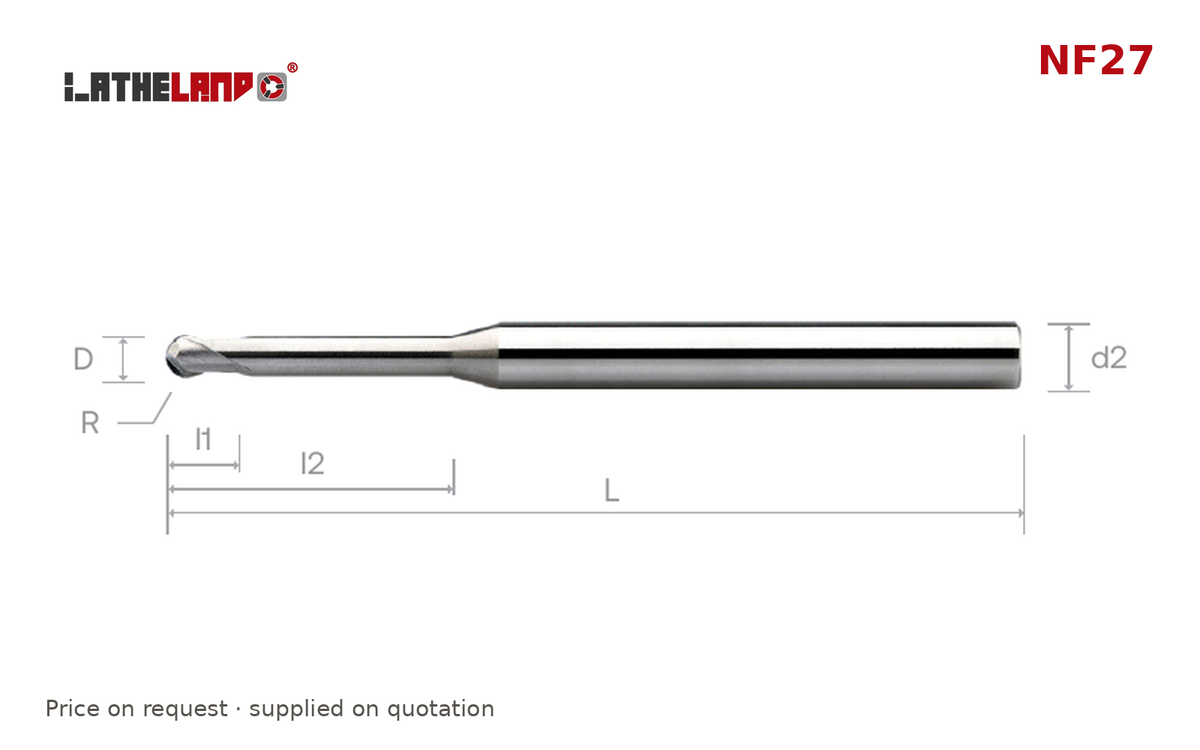

LATHELAND® Miniature Aluminium Ball Nose Cutter with Long Neck, 2 Flutes – NF27 – dimension drawing
LATHELAND® Miniature Aluminium Ball Nose Cutter with Long Neck, 2 Flutes – NF27
LATHELAND® Miniature Aluminium Ball Nose Cutter with Long Neck, 2 Flutes – NF27 – dimension drawing
LATHELAND

LATHELAND® Miniature Aluminium Ball Nose Cutter with Long Neck, 2 Flutes – NF27

Out of stock
SKU: LL-NF27-0.2x50
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedØ0.2 · L50 SKULL-NF27-0.2x50

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Aluminium & non-ferrous: Polished, sharp-edged tools for aluminium alloys, copper and non-ferrous metals.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series NF27
Material Solid carbide
Coating Uncoated, polished
Flutes 2
Helix angle 30°
Best for aluminium & non-ferrous, graphite & plastics
Range Ø0.2–4 mm
Sizes available 115
Price On request – supplied on quotation

Size table (all dimensions in mm)

SKU Ø D R l1 l2 L d1 d2
LL-NF27-0.2x50 0.2 0.1 0.2 50 4
LL-NF27-0.2x50N0.5 0.2 0.1 0.2 0.5 50 0.17 4
LL-NF27-0.2x50N1 0.2 0.1 0.2 1 50 0.17 4
LL-NF27-0.2x50N1.5 0.2 0.1 0.2 1.5 50 0.17 4
LL-NF27-0.3x50 0.3 0.15 0.3 50 4
LL-NF27-0.3x50N1 0.3 0.15 0.3 1 50 0.27 4
LL-NF27-0.3x50N2 0.3 0.15 0.3 2 50 0.27 4
LL-NF27-0.3x50N3 0.3 0.15 0.3 3 50 0.27 4
LL-NF27-0.4x50 0.4 0.2 0.3 50 4
LL-NF27-0.4x50N1 0.4 0.2 0.4 1 50 0.37 4
LL-NF27-0.4x50N2 0.4 0.2 0.4 2 50 0.37 4
LL-NF27-0.4x50N3 0.4 0.2 0.4 3 50 0.37 4
LL-NF27-0.4x50N4 0.4 0.2 0.4 4 50 0.37 4
LL-NF27-0.4x50N5 0.4 0.2 0.4 5 50 0.37 4
LL-NF27-0.5x50 0.5 0.25 0.4 50 4
LL-NF27-0.5x50N2 0.5 0.25 0.4 2 50 0.45 4
LL-NF27-0.5x50N3 0.5 0.25 3 50 4
LL-NF27-0.5x50N4 0.5 0.25 0.4 4 50 0.45 4
LL-NF27-0.5x50N5 0.5 0.25 0.4 5 50 0.45 4
LL-NF27-0.5x50N6 0.5 0.25 0.4 6 50 0.45 4
LL-NF27-0.5x50N8 0.5 0.25 0.4 8 50 0.45 4
LL-NF27-0.6x50 0.6 0.3 0.5 50 4
LL-NF27-0.6x50N2 0.6 0.3 0.5 2 50 0.55 4
LL-NF27-0.6x50N3 0.6 0.3 0.5 3 50 0.55 4
LL-NF27-0.6x50N4 0.6 0.3 0.5 4 50 0.55 4
LL-NF27-0.6x50N5 0.6 0.3 0.5 5 50 0.55 4
LL-NF27-0.6x50N6 0.6 0.3 0.5 6 50 0.55 4
LL-NF27-0.6x50N8 0.6 0.3 0.5 8 50 0.55 4
LL-NF27-0.8x50 0.8 0.4 0.6 50 4
LL-NF27-0.8x50N2 0.8 0.4 0.6 2 50 0.75 4
LL-NF27-0.8x50N4 0.8 0.4 0.6 4 50 0.75 4
LL-NF27-0.8x50N5 0.8 0.4 0.6 5 50 0.75 4
LL-NF27-0.8x50N6 0.8 0.4 0.6 6 50 0.75 4
LL-NF27-0.8x50N7 0.8 0.4 0.6 7 50 0.75 4
LL-NF27-0.8x50N8 0.8 0.4 0.6 8 50 0.75 4
LL-NF27-0.8x50N10 0.8 0.4 0.6 10 50 0.75 4
LL-NF27-1x50 1 0.5 0.6 50 4
LL-NF27-1x50N3 1 0.5 3 50 0.9 4
LL-NF27-1x50N4 1 0.5 4 50 2.8 4
LL-NF27-1x50N5 1 0.5 0.8 5 50 0.9 4
LL-NF27-1x50N6 1 0.5 0.8 6 50 0.9 4
LL-NF27-1x50N7 1 0.5 0.8 7 50 0.9 4
LL-NF27-1x50N8 1 0.5 0.8 8 50 0.9 4
LL-NF27-1x50N9 1 0.5 9 50 4
LL-NF27-1x50N10 1 0.5 0.8 10 50 0.9 4
LL-NF27-1x50N12 1 0.5 0.8 12 50 0.9 4
LL-NF27-1x50N14 1 0.5 0.8 14 50 0.9 4
LL-NF27-1x50N16 1 0.5 0.8 16 50 0.9 4
LL-NF27-1x60 1 0.5 1 60 4
LL-NF27-1x60N20 1 0.5 1 20 60 0.9 4
LL-NF27-1.2x50 1.2 0.6 1 50 4
LL-NF27-1.2x50N6 1.2 0.6 1 6 50 1.1 4
LL-NF27-1.2x50N8 1.2 0.6 1 8 50 1.1 4
LL-NF27-1.2x50N10 1.2 0.6 1 10 50 1.1 4
LL-NF27-1.2x50N12 1.2 0.6 1 12 50 1.1 4
LL-NF27-1.4x50 1.4 0.7 1.1 50 4
LL-NF27-1.4x50N8 1.4 0.7 1.1 8 50 1.3 4
LL-NF27-1.4x50N12 1.4 0.7 1.1 12 50 1.3 4
LL-NF27-1.4x50N16 1.4 0.7 1.1 16 50 1.3 4
LL-NF27-1.5x50 1.5 0.75 1.2 50 4
LL-NF27-1.5x50N8 1.5 0.75 1.2 8 50 1.4 4
LL-NF27-1.5x50N12 1.5 0.75 1.2 12 50 1.4 4
LL-NF27-1.5x50N16 1.5 0.75 1.2 16 50 1.4 4
LL-NF27-1.5x60 1.5 0.75 1.2 60 4
LL-NF27-1.5x60N18 1.5 0.75 1.2 18 60 1.4 4
LL-NF27-1.6x50 1.6 0.8 1.3 50 4
LL-NF27-1.6x50N8 1.6 0.8 1.3 8 50 1.5 4
LL-NF27-1.6x50N12 1.6 0.8 1.3 12 50 1.5 4
LL-NF27-1.6x50N16 1.6 0.8 1.3 16 50 1.5 4
LL-NF27-1.6x60 1.6 0.8 1.3 60 4
LL-NF27-1.6x60N20 1.6 0.8 1.3 20 60 1.5 4
LL-NF27-1.8x50 1.8 0.9 1.4 50 4
LL-NF27-1.8x50N8 1.8 0.9 1.4 8 50 1.7 4
LL-NF27-1.8x50N12 1.8 0.9 1.4 12 50 1.7 4
LL-NF27-1.8x50N16 1.8 0.9 1.4 16 50 1.7 4
LL-NF27-1.8x60 1.8 0.9 1.4 60 4
LL-NF27-1.8x60N20 1.8 0.9 1.4 20 60 1.7 4
LL-NF27-2x50 2 1 1.4 50 4
LL-NF27-2x50N4 2 1 1.4 4 50 1.9 4
LL-NF27-2x50N6 2 1 1.6 6 50 1.9 4
LL-NF27-2x50N8 2 1 1.6 8 50 1.9 4
LL-NF27-2x50N10 2 1 1.6 10 50 1.9 4
LL-NF27-2x50N12 2 1 1.6 12 50 1.9 4
LL-NF27-2x50N14 2 1 1.6 14 50 1.9 4
LL-NF27-2x50N16 2 1 1.6 16 50 1.9 4
LL-NF27-2x60 2 1 1.6 60 4
LL-NF27-2x60N18 2 1 1.6 18 60 1.9 4
LL-NF27-2x60N20 2 1 1.6 20 60 1.9 4
LL-NF27-2x60N22 2 1 1.6 22 60 4
LL-NF27-2x75 2 1 1.6 75 1.9 4
LL-NF27-2x75N25 2 1 25 75 1.9 4
LL-NF27-2x75N30 2 1 30 75 1.9 4
LL-NF27-3x50 3 1.5 2.4 50 6
LL-NF27-3x50N8 3 1.5 2.4 8 50 2.8 6
LL-NF27-3x50N10 3 1.5 2.4 10 50 2.8 6
LL-NF27-3x60 3 1.5 2.4 60 6
LL-NF27-3x60N16 3 1.5 2.4 16 60 2.8 6
LL-NF27-3x60N20 3 1.5 2.4 20 60 2.8 6
LL-NF27-3x75 3 1.5 2.4 75 6
LL-NF27-3x75N25 3 1.5 2.4 25 75 2.8 6
LL-NF27-3x75N30 3 1.5 2.4 30 75 2.8 6
LL-NF27-3x75N35 3 1.5 2.4 35 75 2.8 6
LL-NF27-4x50 4 2 50 6
LL-NF27-4x50N10 4 2 3.2 10 50 3.7 6
LL-NF27-4x60 4 2 3.2 60 6
LL-NF27-4x60N16 4 2 3.2 16 60 3.7 6
LL-NF27-4x60N20 4 2 3.2 20 60 3.7 6
LL-NF27-4x75 4 2 3.2 75 6
LL-NF27-4x75N25 4 2 3.2 25 75 3.7 6
LL-NF27-4x75N30 4 2 3.2 30 75 3.7 6
LL-NF27-4x75N35 4 2 3.2 35 75 3.7 6
LL-NF27-4x100 4 2 3.2 100 6
LL-NF27-4x100N40 4 2 3.2 40 100 3.7 6
LL-NF27-4x100N45 4 2 3.2 45 100 3.7 6
LL-NF27-4x100N50 4 2 50 100 3.7 6

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
