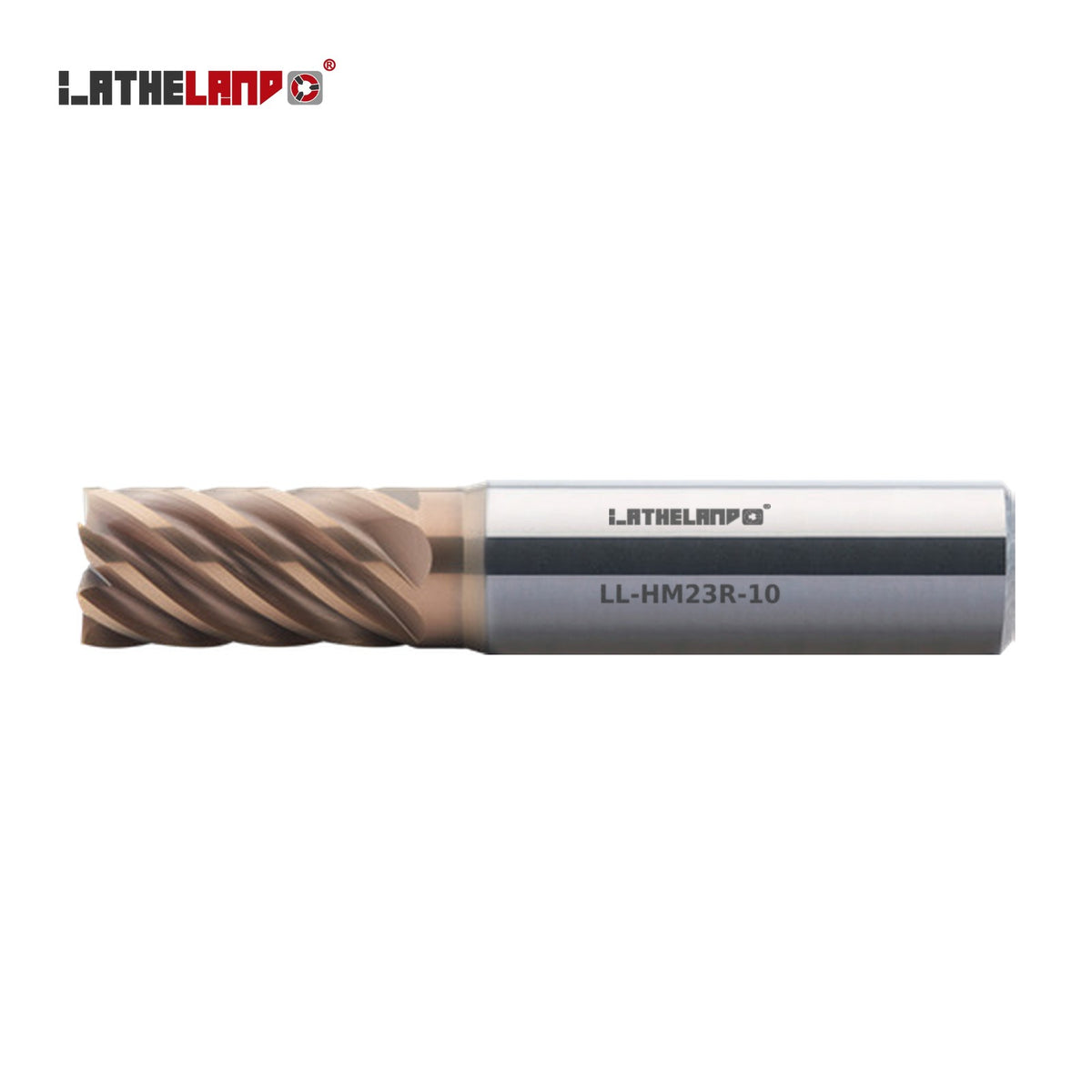

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM23 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 6/7 |
| Helix angle | variable |
| Workpiece hardness | 50–70 HRC |
| Best for | hardened steel |
| Also suitable for | steel |
| Range | Ø3–20 mm |
| Sizes available | 18 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM23R | TiSiN multilayer, neck recess | 9 |
| HM23 | TiSiN multilayer | 9 |

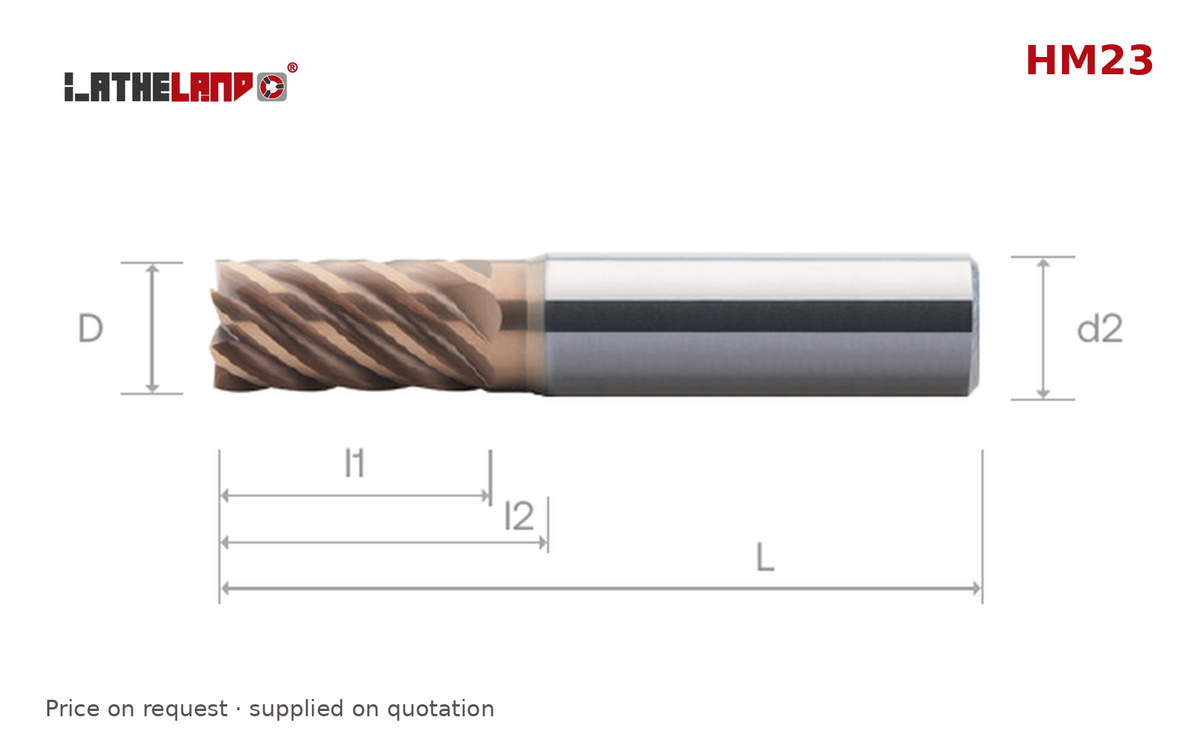

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-HM23R-3 | 3 | 8 | 20 | 57 | 6 |
| LL-HM23R-4 | 4 | 11 | 20 | 57 | 6 |
| LL-HM23R-5 | 5 | 12 | 20 | 57 | 6 |
| LL-HM23R-6 | 6 | 15 | 20 | 57 | 6 |
| LL-HM23R-8 | 8 | 20 | 26 | 64 | 8 |
| LL-HM23R-10 | 10 | 22 | 30 | 72 | 10 |
| LL-HM23R-12 | 12 | 25 | 36 | 83 | 12 |
| LL-HM23R-16 | 16 | 30 | 42 | 92 | 16 |
| LL-HM23R-20 | 20 | 38 | 52 | 104 | 20 |
| LL-HM23-3 | 3 | 8 | 57 | 6 | |
| LL-HM23-4 | 4 | 11 | 57 | 6 | |
| LL-HM23-5 | 5 | 12 | 57 | 6 | |
| LL-HM23-6 | 6 | 15 | 57 | 6 | |
| LL-HM23-8 | 8 | 20 | 64 | 8 | |
| LL-HM23-10 | 10 | 22 | 72 | 10 | |
| LL-HM23-12 | 12 | 25 | 83 | 12 | |
| LL-HM23-16 | 16 | 30 | 92 | 16 | |
| LL-HM23-20 | 20 | 38 | 104 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
