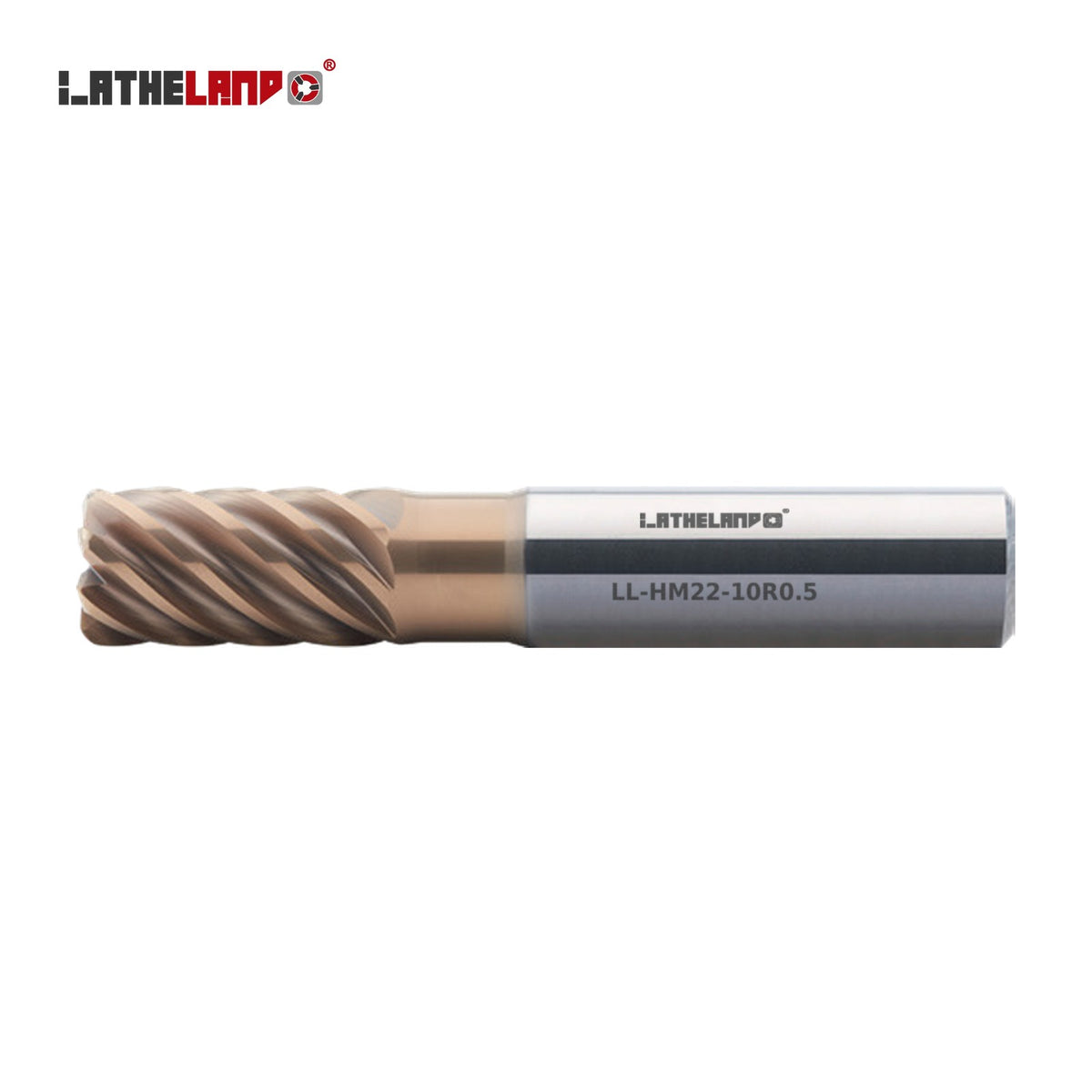

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM22 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 6/7 |
| Helix angle | variable |
| Workpiece hardness | 50–70 HRC |
| Best for | hardened steel |
| Also suitable for | steel |
| Range | Ø3–20 mm |
| Sizes available | 16 |
| Price | On request – supplied on quotation |

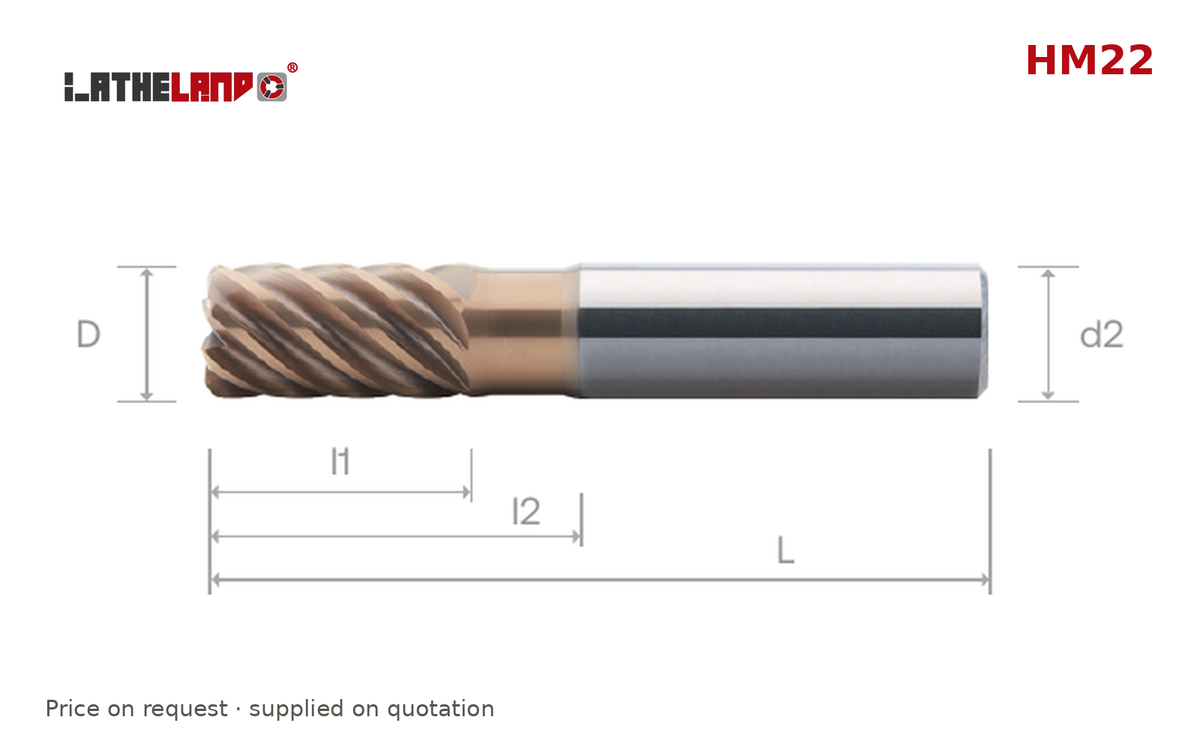

| SKU | Ø D | R | L | d2 |
|---|---|---|---|---|
| LL-HM22-3R0.2 | 3 | 0.2 | 57 | 6 |
| LL-HM22-4R0.2 | 4 | 0.2 | 57 | 6 |
| LL-HM22-5R0.3 | 5 | 0.3 | 57 | 6 |
| LL-HM22-6R0.5 | 6 | 0.5 | 57 | 6 |
| LL-HM22-6R1 | 6 | 1 | 57 | 6 |
| LL-HM22-8R0.5 | 8 | 0.5 | 64 | 8 |
| LL-HM22-8R0.8 | 8 | 0.8 | 64 | 8 |
| LL-HM22-10R0.5 | 10 | 0.5 | 72 | 10 |
| LL-HM22-10R0.8 | 10 | 0.8 | 72 | 10 |
| LL-HM22-10R1 | 10 | 1 | 72 | 10 |
| LL-HM22-12R0.5 | 12 | 0.5 | 83 | 12 |
| LL-HM22-12R1 | 12 | 1 | 83 | 12 |
| LL-HM22-12R1.5 | 12 | 1.5 | 83 | 12 |
| LL-HM22-16R2 | 16 | 2 | 92 | 16 |
| LL-HM22-16R3 | 16 | 3 | 92 | 16 |
| LL-HM22-20R3 | 20 | 3 | 104 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
