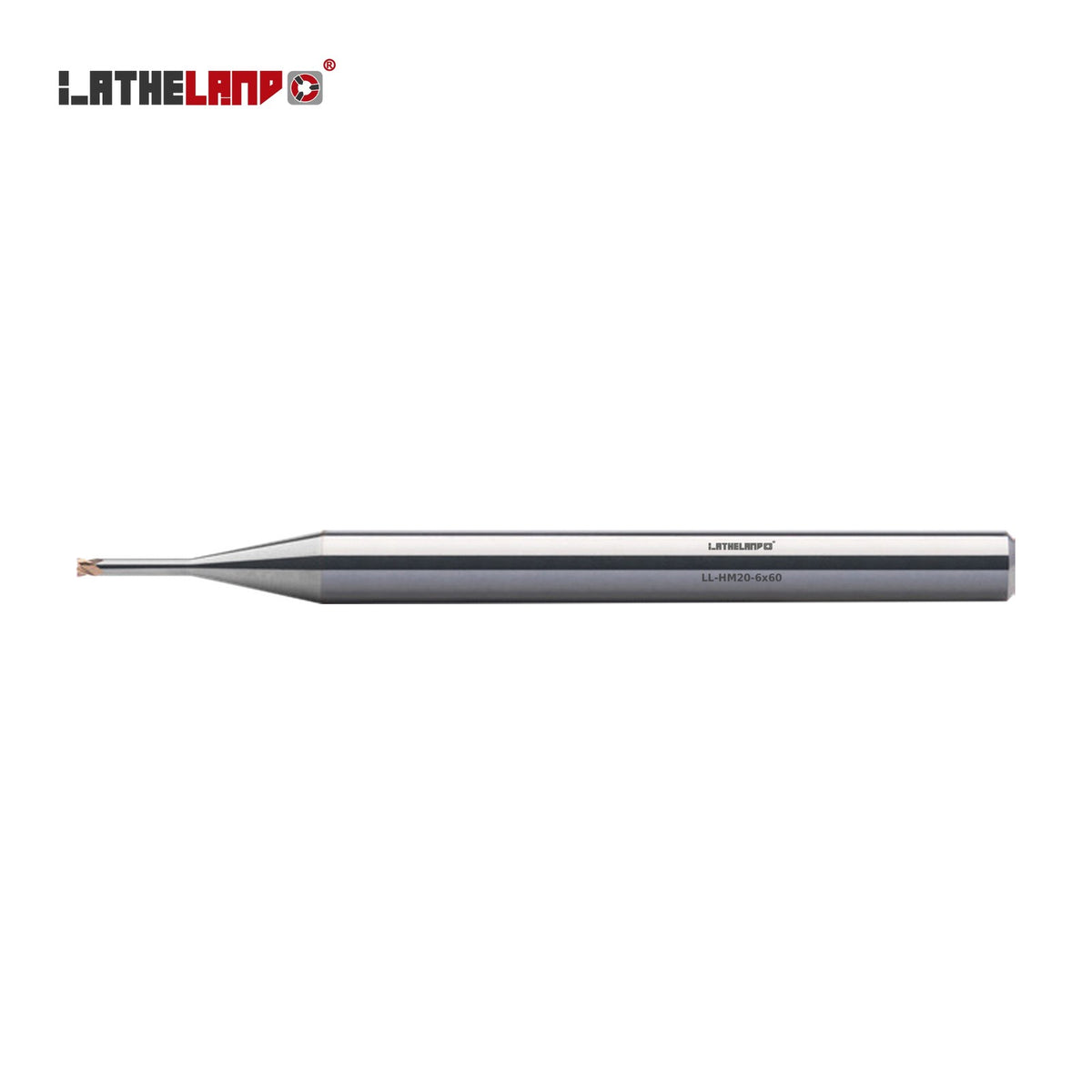

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM20 |
| Material | Solid carbide |
| Coating | AlTiSiN multilayer |
| Flutes | 4 |
| Workpiece hardness | 50–70 HRC |
| Best for | hardened steel |
| Also suitable for | steel |
| Range | Ø1–6 mm |
| Sizes available | 76 |
| Price | On request – supplied on quotation |

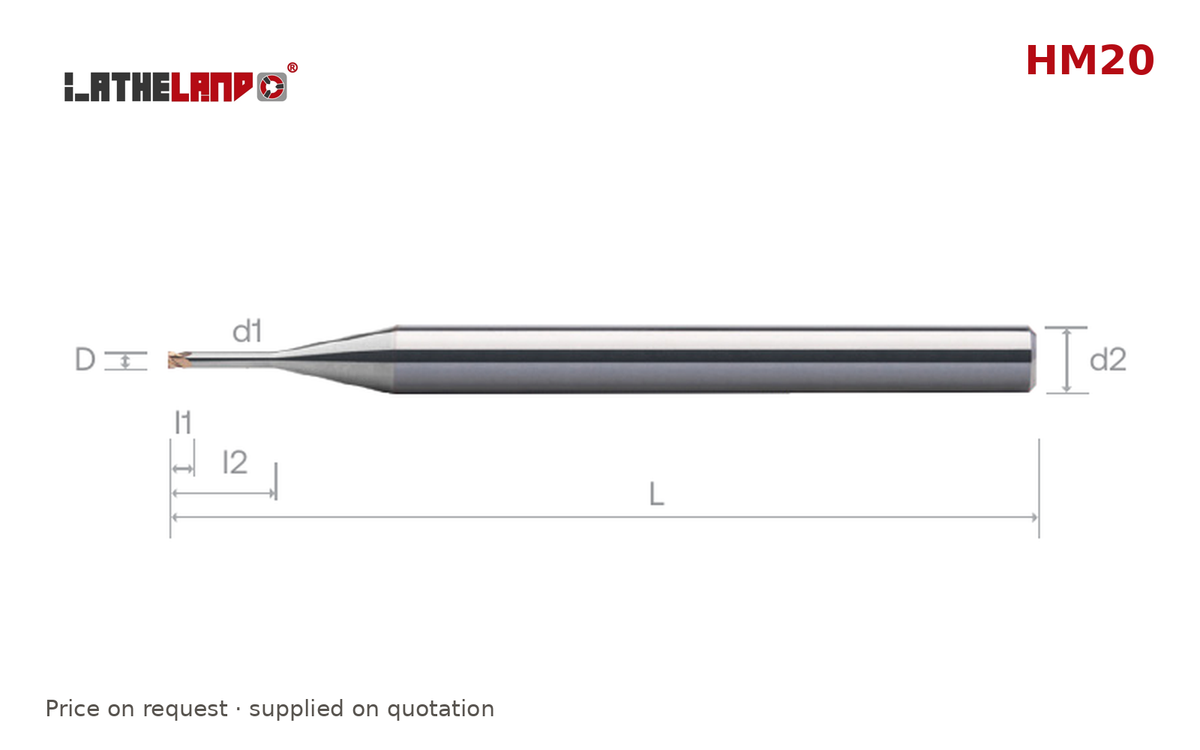

| SKU | Ø D | l1 | l2 | L | d1 | d2 |
|---|---|---|---|---|---|---|
| LL-HM20-1x50 | 1 | 0.08 | 50 | 4 | ||
| LL-HM20-1x50N4 | 1 | 0.08 | 4 | 50 | 0.95 | 4 |
| LL-HM20-1x50N6 | 1 | 0.08 | 6 | 50 | 0.95 | 4 |
| LL-HM20-1x50N8 | 1 | 0.08 | 8 | 50 | 0.95 | 4 |
| LL-HM20-1x50N10 | 1 | 0.08 | 10 | 50 | 0.95 | 4 |
| LL-HM20-1.2x50 | 1.2 | 0.12 | 50 | 4 | ||
| LL-HM20-1.2x50N6 | 1.2 | 0.12 | 6 | 50 | 1.15 | 4 |
| LL-HM20-1.2x50N8 | 1.2 | 0.12 | 8 | 50 | 1.15 | 4 |
| LL-HM20-1.2x50N10 | 1.2 | 0.12 | 10 | 50 | 1.15 | 4 |
| LL-HM20-1.2x50N12 | 1.2 | 0.12 | 12 | 50 | 1.15 | 4 |
| LL-HM20-1.5x50 | 1.5 | 1.2 | 50 | 4 | ||
| LL-HM20-1.5x50N6 | 1.5 | 1.2 | 6 | 50 | 1.45 | 4 |
| LL-HM20-1.5x50N8 | 1.5 | 1.2 | 8 | 50 | 1.45 | 4 |
| LL-HM20-1.5x50N10 | 1.5 | 1.2 | 10 | 50 | 1.45 | 4 |
| LL-HM20-1.5x50N12 | 1.5 | 1.2 | 12 | 50 | 1.45 | 4 |
| LL-HM20-1.5x50N14 | 1.5 | 1.2 | 14 | 50 | 1.45 | 4 |
| LL-HM20-1.5x50N16 | 1.5 | 1.2 | 16 | 50 | 1.45 | 4 |
| LL-HM20-1.8x50 | 1.8 | 1.4 | 50 | 4 | ||
| LL-HM20-1.8x50N6 | 1.8 | 1.4 | 6 | 50 | 1.74 | 4 |
| LL-HM20-1.8x50N8 | 1.8 | 1.4 | 8 | 50 | 1.74 | 4 |
| LL-HM20-1.8x50N10 | 1.8 | 1.4 | 10 | 50 | 1.74 | 4 |
| LL-HM20-1.8x50N12 | 1.8 | 1.4 | 12 | 50 | 1.74 | 4 |
| LL-HM20-1.8x50N14 | 1.8 | 1.4 | 14 | 50 | 1.74 | 4 |
| LL-HM20-1.8x50N16 | 1.8 | 1.4 | 16 | 50 | 1.74 | 4 |
| LL-HM20-1.8x60N18 | 1.8 | 18 | 60 | 4 | ||
| LL-HM20-2x50 | 2 | 1.6 | 50 | 4 | ||
| LL-HM20-2x50N6 | 2 | 1.6 | 6 | 50 | 1.94 | 4 |
| LL-HM20-2x50N8 | 2 | 1.6 | 8 | 50 | 1.94 | 4 |
| LL-HM20-2x50N10 | 2 | 1.6 | 10 | 50 | 1.94 | 4 |
| LL-HM20-2x50N12 | 2 | 1.6 | 12 | 50 | 1.94 | 4 |
| LL-HM20-2x50N14 | 2 | 1.6 | 14 | 50 | 1.94 | 4 |
| LL-HM20-2x50N16 | 2 | 1.6 | 16 | 50 | 1.94 | 4 |
| LL-HM20-2x60N18 | 2 | 18 | 60 | 4 | ||
| LL-HM20-2x60N20 | 2 | 20 | 60 | 4 | ||
| LL-HM20-2.5x50 | 2.5 | 2 | 50 | 4 | ||
| LL-HM20-2.5x50N8 | 2.5 | 2 | 8 | 50 | 2.4 | 4 |
| LL-HM20-2.5x50N12 | 2.5 | 2 | 12 | 50 | 2.4 | 4 |
| LL-HM20-2.5x50N16 | 2.5 | 2 | 16 | 50 | 2.4 | 4 |
| LL-HM20-2.5x60 | 2.5 | 2 | 60 | 4 | ||
| LL-HM20-2.5x60N20 | 2.5 | 2 | 20 | 60 | 2.4 | 4 |
| LL-HM20-2.5x75 | 2.5 | 2 | 75 | 4 | ||
| LL-HM20-2.5x75N25 | 2.5 | 2 | 25 | 75 | 2.4 | 4 |
| LL-HM20-3x50 | 3 | 4.5 | 50 | 6 | ||
| LL-HM20-3x50N8 | 3 | 4.5 | 8 | 50 | 2.85 | 6 |
| LL-HM20-3x50N12 | 3 | 4.5 | 12 | 50 | 2.85 | 6 |
| LL-HM20-3x60 | 3 | 4.5 | 60 | 6 | ||
| LL-HM20-3x60N16 | 3 | 4.5 | 16 | 60 | 2.85 | 6 |
| LL-HM20-3x60N20 | 3 | 4.5 | 20 | 60 | 2.85 | 6 |
| LL-HM20-3x75 | 3 | 4.5 | 75 | 6 | ||
| LL-HM20-3x75N25 | 3 | 4.5 | 25 | 75 | 2.85 | 6 |
| LL-HM20-3x75N30 | 3 | 6 | 30 | 75 | 2.85 | 6 |
| LL-HM20-4x50 | 4 | 6 | 50 | 6 | ||
| LL-HM20-4x50N12 | 4 | 6 | 12 | 50 | 3.8 | 6 |
| LL-HM20-4x60 | 4 | 6 | 60 | 6 | ||
| LL-HM20-4x60N16 | 4 | 6 | 16 | 60 | 3.8 | 6 |
| LL-HM20-4x60N20 | 4 | 6 | 20 | 60 | 3.8 | 6 |
| LL-HM20-4x75 | 4 | 6 | 75 | 6 | ||
| LL-HM20-4x75N25 | 4 | 6 | 25 | 75 | 3.8 | 6 |
| LL-HM20-4x75N30 | 4 | 6 | 30 | 75 | 3.8 | 6 |
| LL-HM20-4x75N35 | 4 | 6 | 35 | 75 | 3.8 | 6 |
| LL-HM20-4x100 | 4 | 6 | 100 | 6 | ||
| LL-HM20-4x100N40 | 4 | 6 | 40 | 100 | 3.8 | 6 |
| LL-HM20-5x60 | 5 | 7.5 | 60 | 6 | ||
| LL-HM20-5x60N16 | 5 | 7.5 | 16 | 60 | 4.8 | 6 |
| LL-HM20-5x75 | 5 | 7.5 | 75 | 6 | ||
| LL-HM20-5x75N25 | 5 | 7.5 | 25 | 75 | 4.8 | 6 |
| LL-HM20-5x75N35 | 5 | 7.5 | 35 | 75 | 4.8 | 6 |
| LL-HM20-5x100 | 5 | 7.5 | 100 | 6 | ||
| LL-HM20-5x100N50 | 5 | 7.5 | 50 | 100 | 4.8 | 6 |
| LL-HM20-6x60 | 6 | 9 | 60 | 6 | ||
| LL-HM20-6x60N20 | 6 | 9 | 20 | 60 | 5.8 | 6 |
| LL-HM20-6x75 | 6 | 9 | 75 | 6 | ||
| LL-HM20-6x75N30 | 6 | 9 | 30 | 75 | 5.8 | 6 |
| LL-HM20-6x100 | 6 | 9 | 100 | 6 | ||
| LL-HM20-6x100N40 | 6 | 9 | 40 | 100 | 5.8 | 6 |
| LL-HM20-6x100N50 | 6 | 9 | 50 | 100 | 5.8 | 6 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
