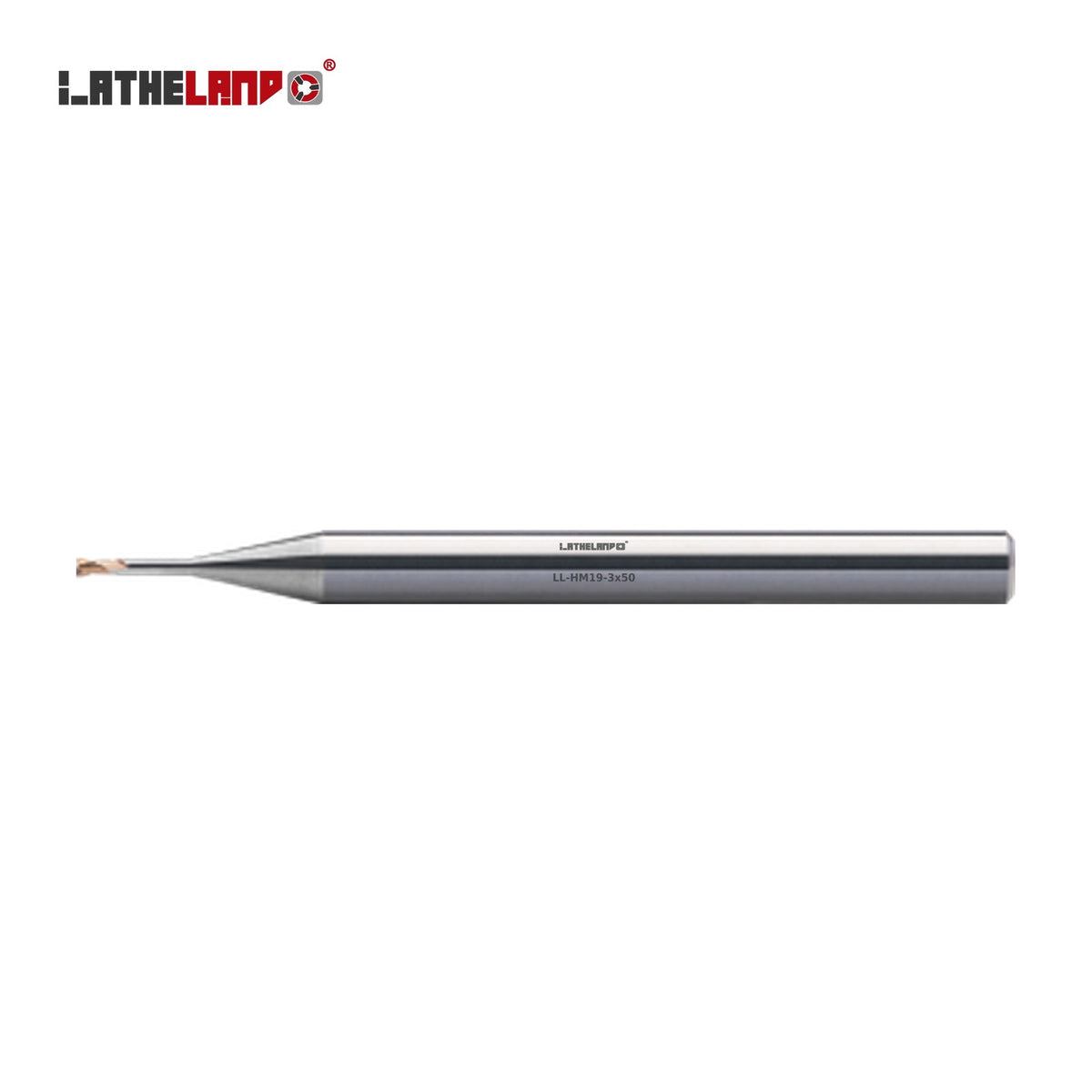

LATHELAND® Miniature End Mill with Long Neck for Hard Milling, 2 Flutes – HM19
LATHELAND® Miniature End Mill with Long Neck for Hard Milling, 2 Flutes – HM19 – dimension drawing
LATHELAND® Miniature End Mill with Long Neck for Hard Milling, 2 Flutes – HM19

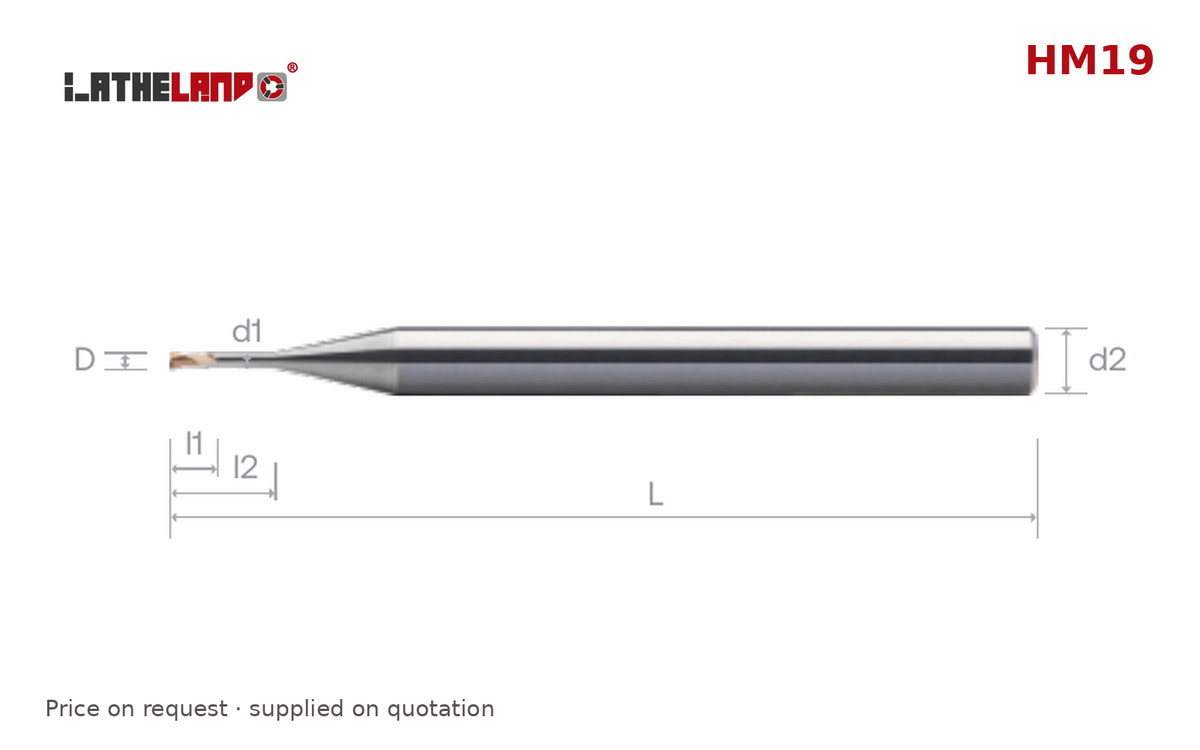

LATHELAND® Miniature End Mill with Long Neck for Hard Milling, 2 Flutes – HM19 – dimension drawing
LATHELAND

LATHELAND® Miniature End Mill with Long Neck for Hard Milling, 2 Flutes – HM19

Out of stock
SKU: LL-HM19-0.1x50
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedØ0.1 · L50 SKULL-HM19-0.1x50

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HM19
Material Solid carbide
Coating AlTiSiN multilayer
Flutes 2
Workpiece hardness 50–70 HRC
Best for hardened steel
Also suitable for steel
Range Ø0.1–3 mm
Sizes available 164
Price On request – supplied on quotation

Size table (all dimensions in mm)

SKU Ø D l1 l2 L d1 d2
LL-HM19-0.1x50 0.1 0.08 50 4
LL-HM19-0.1x50N0.3 0.1 0.08 0.3 50 0.085 4
LL-HM19-0.1x50N0.5 0.1 0.08 0.5 50 0.085 4
LL-HM19-0.1x50N0.75 0.1 0.08 0.75 50 0.085 4
LL-HM19-0.1x50N1 0.1 0.08 1 50 0.085 4
LL-HM19-0.15x50 0.15 0.12 50 4
LL-HM19-0.15x50N0.3 0.15 0.12 0.3 50 0.13 4
LL-HM19-0.15x50N0.5 0.15 0.12 0.5 50 0.13 4
LL-HM19-0.15x50N0.75 0.15 0.12 0.75 50 0.13 4
LL-HM19-0.15x50N1 0.15 0.12 1 50 0.13 4
LL-HM19-0.15x50N1.5 0.15 0.12 1.5 50 0.13 4
LL-HM19-0.2x50 0.2 0.15 50 4
LL-HM19-0.2x50N0.5 0.2 0.15 0.5 50 0.18 4
LL-HM19-0.2x50N0.75 0.2 0.15 0.75 50 0.18 4
LL-HM19-0.2x50N1 0.2 0.15 1 50 0.18 4
LL-HM19-0.2x50N1.5 0.2 0.15 1.5 50 0.18 4
LL-HM19-0.2x50N2 0.2 0.15 2 50 0.18 4
LL-HM19-0.2x50N2.5 0.2 0.15 2.5 50 0.18 4
LL-HM19-0.2x50N3 0.2 0.25 3 50 0.18 4
LL-HM19-0.3x50 0.3 0.25 50 4
LL-HM19-0.3x50N1 0.3 0.25 1 50 0.28 4
LL-HM19-0.3x50N1.5 0.3 0.25 1.5 50 0.28 4
LL-HM19-0.3x50N2 0.3 0.25 2 50 0.28 4
LL-HM19-0.3x50N2.5 0.3 0.25 2.5 50 0.28 4
LL-HM19-0.3x50N3 0.3 0.25 3 50 0.28 4
LL-HM19-0.4x50 0.4 0.25 50 4
LL-HM19-0.4x50N1 0.4 0.25 1 50 0.37 4
LL-HM19-0.4x50N1.5 0.4 0.3 1.5 50 0.37 4
LL-HM19-0.4x50N2 0.4 0.3 2 50 0.37 4
LL-HM19-0.4x50N2.5 0.4 0.3 2.5 50 0.37 4
LL-HM19-0.4x50N3 0.4 0.3 3 50 0.37 4
LL-HM19-0.4x50N3.5 0.4 0.3 3.5 50 0.37 4
LL-HM19-0.4x50N4 0.4 0.3 4 50 0.37 4
LL-HM19-0.4x50N5 0.4 0.3 5 50 0.37 4
LL-HM19-0.4x50N6 0.4 0.3 6 50 0.37 4
LL-HM19-0.4x50N8 0.4 0.3 8 50 0.37 4
LL-HM19-0.4x50N10 0.4 10 50 0.37 4
LL-HM19-0.5x50 0.5 50 4
LL-HM19-0.5x50N1 0.5 1 50 0.46 4
LL-HM19-0.5x50N1.5 0.5 0.4 1.5 50 0.46 4
LL-HM19-0.5x50N2 0.5 0.4 2 50 0.46 4
LL-HM19-0.5x50N2.5 0.5 0.4 2.5 50 0.46 4
LL-HM19-0.5x50N3 0.5 0.4 3 50 0.46 4
LL-HM19-0.5x50N3.5 0.5 0.4 3.5 50 0.46 4
LL-HM19-0.5x50N4 0.5 0.4 4 50 0.46 4
LL-HM19-0.5x50N4.5 0.5 0.4 4.5 50 0.46 4
LL-HM19-0.5x50N5 0.5 0.4 5 50 0.46 4
LL-HM19-0.5x50N6 0.5 0.4 6 50 0.46 4
LL-HM19-0.5x50N7 0.5 0.4 7 50 0.46 4
LL-HM19-0.5x50N8 0.5 0.4 8 50 0.46 4
LL-HM19-0.5x50N9 0.5 0.5 9 50 0.46 4
LL-HM19-0.5x50N10 0.5 0.5 10 50 0.46 4
LL-HM19-0.6x50 0.6 0.5 50 4
LL-HM19-0.6x50N1.5 0.6 0.5 1.5 50 0.56 4
LL-HM19-0.6x50N2 0.6 0.5 2 50 0.56 4
LL-HM19-0.6x50N3 0.6 0.5 3 50 0.56 4
LL-HM19-0.6x50N4 0.6 0.5 4 50 0.56 4
LL-HM19-0.6x50N5 0.6 0.5 5 50 0.56 4
LL-HM19-0.6x50N6 0.6 0.5 6 50 0.56 4
LL-HM19-0.6x50N8 0.6 0.5 8 50 0.56 4
LL-HM19-0.7x50 0.7 0.5 50 4
LL-HM19-0.7x50N2 0.7 0.55 2 50 0.66 4
LL-HM19-0.7x50N4 0.7 0.55 4 50 0.66 4
LL-HM19-0.7x50N6 0.7 0.55 6 50 0.66 4
LL-HM19-0.7x50N8 0.7 0.55 8 50 0.66 4
LL-HM19-0.7x50N10 0.7 0.55 10 50 0.66 4
LL-HM19-0.8x50 0.8 0.55 50 4
LL-HM19-0.8x50N3 0.8 0.65 3 50 0.76 4
LL-HM19-0.8x50N4 0.8 0.65 4 50 0.76 4
LL-HM19-0.8x50N5 0.8 0.65 5 50 0.76 4
LL-HM19-0.8x50N6 0.8 0.65 6 50 0.76 4
LL-HM19-0.8x50N8 0.8 0.65 8 50 0.76 4
LL-HM19-0.8x50N10 0.8 0.65 10 50 0.76 4
LL-HM19-0.8x50N12 0.8 0.65 12 50 0.76 4
LL-HM19-1x50 1 0.65 50 4
LL-HM19-1x50N2 1 2 50 0.95 4
LL-HM19-1x50N3 1 3 50 0.95 4
LL-HM19-1x50N4 1 0.8 4 50 0.95 4
LL-HM19-1x50N5 1 0.8 5 50 0.95 4
LL-HM19-1x50N6 1 0.8 6 50 0.95 4
LL-HM19-1x50N7 1 0.8 7 50 0.95 4
LL-HM19-1x50N8 1 0.8 8 50 0.95 4
LL-HM19-1x50N9 1 0.8 9 50 0.95 4
LL-HM19-1x50N10 1 0.8 10 50 0.95 4
LL-HM19-1x50N12 1 0.8 12 50 0.95 4
LL-HM19-1x50N14 1 0.8 14 50 0.95 4
LL-HM19-1x50N16 1 0.8 16 50 0.95 4
LL-HM19-1x60N18 1 18 60 4
LL-HM19-1x60N20 1 20 60 4
LL-HM19-1x60N22 1 22 60 4
LL-HM19-1.2x50 1.2 1 50 4
LL-HM19-1.2x50N6 1.2 1 6 50 1.15 4
LL-HM19-1.2x50N8 1.2 1 8 50 1.15 4
LL-HM19-1.2x50N10 1.2 1 10 50 1.15 4
LL-HM19-1.2x50N12 1.2 1 12 50 1.15 4
LL-HM19-1.2x50N16 1.2 1.1 16 50 1.15 4
LL-HM19-1.4x50 1.4 1.1 50 4
LL-HM19-1.4x50N6 1.4 1.1 6 50 1.35 4
LL-HM19-1.4x50N12 1.4 1.1 12 50 1.35 4
LL-HM19-1.5x50 1.5 1.1 50 4
LL-HM19-1.5x50N4 1.5 1.1 4 50 1.45 4
LL-HM19-1.5x50N6 1.5 1.1 6 50 1.45 4
LL-HM19-1.5x50N8 1.5 1.2 8 50 1.45 4
LL-HM19-1.5x50N10 1.5 1.2 10 50 1.45 4
LL-HM19-1.5x50N12 1.5 1.2 12 50 1.45 4
LL-HM19-1.5x50N14 1.5 1.2 14 50 1.45 4
LL-HM19-1.5x50N16 1.5 1.2 16 50 1.45 4
LL-HM19-1.5x60 1.5 1.2 60 4
LL-HM19-1.5x60N18 1.5 1.2 18 60 1.45 4
LL-HM19-1.5x60N20 1.5 1.2 20 60 1.45 4
LL-HM19-1.5x75 1.5 1.2 75 4
LL-HM19-1.5x75N25 1.5 1.2 25 75 1.45 4
LL-HM19-1.5x75N30 1.5 30 75 1.45 4
LL-HM19-1.5x75N35 1.5 35 75 1.45 4
LL-HM19-1.6x50 1.6 1.3 50 4
LL-HM19-1.6x50N6 1.6 1.3 6 50 1.55 4
LL-HM19-1.6x50N8 1.6 1.3 8 50 1.55 4
LL-HM19-1.8x50 1.8 1.3 50 4
LL-HM19-1.8x50N6 1.8 1.3 6 50 1.75 4
LL-HM19-1.8x50N8 1.8 1.4 8 50 1.75 4
LL-HM19-1.8x50N10 1.8 1.4 10 50 1.75 4
LL-HM19-1.8x50N12 1.8 1.4 12 50 1.75 4
LL-HM19-1.8x50N14 1.8 1.4 14 50 1.75 4
LL-HM19-1.8x50N16 1.8 1.4 16 50 1.75 4
LL-HM19-1.8x60 1.8 1.4 60 4
LL-HM19-1.8x60N18 1.8 1.6 18 60 1.75 4
LL-HM19-2x50 2 1.6 50 4
LL-HM19-2x50N4 2 1.6 4 50 1.94 4
LL-HM19-2x50N6 2 1.6 6 50 1.94 4
LL-HM19-2x50N8 2 1.6 8 50 1.94 4
LL-HM19-2x50N10 2 10 50 4
LL-HM19-2x50N12 2 1.6 12 50 1.94 4
LL-HM19-2x50N14 2 1.6 14 50 1.94 4
LL-HM19-2x50N16 2 1.6 16 50 1.94 4
LL-HM19-2x60 2 1.6 60 4
LL-HM19-2x60N18 2 1.6 18 60 1.94 4
LL-HM19-2x60N20 2 1.6 20 60 1.94 4
LL-HM19-2x75 2 1.6 75 4
LL-HM19-2x75N25 2 1.6 25 75 1.94 4
LL-HM19-2x75N30 2 1.6 30 75 1.94 4
LL-HM19-2x75N35 2 1.6 35 75 1.94 4
LL-HM19-2x100 2 1.6 100 4
LL-HM19-2x100N40 2 1.6 40 100 1.94 4
LL-HM19-2x100N50 2 50 100 1.94 4
LL-HM19-2.5x50 2.5 2 50 4
LL-HM19-2.5x50N8 2.5 2 8 50 2.4 4
LL-HM19-2.5x50N12 2.5 2 12 50 2.4 4
LL-HM19-2.5x50N16 2.5 2 16 50 2.4 4
LL-HM19-2.5x60 2.5 2 60 4
LL-HM19-2.5x60N20 2.5 2 20 60 2.4 4
LL-HM19-2.5x75 2.5 2 75 4
LL-HM19-2.5x75N30 2.5 2 30 75 2.4 4
LL-HM19-2.5x100 2.5 100 4
LL-HM19-2.5x100N40 2.5 2 40 100 2.4 4
LL-HM19-2.5x100N50 2.5 4.5 50 100 2.4 4
LL-HM19-3x50 3 4.5 50 6
LL-HM19-3x50N8 3 4.5 8 50 2.85 6
LL-HM19-3x50N12 3 12 50 6
LL-HM19-3x50N16 3 4.5 16 50 2.85 6
LL-HM19-3x60 3 4.5 60 6
LL-HM19-3x60N20 3 4.5 20 60 2.85 6
LL-HM19-3x75 3 4.5 75 6
LL-HM19-3x75N25 3 4.5 25 75 2.85 6
LL-HM19-3x75N30 3 4.5 30 75 2.85 6

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
