Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM16 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 4/6 |
| Workpiece hardness | 40–60 HRC |
| Best for | hardened steel |
| Also suitable for | steel |
| Range | Ø3–12 mm |
| Sizes available | 14 |
| Price | On request – supplied on quotation |

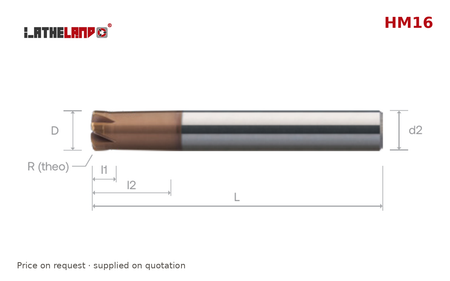

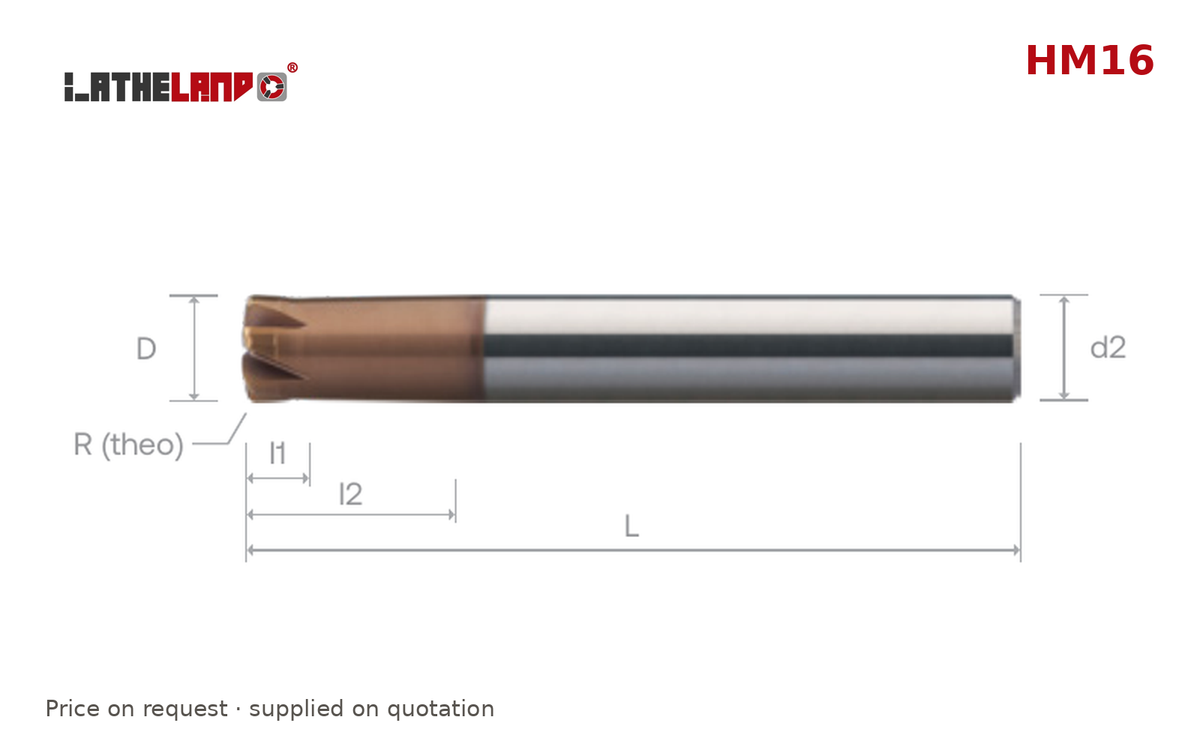

| SKU | Ø D | R | L | d2 |
|---|---|---|---|---|
| LL-HM16-3R0.6 | 3 | 0.6 | 57 | 6 |
| LL-HM16-3R1.2 | 3 | 1.2 | 57 | 6 |
| LL-HM16-4R0.8 | 4 | 0.8 | 57 | 6 |
| LL-HM16-4R1.5 | 4 | 1.5 | 57 | 6 |
| LL-HM16-5R1 | 5 | 1 | 57 | 6 |
| LL-HM16-5R2.1 | 5 | 2.1 | 57 | 6 |
| LL-HM16-6R1.2 | 6 | 1.2 | 57 | 6 |
| LL-HM16-6R2.6 | 6 | 2.6 | 57 | 6 |
| LL-HM16-8R1.6 | 8 | 1.6 | 63 | 8 |
| LL-HM16-8R3.1 | 8 | 3.1 | 63 | 8 |

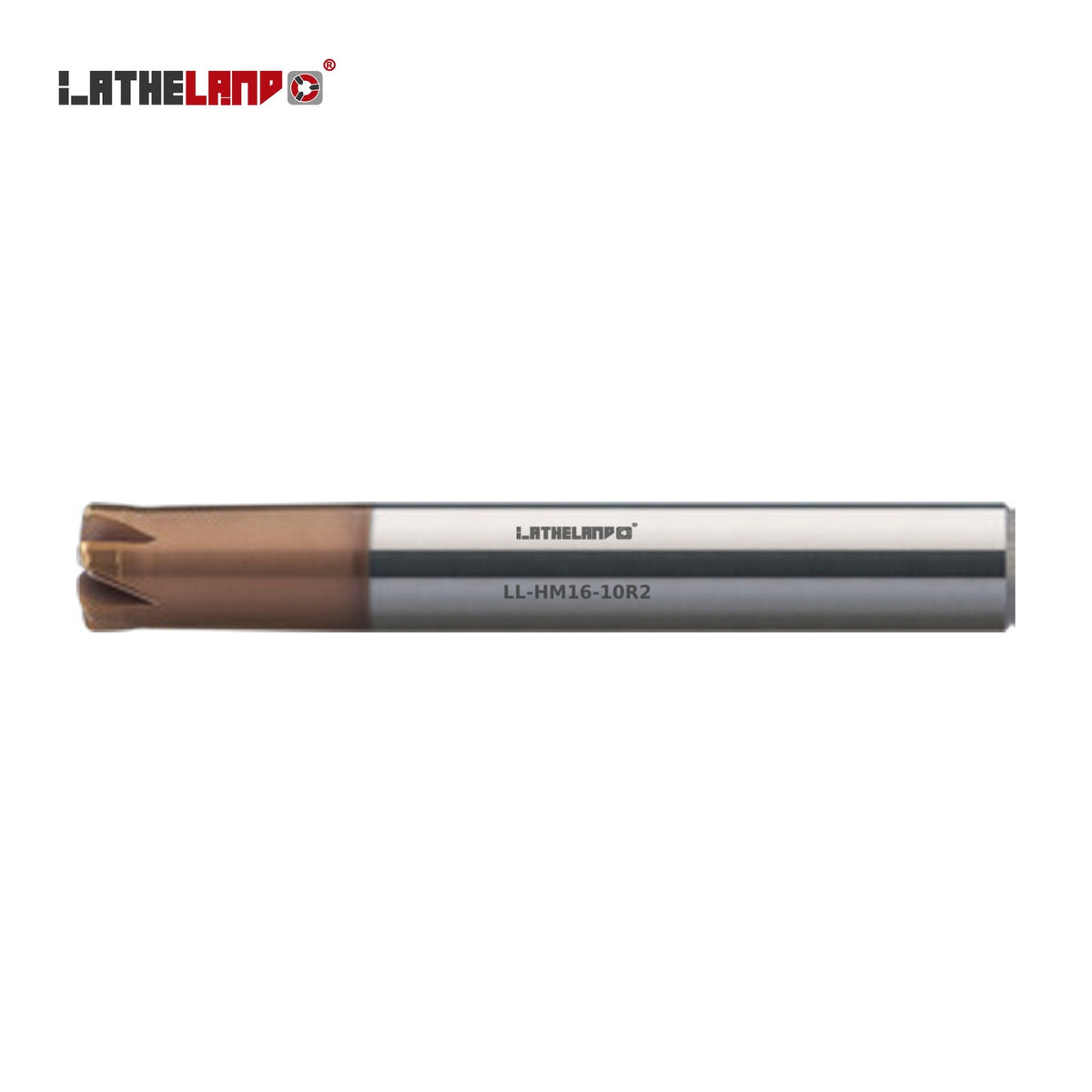

| LL-HM16-10R2 | 10 | 2 | 72 | 10 |
| LL-HM16-10R3.6 | 10 | 3.6 | 72 | 10 |
| LL-HM16-12R2.4 | 12 | 2.4 | 83 | 12 |
| LL-HM16-12R4.1 | 12 | 4.1 | 83 | 12 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
