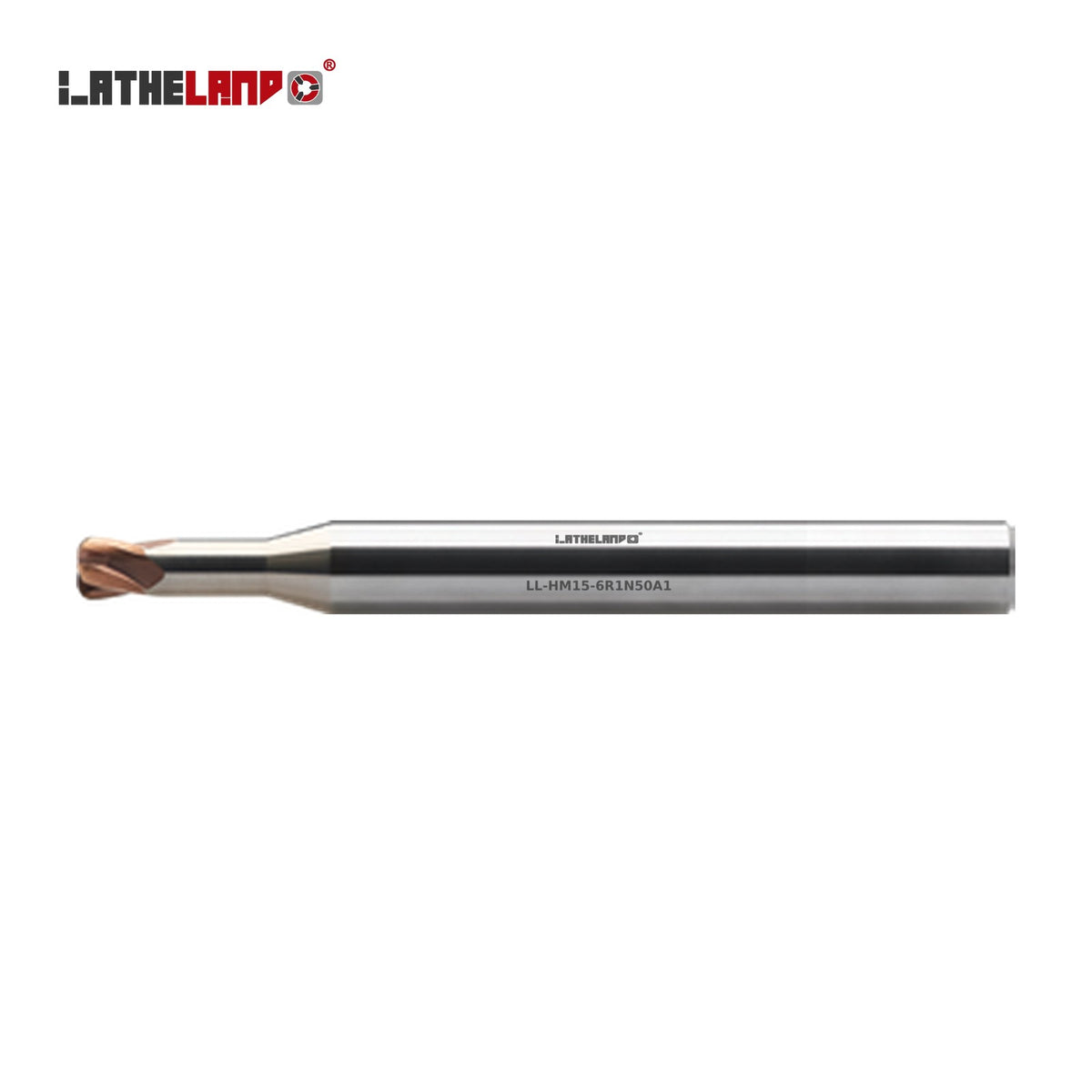

LATHELAND® Torus End Mill with Taper Neck for Hard Milling, 4 Flutes – HM15

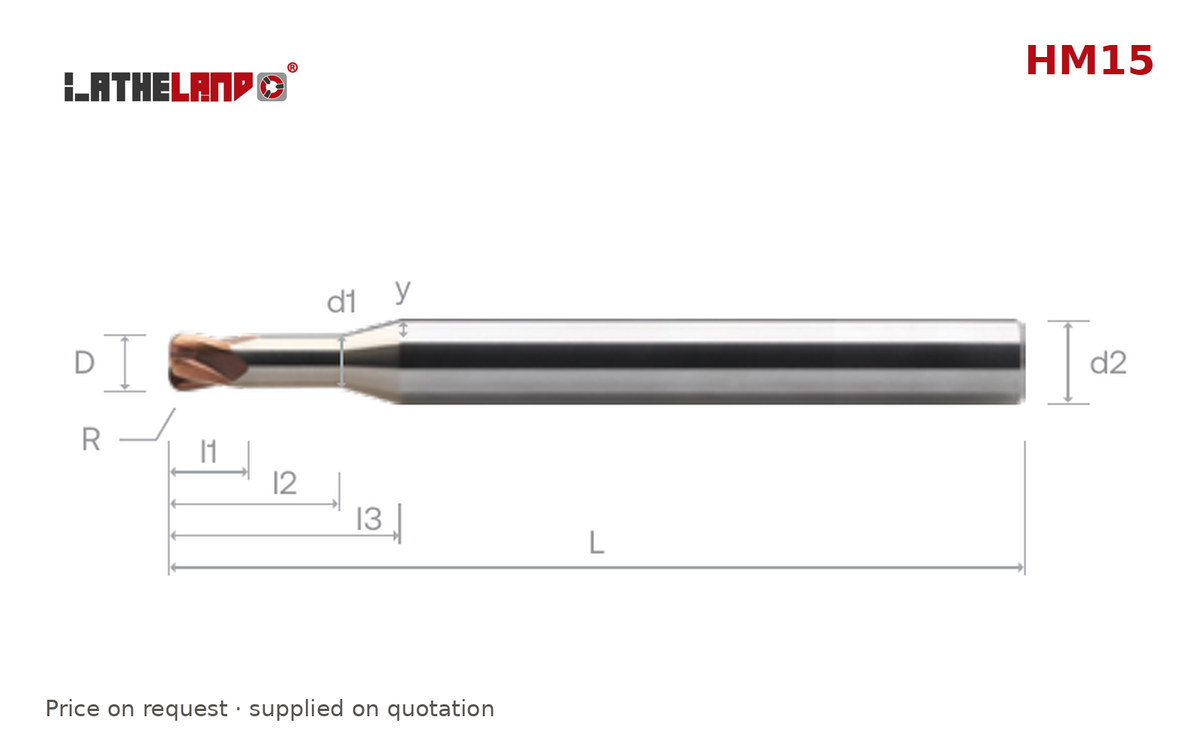

LATHELAND® Torus End Mill with Taper Neck for Hard Milling, 4 Flutes – HM15 – dimension drawing
LATHELAND® Torus End Mill with Taper Neck for Hard Milling, 4 Flutes – HM15
LATHELAND® Torus End Mill with Taper Neck for Hard Milling, 4 Flutes – HM15 – dimension drawing
LATHELAND

LATHELAND® Torus End Mill with Taper Neck for Hard Milling, 4 Flutes – HM15

Out of stock
SKU: LL-HM15-1R0.1N15A1
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedØ1 · R0.1 · reach 15 · 1° SKULL-HM15-1R0.1N15A1

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HM15
Material Solid carbide
Coating TiSiN multilayer
Flutes 4
Helix angle 25°
Workpiece hardness 40–60 HRC
Best for steel, hardened steel
Range Ø1–6 mm
Sizes available 64
Price On request – supplied on quotation

Size table (all dimensions in mm)

SKU Ø D R l1 l2 L d1 d2
LL-HM15-1R0.1N15A1 1 0.1 15 60 1.35 6
LL-HM15-1R0.1N20A1 1 0.1 20 60 1.53 6
LL-HM15-1R0.1N25A1 1 0.1 25 60 1.7 6
LL-HM15-1R0.1N30A1 1 0.1 1 30 75 1.88 6
LL-HM15-1R0.1N35A1 1 0.1 1 35 75 2.05 6
LL-HM15-1R0.1N6A3 1 0.1 1 6 60 1.32 6
LL-HM15-1R0.1N10A3 1 0.1 1 10 60 1.74 6
LL-HM15-1R0.2N20A1 1 0.2 1 20 60 1.53 6
LL-HM15-1R0.2N25A1 1 0.2 1 25 60 1.7 6
LL-HM15-1R0.2N30A1 1 0.2 1 30 75 1.88 6
LL-HM15-1R0.2N35A1 1 0.2 35 75 2.05 6
LL-HM15-1R0.2N6A3 1 0.2 6 60 1.32 6
LL-HM15-1R0.2N10A3 1 0.2 10 60 1.74 6
LL-HM15-1.5R0.2N15A1 1.5 0.2 15 60 1.82 6
LL-HM15-1.5R0.2N20A1 1.5 0.2 20 60 1.99 6
LL-HM15-1.5R0.2N25A1 1.5 0.2 1.5 25 60 2.17 6
LL-HM15-1.5R0.2N30A1 1.5 0.2 1.5 30 75 2.34 6
LL-HM15-1.5R0.2N10A3 1.5 0.2 1.5 10 60 2.13 6
LL-HM15-1.5R0.2N15A3 1.5 0.2 1.5 15 60 2.66 6
LL-HM15-1.5R0.3N15A1 1.5 0.3 1.5 15 60 1.82 6
LL-HM15-1.5R0.3N20A1 1.5 0.3 1.5 20 60 1.99 6
LL-HM15-1.5R0.3N25A1 1.5 0.3 1.5 25 60 2.17 6
LL-HM15-1.5R0.3N30A1 1.5 0.3 1.5 30 75 2.34 6
LL-HM15-1.5R0.3N10A3 1.5 0.3 10 60 2.13 6
LL-HM15-1.5R0.3N15A3 1.5 0.3 15 60 2.66 6
LL-HM15-2R0.2N15A1 2 0.2 2 15 60 2.28 6
LL-HM15-2R0.2N20A1 2 0.2 2 20 60 2.46 6
LL-HM15-2R0.2N25A1 2 0.2 2 25 60 2.63 6
LL-HM15-2R0.2N30A1 2 0.2 30 6
LL-HM15-2R0.2N40A1 2 0.2 2 40 75 2.81 6
LL-HM15-2R0.2N50A1 2 0.2 2 50 100 3.51 6
LL-HM15-2R0.2N15A3 2 0.2 2 15 60 3.05 6
LL-HM15-2R0.2N20A3 2 0.2 20 6
LL-HM15-2R0.3N15A1 2 0.3 15 6
LL-HM15-2R0.3N20A1 2 0.3 20 6
LL-HM15-2R0.3N25A1 2 0.3 25 6
LL-HM15-2R0.3N30A1 2 0.3 30 6
LL-HM15-2R0.3N40A1 2 0.3 40 6
LL-HM15-2R0.3N50A1 2 0.3 50 6
LL-HM15-2R0.3N15A3 2 0.3 15 6
LL-HM15-2R0.3N20A3 2 0.3 20 6
LL-HM15-2R0.5N15A1 2 0.5 15 6
LL-HM15-2R0.5N20A1 2 0.5 20 6
LL-HM15-2R0.5N25A1 2 0.5 25 6
LL-HM15-2R0.5N30A1 2 0.5 30 6
LL-HM15-2R0.5N40A1 2 0.5 40 6
LL-HM15-2R0.5N50A1 2 0.5 50 6
LL-HM15-2R0.5N15A3 2 0.5 15 6
LL-HM15-2R0.5N20A3 2 0.5 20 6
LL-HM15-3R0.2N15A1 3 0.2 15 6
LL-HM15-3R0.2N20A1 3 0.2 20 6
LL-HM15-3R0.2N30A1 3 0.2 30 6
LL-HM15-3R0.2N40A1 3 0.2 40 6
LL-HM15-3R0.2N50A1 3 0.2 50 6
LL-HM15-3R0.2N60A1 3 0.2 60 6
LL-HM15-3R0.5N15A1 3 0.5 15 6
LL-HM15-3R0.5N20A1 3 0.5 20 6
LL-HM15-3R0.5N30A1 3 0.5 30 6
LL-HM15-3R0.5N40A1 3 0.5 40 6
LL-HM15-3R0.5N50A1 3 0.5 50 6
LL-HM15-3R0.5N60A1 3 0.5 60 6
LL-HM15-4R0.5N20A1 4 0.5 20 6
LL-HM15-4R0.5N40A1 4 0.5 40 6
LL-HM15-6R1N50A1 6 1 50 8

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
