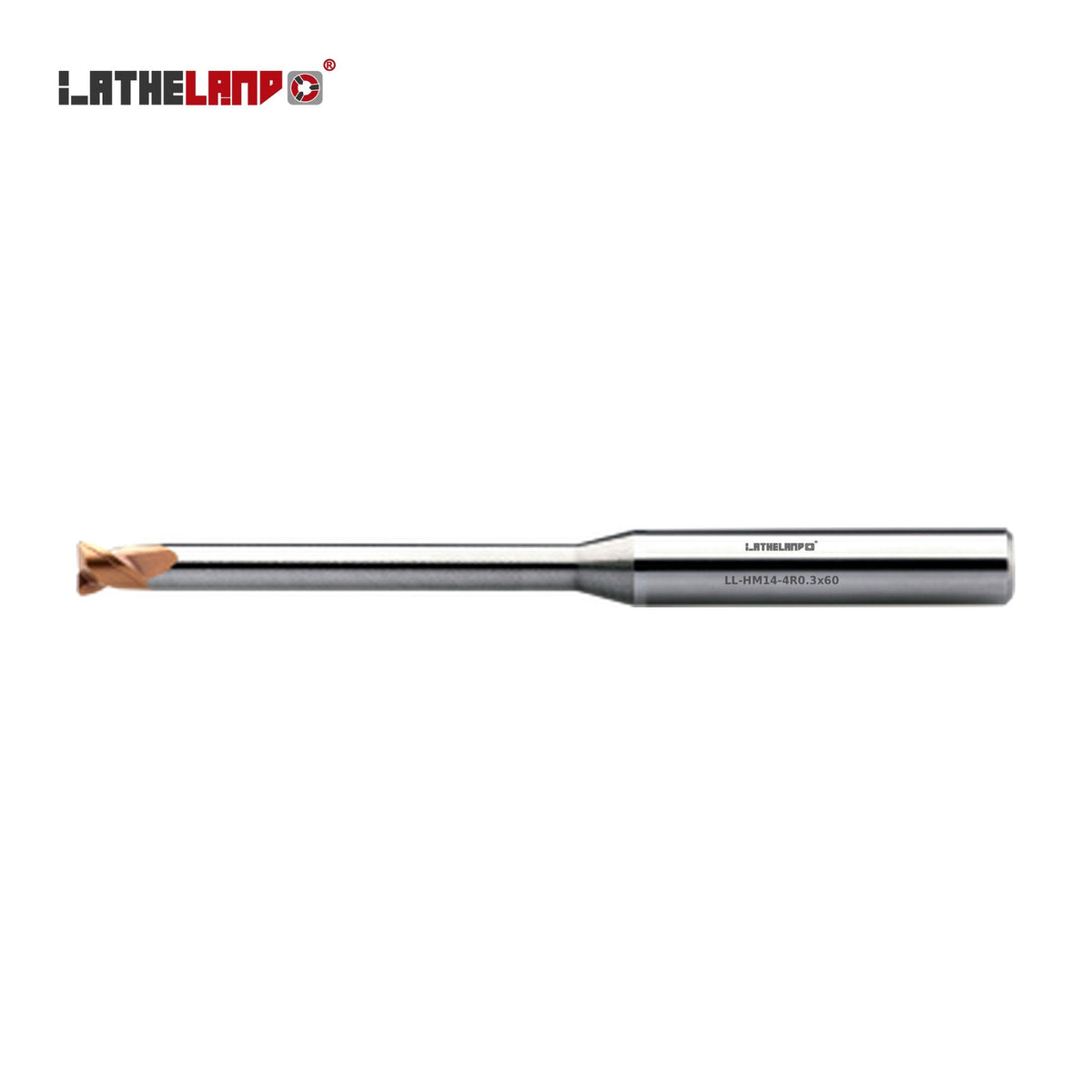

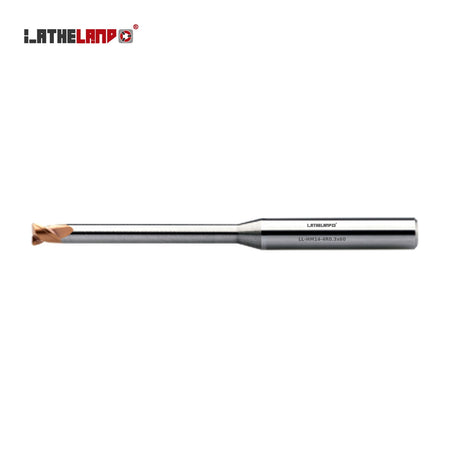

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM14 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 2/4 |
| Helix angle | 25° |
| Workpiece hardness | 40–60 HRC |
| Best for | steel, hardened steel |
| Range | Ø0.2–4 mm |
| Sizes available | 183 |
| Price | On request – supplied on quotation |

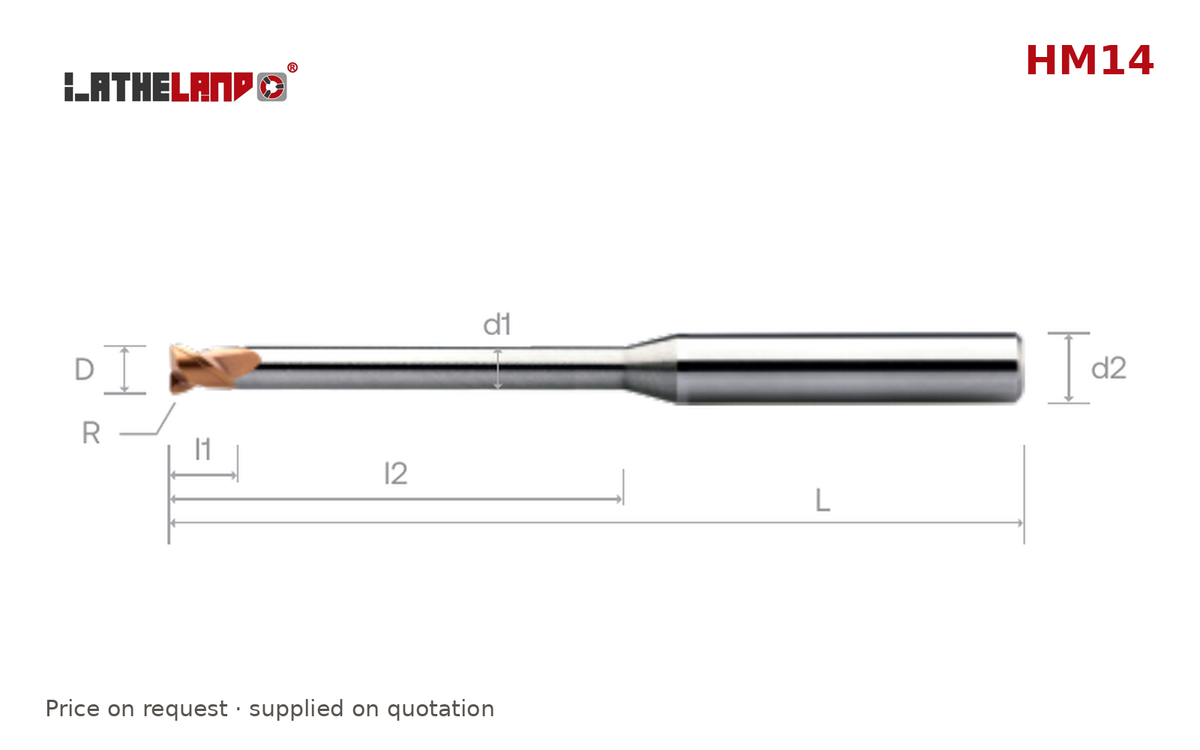

| SKU | Ø D | R | l1 | l2 | L | d1 | d2 |
|---|---|---|---|---|---|---|---|
| LL-HM14-0.2R0.05x50 | 0.2 | 0.05 | 0.2 | 50 | 4 | ||
| LL-HM14-0.2R0.05x50N0.5 | 0.2 | 0.05 | 0.2 | 0.5 | 50 | 0.17 | 4 |
| LL-HM14-0.2R0.05x50N1 | 0.2 | 0.05 | 0.2 | 1 | 50 | 0.17 | 4 |
| LL-HM14-0.2R0.05x50N1.5 | 0.2 | 0.05 | 0.2 | 1.5 | 50 | 0.17 | 4 |
| LL-HM14-0.2R0.05x50N2 | 0.2 | 0.05 | 0.2 | 2 | 50 | 0.17 | 4 |
| LL-HM14-0.3R0.05x50 | 0.3 | 0.05 | 0.3 | 50 | 4 | ||
| LL-HM14-0.3R0.05x50N1 | 0.3 | 0.05 | 0.3 | 1 | 50 | 0.27 | 4 |
| LL-HM14-0.3R0.05x50N1.5 | 0.3 | 0.05 | 0.3 | 1.5 | 50 | 0.27 | 4 |
| LL-HM14-0.3R0.05x50N2 | 0.3 | 0.05 | 0.3 | 2 | 50 | 0.27 | 4 |
| LL-HM14-0.3R0.05x50N2.5 | 0.3 | 0.05 | 0.3 | 2.5 | 50 | 0.27 | 4 |
| LL-HM14-0.3R0.05x50N3 | 0.3 | 0.05 | 3 | 50 | 4 | ||
| LL-HM14-0.4R0.05x50 | 0.4 | 0.05 | 0.4 | 50 | 4 | ||
| LL-HM14-0.4R0.05x50N1 | 0.4 | 0.05 | 0.4 | 1 | 50 | 0.37 | 4 |
| LL-HM14-0.4R0.05x50N1.5 | 0.4 | 0.05 | 0.4 | 1.5 | 50 | 0.37 | 4 |
| LL-HM14-0.4R0.05x50N2 | 0.4 | 0.05 | 2 | 50 | 4 | ||
| LL-HM14-0.4R0.05x50N2.5 | 0.4 | 0.05 | 0.4 | 2.5 | 50 | 0.37 | 4 |
| LL-HM14-0.4R0.05x50N3 | 0.4 | 0.05 | 3 | 50 | 4 | ||
| LL-HM14-0.4R0.05x50N3.5 | 0.4 | 0.05 | 3.5 | 50 | 4 | ||
| LL-HM14-0.4R0.05x50N4 | 0.4 | 0.05 | 4 | 50 | 4 | ||
| LL-HM14-0.5R0.05x50 | 0.5 | 0.05 | 0.5 | 50 | 4 | ||
| LL-HM14-0.5R0.05x50N1 | 0.5 | 0.05 | 0.5 | 1 | 50 | 0.45 | 4 |
| LL-HM14-0.5R0.05x50N2 | 0.5 | 0.05 | 0.5 | 2 | 50 | 0.45 | 4 |
| LL-HM14-0.5R0.05x50N3 | 0.5 | 0.05 | 3 | 50 | 4 | ||
| LL-HM14-0.5R0.05x50N4 | 0.5 | 0.05 | 4 | 50 | 4 | ||
| LL-HM14-0.5R0.05x50N5 | 0.5 | 0.05 | 5 | 50 | 4 | ||
| LL-HM14-0.5R0.05x50N6 | 0.5 | 0.05 | 6 | 50 | 4 | ||
| LL-HM14-0.6R0.1x50 | 0.6 | 0.1 | 0.6 | 50 | 4 | ||
| LL-HM14-0.6R0.1x50N2 | 0.6 | 0.1 | 0.6 | 2 | 50 | 0.55 | 4 |
| LL-HM14-0.6R0.1x50N4 | 0.6 | 0.1 | 0.6 | 4 | 50 | 0.55 | 4 |
| LL-HM14-0.6R0.1x50N6 | 0.6 | 0.1 | 0.6 | 6 | 50 | 0.55 | 4 |
| LL-HM14-0.6R0.1x50N8 | 0.6 | 0.1 | 0.6 | 8 | 50 | 0.55 | 4 |
| LL-HM14-0.6R0.1x50N10 | 0.6 | 0.1 | 0.6 | 10 | 50 | 0.55 | 4 |
| LL-HM14-0.8R0.1x50 | 0.8 | 0.1 | 0.8 | 50 | 4 | ||
| LL-HM14-0.8R0.1x50N4 | 0.8 | 0.1 | 0.8 | 4 | 50 | 0.75 | 4 |
| LL-HM14-0.8R0.1x50N6 | 0.8 | 0.1 | 0.8 | 6 | 50 | 0.75 | 4 |
| LL-HM14-0.8R0.1x50N8 | 0.8 | 0.1 | 0.8 | 8 | 50 | 0.75 | 4 |
| LL-HM14-0.8R0.1x50N12 | 0.8 | 0.1 | 0.8 | 12 | 50 | 0.75 | 4 |
| LL-HM14-1R0.1x50 | 1 | 0.1 | 0.8 | 50 | 4 | ||
| LL-HM14-1R0.1x50N4 | 1 | 0.1 | 0.8 | 4 | 50 | 0.9 | 4 |
| LL-HM14-1R0.1x50N6 | 1 | 0.1 | 0.8 | 6 | 50 | 0.9 | 4 |
| LL-HM14-1R0.1x50N8 | 1 | 0.1 | 8 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.1x50N10 | 1 | 0.1 | 10 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.1x50N12 | 1 | 0.1 | 12 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.1x50N14 | 1 | 0.1 | 14 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.1x50N16 | 1 | 0.1 | 1 | 16 | 50 | 0.9 | 4 |
| LL-HM14-1R0.1x75 | 1 | 0.1 | 1 | 75 | 4 | ||
| LL-HM14-1R0.1x75N20 | 1 | 0.1 | 1 | 20 | 75 | 0.9 | 4 |
| LL-HM14-1R0.2x50 | 1 | 0.2 | 1 | 50 | 4 | ||
| LL-HM14-1R0.2x50N4 | 1 | 0.2 | 1 | 4 | 50 | 0.9 | 4 |
| LL-HM14-1R0.2x50N6 | 1 | 0.2 | 1 | 6 | 50 | 0.9 | 4 |
| LL-HM14-1R0.2x50N8 | 1 | 0.2 | 1 | 8 | 50 | 0.9 | 4 |
| LL-HM14-1R0.2x50N10 | 1 | 0.2 | 1 | 10 | 50 | 0.9 | 4 |
| LL-HM14-1R0.2x50N12 | 1 | 0.2 | 1 | 12 | 50 | 0.9 | 4 |
| LL-HM14-1R0.2x50N14 | 1 | 0.2 | 1 | 14 | 50 | 0.9 | 4 |
| LL-HM14-1R0.2x50N16 | 1 | 0.2 | 16 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.2x60 | 1 | 0.2 | 60 | 4 | |||
| LL-HM14-1R0.2x60N20 | 1 | 0.2 | 20 | 60 | 0.9 | 4 | |
| LL-HM14-1R0.3x50 | 1 | 0.3 | 50 | 4 | |||
| LL-HM14-1R0.3x50N6 | 1 | 0.3 | 6 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.3x50N10 | 1 | 0.3 | 10 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.3x50N16 | 1 | 0.3 | 16 | 50 | 0.9 | 4 | |
| LL-HM14-1R0.3x60 | 1 | 0.3 | 1 | 60 | 4 | ||
| LL-HM14-1R0.3x60N20 | 1 | 0.3 | 1 | 20 | 60 | 0.9 | 4 |
| LL-HM14-1.5R0.1x50 | 1.5 | 0.1 | 1 | 50 | 4 | ||
| LL-HM14-1.5R0.1x50N6 | 1.5 | 0.1 | 1 | 6 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.1x50N8 | 1.5 | 0.1 | 1 | 8 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.1x50N12 | 1.5 | 0.1 | 1 | 12 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.1x50N16 | 1.5 | 0.1 | 16 | 50 | 1.4 | 4 | |
| LL-HM14-1.5R0.1x60 | 1.5 | 0.1 | 60 | 4 | |||
| LL-HM14-1.5R0.1x60N20 | 1.5 | 0.1 | 1.5 | 20 | 60 | 1.4 | 4 |
| LL-HM14-1.5R0.2x50 | 1.5 | 0.2 | 1.5 | 50 | 4 | ||
| LL-HM14-1.5R0.2x50N6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.2x50N8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.2x50N10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.2x50N12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.2x50N14 | 1.5 | 0.2 | 1.5 | 14 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.2x50N16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 1.4 | 4 |
| LL-HM14-1.5R0.2x60 | 1.5 | 0.2 | 1.5 | 60 | 4 | ||
| LL-HM14-1.5R0.2x60N18 | 1.5 | 0.2 | 1.5 | 18 | 60 | 1.4 | 4 |
| LL-HM14-1.5R0.2x60N20 | 1.5 | 0.2 | 20 | 60 | 1.4 | 4 | |
| LL-HM14-1.5R0.3x50 | 1.5 | 0.3 | 50 | 4 | |||
| LL-HM14-1.5R0.3x50N8 | 1.5 | 0.3 | 8 | 50 | 1.4 | 4 | |
| LL-HM14-1.5R0.3x50N16 | 1.5 | 0.3 | 16 | 50 | 1.4 | 4 | |
| LL-HM14-1.5R0.3x60 | 1.5 | 0.3 | 60 | 1.4 | 4 | ||
| LL-HM14-1.5R0.3x60N20 | 1.5 | 0.3 | 20 | 60 | 1.4 | 4 | |
| LL-HM14-2R0.2x50 | 2 | 0.2 | 50 | 4 | |||
| LL-HM14-2R0.2x50N6 | 2 | 0.2 | 6 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.2x50N8 | 2 | 0.2 | 8 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.2x50N10 | 2 | 0.2 | 10 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.2x50N12 | 2 | 0.2 | 12 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.2x50N14 | 2 | 0.2 | 14 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.2x50N16 | 2 | 0.2 | 16 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.2x60 | 2 | 0.2 | 60 | 4 | |||
| LL-HM14-2R0.2x60N18 | 2 | 0.2 | 18 | 60 | 1.9 | 4 | |
| LL-HM14-2R0.2x60N20 | 2 | 0.2 | 2 | 20 | 60 | 1.9 | 4 |
| LL-HM14-2R0.2x75 | 2 | 0.2 | 2 | 75 | 4 | ||
| LL-HM14-2R0.2x75N25 | 2 | 0.2 | 2 | 25 | 75 | 1.9 | 4 |
| LL-HM14-2R0.2x75N30 | 2 | 0.2 | 2 | 30 | 75 | 1.9 | 4 |
| LL-HM14-2R0.3x50 | 2 | 0.3 | 2 | 50 | 4 | ||
| LL-HM14-2R0.3x50N8 | 2 | 0.3 | 8 | 50 | 4 | ||
| LL-HM14-2R0.3x50N16 | 2 | 0.3 | 2 | 16 | 50 | 1.9 | 4 |
| LL-HM14-2R0.3x60 | 2 | 0.3 | 2 | 60 | 4 | ||
| LL-HM14-2R0.3x60N20 | 2 | 0.3 | 2 | 20 | 60 | 1.9 | 4 |
| LL-HM14-2R0.5x50 | 2 | 0.5 | 2 | 50 | 4 | ||
| LL-HM14-2R0.5x50N6 | 2 | 0.5 | 6 | 50 | 4 | ||
| LL-HM14-2R0.5x50N8 | 2 | 0.5 | 8 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.5x50N12 | 2 | 0.5 | 12 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.5x50N16 | 2 | 0.5 | 16 | 50 | 1.9 | 4 | |
| LL-HM14-2R0.5x60 | 2 | 0.5 | 60 | 4 | |||
| LL-HM14-2R0.5x60N20 | 2 | 0.5 | 20 | 60 | 1.9 | 4 | |
| LL-HM14-2R0.5x75 | 2 | 0.5 | 75 | 4 | |||
| LL-HM14-2R0.5x75N25 | 2 | 0.5 | 25 | 75 | 1.9 | 4 | |
| LL-HM14-2R0.5x75N30 | 2 | 0.5 | 2.5 | 30 | 75 | 1.9 | 4 |
| LL-HM14-2.5R0.3x50 | 2.5 | 0.3 | 2.5 | 50 | 4 | ||
| LL-HM14-2.5R0.3x50N8 | 2.5 | 0.3 | 2.5 | 8 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.3x50N10 | 2.5 | 0.3 | 2.5 | 10 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.3x50N12 | 2.5 | 0.3 | 2.5 | 12 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.3x50N14 | 2.5 | 0.3 | 2.5 | 14 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.3x50N16 | 2.5 | 0.3 | 2.5 | 16 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.3x60 | 2.5 | 0.3 | 2.5 | 60 | 4 | ||
| LL-HM14-2.5R0.3x60N18 | 2.5 | 0.3 | 2.5 | 18 | 60 | 2.4 | 4 |
| LL-HM14-2.5R0.3x60N20 | 2.5 | 0.3 | 2.5 | 20 | 60 | 2.4 | 4 |
| LL-HM14-2.5R0.3x60N25 | 2.5 | 0.3 | 25 | 60 | 2.4 | 4 | |
| LL-HM14-2.5R0.3x75 | 2.5 | 0.3 | 2.5 | 75 | 4 | ||
| LL-HM14-2.5R0.3x75N30 | 2.5 | 0.3 | 2.5 | 30 | 75 | 2.4 | 4 |
| LL-HM14-2.5R0.5x50 | 2.5 | 0.5 | 2.5 | 50 | 4 | ||
| LL-HM14-2.5R0.5x50N8 | 2.5 | 0.5 | 2.5 | 8 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.5x50N12 | 2.5 | 0.5 | 2.5 | 12 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.5x50N16 | 2.5 | 0.5 | 2.5 | 16 | 50 | 2.4 | 4 |
| LL-HM14-2.5R0.5x60 | 2.5 | 0.5 | 2.5 | 60 | 4 | ||
| LL-HM14-2.5R0.5x60N20 | 2.5 | 0.5 | 2.5 | 20 | 60 | 2.4 | 4 |
| LL-HM14-2.5R0.5x60N25 | 2.5 | 0.5 | 2.5 | 25 | 60 | 2.4 | 4 |
| LL-HM14-2.5R0.5x75 | 2.5 | 0.5 | 2.5 | 75 | 4 | ||
| LL-HM14-2.5R0.5x75N30 | 2.5 | 0.5 | 30 | 75 | 2.4 | 4 | |
| LL-HM14-3R0.2x50 | 3 | 0.2 | 50 | 6 | |||
| LL-HM14-3R0.2x50N8 | 3 | 0.2 | 8 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.2x50N10 | 3 | 0.2 | 10 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.2x50N12 | 3 | 0.2 | 12 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.2x50N14 | 3 | 0.2 | 14 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.2x60 | 3 | 0.2 | 60 | 6 | |||
| LL-HM14-3R0.2x60N16 | 3 | 0.2 | 16 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.2x60N18 | 3 | 0.2 | 18 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.2x60N20 | 3 | 0.2 | 20 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.2x75 | 3 | 0.2 | 75 | 6 | |||
| LL-HM14-3R0.2x75N25 | 3 | 0.2 | 25 | 75 | 2.8 | 6 | |
| LL-HM14-3R0.3x50 | 3 | 0.3 | 3 | 50 | 6 | ||
| LL-HM14-3R0.3x50N8 | 3 | 0.3 | 8 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.3x50N10 | 3 | 0.3 | 3 | 10 | 50 | 2.8 | 6 |
| LL-HM14-3R0.3x50N12 | 3 | 0.3 | 3 | 12 | 50 | 2.8 | 6 |
| LL-HM14-3R0.3x50N14 | 3 | 0.3 | 3 | 14 | 50 | 2.8 | 6 |
| LL-HM14-3R0.3x60 | 3 | 0.3 | 3 | 60 | 6 | ||
| LL-HM14-3R0.3x60N16 | 3 | 0.3 | 3 | 16 | 60 | 2.8 | 6 |
| LL-HM14-3R0.3x60N18 | 3 | 0.3 | 3 | 18 | 60 | 2.8 | 6 |
| LL-HM14-3R0.3x60N20 | 3 | 0.3 | 20 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.3x75 | 3 | 0.3 | 3 | 75 | 6 | ||
| LL-HM14-3R0.3x75N30 | 3 | 0.3 | 3 | 30 | 75 | 2.8 | 6 |
| LL-HM14-3R0.5x50 | 3 | 0.5 | 50 | 6 | |||
| LL-HM14-3R0.5x50N8 | 3 | 0.5 | 8 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.5x50N10 | 3 | 0.5 | 10 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.5x50N12 | 3 | 0.5 | 12 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.5x50N14 | 3 | 0.5 | 14 | 50 | 2.8 | 6 | |
| LL-HM14-3R0.5x60 | 3 | 0.5 | 60 | 6 | |||
| LL-HM14-3R0.5x60N16 | 3 | 0.5 | 16 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.5x60N18 | 3 | 0.5 | 18 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.5x60N20 | 3 | 0.5 | 20 | 60 | 2.8 | 6 | |
| LL-HM14-3R0.5x75 | 3 | 0.5 | 75 | 6 | |||
| LL-HM14-3R0.5x75N30 | 3 | 0.5 | 30 | 75 | 2.8 | 6 | |
| LL-HM14-4R0.3x60 | 4 | 0.3 | 60 | 6 | |||
| LL-HM14-4R0.3x60N10 | 4 | 0.3 | 10 | 60 | 3.7 | 6 | |
| LL-HM14-4R0.3x60N15 | 4 | 0.3 | 15 | 60 | 3.7 | 6 | |
| LL-HM14-4R0.3x60N20 | 4 | 0.3 | 20 | 60 | 3.7 | 6 | |
| LL-HM14-4R0.3x75 | 4 | 0.3 | 4 | 75 | 6 | ||
| LL-HM14-4R0.3x75N25 | 4 | 0.3 | 4 | 25 | 75 | 3.7 | 6 |
| LL-HM14-4R0.3x75N32 | 4 | 0.3 | 4 | 32 | 75 | 3.7 | 6 |
| LL-HM14-4R0.3x75N40 | 4 | 0.3 | 4 | 40 | 75 | 3.7 | 6 |
| LL-HM14-4R0.5x60 | 4 | 0.5 | 4 | 60 | 6 | ||
| LL-HM14-4R0.5x60N10 | 4 | 0.5 | 4 | 10 | 60 | 3.7 | 6 |
| LL-HM14-4R0.5x60N15 | 4 | 0.5 | 4 | 15 | 60 | 3.7 | 6 |
| LL-HM14-4R0.5x60N20 | 4 | 0.5 | 20 | 60 | 3.7 | 6 | |
| LL-HM14-4R0.5x75 | 4 | 0.5 | 4 | 75 | 6 | ||
| LL-HM14-4R0.5x75N25 | 4 | 0.5 | 25 | 75 | 3.7 | 6 | |
| LL-HM14-4R0.5x75N32 | 4 | 0.5 | 32 | 75 | 3.7 | 6 | |
| LL-HM14-4R0.5x75N40 | 4 | 0.5 | 40 | 75 | 3.7 | 6 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
