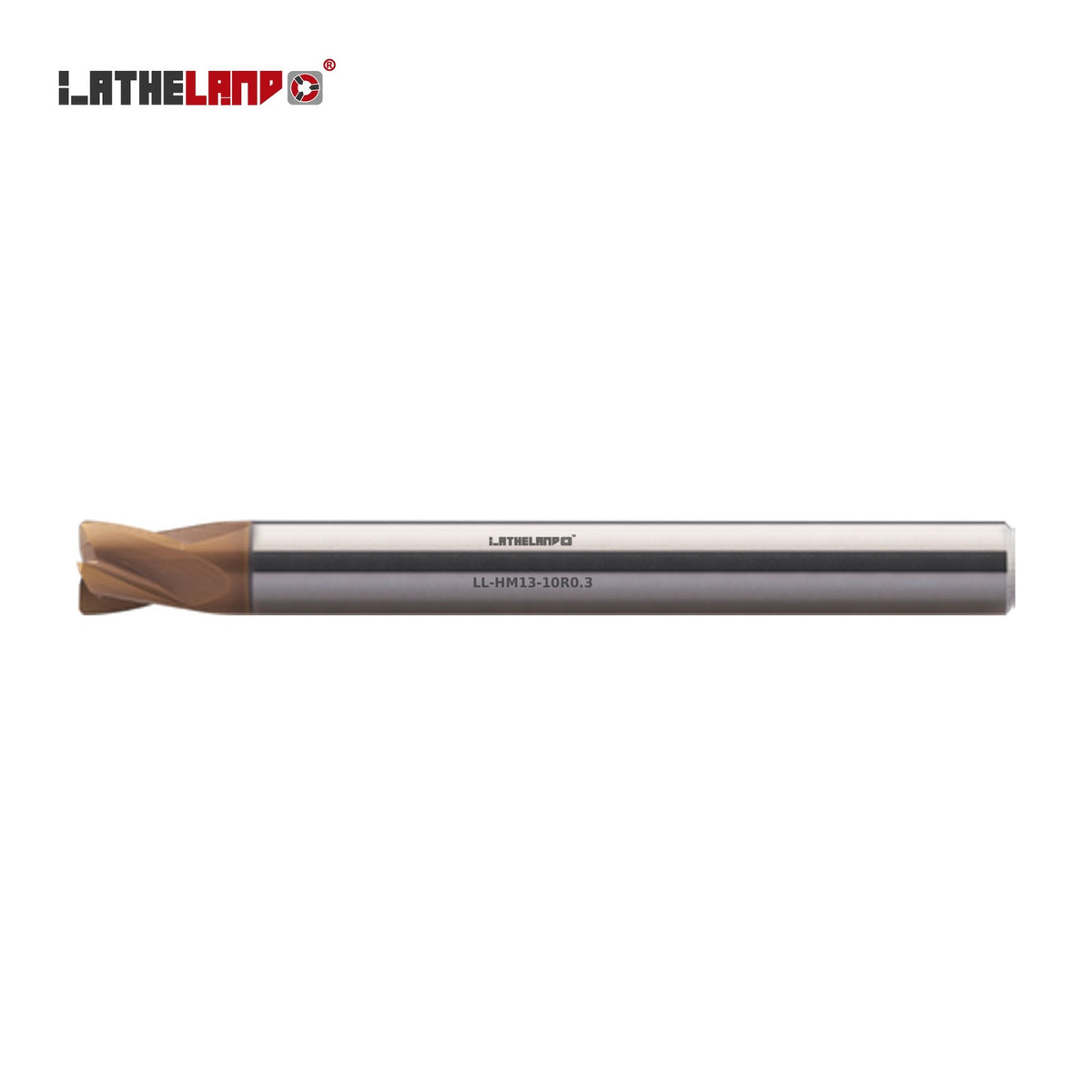

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM13 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 4/6 |
| Helix angle | 25° |
| Workpiece hardness | 40–60 HRC |
| Best for | steel, hardened steel |
| Range | Ø2–12 mm |
| Sizes available | 42 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM13 | TiSiN multilayer | 21 |
| HM13R | TiSiN multilayer, neck recess | 21 |

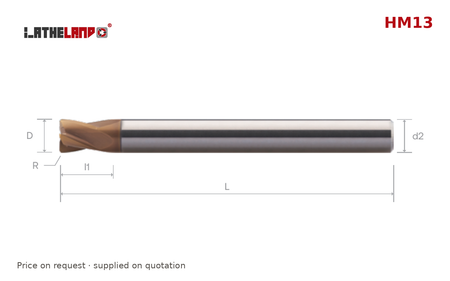

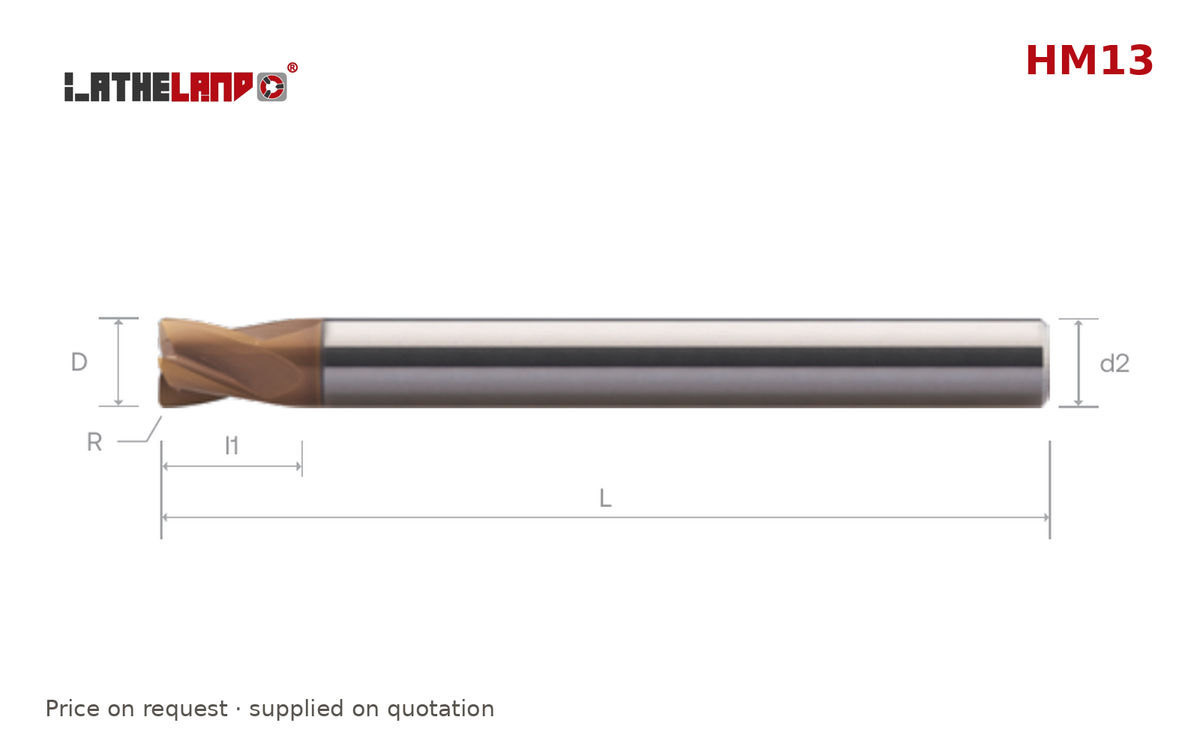

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-HM13-2R0.3 | 2 | 0.3 | 2 | 75 | 6 | |
| LL-HM13-2R0.5 | 2 | 0.5 | 2 | 75 | 6 | |
| LL-HM13-3R0.3 | 3 | 0.3 | 3 | 75 | 6 | |
| LL-HM13-3R0.5 | 3 | 0.5 | 3 | 75 | 6 | |
| LL-HM13-4R0.3 | 4 | 0.3 | 4 | 75 | 6 | |
| LL-HM13-4R0.5 | 4 | 0.5 | 4 | 75 | 6 | |
| LL-HM13-6R0.3 | 6 | 0.3 | 6 | 75 | 6 | |
| LL-HM13-6R0.5 | 6 | 0.5 | 75 | 6 | ||
| LL-HM13-6R1 | 6 | 1 | 6 | 75 | 6 | |
| LL-HM13-8R0.3 | 8 | 0.3 | 8 | 100 | 8 | |
| LL-HM13-8R0.5 | 8 | 0.5 | 8 | 100 | 8 | |
| LL-HM13-8R1 | 8 | 1 | 8 | 100 | 8 | |
| LL-HM13-8R2 | 8 | 2 | 8 | 100 | 8 | |
| LL-HM13-10R0.3 | 10 | 0.3 | 10 | 100 | 10 | |
| LL-HM13-10R0.5 | 10 | 0.5 | 10 | 100 | 10 | |
| LL-HM13-10R1 | 10 | 1 | 10 | 100 | 10 | |
| LL-HM13-10R2 | 10 | 2 | 10 | 100 | 10 | |
| LL-HM13-12R0.3 | 12 | 0.3 | 12 | 100 | 12 | |
| LL-HM13-12R0.5 | 12 | 0.5 | 12 | 100 | 12 | |
| LL-HM13-12R1 | 12 | 1 | 12 | 100 | 12 | |
| LL-HM13-12R2 | 12 | 2 | 12 | 100 | 12 | |
| LL-HM13R-2R0.3 | 2 | 0.3 | 2 | 35 | 75 | 6 |
| LL-HM13R-2R0.5 | 2 | 0.5 | 2 | 35 | 75 | 6 |
| LL-HM13R-3R0.3 | 3 | 0.3 | 3 | 30 | 75 | 6 |
| LL-HM13R-3R0.5 | 3 | 0.5 | 3 | 30 | 75 | 6 |
| LL-HM13R-4R0.3 | 4 | 0.3 | 4 | 32 | 75 | 6 |
| LL-HM13R-4R0.5 | 4 | 0.5 | 4 | 32 | 75 | 6 |
| LL-HM13R-6R0.3 | 6 | 0.3 | 6 | 40 | 75 | 6 |
| LL-HM13R-6R0.5 | 6 | 0.5 | 6 | 40 | 75 | 6 |
| LL-HM13R-6R1 | 6 | 1 | 6 | 40 | 75 | 6 |
| LL-HM13R-8R0.3 | 8 | 0.3 | 8 | 60 | 100 | 8 |
| LL-HM13R-8R0.5 | 8 | 0.5 | 8 | 60 | 100 | 8 |
| LL-HM13R-8R1 | 8 | 1 | 8 | 60 | 100 | 8 |
| LL-HM13R-8R2 | 8 | 2 | 8 | 60 | 100 | 8 |
| LL-HM13R-10R0.3 | 10 | 0.3 | 10 | 60 | 100 | 10 |
| LL-HM13R-10R0.5 | 10 | 0.5 | 10 | 60 | 100 | 10 |
| LL-HM13R-10R1 | 10 | 1 | 10 | 60 | 100 | 10 |
| LL-HM13R-10R2 | 10 | 2 | 10 | 60 | 100 | 10 |
| LL-HM13R-12R0.3 | 12 | 0.3 | 12 | 60 | 100 | 12 |
| LL-HM13R-12R0.5 | 12 | 0.5 | 12 | 60 | 100 | 12 |
| LL-HM13R-12R1 | 12 | 1 | 12 | 60 | 100 | 12 |
| LL-HM13R-12R2 | 12 | 2 | 12 | 60 | 100 | 12 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
