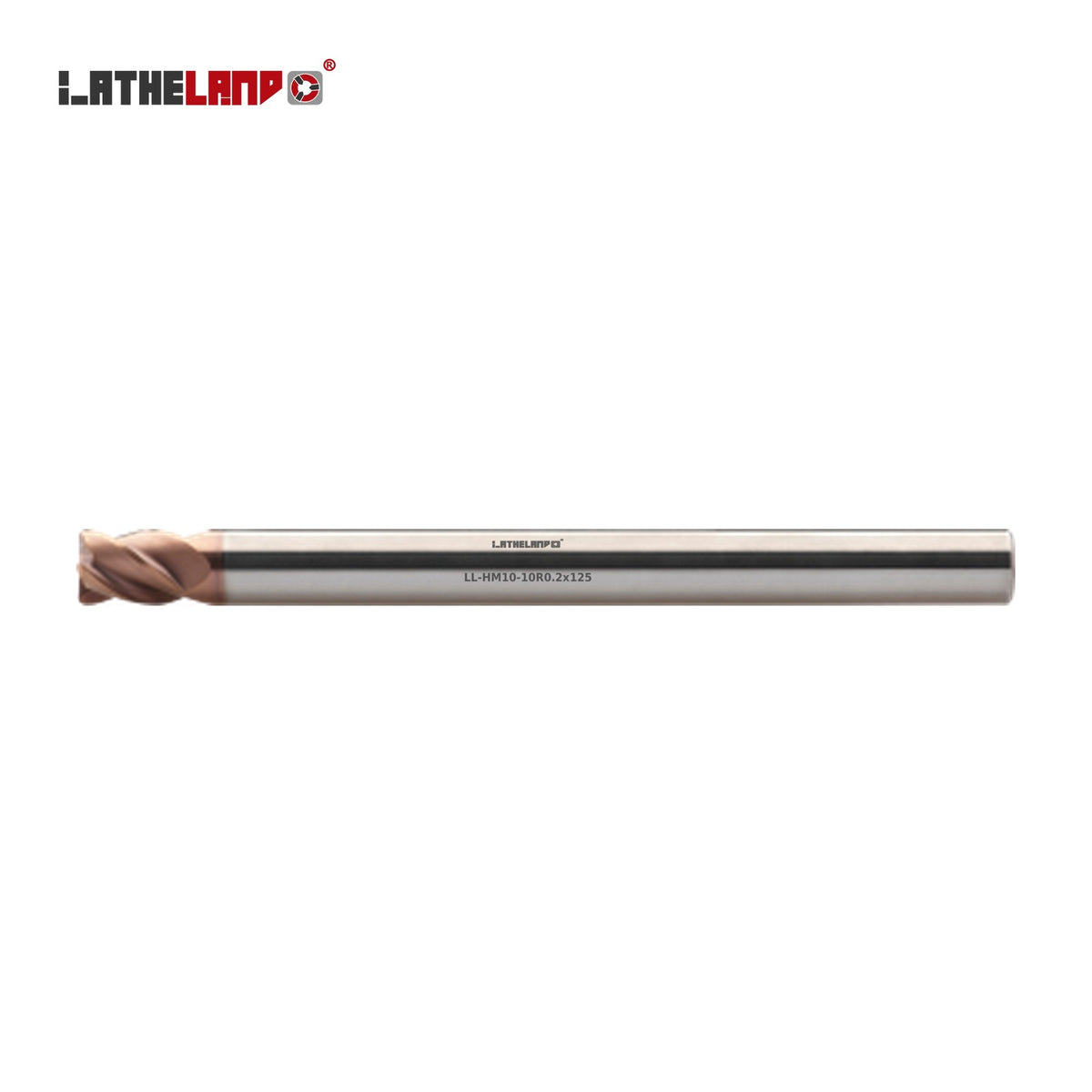

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hard Milling, 4 Flutes – HM10

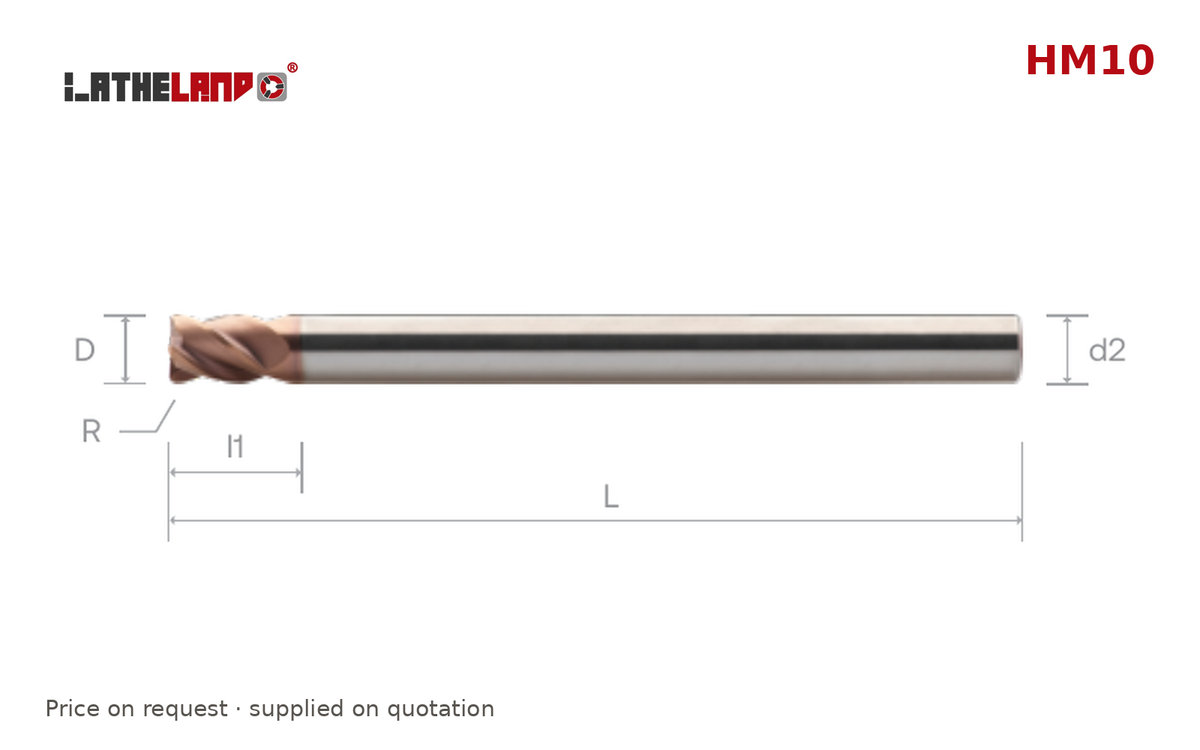

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hard Milling, 4 Flutes – HM10 – dimension drawing
LATHELAND® Extra-Long Long-Reach Torus End Mill for Hard Milling, 4 Flutes – HM10

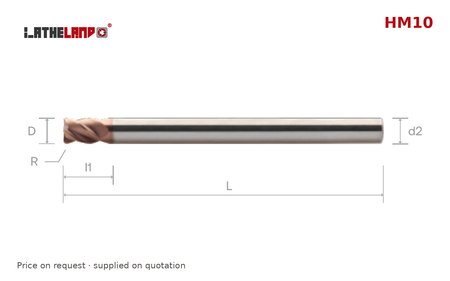

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hard Milling, 4 Flutes – HM10 – dimension drawing
LATHELAND

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hard Milling, 4 Flutes – HM10

Out of stock
SKU: LL-HM10-2R0.2x100
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedHM10 – TiSiN multilayer / Ø2 · R0.2 · L100 SKULL-HM10-2R0.2x100

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HM10
Material Solid carbide
Coating TiSiN multilayer
Flutes 4
Helix angle 40°
Workpiece hardness 53–68 HRC
Best for hardened steel
Range Ø2–16 mm
Sizes available 104
Price On request – supplied on quotation

Versions

Version Specification Sizes
HM10 TiSiN multilayer 52
HM10R TiSiN multilayer, neck recess 52

Size table (all dimensions in mm)

SKU Ø D R l1 l2 L d2
LL-HM10-2R0.2x100 2 0.2 4 100 6
LL-HM10-2R0.3x100 2 0.3 4 100 6
LL-HM10-3R0.2x100 3 0.2 5 100 6
LL-HM10-3R0.3x100 3 0.3 5 100 6
LL-HM10-3R0.5x100 3 0.5 5 100 6
LL-HM10-3R1x100 3 1 5 100 6
LL-HM10-4R0.2x100 4 0.2 8 100 6
LL-HM10-4R0.3x100 4 0.3 8 100 6
LL-HM10-4R0.5x100 4 0.5 8 100 6
LL-HM10-4R1x100 4 1 8 100 6
LL-HM10-5R0.2x100 5 0.2 9 100 6
LL-HM10-5R0.3x100 5 0.3 9 100 6
LL-HM10-5R0.5x100 5 0.5 9 100 6
LL-HM10-5R1x100 5 1 9 100 6
LL-HM10-6R0.2x100 6 0.2 9 100 6
LL-HM10-6R0.3x100 6 0.3 10 100 6
LL-HM10-6R0.5x100 6 0.5 10 100 6
LL-HM10-6R1x100 6 1 10 100 6
LL-HM10-6R0.2x125 6 0.2 10 125 6
LL-HM10-6R0.3x125 6 0.3 10 125 6
LL-HM10-6R0.5x125 6 0.5 10 125 6
LL-HM10-6R1x125 6 1 10 125 6
LL-HM10-8R0.2x100 8 0.2 10 100 8
LL-HM10-8R0.3x100 8 0.3 12 100 8
LL-HM10-8R0.5x100 8 0.5 12 100 8
LL-HM10-8R1x100 8 1 12 100 8
LL-HM10-8R2x100 8 2 12 100 8
LL-HM10-8R0.2x125 8 0.2 12 125 8
LL-HM10-8R0.3x125 8 0.3 12 125 8
LL-HM10-8R0.5x125 8 0.5 12 125 8
LL-HM10-8R1x125 8 1 12 125 8
LL-HM10-8R2x125 8 2 12 125 8
LL-HM10-10R0.2x125 10 0.2 14 125 10
LL-HM10-10R0.3x125 10 0.3 14 125 10
LL-HM10-10R0.5x125 10 0.5 14 125 10
LL-HM10-10R1x125 10 1 14 125 10
LL-HM10-10R2x125 10 2 14 125 10
LL-HM10-10R0.2x150 10 0.2 14 150 10
LL-HM10-10R0.3x150 10 0.3 14 150 10
LL-HM10-10R0.5x150 10 0.5 14 150 10
LL-HM10-10R1x150 10 1 14 150 10
LL-HM10-10R2x150 10 2 16 150 10
LL-HM10-12R0.2x150 12 0.2 16 150 12
LL-HM10-12R0.3x150 12 0.3 16 150 12
LL-HM10-12R0.5x150 12 0.5 16 150 12
LL-HM10-12R1x150 12 1 16 150 12
LL-HM10-12R2x150 12 2 16 150 12
LL-HM10-16R0.3x150 16 0.3 22 150 16
LL-HM10-16R0.5x150 16 0.5 22 150 16
LL-HM10-16R1x150 16 1 22 150 16
LL-HM10-16R2x150 16 2 22 150 16
LL-HM10-16R3x150 16 3 22 150 16
LL-HM10R-2R0.2x100 2 0.2 4 60 100 6
LL-HM10R-2R0.3x100 2 0.3 4 60 100 6
LL-HM10R-3R0.2x100 3 0.2 5 60 100 6
LL-HM10R-3R0.3x100 3 0.3 5 60 100 6
LL-HM10R-3R0.5x100 3 0.5 5 60 100 6
LL-HM10R-3R1x100 3 1 5 60 100 6
LL-HM10R-4R0.2x100 4 0.2 8 60 100 6
LL-HM10R-4R0.3x100 4 0.3 8 60 100 6
LL-HM10R-4R0.5x100 4 0.5 8 60 100 6
LL-HM10R-4R1x100 4 1 8 60 100 6
LL-HM10R-5R0.2x100 5 0.2 9 60 100 6
LL-HM10R-5R0.3x100 5 0.3 9 60 100 6
LL-HM10R-5R0.5x100 5 0.5 9 60 100 6
LL-HM10R-5R1x100 5 1 9 60 100 6
LL-HM10R-6R0.2x100 6 0.2 9 60 100 6
LL-HM10R-6R0.3x100 6 0.3 10 60 100 6
LL-HM10R-6R0.5x100 6 0.5 10 60 100 6
LL-HM10R-6R1x100 6 1 10 60 100 6
LL-HM10R-6R0.2x125 6 0.2 10 60 125 6
LL-HM10R-6R0.3x125 6 0.3 10 60 125 6
LL-HM10R-6R0.5x125 6 0.5 10 60 125 6
LL-HM10R-6R1x125 6 1 10 60 125 6
LL-HM10R-8R0.2x100 8 0.2 10 60 100 8
LL-HM10R-8R0.3x100 8 0.3 12 60 100 8
LL-HM10R-8R0.5x100 8 0.5 12 60 100 8
LL-HM10R-8R1x100 8 1 12 60 100 8
LL-HM10R-8R2x100 8 2 12 60 100 8
LL-HM10R-8R0.2x125 8 0.2 12 60 125 8
LL-HM10R-8R0.3x125 8 0.3 12 60 125 8
LL-HM10R-8R0.5x125 8 0.5 12 60 125 8
LL-HM10R-8R1x125 8 1 12 60 125 8
LL-HM10R-8R2x125 8 2 12 60 125 8
LL-HM10R-10R0.2x125 10 0.2 14 85 125 10
LL-HM10R-10R0.3x125 10 0.3 14 85 125 10
LL-HM10R-10R0.5x125 10 0.5 14 85 125 10
LL-HM10R-10R1x125 10 1 14 85 125 10
LL-HM10R-10R2x125 10 2 14 85 125 10
LL-HM10R-10R0.2x150 10 0.2 14 85 150 10
LL-HM10R-10R0.3x150 10 0.3 14 85 150 10
LL-HM10R-10R0.5x150 10 0.5 14 85 150 10
LL-HM10R-10R1x150 10 1 14 85 150 10
LL-HM10R-10R2x150 10 2 16 85 150 10
LL-HM10R-12R0.2x150 12 0.2 16 110 150 12
LL-HM10R-12R0.3x150 12 0.3 16 110 150 12
LL-HM10R-12R0.5x150 12 0.5 16 110 150 12
LL-HM10R-12R1x150 12 1 16 110 150 12
LL-HM10R-12R2x150 12 2 16 110 150 12
LL-HM10R-16R0.3x150 16 0.3 22 110 150 16
LL-HM10R-16R0.5x150 16 0.5 22 110 150 16
LL-HM10R-16R1x150 16 1 22 110 150 16
LL-HM10R-16R2x150 16 2 22 110 150 16
LL-HM10R-16R3x150 16 3 22 110 150 16

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
