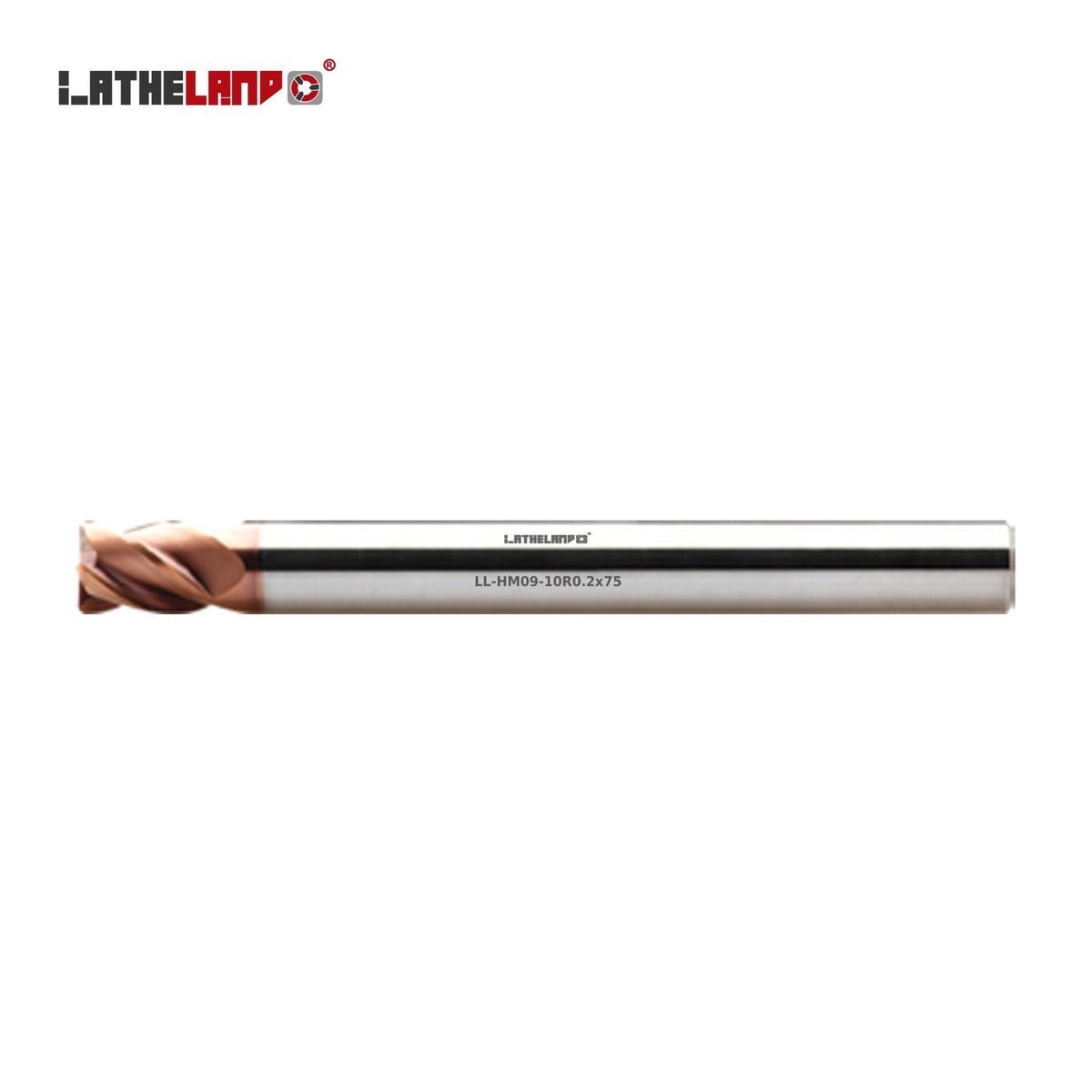

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM09 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 4 |
| Helix angle | 40° |
| Workpiece hardness | 53–68 HRC |
| Best for | hardened steel |
| Range | Ø2–16 mm |
| Sizes available | 78 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM09 | TiSiN multilayer | 39 |
| HM09R | TiSiN multilayer, neck recess | 39 |

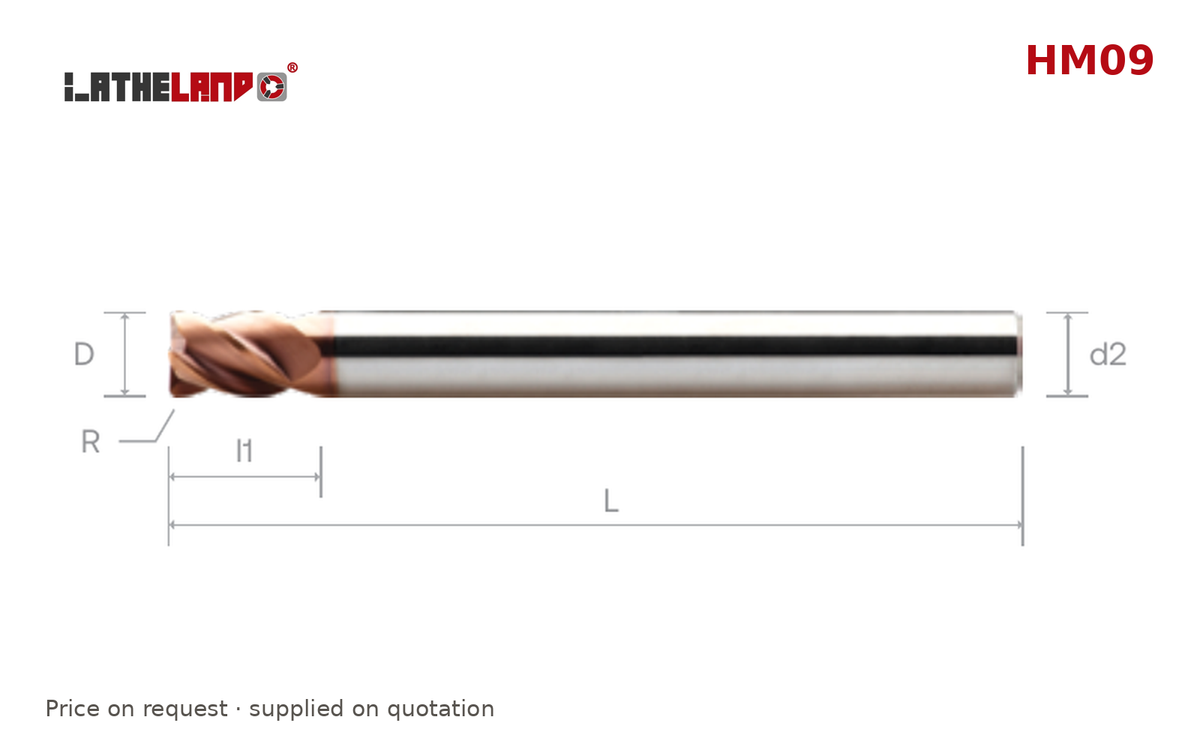

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-HM09-2R0.2x75 | 2 | 0.2 | 4 | 75 | 6 | |
| LL-HM09-2R0.3x75 | 2 | 0.3 | 4 | 75 | 6 | |
| LL-HM09-3R0.2x75 | 3 | 0.2 | 5 | 75 | 6 | |
| LL-HM09-3R0.3x75 | 3 | 0.3 | 5 | 75 | 6 | |
| LL-HM09-3R0.5x75 | 3 | 0.5 | 5 | 75 | 6 | |
| LL-HM09-4R0.2x75 | 4 | 0.2 | 8 | 75 | 6 | |
| LL-HM09-4R0.3x75 | 4 | 0.3 | 8 | 75 | 6 | |
| LL-HM09-4R0.5x75 | 4 | 0.5 | 8 | 75 | 6 | |
| LL-HM09-5R0.2x75 | 5 | 0.2 | 9 | 75 | 6 | |
| LL-HM09-5R0.3x75 | 5 | 0.3 | 9 | 75 | 6 | |
| LL-HM09-5R0.5x75 | 5 | 0.5 | 9 | 75 | 6 | |
| LL-HM09-6R0.2x75 | 6 | 0.2 | 10 | 75 | 6 | |
| LL-HM09-6R0.3x75 | 6 | 0.3 | 10 | 75 | 6 | |
| LL-HM09-6R0.5x75 | 6 | 0.5 | 10 | 75 | 6 | |
| LL-HM09-6R1x75 | 6 | 1 | 10 | 75 | 6 | |
| LL-HM09-8R0.2x75 | 8 | 0.2 | 12 | 75 | 8 | |
| LL-HM09-8R0.3x75 | 8 | 0.3 | 75 | 8 | ||
| LL-HM09-8R0.5x75 | 8 | 0.5 | 12 | 75 | 8 | |
| LL-HM09-8R1x75 | 8 | 1 | 12 | 75 | 8 | |
| LL-HM09-10R0.2x75 | 10 | 0.2 | 12 | 75 | 10 | |
| LL-HM09-10R0.3x75 | 10 | 0.3 | 14 | 75 | 10 | |
| LL-HM09-10R0.5x75 | 10 | 0.5 | 14 | 75 | 10 | |
| LL-HM09-10R1x75 | 10 | 1 | 14 | 75 | 10 | |
| LL-HM09-10R2x75 | 10 | 2 | 14 | 75 | 10 | |
| LL-HM09-10R0.2x100 | 10 | 0.2 | 14 | 100 | 10 | |
| LL-HM09-10R0.3x100 | 10 | 0.3 | 14 | 100 | 10 | |
| LL-HM09-10R0.5x100 | 10 | 0.5 | 14 | 100 | 10 | |
| LL-HM09-10R1x100 | 10 | 1 | 14 | 100 | 10 | |
| LL-HM09-10R2x100 | 10 | 2 | 16 | 100 | 10 | |
| LL-HM09-12R0.2x100 | 12 | 0.2 | 16 | 100 | 12 | |
| LL-HM09-12R0.3x100 | 12 | 0.3 | 16 | 100 | 12 | |
| LL-HM09-12R0.5x100 | 12 | 0.5 | 16 | 100 | 12 | |
| LL-HM09-12R1x100 | 12 | 1 | 16 | 100 | 12 | |
| LL-HM09-12R2x100 | 12 | 2 | 16 | 100 | 12 | |
| LL-HM09-16R0.3x125 | 16 | 0.3 | 22 | 125 | 16 | |
| LL-HM09-16R0.5x125 | 16 | 0.5 | 22 | 125 | 16 | |
| LL-HM09-16R1x125 | 16 | 1 | 22 | 125 | 16 | |
| LL-HM09-16R2x125 | 16 | 2 | 22 | 125 | 16 | |
| LL-HM09-16R3x125 | 16 | 3 | 125 | 16 | ||
| LL-HM09R-2R0.2x75 | 2 | 0.2 | 4 | 30 | 75 | 6 |
| LL-HM09R-2R0.3x75 | 2 | 0.3 | 4 | 30 | 75 | 6 |
| LL-HM09R-3R0.2x75 | 3 | 0.2 | 5 | 30 | 75 | 6 |
| LL-HM09R-3R0.3x75 | 3 | 0.3 | 5 | 30 | 75 | 6 |
| LL-HM09R-3R0.5x75 | 3 | 0.5 | 5 | 30 | 75 | 6 |
| LL-HM09R-4R0.2x75 | 4 | 0.2 | 8 | 32 | 75 | 6 |
| LL-HM09R-4R0.3x75 | 4 | 0.3 | 8 | 32 | 75 | 6 |
| LL-HM09R-4R0.5x75 | 4 | 0.5 | 8 | 32 | 75 | 6 |
| LL-HM09R-5R0.2x75 | 5 | 0.2 | 9 | 32 | 75 | 6 |
| LL-HM09R-5R0.3x75 | 5 | 0.3 | 9 | 32 | 75 | 6 |
| LL-HM09R-5R0.5x75 | 5 | 0.5 | 9 | 32 | 75 | 6 |
| LL-HM09R-6R0.2x75 | 6 | 0.2 | 10 | 40 | 75 | 6 |
| LL-HM09R-6R0.3x75 | 6 | 0.3 | 10 | 40 | 75 | 6 |
| LL-HM09R-6R0.5x75 | 6 | 0.5 | 10 | 40 | 75 | 6 |
| LL-HM09R-6R1x75 | 6 | 1 | 10 | 40 | 75 | 6 |
| LL-HM09R-8R0.2x75 | 8 | 0.2 | 12 | 40 | 75 | 8 |
| LL-HM09R-8R0.3x75 | 8 | 0.3 | 12 | 40 | 75 | 8 |
| LL-HM09R-8R0.5x75 | 8 | 0.5 | 12 | 40 | 75 | 8 |
| LL-HM09R-8R1x75 | 8 | 1 | 12 | 40 | 75 | 8 |
| LL-HM09R-10R0.2x75 | 10 | 0.2 | 12 | 40 | 75 | 10 |
| LL-HM09R-10R0.3x75 | 10 | 0.3 | 14 | 40 | 75 | 10 |
| LL-HM09R-10R0.5x75 | 10 | 0.5 | 14 | 40 | 75 | 10 |
| LL-HM09R-10R1x75 | 10 | 1 | 14 | 40 | 75 | 10 |
| LL-HM09R-10R2x75 | 10 | 2 | 14 | 40 | 75 | 10 |
| LL-HM09R-10R0.2x100 | 10 | 0.2 | 14 | 60 | 100 | 10 |
| LL-HM09R-10R0.3x100 | 10 | 0.3 | 14 | 60 | 100 | 10 |
| LL-HM09R-10R0.5x100 | 10 | 0.5 | 14 | 60 | 100 | 10 |
| LL-HM09R-10R1x100 | 10 | 1 | 14 | 60 | 100 | 10 |
| LL-HM09R-10R2x100 | 10 | 2 | 16 | 60 | 100 | 10 |
| LL-HM09R-12R0.2x100 | 12 | 0.2 | 16 | 60 | 100 | 12 |
| LL-HM09R-12R0.3x100 | 12 | 0.3 | 16 | 60 | 100 | 12 |
| LL-HM09R-12R0.5x100 | 12 | 0.5 | 16 | 60 | 100 | 12 |
| LL-HM09R-12R1x100 | 12 | 1 | 16 | 60 | 100 | 12 |
| LL-HM09R-12R2x100 | 12 | 2 | 16 | 60 | 100 | 12 |
| LL-HM09R-16R0.3x125 | 16 | 0.3 | 22 | 85 | 125 | 16 |
| LL-HM09R-16R0.5x125 | 16 | 0.5 | 22 | 85 | 125 | 16 |
| LL-HM09R-16R1x125 | 16 | 1 | 22 | 85 | 125 | 16 |
| LL-HM09R-16R2x125 | 16 | 2 | 22 | 85 | 125 | 16 |
| LL-HM09R-16R3x125 | 16 | 3 | 22 | 85 | 125 | 16 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
