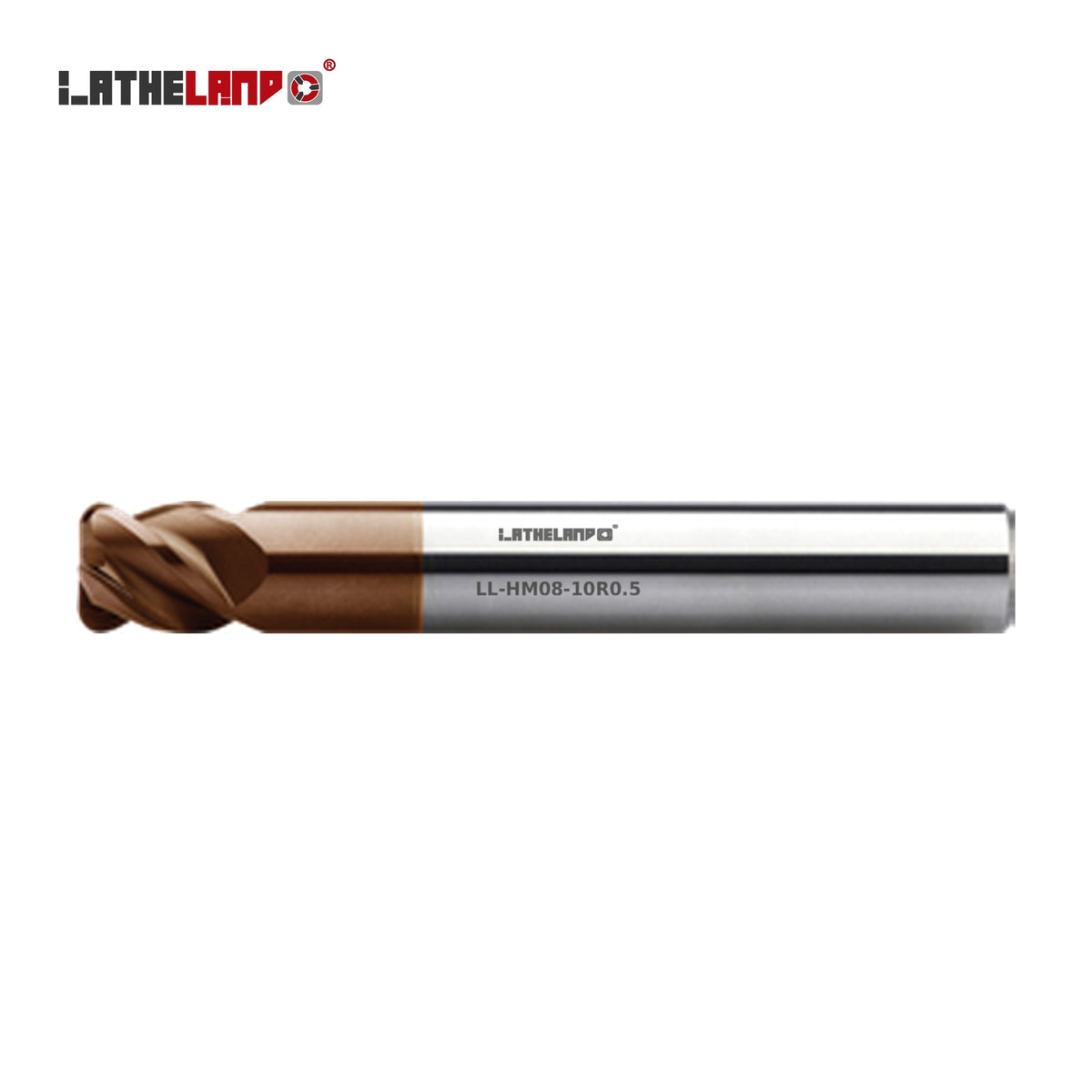

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM08 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 4 |
| Helix angle | 45° |
| Workpiece hardness | 53–68 HRC |
| Best for | hardened steel |
| Range | Ø3–16 mm |
| Sizes available | 44 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM08 | TiSiN multilayer | 22 |
| HM08R | TiSiN multilayer, neck recess | 22 |

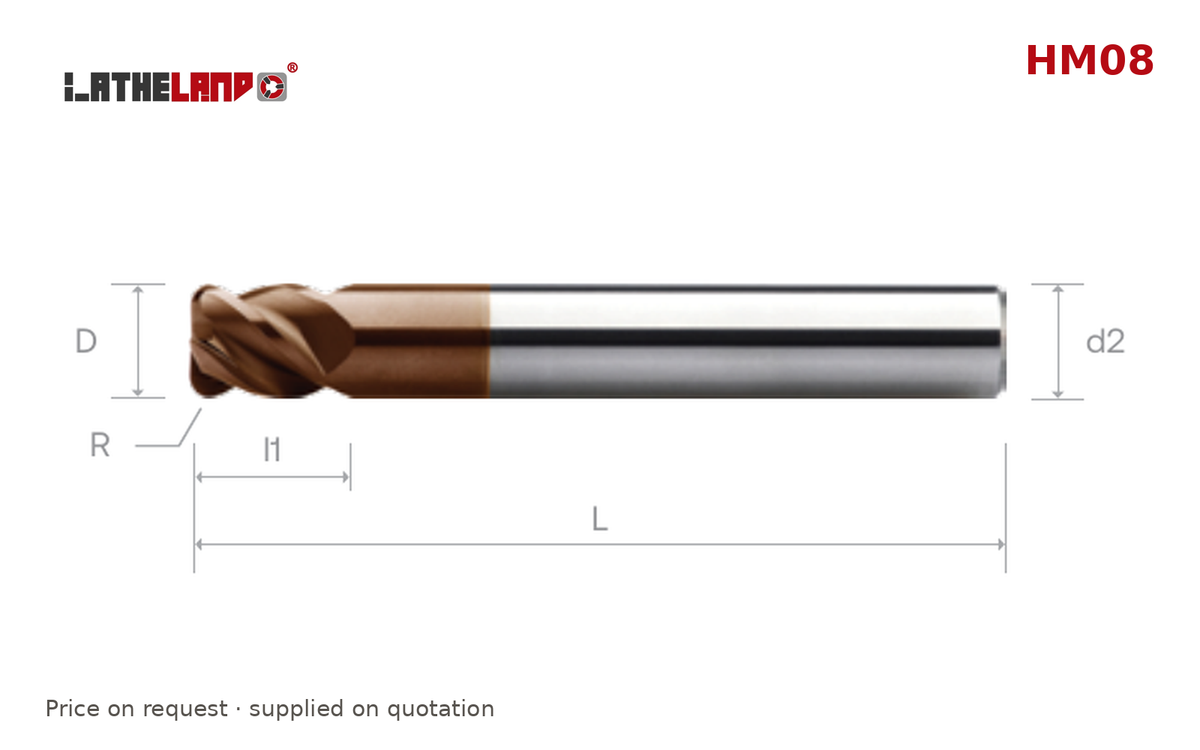

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-HM08-3R0.3 | 3 | 0.3 | 4 | 60 | 6 | |
| LL-HM08-3R0.5 | 3 | 0.5 | 4 | 60 | 6 | |
| LL-HM08-4R0.3 | 4 | 0.3 | 5 | 60 | 6 | |
| LL-HM08-4R0.5 | 4 | 0.5 | 5 | 60 | 6 | |
| LL-HM08-5R0.3 | 5 | 0.3 | 6 | 60 | 6 | |
| LL-HM08-5R0.5 | 5 | 0.5 | 6 | 60 | 6 | |
| LL-HM08-6R0.3 | 6 | 0.3 | 7 | 60 | 6 | |
| LL-HM08-6R0.5 | 6 | 0.5 | 7 | 60 | 6 | |
| LL-HM08-6R1 | 6 | 1 | 7 | 60 | 6 | |
| LL-HM08-8R0.3 | 8 | 0.3 | 9 | 64 | 8 | |
| LL-HM08-8R0.5 | 8 | 0.5 | 9 | 64 | 8 | |
| LL-HM08-8R1 | 8 | 1 | 9 | 64 | 8 | |
| LL-HM08-10R0.5 | 10 | 0.5 | 11 | 70 | 10 | |
| LL-HM08-10R1 | 10 | 1 | 11 | 70 | 10 | |
| LL-HM08-10R2 | 10 | 2 | 11 | 70 | 10 | |
| LL-HM08-12R0.5 | 12 | 0.5 | 13 | 75 | 12 | |
| LL-HM08-12R1 | 12 | 1 | 13 | 75 | 12 | |
| LL-HM08-12R2 | 12 | 2 | 13 | 75 | 12 | |
| LL-HM08-16R0.5 | 16 | 0.5 | 17 | 90 | 16 | |
| LL-HM08-16R1 | 16 | 1 | 17 | 90 | 16 | |
| LL-HM08-16R2 | 16 | 2 | 17 | 90 | 16 | |
| LL-HM08-16R3 | 16 | 3 | 17 | 90 | 16 | |
| LL-HM08R-3R0.3 | 3 | 0.3 | 4 | 14 | 60 | 6 |
| LL-HM08R-3R0.5 | 3 | 0.5 | 4 | 14 | 60 | 6 |
| LL-HM08R-4R0.3 | 4 | 0.3 | 5 | 16 | 60 | 6 |
| LL-HM08R-4R0.5 | 4 | 0.5 | 5 | 16 | 60 | 6 |
| LL-HM08R-5R0.3 | 5 | 0.3 | 6 | 18 | 60 | 6 |
| LL-HM08R-5R0.5 | 5 | 0.5 | 6 | 18 | 60 | 6 |
| LL-HM08R-6R0.3 | 6 | 0.3 | 7 | 20 | 60 | 6 |
| LL-HM08R-6R0.5 | 6 | 0.5 | 7 | 20 | 60 | 6 |
| LL-HM08R-6R1 | 6 | 1 | 7 | 20 | 60 | 6 |
| LL-HM08R-8R0.3 | 8 | 0.3 | 9 | 26 | 64 | 8 |
| LL-HM08R-8R0.5 | 8 | 0.5 | 9 | 26 | 64 | 8 |
| LL-HM08R-8R1 | 8 | 1 | 9 | 26 | 64 | 8 |
| LL-HM08R-10R0.5 | 10 | 0.5 | 11 | 31 | 70 | 10 |
| LL-HM08R-10R1 | 10 | 1 | 11 | 31 | 70 | 10 |
| LL-HM08R-10R2 | 10 | 2 | 11 | 31 | 70 | 10 |
| LL-HM08R-12R0.5 | 12 | 0.5 | 13 | 37 | 75 | 12 |
| LL-HM08R-12R1 | 12 | 1 | 13 | 37 | 75 | 12 |
| LL-HM08R-12R2 | 12 | 2 | 13 | 37 | 75 | 12 |
| LL-HM08R-16R0.5 | 16 | 0.5 | 17 | 43 | 90 | 16 |
| LL-HM08R-16R1 | 16 | 1 | 17 | 43 | 90 | 16 |
| LL-HM08R-16R2 | 16 | 2 | 17 | 43 | 90 | 16 |
| LL-HM08R-16R3 | 16 | 3 | 17 | 43 | 90 | 16 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
