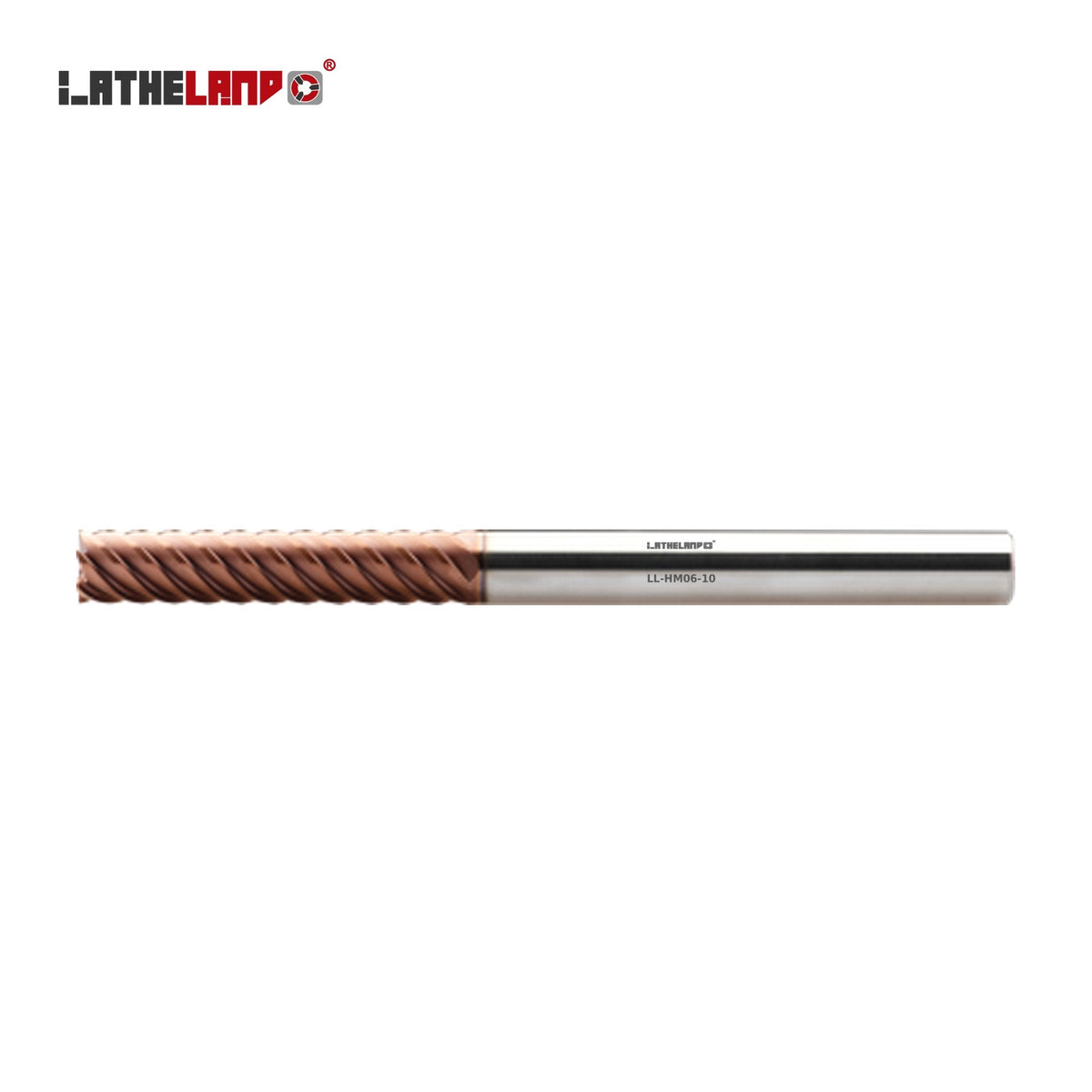

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM06 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 6/8 |
| Helix angle | 50° |
| Workpiece hardness | 53–68 HRC |
| Best for | hardened steel |
| Range | Ø3–20 mm |
| Sizes available | 22 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM06 | TiSiN multilayer | 11 |
| HM06R | TiSiN multilayer, neck recess | 11 |

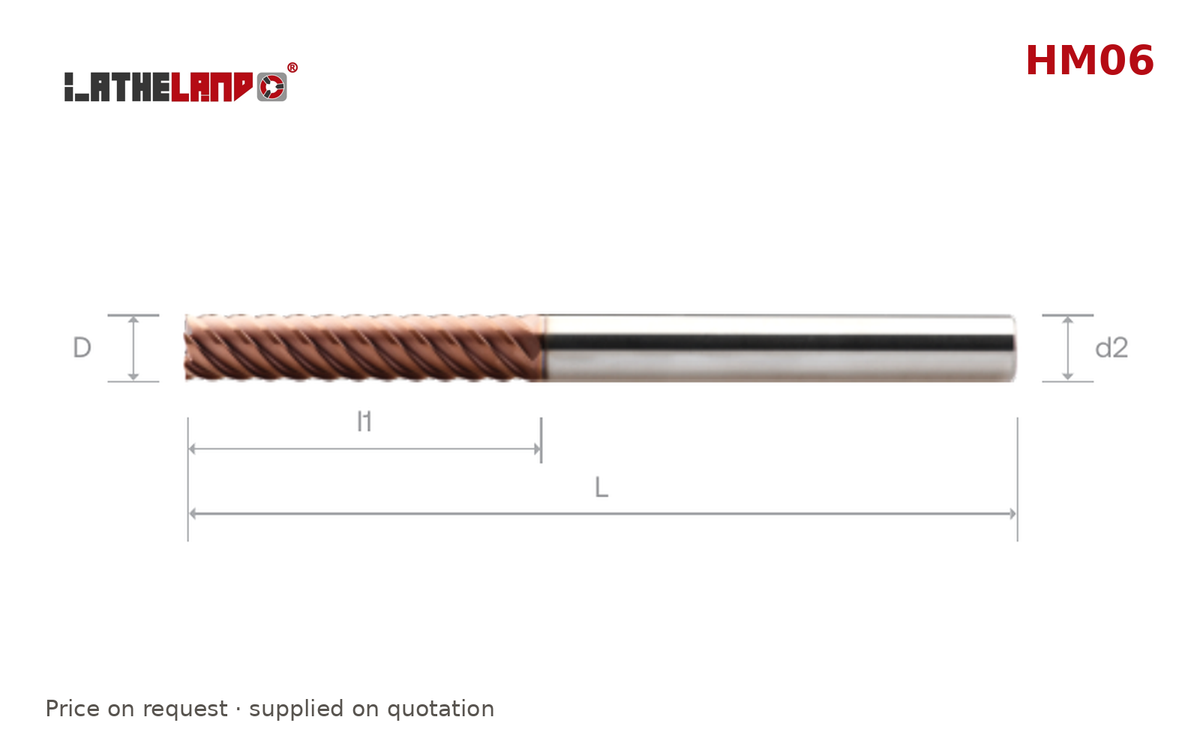

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-HM06-3 | 3 | 25 | 100 | 6 | |
| LL-HM06-4 | 4 | 31 | 100 | 6 | |
| LL-HM06-5 | 5 | 31 | 100 | 6 | |
| LL-HM06-6 | 6 | 38 | 100 | 6 | |
| LL-HM06-8 | 8 | 41 | 100 | 8 | |
| LL-HM06-10 | 10 | 57 | 125 | 10 | |
| LL-HM06-12 | 12 | 57 | 150 | 12 | |
| LL-HM06-14 | 14 | 75 | 150 | 14 | |
| LL-HM06-16 | 16 | 75 | 150 | 16 | |
| LL-HM06-18 | 18 | 75 | 150 | 18 | |
| LL-HM06-20 | 20 | 75 | 150 | 20 | |
| LL-HM06R-3 | 3 | 25 | 60 | 100 | 6 |
| LL-HM06R-4 | 4 | 31 | 60 | 100 | 6 |
| LL-HM06R-5 | 5 | 31 | 60 | 100 | 6 |
| LL-HM06R-6 | 6 | 38 | 60 | 100 | 6 |
| LL-HM06R-8 | 8 | 41 | 60 | 100 | 8 |
| LL-HM06R-10 | 10 | 57 | 85 | 125 | 10 |
| LL-HM06R-12 | 12 | 57 | 110 | 150 | 12 |
| LL-HM06R-14 | 14 | 75 | 110 | 150 | 14 |
| LL-HM06R-16 | 16 | 75 | 110 | 150 | 16 |
| LL-HM06R-18 | 18 | 75 | 110 | 150 | 18 |
| LL-HM06R-20 | 20 | 75 | 110 | 150 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
