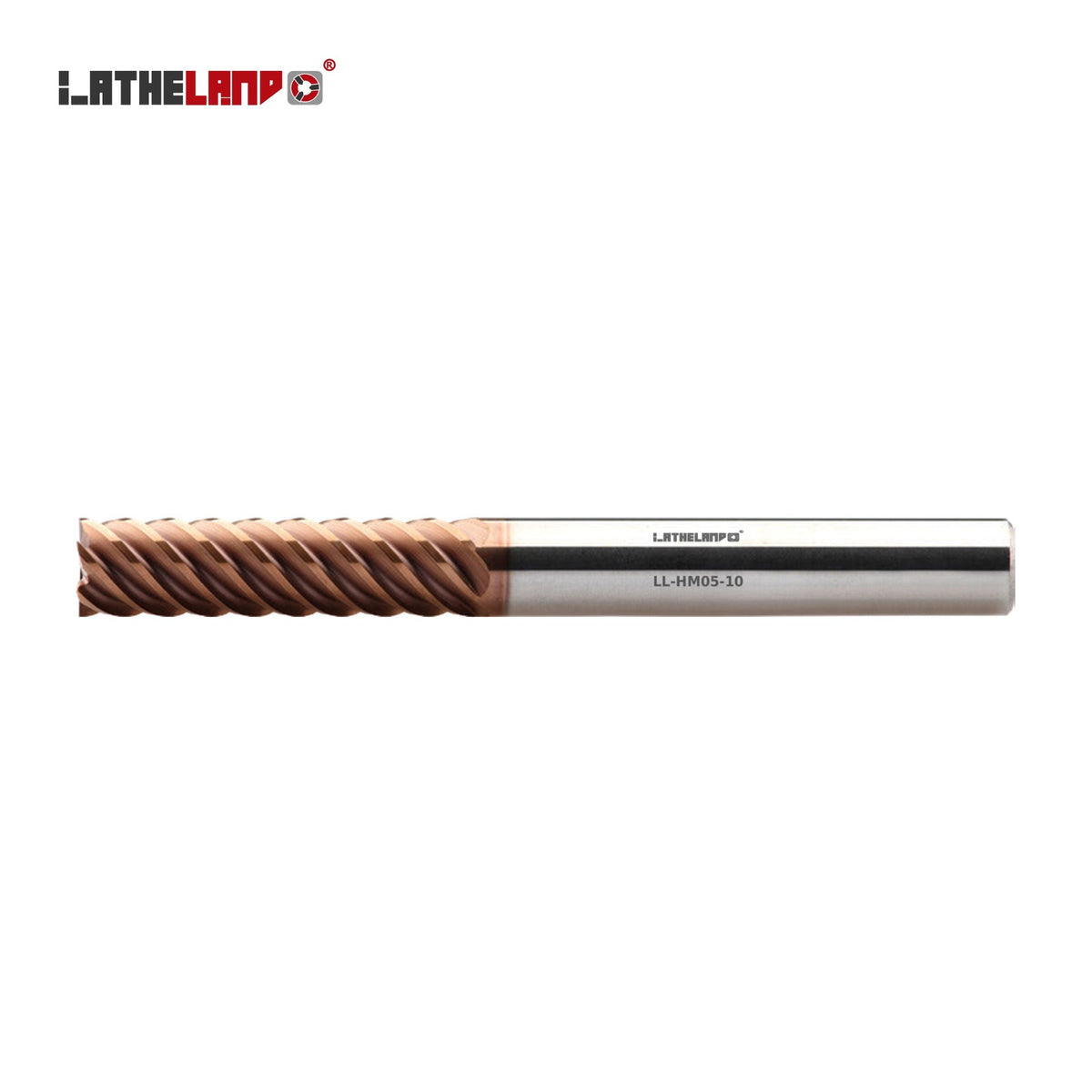

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HM05 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 6/8 |
| Helix angle | 50° |
| Workpiece hardness | 53–68 HRC |
| Best for | hardened steel |
| Range | Ø3–20 mm |
| Sizes available | 22 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM05 | TiSiN multilayer | 11 |
| HM05R | TiSiN multilayer, neck recess | 11 |

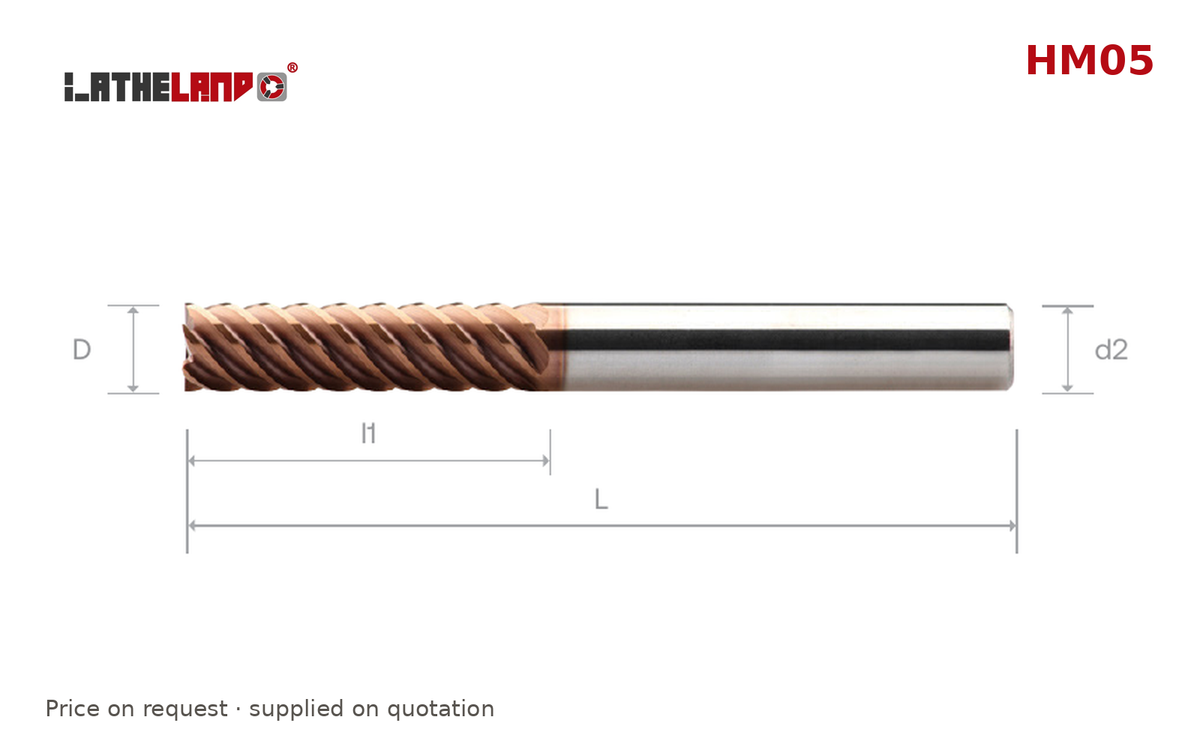

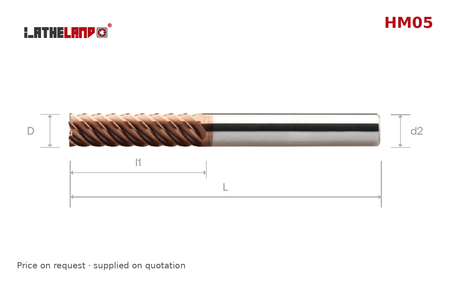

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-HM05-3 | 3 | 8 | 75 | 6 | |
| LL-HM05-4 | 4 | 19 | 75 | 6 | |
| LL-HM05-5 | 5 | 13 | 75 | 6 | |
| LL-HM05-6 | 6 | 15 | 75 | 6 | |
| LL-HM05-8 | 8 | 31 | 75 | 8 | |
| LL-HM05-10 | 10 | 45 | 100 | 10 | |
| LL-HM05-12 | 12 | 50 | 100 | 12 | |
| LL-HM05-14 | 14 | ||||
| LL-HM05-16 | 16 | 57 | 125 | 16 | |
| LL-HM05-18 | 18 | 30 | 125 | 18 | |
| LL-HM05-20 | 20 | 35 | 125 | 20 | |
| LL-HM05R-3 | 3 | 8 | 20 | 75 | 6 |
| LL-HM05R-4 | 4 | 19 | 20 | 75 | 6 |
| LL-HM05R-5 | 5 | 13 | 20 | 75 | 6 |
| LL-HM05R-6 | 6 | 15 | 20 | 75 | 6 |
| LL-HM05R-8 | 8 | 31 | 30 | 75 | 8 |
| LL-HM05R-10 | 10 | 45 | 30 | 100 | 10 |
| LL-HM05R-12 | 12 | 50 | 32 | 100 | 12 |
| LL-HM05R-14 | 14 | 25 | 37 | 125 | 14 |
| LL-HM05R-16 | 16 | 57 | 44 | 125 | 16 |
| LL-HM05R-18 | 18 | 30 | 46 | 125 | 18 |
| LL-HM05R-20 | 20 | 35 | 53 | 125 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
