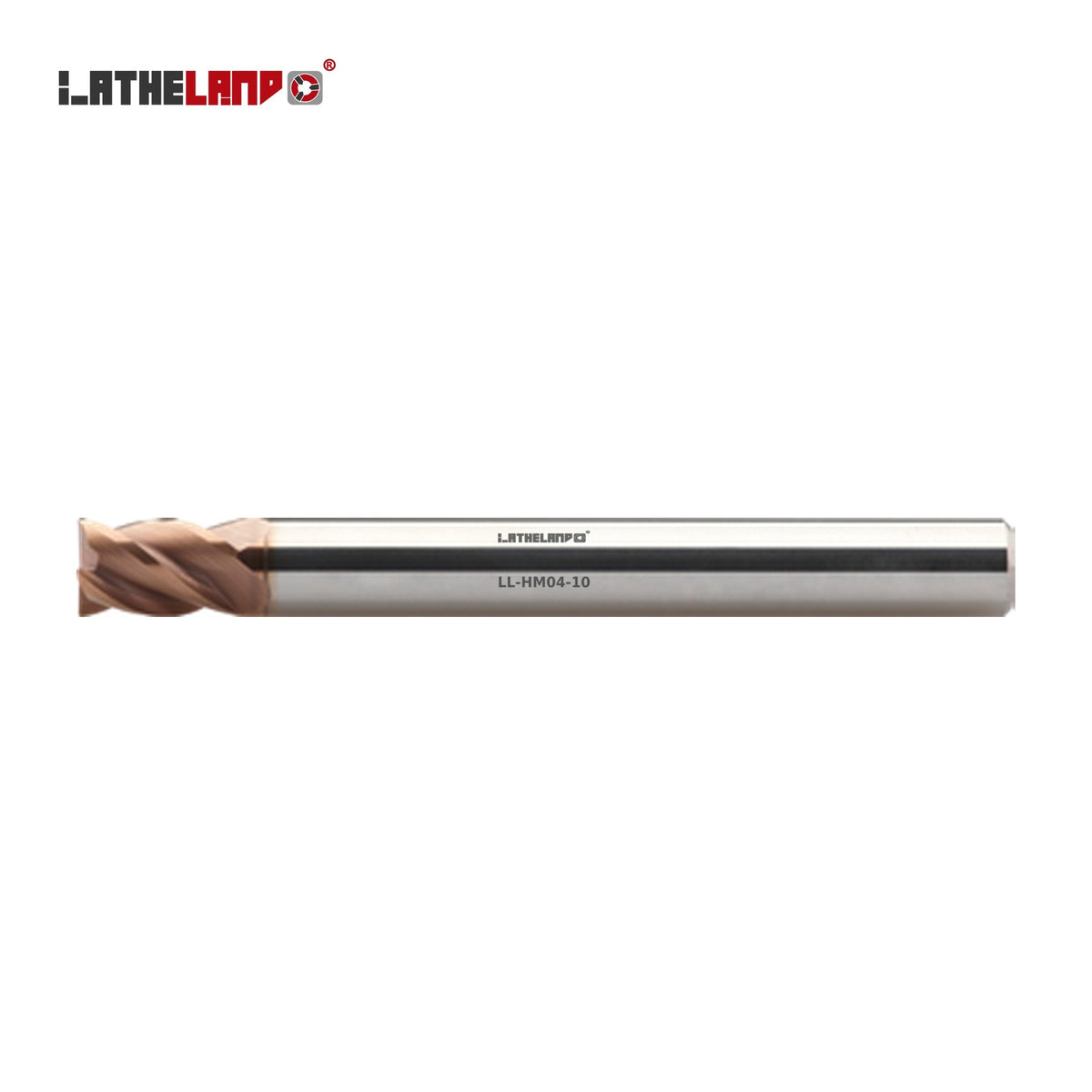

LATHELAND® Extra-Long Long-Reach End Mill for Hard Milling, 4 Flutes – HM04

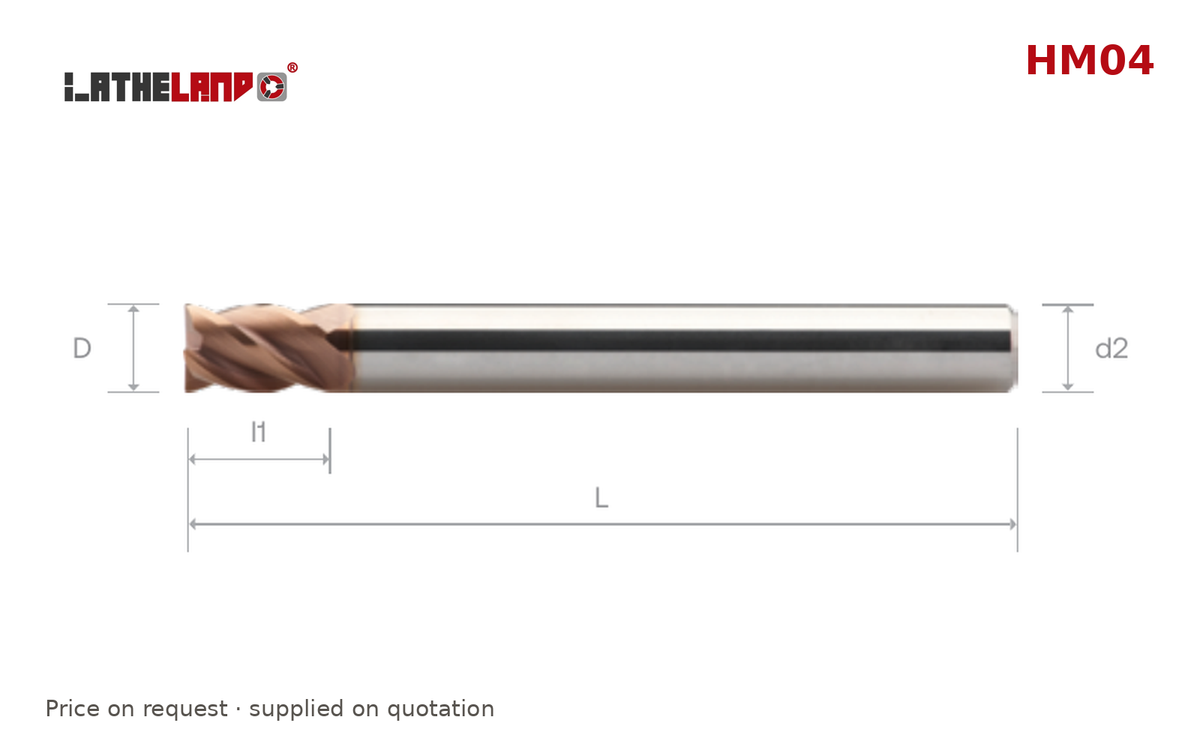

LATHELAND® Extra-Long Long-Reach End Mill for Hard Milling, 4 Flutes – HM04 – dimension drawing
LATHELAND® Extra-Long Long-Reach End Mill for Hard Milling, 4 Flutes – HM04
LATHELAND® Extra-Long Long-Reach End Mill for Hard Milling, 4 Flutes – HM04 – dimension drawing
LATHELAND

LATHELAND® Extra-Long Long-Reach End Mill for Hard Milling, 4 Flutes – HM04

Out of stock
SKU: LL-HM04-3
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedHM04 – TiSiN multilayer / Ø3 SKULL-HM04-3

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HM04
Material Solid carbide
Coating TiSiN multilayer
Flutes 4
Helix angle 40°
Workpiece hardness 53–68 HRC
Best for hardened steel
Range Ø3–20 mm
Sizes available 22
Price On request – supplied on quotation

Versions

Version Specification Sizes
HM04 TiSiN multilayer 11
HM04R TiSiN multilayer, neck recess 11

Size table (all dimensions in mm)

SKU Ø D l1 l2 L d2
LL-HM04-3 3 5 100 6
LL-HM04-4 4 8 100 6
LL-HM04-5 5 9 100 6
LL-HM04-6 6 10 100 6
LL-HM04-8 8 12 100 8
LL-HM04-10 10 14 125 10
LL-HM04-12 12 16 150 12
LL-HM04-14 14 22 150 14
LL-HM04-16 16 22 150 16
LL-HM04-18 18 26 150 18
LL-HM04-20 20 26 150 20
LL-HM04R-3 3 5 60 100 6
LL-HM04R-4 4 8 60 100 6
LL-HM04R-5 5 9 60 100 6
LL-HM04R-6 6 10 60 100 6
LL-HM04R-8 8 12 60 100 8
LL-HM04R-10 10 14 85 125 10
LL-HM04R-12 12 16 110 150 12
LL-HM04R-14 14 22 110 150 14
LL-HM04R-16 16 22 110 150 16
LL-HM04R-18 18 26 110 150 18
LL-HM04R-20 20 26 110 150 20

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
