Hard milling 50–70 HRC: High-hardness end mills for die and mould work, including miniature long-neck and fine-finishing tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

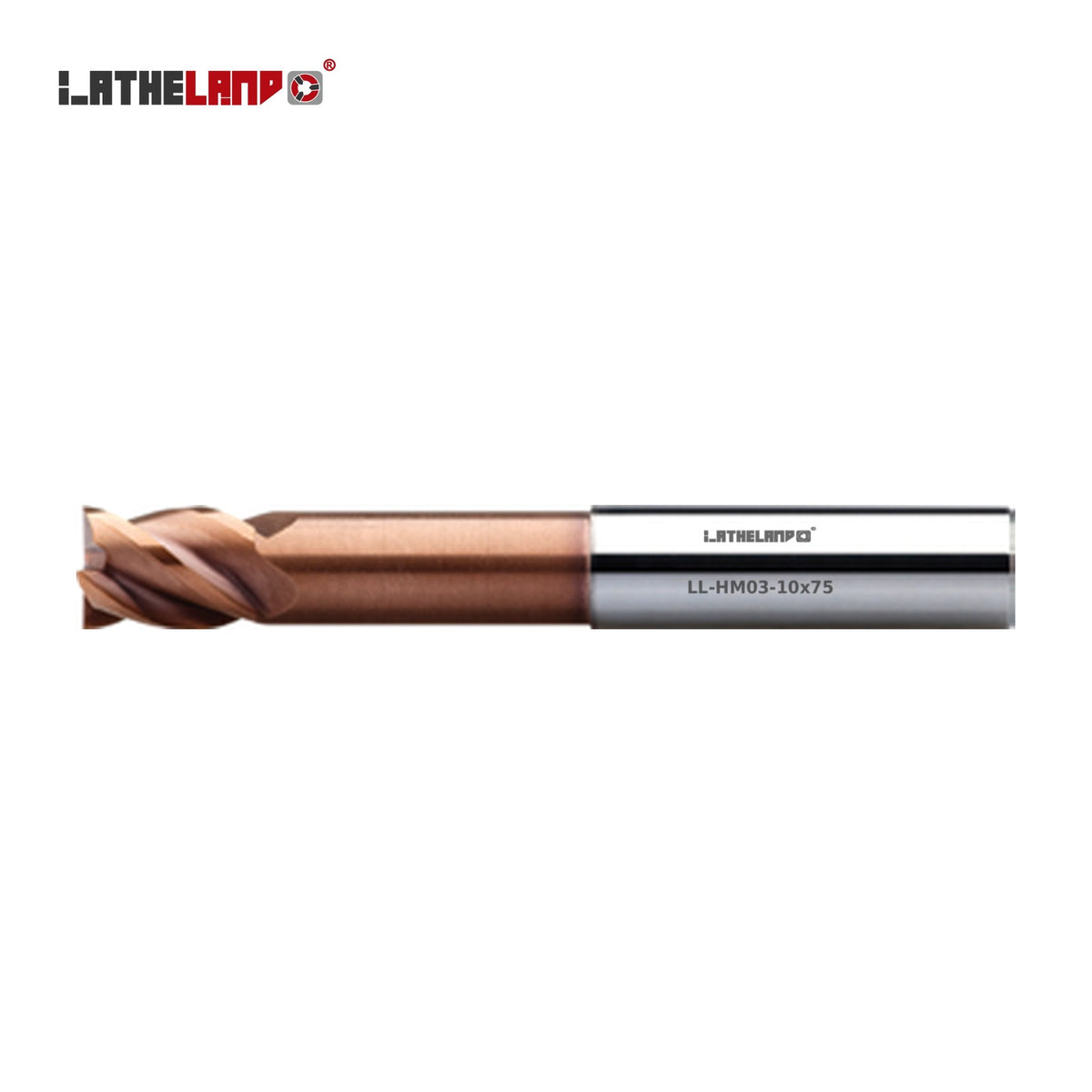

| Series | HM03 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 4 |
| Helix angle | 40° |
| Workpiece hardness | 53–68 HRC |
| Best for | hardened steel |
| Range | Ø3–20 mm |
| Sizes available | 24 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HM03 | TiSiN multilayer | 12 |
| HM03R | TiSiN multilayer, neck recess | 12 |

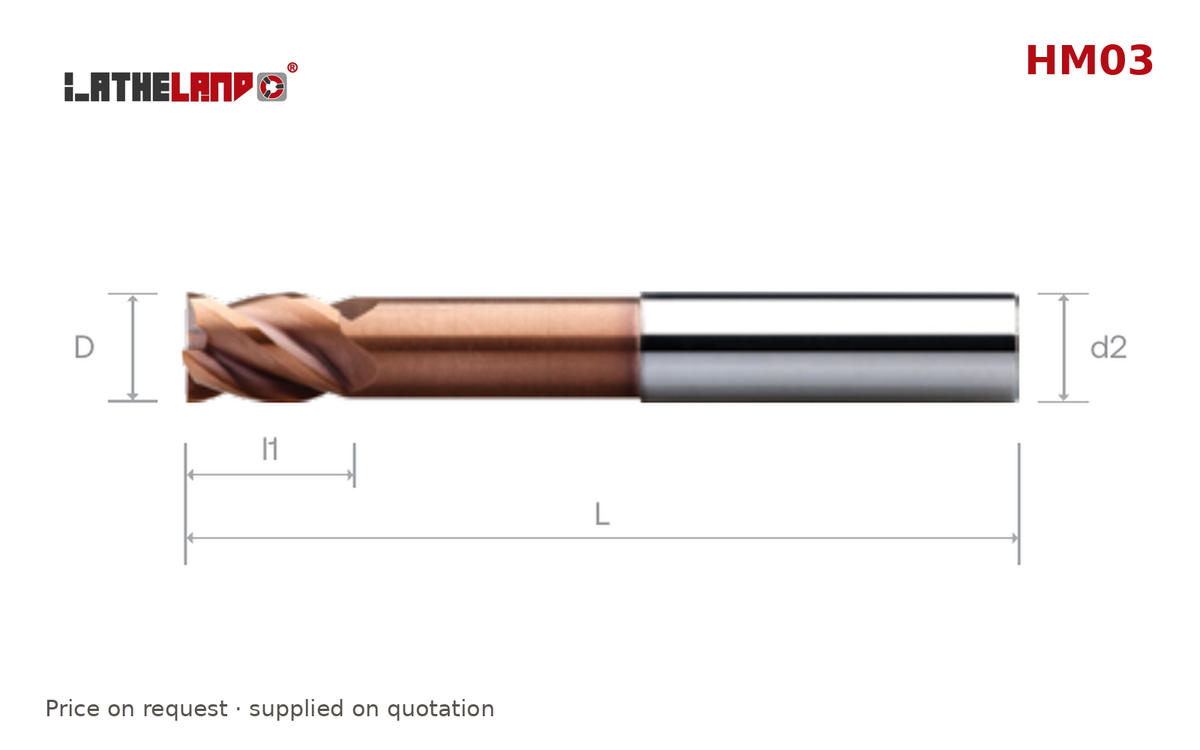

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-HM03-3x75 | 3 | 5 | 75 | 6 | |
| LL-HM03-4x75 | 4 | 8 | 75 | 6 | |
| LL-HM03-5x75 | 5 | 9 | 75 | 6 | |
| LL-HM03-6 | 6 | 10 | 75 | 6 | |
| LL-HM03-8 | 8 | 12 | 75 | 8 | |
| LL-HM03-10x75 | 10 | 14 | 75 | 10 | |
| LL-HM03-10x100 | 10 | 14 | 100 | 10 | |
| LL-HM03-12 | 12 | ||||
| LL-HM03-14 | 14 | 22 | 125 | 14 | |
| LL-HM03-16 | 16 | 22 | 125 | 16 | |
| LL-HM03-18 | 18 | 26 | 125 | 18 | |
| LL-HM03-20 | 20 | 26 | 125 | 20 | |
| LL-HM03R-3x75 | 3 | 5 | 30 | 75 | 6 |
| LL-HM03R-4x75 | 4 | 8 | 32 | 75 | 6 |
| LL-HM03R-5x75 | 5 | 9 | 32 | 75 | 6 |
| LL-HM03R-6 | 6 | 10 | 40 | 75 | 6 |
| LL-HM03R-8 | 8 | 12 | 40 | 75 | 8 |
| LL-HM03R-10x75 | 10 | 14 | 40 | 75 | 10 |
| LL-HM03R-10x100 | 10 | 14 | 60 | 100 | 10 |
| LL-HM03R-12 | 12 | 16 | 60 | 100 | 12 |
| LL-HM03R-14 | 14 | 22 | 85 | 125 | 14 |
| LL-HM03R-16 | 16 | 22 | 85 | 125 | 16 |
| LL-HM03R-18 | 18 | 26 | 85 | 125 | 18 |
| LL-HM03R-20 | 20 | 26 | 85 | 125 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
