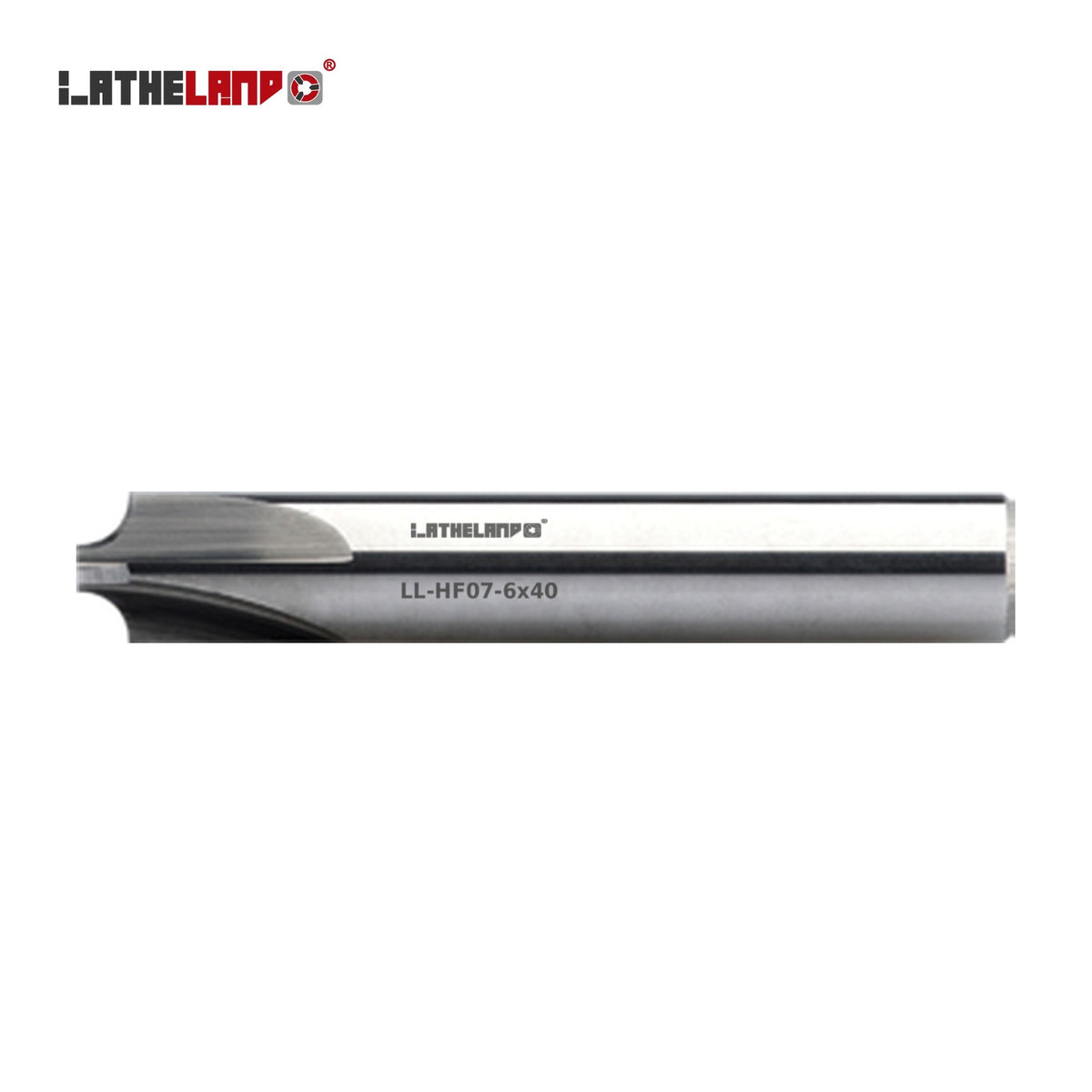

LATHELAND® Miniature Corner-Rounding End Mill (quarter radius), 4 Flutes – HF07

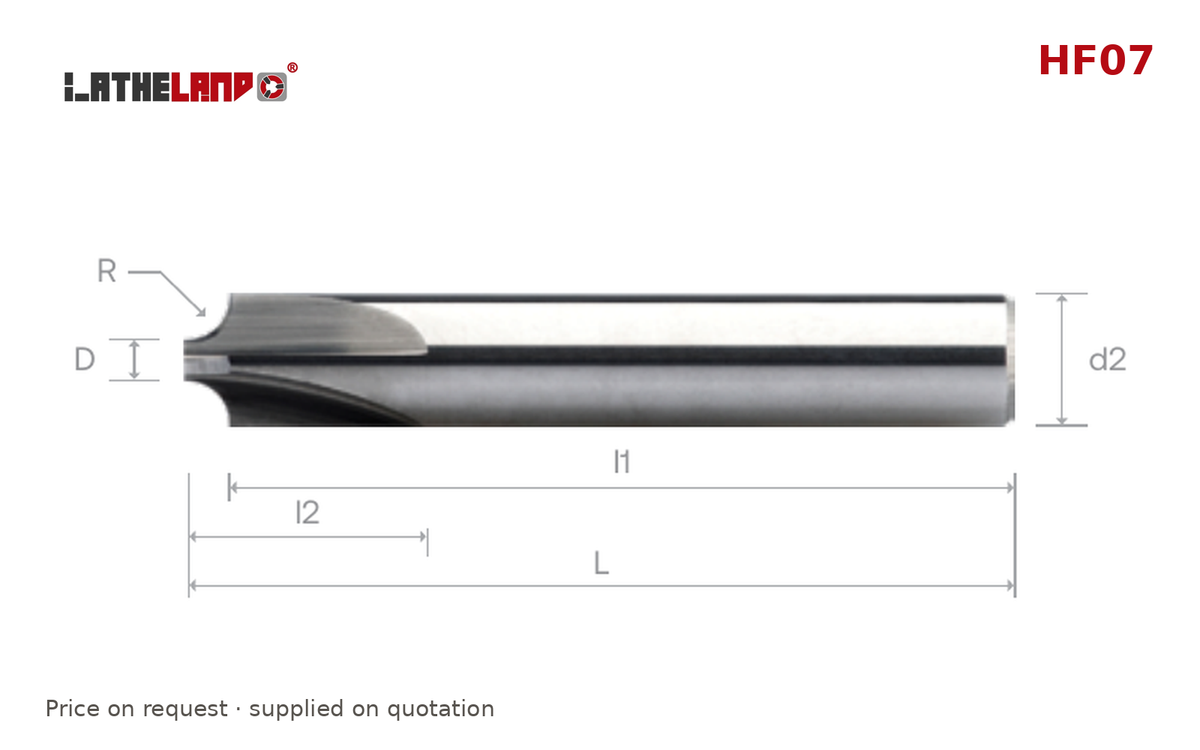

LATHELAND® Miniature Corner-Rounding End Mill (quarter radius), 4 Flutes – HF07 – dimension drawing
LATHELAND® Miniature Corner-Rounding End Mill (quarter radius), 4 Flutes – HF07
LATHELAND® Miniature Corner-Rounding End Mill (quarter radius), 4 Flutes – HF07 – dimension drawing
LATHELAND

LATHELAND® Miniature Corner-Rounding End Mill (quarter radius), 4 Flutes – HF07

Out of stock
SKU: LL-HF07-0.25x10
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedØ0.25 · L10 SKULL-HF07-0.25x10

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

High-feed, plunge & profile milling: High-feed and plunge mills for fast roughing with low radial forces, plus corner-rounding and double-radius profile tools.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HF07
Material Solid carbide
Coating AlTiN
Flutes 4
Workpiece hardness up to 35 HRC
Best for steel, cast iron
Also suitable for aluminium & non-ferrous
Range Ø0.25–6 mm
Sizes available 25
Price On request – supplied on quotation

Size table (all dimensions in mm)

SKU Ø D L
LL-HF07-0.25x10 0.25 10
LL-HF07-0.3x10 0.3 10
LL-HF07-0.4x10 0.4 10
LL-HF07-0.5x15 0.5 15
LL-HF07-0.6x15 0.6 15
LL-HF07-0.7x15 0.7 15
LL-HF07-0.8x15 0.8 15
LL-HF07-0.9x15 0.9 15
LL-HF07-1x15 1 15
LL-HF07-1.25x20 1.25 20
LL-HF07-1.5x20 1.5 20
LL-HF07-1.75x20 1.75 20
LL-HF07-2x25 2 25
LL-HF07-2.25x25 2.25 25
LL-HF07-2.5x25 2.5 25
LL-HF07-1.5x35 1.5 35
LL-HF07-2x30 2 30
LL-HF07-2.5x35 2.5 35
LL-HF07-3x30 3 30
LL-HF07-3.5x45 3.5 45
LL-HF07-4x40 4 40
LL-HF07-4.5x35 4.5 35
LL-HF07-5x30 5 30
LL-HF07-5.5x45 5.5 45
LL-HF07-6x40 6 40

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
