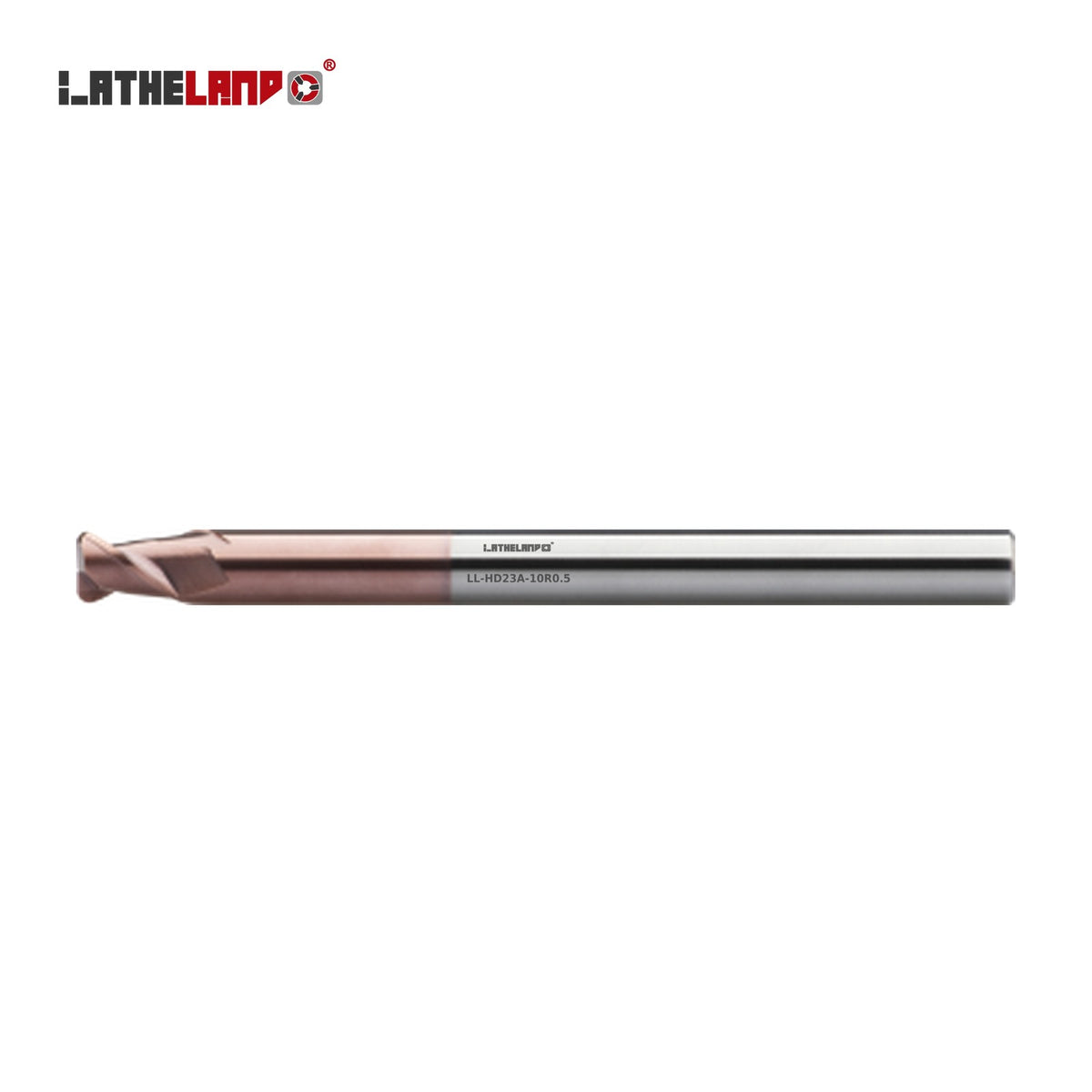

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hardened Steel, 2 Flutes – HD23

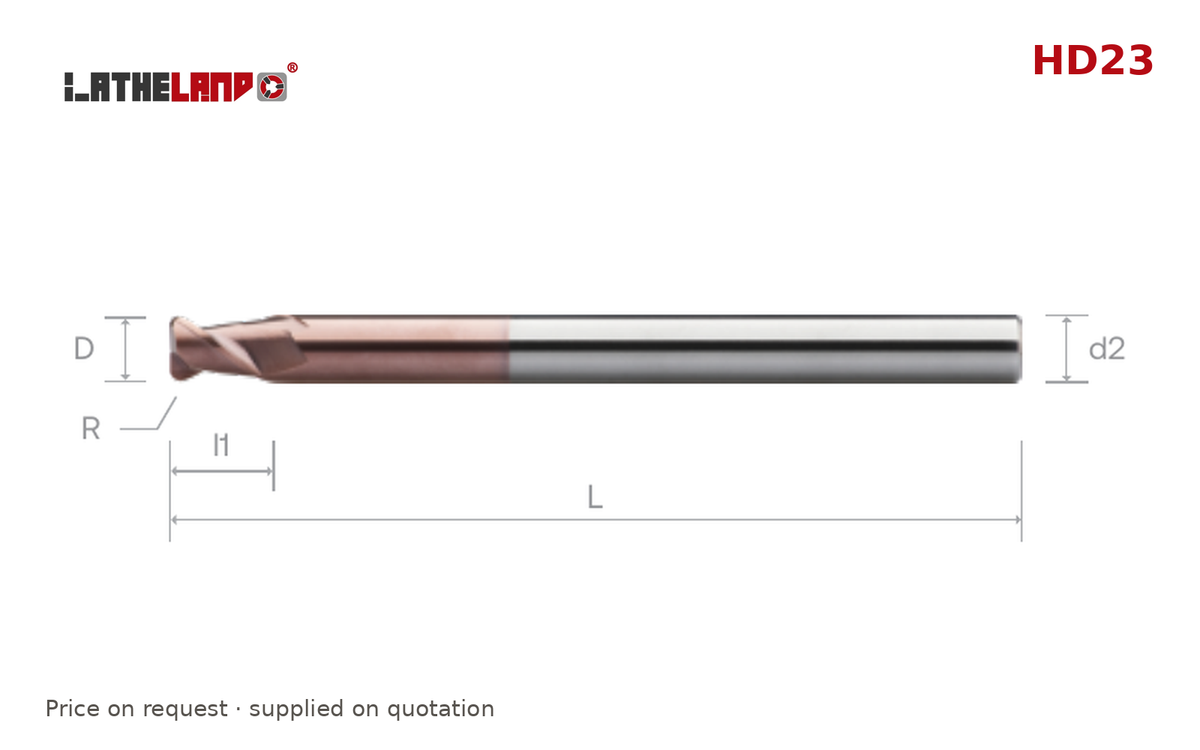

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hardened Steel, 2 Flutes – HD23 – dimension drawing
LATHELAND® Extra-Long Long-Reach Torus End Mill for Hardened Steel, 2 Flutes – HD23
LATHELAND® Extra-Long Long-Reach Torus End Mill for Hardened Steel, 2 Flutes – HD23 – dimension drawing
LATHELAND

LATHELAND® Extra-Long Long-Reach Torus End Mill for Hardened Steel, 2 Flutes – HD23

Out of stock
SKU: LL-HD23A-2R0.3
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedHD23A – AlTiN / Ø2 · R0.3 SKULL-HD23A-2R0.3

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Hardened steel up to 52 HRC: Square, torus, long-reach, miniature and multi-flute end mills for pre-hardened and hardened steels.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HD23
Material Solid carbide
Coating AlTiN / TiSiN multilayer
Flutes 2
Helix angle 40°
Workpiece hardness 36–50 HRC
Best for steel, stainless steel, cast iron, titanium & superalloys, hardened steel
Range Ø2–16 mm
Sizes available 92
Price On request – supplied on quotation

Versions

Version Specification Sizes
HD23A AlTiN 23
HD23S TiSiN multilayer 23
HD23SR TiSiN multilayer, neck recess 23
HD23AR AlTiN, neck recess 23

Size table (all dimensions in mm)

SKU Ø D R l1 l2 L d2
LL-HD23A-2R0.3 2 0.3 4 100 6
LL-HD23A-3R0.3 3 0.3 5 100 6
LL-HD23A-3R0.5 3 0.5 5 100 6
LL-HD23A-4R0.3 4 0.3 8 100 6
LL-HD23A-4R0.5 4 0.5 8 100 6
LL-HD23A-5R0.3 5 0.3 9 100 6
LL-HD23A-5R0.5 5 0.5 9 100 6
LL-HD23A-6R0.3 6 0.3 10 100 6
LL-HD23A-6R0.5 6 0.5 10 100 6
LL-HD23A-6R1 6 1 10 100 6
LL-HD23A-8R0.3 8 0.3 12 100 8
LL-HD23A-8R0.5 8 0.5 12 100 8
LL-HD23A-8R1 8 1 12 100 8
LL-HD23A-10R0.5 10 0.5 14 125 10
LL-HD23A-10R1 10 1 14 125 10
LL-HD23A-10R2 10 2 14 125 10
LL-HD23A-12R0.5 12 0.5 16 150 12
LL-HD23A-12R1 12 1 16 150 12
LL-HD23A-12R2 12 2 16 150 12
LL-HD23A-16R0.5 16 0.5 22 150 16
LL-HD23A-16R1 16 1 22 150 16
LL-HD23A-16R2 16 2 22 150 16
LL-HD23A-16R3 16 3 22 150 16
LL-HD23S-2R0.3 2 0.3 4 100 6
LL-HD23S-3R0.3 3 0.3 5 100 6
LL-HD23S-3R0.5 3 0.5 5 100 6
LL-HD23S-4R0.3 4 0.3 8 100 6
LL-HD23S-4R0.5 4 0.5 8 100 6
LL-HD23S-5R0.3 5 0.3 9 100 6
LL-HD23S-5R0.5 5 0.5 9 100 6
LL-HD23S-6R0.3 6 0.3 10 100 6
LL-HD23S-6R0.5 6 0.5 10 100 6
LL-HD23S-6R1 6 1 10 100 6
LL-HD23S-8R0.3 8 0.3 12 100 8
LL-HD23S-8R0.5 8 0.5 12 100 8
LL-HD23S-8R1 8 1 12 100 8
LL-HD23S-10R0.5 10 0.5 14 125 10
LL-HD23S-10R1 10 1 14 125 10
LL-HD23S-10R2 10 2 14 125 10
LL-HD23S-12R0.5 12 0.5 16 150 12
LL-HD23S-12R1 12 1 16 150 12
LL-HD23S-12R2 12 2 16 150 12
LL-HD23S-16R0.5 16 0.5 22 150 16
LL-HD23S-16R1 16 1 22 150 16
LL-HD23S-16R2 16 2 22 150 16
LL-HD23S-16R3 16 3 22 150 16
LL-HD23SR-2R0.3 2 0.3 4 60 100 6
LL-HD23SR-3R0.3 3 0.3 5 60 100 6
LL-HD23SR-3R0.5 3 0.5 5 60 100 6
LL-HD23SR-4R0.3 4 0.3 8 60 100 6
LL-HD23SR-4R0.5 4 0.5 8 60 100 6
LL-HD23SR-5R0.3 5 0.3 9 60 100 6
LL-HD23SR-5R0.5 5 0.5 9 60 100 6
LL-HD23SR-6R0.3 6 0.3 10 60 100 6
LL-HD23SR-6R0.5 6 0.5 10 60 100 6
LL-HD23SR-6R1 6 1 10 60 100 6
LL-HD23SR-8R0.3 8 0.3 12 60 100 8
LL-HD23SR-8R0.5 8 0.5 12 60 100 8
LL-HD23SR-8R1 8 1 12 60 100 8
LL-HD23SR-10R0.5 10 0.5 14 85 125 10
LL-HD23SR-10R1 10 1 14 85 125 10
LL-HD23SR-10R2 10 2 14 85 125 10
LL-HD23SR-12R0.5 12 0.5 16 110 150 12
LL-HD23SR-12R1 12 1 16 110 150 12
LL-HD23SR-12R2 12 2 16 110 150 12
LL-HD23SR-16R0.5 16 0.5 22 110 150 16
LL-HD23SR-16R1 16 1 22 110 150 16
LL-HD23SR-16R2 16 2 22 110 150 16
LL-HD23SR-16R3 16 3 22 110 150 16
LL-HD23AR-2R0.3 2 0.3 4 60 100 6
LL-HD23AR-3R0.3 3 0.3 5 60 100 6
LL-HD23AR-3R0.5 3 0.5 5 60 100 6
LL-HD23AR-4R0.3 4 0.3 8 60 100 6
LL-HD23AR-4R0.5 4 0.5 8 60 100 6
LL-HD23AR-5R0.3 5 0.3 9 60 100 6
LL-HD23AR-5R0.5 5 0.5 9 60 100 6
LL-HD23AR-6R0.3 6 0.3 10 60 100 6
LL-HD23AR-6R0.5 6 0.5 10 60 100 6
LL-HD23AR-6R1 6 1 10 60 100 6
LL-HD23AR-8R0.3 8 0.3 12 60 100 8
LL-HD23AR-8R0.5 8 0.5 12 60 100 8
LL-HD23AR-8R1 8 1 12 60 100 8
LL-HD23AR-10R0.5 10 0.5 14 85 125 10
LL-HD23AR-10R1 10 1 14 85 125 10
LL-HD23AR-10R2 10 2 14 85 125 10
LL-HD23AR-12R0.5 12 0.5 16 110 150 12
LL-HD23AR-12R1 12 1 16 110 150 12
LL-HD23AR-12R2 12 2 16 110 150 12
LL-HD23AR-16R0.5 16 0.5 22 110 150 16
LL-HD23AR-16R1 16 1 22 110 150 16
LL-HD23AR-16R2 16 2 22 110 150 16
LL-HD23AR-16R3 16 3 22 110 150 16

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
