Questions about this product, a larger quantity or a shipping quote? Contact us.
Hardened steel up to 52 HRC: Square, torus, long-reach, miniature and multi-flute end mills for pre-hardened and hardened steels.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | HD19 |
| Material | Solid carbide |
| Coating | AlCrN / AlTiN / TiSiN multilayer |
| Flutes | 4 |
| Helix angle | 40° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–20 mm |
| Sizes available | 321 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| HD19C | AlCrN | 107 |
| HD19A | AlTiN | 107 |
| HD19S | TiSiN multilayer | 107 |

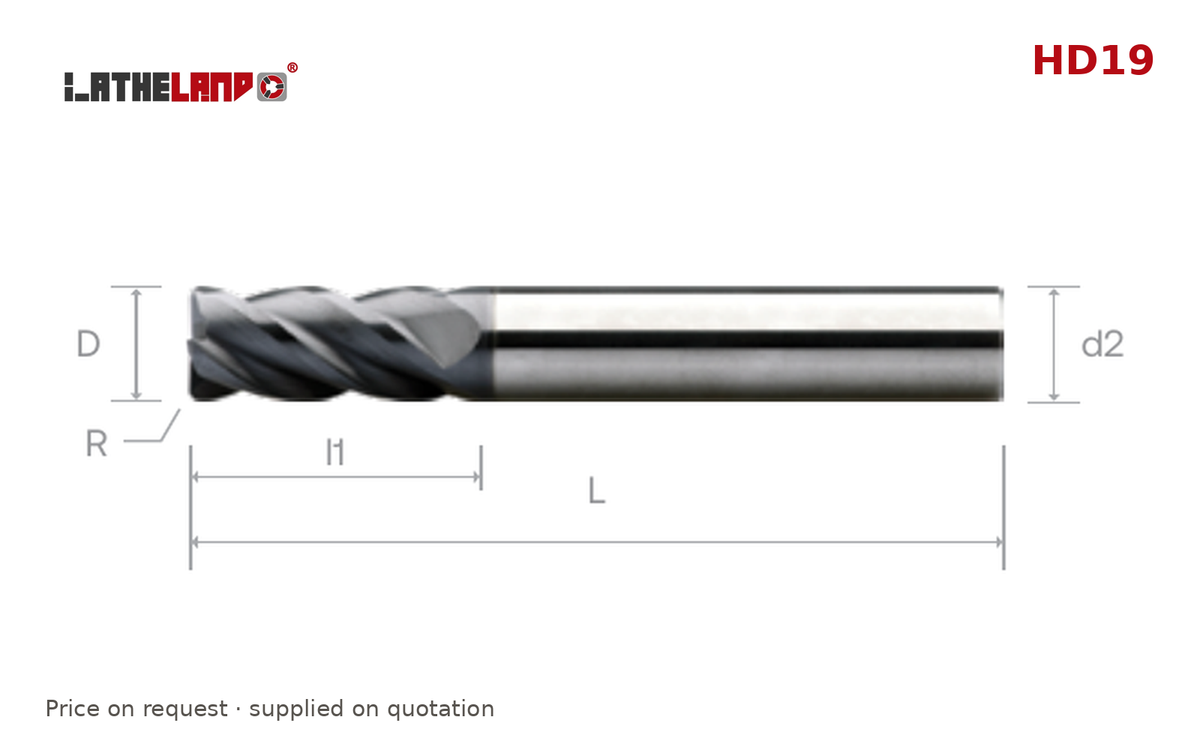

| SKU | Ø D | R | l1 | L | d2 |
|---|---|---|---|---|---|
| LL-HD19C-1R0.2x50-S4 | 1 | 0.2 | 3 | 50 | 4 |
| LL-HD19C-1R0.2x50-S6 | 1 | 0.2 | 3 | 50 | 6 |
| LL-HD19C-1.5R0.2x50-S4 | 1.5 | 0.2 | 4.5 | 50 | 4 |
| LL-HD19C-1.5R0.2x50-S6 | 1.5 | 0.2 | 4.5 | 50 | 6 |
| LL-HD19C-2R0.2x50-S4 | 2 | 0.2 | 4.5 | 50 | 4 |
| LL-HD19C-2R0.3x50-S4 | 2 | 0.3 | 4.5 | 50 | 4 |
| LL-HD19C-2R0.2x50-S6 | 2 | 0.2 | 6.5 | 50 | 6 |
| LL-HD19C-2R0.3x50-S6 | 2 | 0.3 | 6.5 | 50 | 6 |
| LL-HD19C-2.5R0.2x50-S4 | 2.5 | 0.2 | 6.5 | 50 | 4 |
| LL-HD19C-2.5R0.3x50-S4 | 2.5 | 0.3 | 6.5 | 50 | 4 |
| LL-HD19C-2.5R0.5x50-S4 | 2.5 | 0.5 | 6.5 | 50 | 4 |
| LL-HD19C-2.5R0.2x50-S6 | 2.5 | 0.2 | 6.5 | 50 | 6 |
| LL-HD19C-2.5R0.3x50-S6 | 2.5 | 0.3 | 6.5 | 50 | 6 |
| LL-HD19C-2.5R0.5x50-S6 | 2.5 | 0.5 | 6.5 | 50 | 6 |
| LL-HD19C-3R0.2x40-S3 | 3 | 0.2 | 40 | 3 | |
| LL-HD19C-3R0.3x40-S3 | 3 | 0.3 | 9 | 40 | 3 |
| LL-HD19C-3R0.5x40-S3 | 3 | 0.5 | 40 | 3 | |
| LL-HD19C-3R0.2x50-S4 | 3 | 0.2 | 9 | 50 | 4 |
| LL-HD19C-3R0.3x50-S4 | 3 | 0.3 | 9 | 50 | 4 |
| LL-HD19C-3R0.5x50-S4 | 3 | 0.5 | 9 | 50 | 4 |
| LL-HD19C-3R0.2x50-S6 | 3 | 0.2 | 9 | 50 | 6 |
| LL-HD19C-3R0.3x50-S6 | 3 | 0.3 | 9 | 50 | 6 |
| LL-HD19C-3R0.5x50-S6 | 3 | 0.5 | 9 | 50 | 6 |
| LL-HD19C-3R0.2x60-S6 | 3 | 0.2 | 9 | 60 | 6 |
| LL-HD19C-3R0.3x60-S6 | 3 | 0.3 | 9 | 60 | 6 |
| LL-HD19C-3R0.5x60-S6 | 3 | 0.5 | 60 | 6 | |
| LL-HD19C-4R0.2x50-S4 | 4 | 0.2 | 50 | 4 | |
| LL-HD19C-4R0.3x50-S4 | 4 | 0.3 | 12 | 50 | 4 |
| LL-HD19C-4R0.5x50-S4 | 4 | 0.5 | 12 | 50 | 4 |
| LL-HD19C-4R1x50-S4 | 4 | 1 | 12 | 50 | 4 |
| LL-HD19C-4R0.2x50-S6 | 4 | 0.2 | 12 | 50 | 6 |
| LL-HD19C-4R0.3x50-S6 | 4 | 0.3 | 12 | 50 | 6 |
| LL-HD19C-4R0.5x50-S6 | 4 | 0.5 | 12 | 50 | 6 |
| LL-HD19C-4R1x50-S6 | 4 | 1 | 12 | 50 | 6 |
| LL-HD19C-4R0.2x60-S6 | 4 | 0.2 | 12 | 60 | 6 |
| LL-HD19C-4R0.3x60-S6 | 4 | 0.3 | 12 | 60 | 6 |
| LL-HD19C-4R0.5x60-S6 | 4 | 0.5 | 12 | 60 | 6 |
| LL-HD19C-4R1x60-S6 | 4 | 1 | 60 | 6 | |
| LL-HD19C-5R0.2x50-S5 | 5 | 0.2 | 50 | 5 | |
| LL-HD19C-5R0.3x50-S5 | 5 | 0.3 | 15 | 50 | 5 |
| LL-HD19C-5R0.5x50-S5 | 5 | 0.5 | 15 | 50 | 5 |
| LL-HD19C-5R1x50-S5 | 5 | 1 | 15 | 50 | 5 |
| LL-HD19C-5R0.2x50-S6 | 5 | 0.2 | 15 | 50 | 6 |
| LL-HD19C-5R0.3x50-S6 | 5 | 0.3 | 50 | 6 | |
| LL-HD19C-5R0.5x50-S6 | 5 | 0.5 | 15 | 50 | 6 |
| LL-HD19C-5R1x50-S6 | 5 | 1 | 15 | 50 | 6 |
| LL-HD19C-5R0.2x60-S6 | 5 | 0.2 | 15 | 60 | 6 |
| LL-HD19C-5R0.3x60-S6 | 5 | 0.3 | 15 | 60 | 6 |
| LL-HD19C-5R0.5x60-S6 | 5 | 0.5 | 16 | 60 | 6 |
| LL-HD19C-5R1x60-S6 | 5 | 1 | 16 | 60 | 6 |
| LL-HD19C-6R0.2x50-S6 | 6 | 0.2 | 16 | 50 | 6 |
| LL-HD19C-6R0.3x50-S6 | 6 | 0.3 | 16 | 50 | 6 |
| LL-HD19C-6R0.5x50-S6 | 6 | 0.5 | 16 | 50 | 6 |
| LL-HD19C-6R1x50-S6 | 6 | 1 | 16 | 50 | 6 |
| LL-HD19C-6R0.2x60-S6 | 6 | 0.2 | 20 | 60 | 6 |
| LL-HD19C-6R0.3x60-S6 | 6 | 0.3 | 20 | 60 | 6 |
| LL-HD19C-6R0.5x60-S6 | 6 | 0.5 | 20 | 60 | 6 |
| LL-HD19C-6R1x60-S6 | 6 | 1 | 20 | 60 | 6 |
| LL-HD19C-8R0.2x64-S8 | 8 | 0.2 | 20 | 64 | 8 |
| LL-HD19C-8R0.3x64-S8 | 8 | 0.3 | 20 | 64 | 8 |
| LL-HD19C-8R0.5x64-S8 | 8 | 0.5 | 20 | 64 | 8 |
| LL-HD19C-8R1x64-S8 | 8 | 1 | 20 | 64 | 8 |
| LL-HD19C-8R1.5x64-S8 | 8 | 1.5 | 20 | 64 | 8 |
| LL-HD19C-8R2x64-S8 | 8 | 2 | 20 | 64 | 8 |

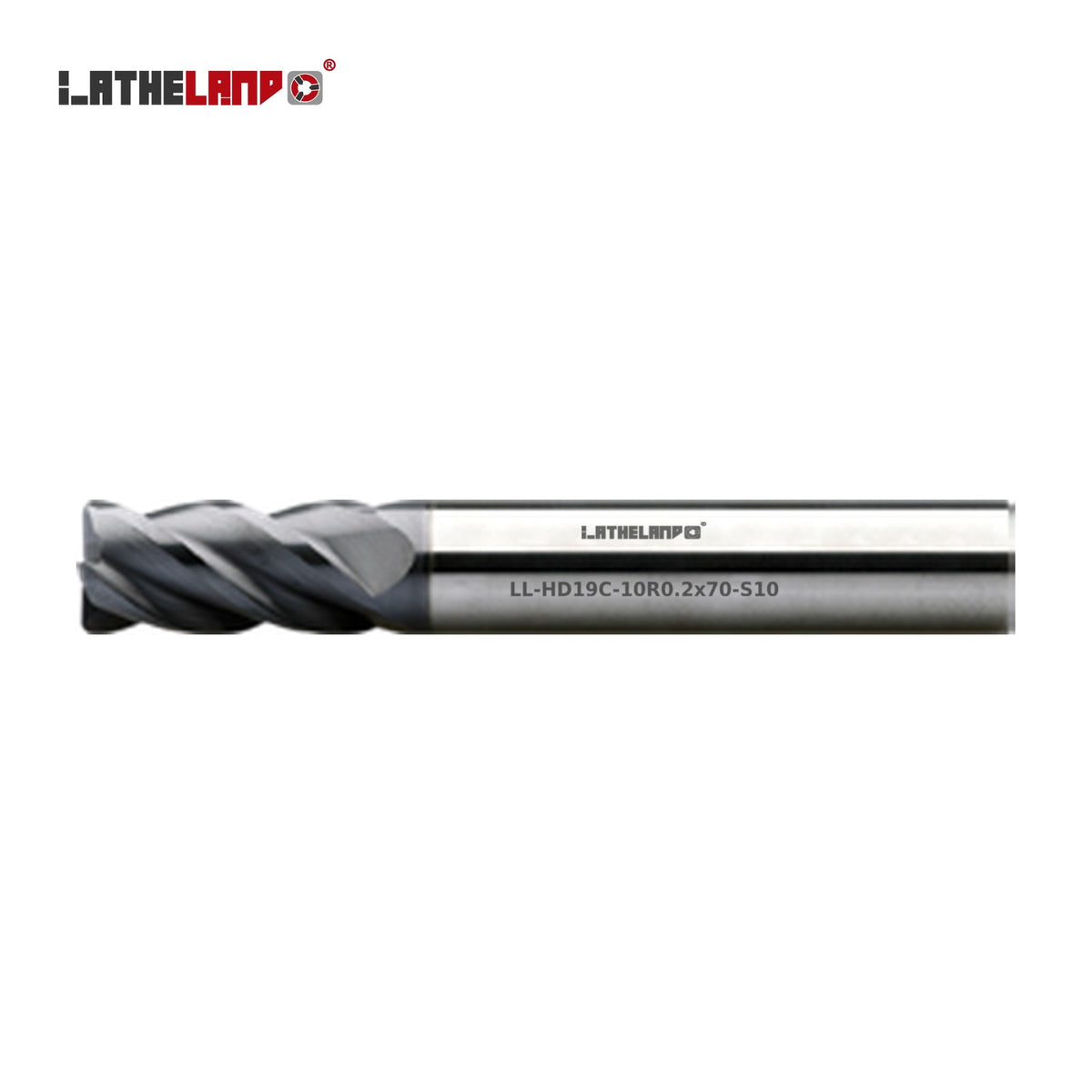

| LL-HD19C-10R0.2x70-S10 | 10 | 0.2 | 70 | 10 | |
| LL-HD19C-10R0.3x70-S10 | 10 | 0.3 | 22 | 70 | 10 |
| LL-HD19C-10R0.5x70-S10 | 10 | 0.5 | 22 | 70 | 10 |
| LL-HD19C-10R1x70-S10 | 10 | 1 | 22 | 70 | 10 |
| LL-HD19C-10R1.5x70-S10 | 10 | 1.5 | 22 | 70 | 10 |
| LL-HD19C-10R2x70-S10 | 10 | 2 | 22 | 70 | 10 |
| LL-HD19C-10R0.2x75-S10 | 10 | 0.2 | 75 | 10 | |
| LL-HD19C-10R0.3x75-S10 | 10 | 0.3 | 22 | 75 | 10 |
| LL-HD19C-10R0.5x75-S10 | 10 | 0.5 | 22 | 75 | 10 |
| LL-HD19C-10R1x75-S10 | 10 | 1 | 22 | 75 | 10 |
| LL-HD19C-10R1.5x75-S10 | 10 | 1.5 | 22 | 75 | 10 |
| LL-HD19C-10R2x75-S10 | 10 | 2 | 25 | 75 | 10 |
| LL-HD19C-12R0.2x75-S12 | 12 | 0.2 | 25 | 75 | 12 |
| LL-HD19C-12R0.3x75-S12 | 12 | 0.3 | 25 | 75 | 12 |
| LL-HD19C-12R0.5x75-S12 | 12 | 0.5 | 25 | 75 | 12 |
| LL-HD19C-12R1x75-S12 | 12 | 1 | 25 | 75 | 12 |
| LL-HD19C-12R1.5x75-S12 | 12 | 1.5 | 25 | 75 | 12 |
| LL-HD19C-12R2x75-S12 | 12 | 2 | 25 | 75 | 12 |
| LL-HD19C-12R3x75-S12 | 12 | 3 | 25 | 75 | 12 |
| LL-HD19C-14R0.3x90-S14 | 14 | 0.3 | 25 | 90 | 14 |
| LL-HD19C-14R0.5x90-S14 | 14 | 0.5 | 32 | 90 | 14 |
| LL-HD19C-14R1x90-S14 | 14 | 1 | 32 | 90 | 14 |
| LL-HD19C-14R1.5x90-S14 | 14 | 1.5 | 32 | 90 | 14 |
| LL-HD19C-14R2x90-S14 | 14 | 2 | 32 | 90 | 14 |
| LL-HD19C-14R3x90-S14 | 14 | 3 | 32 | 90 | 14 |
| LL-HD19C-16R0.3x90-S16 | 16 | 0.3 | 32 | 90 | 16 |
| LL-HD19C-16R0.5x90-S16 | 16 | 0.5 | 32 | 90 | 16 |
| LL-HD19C-16R1x90-S16 | 16 | 1 | 32 | 90 | 16 |
| LL-HD19C-16R1.5x90-S16 | 16 | 1.5 | 90 | 16 | |
| LL-HD19C-16R2x90-S16 | 16 | 2 | 32 | 90 | 16 |
| LL-HD19C-16R3x90-S16 | 16 | 3 | 90 | 16 | |
| LL-HD19C-18R0.3x100-S18 | 18 | 0.3 | 100 | 18 | |
| LL-HD19C-18R0.5x100-S18 | 18 | 0.5 | 38 | 100 | 18 |
| LL-HD19C-18R1x100-S18 | 18 | 1 | 100 | 18 | |
| LL-HD19C-18R1.5x100-S18 | 18 | 1.5 | 38 | 100 | 18 |
| LL-HD19C-18R2x100-S18 | 18 | 2 | 38 | 100 | 18 |
| LL-HD19C-18R3x100-S18 | 18 | 3 | 38 | 100 | 18 |
| LL-HD19C-20R0.3x100-S20 | 20 | 0.3 | 38 | 100 | 20 |
| LL-HD19C-20R0.5x100-S20 | 20 | 0.5 | 38 | 100 | 20 |
| LL-HD19C-20R1x100-S20 | 20 | 1 | 38 | 100 | 20 |
| LL-HD19C-20R1.5x100-S20 | 20 | 1.5 | 38 | 100 | 20 |
| LL-HD19C-20R2x100-S20 | 20 | 2 | 38 | 100 | 20 |
| LL-HD19C-20R3x100-S20 | 20 | 3 | 100 | 20 | |
| LL-HD19A-1R0.2x50-S4 | 1 | 0.2 | 3 | 50 | 4 |
| LL-HD19A-1R0.2x50-S6 | 1 | 0.2 | 3 | 50 | 6 |
| LL-HD19A-1.5R0.2x50-S4 | 1.5 | 0.2 | 4.5 | 50 | 4 |
| LL-HD19A-1.5R0.2x50-S6 | 1.5 | 0.2 | 4.5 | 50 | 6 |
| LL-HD19A-2R0.2x50-S4 | 2 | 0.2 | 4.5 | 50 | 4 |
| LL-HD19A-2R0.3x50-S4 | 2 | 0.3 | 4.5 | 50 | 4 |
| LL-HD19A-2R0.2x50-S6 | 2 | 0.2 | 6.5 | 50 | 6 |
| LL-HD19A-2R0.3x50-S6 | 2 | 0.3 | 6.5 | 50 | 6 |
| LL-HD19A-2.5R0.2x50-S4 | 2.5 | 0.2 | 6.5 | 50 | 4 |
| LL-HD19A-2.5R0.3x50-S4 | 2.5 | 0.3 | 6.5 | 50 | 4 |
| LL-HD19A-2.5R0.5x50-S4 | 2.5 | 0.5 | 6.5 | 50 | 4 |
| LL-HD19A-2.5R0.2x50-S6 | 2.5 | 0.2 | 6.5 | 50 | 6 |
| LL-HD19A-2.5R0.3x50-S6 | 2.5 | 0.3 | 6.5 | 50 | 6 |
| LL-HD19A-2.5R0.5x50-S6 | 2.5 | 0.5 | 6.5 | 50 | 6 |
| LL-HD19A-3R0.2x40-S3 | 3 | 0.2 | 40 | 3 | |
| LL-HD19A-3R0.3x40-S3 | 3 | 0.3 | 9 | 40 | 3 |
| LL-HD19A-3R0.5x40-S3 | 3 | 0.5 | 9 | 40 | 3 |
| LL-HD19A-3R0.2x50-S4 | 3 | 0.2 | 9 | 50 | 4 |
| LL-HD19A-3R0.3x50-S4 | 3 | 0.3 | 9 | 50 | 4 |
| LL-HD19A-3R0.5x50-S4 | 3 | 0.5 | 9 | 50 | 4 |
| LL-HD19A-3R0.2x50-S6 | 3 | 0.2 | 9 | 50 | 6 |
| LL-HD19A-3R0.3x50-S6 | 3 | 0.3 | 9 | 50 | 6 |
| LL-HD19A-3R0.5x50-S6 | 3 | 0.5 | 9 | 50 | 6 |
| LL-HD19A-3R0.2x60-S6 | 3 | 0.2 | 9 | 60 | 6 |
| LL-HD19A-3R0.3x60-S6 | 3 | 0.3 | 9 | 60 | 6 |
| LL-HD19A-3R0.5x60-S6 | 3 | 0.5 | 60 | 6 | |
| LL-HD19A-4R0.2x50-S4 | 4 | 0.2 | 50 | 4 | |
| LL-HD19A-4R0.3x50-S4 | 4 | 0.3 | 12 | 50 | 4 |
| LL-HD19A-4R0.5x50-S4 | 4 | 0.5 | 12 | 50 | 4 |
| LL-HD19A-4R1x50-S4 | 4 | 1 | 12 | 50 | 4 |
| LL-HD19A-4R0.2x50-S6 | 4 | 0.2 | 12 | 50 | 6 |
| LL-HD19A-4R0.3x50-S6 | 4 | 0.3 | 12 | 50 | 6 |
| LL-HD19A-4R0.5x50-S6 | 4 | 0.5 | 12 | 50 | 6 |
| LL-HD19A-4R1x50-S6 | 4 | 1 | 12 | 50 | 6 |
| LL-HD19A-4R0.2x60-S6 | 4 | 0.2 | 12 | 60 | 6 |
| LL-HD19A-4R0.3x60-S6 | 4 | 0.3 | 12 | 60 | 6 |
| LL-HD19A-4R0.5x60-S6 | 4 | 0.5 | 12 | 60 | 6 |
| LL-HD19A-4R1x60-S6 | 4 | 1 | 60 | 6 | |
| LL-HD19A-5R0.2x50-S5 | 5 | 0.2 | 50 | 5 | |
| LL-HD19A-5R0.3x50-S5 | 5 | 0.3 | 15 | 50 | 5 |
| LL-HD19A-5R0.5x50-S5 | 5 | 0.5 | 15 | 50 | 5 |
| LL-HD19A-5R1x50-S5 | 5 | 1 | 15 | 50 | 5 |
| LL-HD19A-5R0.2x50-S6 | 5 | 0.2 | 15 | 50 | 6 |
| LL-HD19A-5R0.3x50-S6 | 5 | 0.3 | 15 | 50 | 6 |
| LL-HD19A-5R0.5x50-S6 | 5 | 0.5 | 15 | 50 | 6 |
| LL-HD19A-5R1x50-S6 | 5 | 1 | 15 | 50 | 6 |
| LL-HD19A-5R0.2x60-S6 | 5 | 0.2 | 15 | 60 | 6 |
| LL-HD19A-5R0.3x60-S6 | 5 | 0.3 | 15 | 60 | 6 |
| LL-HD19A-5R0.5x60-S6 | 5 | 0.5 | 16 | 60 | 6 |
| LL-HD19A-5R1x60-S6 | 5 | 1 | 16 | 60 | 6 |
| LL-HD19A-6R0.2x50-S6 | 6 | 0.2 | 16 | 50 | 6 |
| LL-HD19A-6R0.3x50-S6 | 6 | 0.3 | 16 | 50 | 6 |
| LL-HD19A-6R0.5x50-S6 | 6 | 0.5 | 16 | 50 | 6 |
| LL-HD19A-6R1x50-S6 | 6 | 1 | 16 | 50 | 6 |
| LL-HD19A-6R0.2x60-S6 | 6 | 0.2 | 20 | 60 | 6 |
| LL-HD19A-6R0.3x60-S6 | 6 | 0.3 | 20 | 60 | 6 |
| LL-HD19A-6R0.5x60-S6 | 6 | 0.5 | 20 | 60 | 6 |
| LL-HD19A-6R1x60-S6 | 6 | 1 | 20 | 60 | 6 |
| LL-HD19A-8R0.2x64-S8 | 8 | 0.2 | 20 | 64 | 8 |
| LL-HD19A-8R0.3x64-S8 | 8 | 0.3 | 20 | 64 | 8 |
| LL-HD19A-8R0.5x64-S8 | 8 | 0.5 | 20 | 64 | 8 |
| LL-HD19A-8R1x64-S8 | 8 | 1 | 20 | 64 | 8 |
| LL-HD19A-8R1.5x64-S8 | 8 | 1.5 | 20 | 64 | 8 |
| LL-HD19A-8R2x64-S8 | 8 | 2 | 20 | 64 | 8 |
| LL-HD19A-10R0.2x70-S10 | 10 | 0.2 | 70 | 10 | |
| LL-HD19A-10R0.3x70-S10 | 10 | 0.3 | 22 | 70 | 10 |
| LL-HD19A-10R0.5x70-S10 | 10 | 0.5 | 22 | 70 | 10 |
| LL-HD19A-10R1x70-S10 | 10 | 1 | 22 | 70 | 10 |
| LL-HD19A-10R1.5x70-S10 | 10 | 1.5 | 22 | 70 | 10 |
| LL-HD19A-10R2x70-S10 | 10 | 2 | 22 | 70 | 10 |
| LL-HD19A-10R0.2x75-S10 | 10 | 0.2 | 22 | 75 | 10 |
| LL-HD19A-10R0.3x75-S10 | 10 | 0.3 | 22 | 75 | 10 |
| LL-HD19A-10R0.5x75-S10 | 10 | 0.5 | 22 | 75 | 10 |
| LL-HD19A-10R1x75-S10 | 10 | 1 | 22 | 75 | 10 |
| LL-HD19A-10R1.5x75-S10 | 10 | 1.5 | 22 | 75 | 10 |
| LL-HD19A-10R2x75-S10 | 10 | 2 | 25 | 75 | 10 |
| LL-HD19A-12R0.2x75-S12 | 12 | 0.2 | 25 | 75 | 12 |
| LL-HD19A-12R0.3x75-S12 | 12 | 0.3 | 25 | 75 | 12 |
| LL-HD19A-12R0.5x75-S12 | 12 | 0.5 | 25 | 75 | 12 |
| LL-HD19A-12R1x75-S12 | 12 | 1 | 25 | 75 | 12 |
| LL-HD19A-12R1.5x75-S12 | 12 | 1.5 | 25 | 75 | 12 |
| LL-HD19A-12R2x75-S12 | 12 | 2 | 25 | 75 | 12 |
| LL-HD19A-12R3x75-S12 | 12 | 3 | 25 | 75 | 12 |
| LL-HD19A-14R0.3x90-S14 | 14 | 0.3 | 25 | 90 | 14 |
| LL-HD19A-14R0.5x90-S14 | 14 | 0.5 | 32 | 90 | 14 |
| LL-HD19A-14R1x90-S14 | 14 | 1 | 32 | 90 | 14 |
| LL-HD19A-14R1.5x90-S14 | 14 | 1.5 | 32 | 90 | 14 |
| LL-HD19A-14R2x90-S14 | 14 | 2 | 32 | 90 | 14 |
| LL-HD19A-14R3x90-S14 | 14 | 3 | 32 | 90 | 14 |
| LL-HD19A-16R0.3x90-S16 | 16 | 0.3 | 32 | 90 | 16 |
| LL-HD19A-16R0.5x90-S16 | 16 | 0.5 | 32 | 90 | 16 |
| LL-HD19A-16R1x90-S16 | 16 | 1 | 32 | 90 | 16 |
| LL-HD19A-16R1.5x90-S16 | 16 | 1.5 | 32 | 90 | 16 |
| LL-HD19A-16R2x90-S16 | 16 | 2 | 32 | 90 | 16 |
| LL-HD19A-16R3x90-S16 | 16 | 3 | 90 | 16 | |
| LL-HD19A-18R0.3x100-S18 | 18 | 0.3 | 100 | 18 | |
| LL-HD19A-18R0.5x100-S18 | 18 | 0.5 | 38 | 100 | 18 |
| LL-HD19A-18R1x100-S18 | 18 | 1 | 38 | 100 | 18 |
| LL-HD19A-18R1.5x100-S18 | 18 | 1.5 | 38 | 100 | 18 |
| LL-HD19A-18R2x100-S18 | 18 | 2 | 38 | 100 | 18 |
| LL-HD19A-18R3x100-S18 | 18 | 3 | 38 | 100 | 18 |
| LL-HD19A-20R0.3x100-S20 | 20 | 0.3 | 38 | 100 | 20 |
| LL-HD19A-20R0.5x100-S20 | 20 | 0.5 | 38 | 100 | 20 |
| LL-HD19A-20R1x100-S20 | 20 | 1 | 38 | 100 | 20 |
| LL-HD19A-20R1.5x100-S20 | 20 | 1.5 | 38 | 100 | 20 |
| LL-HD19A-20R2x100-S20 | 20 | 2 | 38 | 100 | 20 |
| LL-HD19A-20R3x100-S20 | 20 | 3 | 100 | 20 | |
| LL-HD19S-1R0.2x50-S4 | 1 | 0.2 | 3 | 50 | 4 |
| LL-HD19S-1R0.2x50-S6 | 1 | 0.2 | 3 | 50 | 6 |
| LL-HD19S-1.5R0.2x50-S4 | 1.5 | 0.2 | 4.5 | 50 | 4 |
| LL-HD19S-1.5R0.2x50-S6 | 1.5 | 0.2 | 4.5 | 50 | 6 |
| LL-HD19S-2R0.2x50-S4 | 2 | 0.2 | 4.5 | 50 | 4 |
| LL-HD19S-2R0.3x50-S4 | 2 | 0.3 | 4.5 | 50 | 4 |
| LL-HD19S-2R0.2x50-S6 | 2 | 0.2 | 6.5 | 50 | 6 |
| LL-HD19S-2R0.3x50-S6 | 2 | 0.3 | 6.5 | 50 | 6 |
| LL-HD19S-2.5R0.2x50-S4 | 2.5 | 0.2 | 6.5 | 50 | 4 |
| LL-HD19S-2.5R0.3x50-S4 | 2.5 | 0.3 | 6.5 | 50 | 4 |
| LL-HD19S-2.5R0.5x50-S4 | 2.5 | 0.5 | 6.5 | 50 | 4 |
| LL-HD19S-2.5R0.2x50-S6 | 2.5 | 0.2 | 6.5 | 50 | 6 |
| LL-HD19S-2.5R0.3x50-S6 | 2.5 | 0.3 | 6.5 | 50 | 6 |
| LL-HD19S-2.5R0.5x50-S6 | 2.5 | 0.5 | 6.5 | 50 | 6 |
| LL-HD19S-3R0.2x40-S3 | 3 | 0.2 | 40 | 3 | |
| LL-HD19S-3R0.3x40-S3 | 3 | 0.3 | 9 | 40 | 3 |
| LL-HD19S-3R0.5x40-S3 | 3 | 0.5 | 9 | 40 | 3 |
| LL-HD19S-3R0.2x50-S4 | 3 | 0.2 | 9 | 50 | 4 |
| LL-HD19S-3R0.3x50-S4 | 3 | 0.3 | 9 | 50 | 4 |
| LL-HD19S-3R0.5x50-S4 | 3 | 0.5 | 9 | 50 | 4 |
| LL-HD19S-3R0.2x50-S6 | 3 | 0.2 | 9 | 50 | 6 |
| LL-HD19S-3R0.3x50-S6 | 3 | 0.3 | 9 | 50 | 6 |
| LL-HD19S-3R0.5x50-S6 | 3 | 0.5 | 9 | 50 | 6 |
| LL-HD19S-3R0.2x60-S6 | 3 | 0.2 | 9 | 60 | 6 |
| LL-HD19S-3R0.3x60-S6 | 3 | 0.3 | 9 | 60 | 6 |
| LL-HD19S-3R0.5x60-S6 | 3 | 0.5 | 60 | 6 | |
| LL-HD19S-4R0.2x50-S4 | 4 | 0.2 | 50 | 4 | |
| LL-HD19S-4R0.3x50-S4 | 4 | 0.3 | 12 | 50 | 4 |
| LL-HD19S-4R0.5x50-S4 | 4 | 0.5 | 12 | 50 | 4 |
| LL-HD19S-4R1x50-S4 | 4 | 1 | 12 | 50 | 4 |
| LL-HD19S-4R0.2x50-S6 | 4 | 0.2 | 12 | 50 | 6 |
| LL-HD19S-4R0.3x50-S6 | 4 | 0.3 | 12 | 50 | 6 |
| LL-HD19S-4R0.5x50-S6 | 4 | 0.5 | 12 | 50 | 6 |
| LL-HD19S-4R1x50-S6 | 4 | 1 | 12 | 50 | 6 |
| LL-HD19S-4R0.2x60-S6 | 4 | 0.2 | 12 | 60 | 6 |
| LL-HD19S-4R0.3x60-S6 | 4 | 0.3 | 12 | 60 | 6 |
| LL-HD19S-4R0.5x60-S6 | 4 | 0.5 | 12 | 60 | 6 |
| LL-HD19S-4R1x60-S6 | 4 | 1 | 60 | 6 | |
| LL-HD19S-5R0.2x50-S5 | 5 | 0.2 | 50 | 5 | |
| LL-HD19S-5R0.3x50-S5 | 5 | 0.3 | 15 | 50 | 5 |
| LL-HD19S-5R0.5x50-S5 | 5 | 0.5 | 15 | 50 | 5 |
| LL-HD19S-5R1x50-S5 | 5 | 1 | 15 | 50 | 5 |
| LL-HD19S-5R0.2x50-S6 | 5 | 0.2 | 15 | 50 | 6 |
| LL-HD19S-5R0.3x50-S6 | 5 | 0.3 | 15 | 50 | 6 |
| LL-HD19S-5R0.5x50-S6 | 5 | 0.5 | 15 | 50 | 6 |
| LL-HD19S-5R1x50-S6 | 5 | 1 | 15 | 50 | 6 |
| LL-HD19S-5R0.2x60-S6 | 5 | 0.2 | 15 | 60 | 6 |
| LL-HD19S-5R0.3x60-S6 | 5 | 0.3 | 15 | 60 | 6 |
| LL-HD19S-5R0.5x60-S6 | 5 | 0.5 | 16 | 60 | 6 |
| LL-HD19S-5R1x60-S6 | 5 | 1 | 16 | 60 | 6 |
| LL-HD19S-6R0.2x50-S6 | 6 | 0.2 | 16 | 50 | 6 |
| LL-HD19S-6R0.3x50-S6 | 6 | 0.3 | 16 | 50 | 6 |
| LL-HD19S-6R0.5x50-S6 | 6 | 0.5 | 16 | 50 | 6 |
| LL-HD19S-6R1x50-S6 | 6 | 1 | 16 | 50 | 6 |
| LL-HD19S-6R0.2x60-S6 | 6 | 0.2 | 20 | 60 | 6 |
| LL-HD19S-6R0.3x60-S6 | 6 | 0.3 | 20 | 60 | 6 |
| LL-HD19S-6R0.5x60-S6 | 6 | 0.5 | 20 | 60 | 6 |
| LL-HD19S-6R1x60-S6 | 6 | 1 | 20 | 60 | 6 |
| LL-HD19S-8R0.2x64-S8 | 8 | 0.2 | 20 | 64 | 8 |
| LL-HD19S-8R0.3x64-S8 | 8 | 0.3 | 20 | 64 | 8 |
| LL-HD19S-8R0.5x64-S8 | 8 | 0.5 | 20 | 64 | 8 |
| LL-HD19S-8R1x64-S8 | 8 | 1 | 20 | 64 | 8 |
| LL-HD19S-8R1.5x64-S8 | 8 | 1.5 | 20 | 64 | 8 |
| LL-HD19S-8R2x64-S8 | 8 | 2 | 20 | 64 | 8 |
| LL-HD19S-10R0.2x70-S10 | 10 | 0.2 | 70 | 10 | |
| LL-HD19S-10R0.3x70-S10 | 10 | 0.3 | 22 | 70 | 10 |
| LL-HD19S-10R0.5x70-S10 | 10 | 0.5 | 22 | 70 | 10 |
| LL-HD19S-10R1x70-S10 | 10 | 1 | 22 | 70 | 10 |
| LL-HD19S-10R1.5x70-S10 | 10 | 1.5 | 22 | 70 | 10 |
| LL-HD19S-10R2x70-S10 | 10 | 2 | 22 | 70 | 10 |
| LL-HD19S-10R0.2x75-S10 | 10 | 0.2 | 22 | 75 | 10 |
| LL-HD19S-10R0.3x75-S10 | 10 | 0.3 | 22 | 75 | 10 |
| LL-HD19S-10R0.5x75-S10 | 10 | 0.5 | 22 | 75 | 10 |
| LL-HD19S-10R1x75-S10 | 10 | 1 | 22 | 75 | 10 |
| LL-HD19S-10R1.5x75-S10 | 10 | 1.5 | 22 | 75 | 10 |
| LL-HD19S-10R2x75-S10 | 10 | 2 | 25 | 75 | 10 |
| LL-HD19S-12R0.2x75-S12 | 12 | 0.2 | 25 | 75 | 12 |
| LL-HD19S-12R0.3x75-S12 | 12 | 0.3 | 25 | 75 | 12 |
| LL-HD19S-12R0.5x75-S12 | 12 | 0.5 | 25 | 75 | 12 |
| LL-HD19S-12R1x75-S12 | 12 | 1 | 25 | 75 | 12 |
| LL-HD19S-12R1.5x75-S12 | 12 | 1.5 | 25 | 75 | 12 |
| LL-HD19S-12R2x75-S12 | 12 | 2 | 25 | 75 | 12 |
| LL-HD19S-12R3x75-S12 | 12 | 3 | 25 | 75 | 12 |
| LL-HD19S-14R0.3x90-S14 | 14 | 0.3 | 25 | 90 | 14 |
| LL-HD19S-14R0.5x90-S14 | 14 | 0.5 | 32 | 90 | 14 |
| LL-HD19S-14R1x90-S14 | 14 | 1 | 32 | 90 | 14 |
| LL-HD19S-14R1.5x90-S14 | 14 | 1.5 | 32 | 90 | 14 |
| LL-HD19S-14R2x90-S14 | 14 | 2 | 32 | 90 | 14 |
| LL-HD19S-14R3x90-S14 | 14 | 3 | 32 | 90 | 14 |
| LL-HD19S-16R0.3x90-S16 | 16 | 0.3 | 32 | 90 | 16 |
| LL-HD19S-16R0.5x90-S16 | 16 | 0.5 | 32 | 90 | 16 |
| LL-HD19S-16R1x90-S16 | 16 | 1 | 32 | 90 | 16 |
| LL-HD19S-16R1.5x90-S16 | 16 | 1.5 | 32 | 90 | 16 |
| LL-HD19S-16R2x90-S16 | 16 | 2 | 32 | 90 | 16 |
| LL-HD19S-16R3x90-S16 | 16 | 3 | 90 | 16 | |
| LL-HD19S-18R0.3x100-S18 | 18 | 0.3 | 100 | 18 | |
| LL-HD19S-18R0.5x100-S18 | 18 | 0.5 | 38 | 100 | 18 |
| LL-HD19S-18R1x100-S18 | 18 | 1 | 38 | 100 | 18 |
| LL-HD19S-18R1.5x100-S18 | 18 | 1.5 | 38 | 100 | 18 |
| LL-HD19S-18R2x100-S18 | 18 | 2 | 38 | 100 | 18 |
| LL-HD19S-18R3x100-S18 | 18 | 3 | 38 | 100 | 18 |
| LL-HD19S-20R0.3x100-S20 | 20 | 0.3 | 38 | 100 | 20 |
| LL-HD19S-20R0.5x100-S20 | 20 | 0.5 | 38 | 100 | 20 |
| LL-HD19S-20R1x100-S20 | 20 | 1 | 38 | 100 | 20 |
| LL-HD19S-20R1.5x100-S20 | 20 | 1.5 | 38 | 100 | 20 |
| LL-HD19S-20R2x100-S20 | 20 | 2 | 38 | 100 | 20 |
| LL-HD19S-20R3x100-S20 | 20 | 3 | 100 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
LATHELAND®
