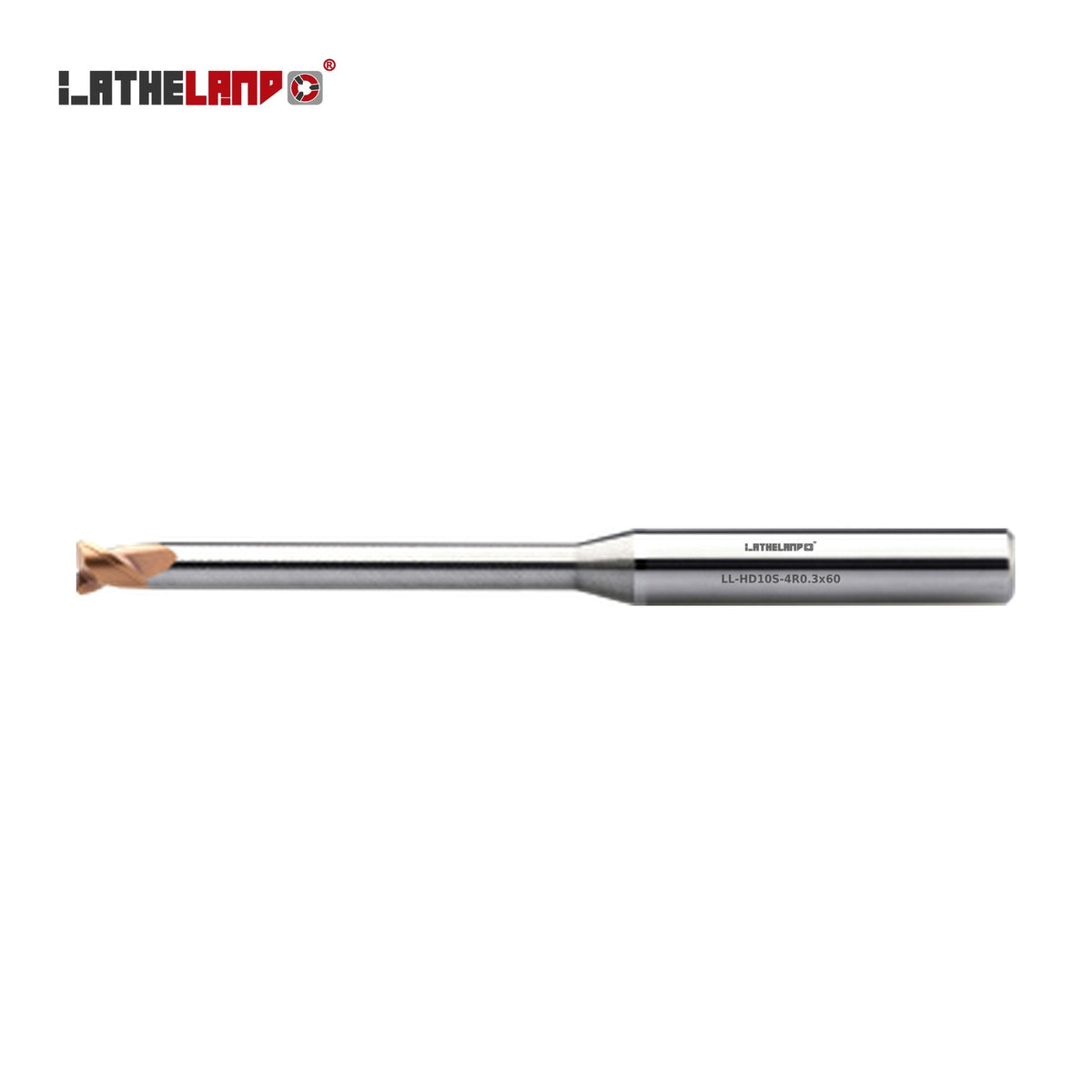

LATHELAND® Miniature Torus End Mill with Long Neck for Hardened Steel, 2 Flutes – HD10
LATHELAND® Miniature Torus End Mill with Long Neck for Hardened Steel, 2 Flutes – HD10 – dimension drawing
LATHELAND® Miniature Torus End Mill with Long Neck for Hardened Steel, 2 Flutes – HD10
LATHELAND® Miniature Torus End Mill with Long Neck for Hardened Steel, 2 Flutes – HD10 – dimension drawing
LATHELAND

LATHELAND® Miniature Torus End Mill with Long Neck for Hardened Steel, 2 Flutes – HD10

Out of stock
SKU: LL-HD10S-0.2R0.02x50
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedHD10S – TiSiN multilayer / Ø0.2 · R0.02 · L50 SKULL-HD10S-0.2R0.02x50

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Hardened steel up to 52 HRC: Square, torus, long-reach, miniature and multi-flute end mills for pre-hardened and hardened steels.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series HD10
Material Solid carbide
Coating TiSiN multilayer / AlTiN
Flutes 2
Helix angle 40°
Workpiece hardness 36–50 HRC
Best for steel, stainless steel, cast iron, titanium & superalloys, hardened steel
Range Ø0.2–4 mm
Sizes available 570
Price On request – supplied on quotation

Versions

Version Specification Sizes
HD10S TiSiN multilayer 320
HD10A AlTiN 250

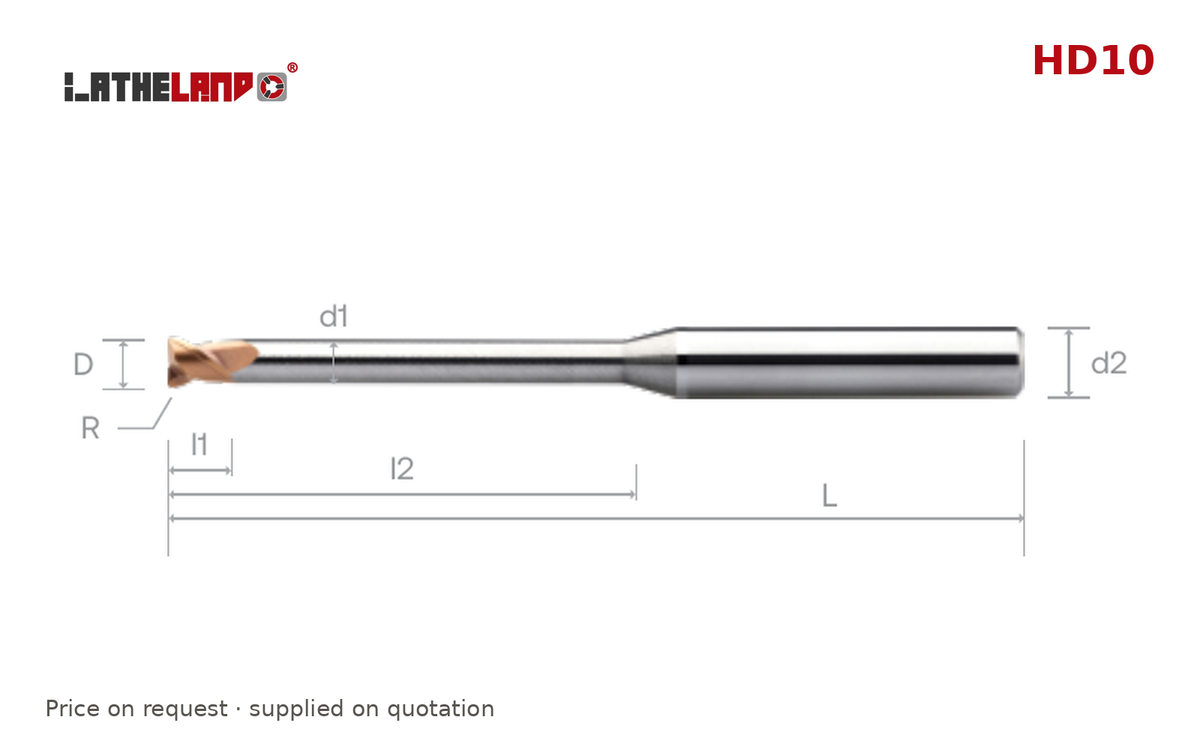

Size table (all dimensions in mm)

SKU Ø D R l1 l2 L d1 d2
LL-HD10S-0.2R0.02x50 0.2 0.02 50 4
LL-HD10S-0.2R0.02x50N0.5 0.2 0.02 0.5 50 4
LL-HD10S-0.2R0.02x50N1 0.2 0.02 1 50 4
LL-HD10S-0.2R0.05x50 0.2 0.05 0.3 50 4
LL-HD10S-0.2R0.05x50N0.5 0.2 0.05 0.3 0.5 50 0.17 4
LL-HD10S-0.2R0.05x50N1 0.2 0.05 0.3 1 50 0.17 4
LL-HD10S-0.2R0.05x50N1.5 0.2 0.05 0.3 1.5 50 0.17 4
LL-HD10S-0.2R0.05x50N2 0.2 0.05 0.3 2 50 0.17 4
LL-HD10S-0.3R0.03x50 0.3 0.03 50 4
LL-HD10S-0.3R0.03x50N1 0.3 0.03 1 50 4
LL-HD10S-0.3R0.03x50N2 0.3 0.03 2 50 4
LL-HD10S-0.3R0.03x50N3 0.3 0.03 3 50 4
LL-HD10S-0.3R0.05x50 0.3 0.05 0.3 50 4
LL-HD10S-0.3R0.05x50N1 0.3 0.05 0.3 1 50 0.27 4
LL-HD10S-0.3R0.05x50N1.5 0.3 0.05 0.4 1.5 50 0.27 4
LL-HD10S-0.3R0.05x50N2 0.3 0.05 0.4 2 50 0.27 4
LL-HD10S-0.3R0.05x50N2.5 0.3 0.05 0.4 2.5 50 0.27 4
LL-HD10S-0.3R0.05x50N3 0.3 0.05 0.4 3 50 0.27 4
LL-HD10S-0.3R0.1x50 0.3 0.1 0.4 50 4
LL-HD10S-0.3R0.1x50N1 0.3 0.1 0.4 1 50 0.27 4
LL-HD10S-0.3R0.1x50N1.5 0.3 0.1 0.4 1.5 50 0.27 4
LL-HD10S-0.3R0.1x50N2 0.3 0.1 0.4 2 50 0.27 4
LL-HD10S-0.3R0.1x50N2.5 0.3 0.1 0.4 2.5 50 0.27 4
LL-HD10S-0.3R0.1x50N3 0.3 0.1 3 50 0.27 4
LL-HD10S-0.4R0.03x50 0.4 0.03 50 4
LL-HD10S-0.4R0.03x50N2 0.4 0.03 2 50 4
LL-HD10S-0.4R0.03x50N3 0.4 0.03 3 50 4
LL-HD10S-0.4R0.03x50N4 0.4 0.03 4 50 4
LL-HD10S-0.4R0.03x50N5 0.4 0.03 5 50 4
LL-HD10S-0.4R0.05x50 0.4 0.05 50 4
LL-HD10S-0.4R0.05x50N1 0.4 0.05 1 50 0.37 4
LL-HD10S-0.4R0.05x50N1.5 0.4 0.05 1.5 50 0.37 4
LL-HD10S-0.4R0.05x50N2 0.4 0.05 0.6 2 50 0.37 4
LL-HD10S-0.4R0.05x50N2.5 0.4 0.05 0.6 2.5 50 0.37 4
LL-HD10S-0.4R0.05x50N3 0.4 0.05 0.6 3 50 0.37 4
LL-HD10S-0.4R0.05x50N3.5 0.4 0.05 0.6 3.5 50 0.37 4
LL-HD10S-0.4R0.05x50N4 0.4 0.05 0.6 4 50 0.37 4
LL-HD10S-0.4R0.1x50 0.4 0.1 0.6 50 4
LL-HD10S-0.4R0.1x50N1 0.4 0.1 0.6 1 50 0.37 4
LL-HD10S-0.4R0.1x50N1.5 0.4 0.1 0.6 1.5 50 0.37 4
LL-HD10S-0.4R0.1x50N2 0.4 0.1 0.6 2 50 0.37 4
LL-HD10S-0.4R0.1x50N2.5 0.4 0.1 0.6 2.5 50 0.37 4
LL-HD10S-0.4R0.1x50N3 0.4 0.1 3 50 0.37 4
LL-HD10S-0.4R0.1x50N3.5 0.4 0.1 3.5 50 0.37 4
LL-HD10S-0.4R0.1x50N4 0.4 0.1 4 50 0.37 4
LL-HD10S-0.5R0.05x50 0.5 0.05 0.7 50 4
LL-HD10S-0.5R0.05x50N2 0.5 0.05 0.7 2 50 0.45 4
LL-HD10S-0.5R0.05x50N4 0.5 0.05 0.7 4 50 0.45 4
LL-HD10S-0.5R0.05x50N6 0.5 0.05 0.7 6 50 0.45 4
LL-HD10S-0.5R0.05x50N8 0.5 0.05 0.7 8 50 0.45 4
LL-HD10S-0.5R0.1x50 0.5 0.1 0.7 50 4
LL-HD10S-0.5R0.1x50N2 0.5 0.1 0.7 2 50 0.45 4
LL-HD10S-0.5R0.1x50N4 0.5 0.1 0.7 4 50 0.45 4
LL-HD10S-0.5R0.1x50N6 0.5 0.1 0.7 6 50 0.45 4
LL-HD10S-0.5R0.1x50N8 0.5 0.1 0.9 8 50 0.45 4
LL-HD10S-0.6R0.05x50 0.6 0.05 50 4
LL-HD10S-0.6R0.05x50N4 0.6 0.05 4 50 4
LL-HD10S-0.6R0.05x50N6 0.6 0.05 6 50 4
LL-HD10S-0.6R0.05x50N8 0.6 0.05 8 50 4
LL-HD10S-0.6R0.05x50N10 0.6 0.05 10 50 4
LL-HD10S-0.6R0.1x50 0.6 0.1 0.9 50 4
LL-HD10S-0.6R0.1x50N2 0.6 0.1 0.9 2 50 0.55 4
LL-HD10S-0.6R0.1x50N4 0.6 0.1 0.9 4 50 0.55 4
LL-HD10S-0.6R0.1x50N6 0.6 0.1 0.9 6 50 0.55 4
LL-HD10S-0.6R0.1x50N8 0.6 0.1 0.9 8 50 0.55 4
LL-HD10S-0.6R0.1x50N10 0.6 0.1 0.9 10 50 0.55 4
LL-HD10S-0.7R0.08x50 0.7 0.08 50 4
LL-HD10S-0.7R0.08x50N2 0.7 0.08 2 50 4
LL-HD10S-0.7R0.08x50N4 0.7 0.08 4 50 4
LL-HD10S-0.7R0.08x50N6 0.7 0.08 6 50 4
LL-HD10S-0.7R0.08x50N8 0.7 0.08 8 50 4
LL-HD10S-0.7R0.08x50N10 0.7 0.08 10 50 4
LL-HD10S-0.7R0.1x50 0.7 0.1 1 50 4
LL-HD10S-0.7R0.1x50N2 0.7 0.1 1 2 50 0.65 4
LL-HD10S-0.7R0.1x50N4 0.7 0.1 1 4 50 0.65 4
LL-HD10S-0.7R0.1x50N6 0.7 0.1 1 6 50 0.65 4
LL-HD10S-0.7R0.1x50N8 0.7 0.1 1 8 50 0.65 4
LL-HD10S-0.7R0.1x50N10 0.7 0.1 1 10 50 0.65 4
LL-HD10S-0.8R0.05x50 0.8 0.05 50 4
LL-HD10S-0.8R0.05x50N4 0.8 0.05 1.2 4 50 0.75 4
LL-HD10S-0.8R0.05x50N6 0.8 0.05 1.2 6 50 0.75 4
LL-HD10S-0.8R0.05x50N8 0.8 0.05 1.2 8 50 0.75 4
LL-HD10S-0.8R0.05x50N10 0.8 0.05 1.2 10 50 0.75 4
LL-HD10S-0.8R0.05x50N12 0.8 0.05 1.2 12 50 0.75 4
LL-HD10S-0.8R0.08x50 0.8 0.08 50 4
LL-HD10S-0.8R0.08x50N4 0.8 0.08 4 50 4
LL-HD10S-0.8R0.08x50N6 0.8 0.08 6 50 4
LL-HD10S-0.8R0.08x50N8 0.8 0.08 8 50 4
LL-HD10S-0.8R0.08x50N10 0.8 0.08 10 50 4
LL-HD10S-0.8R0.08x50N12 0.8 0.08 12 50 4
LL-HD10S-0.8R0.1x50 0.8 0.1 1.2 50 4
LL-HD10S-0.8R0.1x50N4 0.8 0.1 1.2 4 50 0.75 4
LL-HD10S-0.8R0.1x50N6 0.8 0.1 1.2 6 50 0.75 4
LL-HD10S-0.8R0.1x50N8 0.8 0.1 1.2 8 50 0.75 4
LL-HD10S-0.8R0.1x50N10 0.8 0.1 1.4 10 50 0.75 4
LL-HD10S-0.8R0.1x50N12 0.8 0.1 1.4 12 50 0.75 4
LL-HD10S-0.9R0.08x50 0.9 0.08 50 4
LL-HD10S-0.9R0.08x50N6 0.9 0.08 6 50 4
LL-HD10S-0.9R0.08x50N8 0.9 0.08 8 50 4
LL-HD10S-0.9R0.08x50N10 0.9 0.08 10 50 4
LL-HD10S-0.9R0.08x50N15 0.9 0.08 15 50 4
LL-HD10S-0.9R0.1x50 0.9 0.1 1.4 50 4
LL-HD10S-0.9R0.1x50N6 0.9 0.1 1.4 6 50 0.85 4
LL-HD10S-0.9R0.1x50N8 0.9 0.1 1.4 8 50 0.85 4
LL-HD10S-0.9R0.1x50N10 0.9 0.1 1.4 10 50 0.85 4
LL-HD10S-0.9R0.1x50N15 0.9 0.1 1.4 15 50 0.85 4
LL-HD10S-1R0.1x50 1 0.1 1.4 50 4
LL-HD10S-1R0.1x50N4 1 0.1 1.4 4 50 0.9 4
LL-HD10S-1R0.1x50N6 1 0.1 1.4 6 50 0.9 4
LL-HD10S-1R0.1x50N8 1 0.1 8 50 0.9 4
LL-HD10S-1R0.1x50N10 1 0.1 10 50 0.9 4
LL-HD10S-1R0.1x50N12 1 0.1 12 50 0.9 4
LL-HD10S-1R0.1x50N14 1 0.1 14 50 0.9 4
LL-HD10S-1R0.1x50N16 1 0.1 16 50 0.9 4
LL-HD10S-1R0.1x60 1 0.1 1.5 60 4
LL-HD10S-1R0.1x60N20 1 0.1 1.5 20 60 0.9 4
LL-HD10S-1R0.2x50 1 0.2 1.5 50 4
LL-HD10S-1R0.2x50N4 1 0.2 1.5 4 50 0.9 4
LL-HD10S-1R0.2x50N6 1 0.2 1.5 6 50 0.9 4
LL-HD10S-1R0.2x50N8 1 0.2 1.5 8 50 0.9 4
LL-HD10S-1R0.2x50N10 1 0.2 1.5 10 50 0.9 4
LL-HD10S-1R0.2x50N12 1 0.2 1.5 12 50 0.9 4
LL-HD10S-1R0.2x50N14 1 0.2 1.5 14 50 0.9 4
LL-HD10S-1R0.2x50N16 1 0.2 1.5 16 50 0.9 4
LL-HD10S-1R0.2x60 1 0.2 60 4
LL-HD10S-1R0.2x60N20 1 0.2 20 60 0.9 4
LL-HD10S-1R0.3x50 1 0.3 50 4
LL-HD10S-1R0.3x50N6 1 0.3 6 50 0.9 4
LL-HD10S-1R0.3x50N10 1 0.3 10 50 0.9 4
LL-HD10S-1R0.3x50N16 1 0.3 1.8 16 50 0.9 4
LL-HD10S-1R0.3x60 1 0.3 1.8 60 4
LL-HD10S-1R0.3x60N20 1 0.3 1.8 20 60 0.9 4
LL-HD10S-1.2R0.1x50 1.2 0.1 1.8 50 4
LL-HD10S-1.2R0.1x50N6 1.2 0.1 1.8 6 50 1.1 4
LL-HD10S-1.2R0.1x50N8 1.2 0.1 1.8 8 50 1.1 4
LL-HD10S-1.2R0.1x50N10 1.2 0.1 1.8 10 50 1.1 4
LL-HD10S-1.2R0.1x50N12 1.2 0.1 1.8 12 50 1.1 4
LL-HD10S-1.2R0.4x50 1.2 0.4 50 4
LL-HD10S-1.2R0.4x50N12 1.2 0.4 12 50 4
LL-HD10S-1.4R0.1x50 1.4 0.1 1.8 50 4
LL-HD10S-1.4R0.1x50N6 1.4 0.1 2.1 6 50 1.3 4
LL-HD10S-1.4R0.1x50N8 1.4 0.1 2.1 8 50 1.3 4
LL-HD10S-1.4R0.1x50N10 1.4 0.1 2.1 10 50 1.3 4
LL-HD10S-1.4R0.1x50N12 1.4 0.1 2.1 12 50 1.3 4
LL-HD10S-1.4R0.1x50N14 1.4 0.1 2.1 14 50 1.3 4
LL-HD10S-1.4R0.1x50N16 1.4 0.1 2.1 16 50 1.3 4
LL-HD10S-1.4R0.15x50 1.4 0.15 50 4
LL-HD10S-1.4R0.15x50N6 1.4 0.15 6 50 4
LL-HD10S-1.4R0.15x50N8 1.4 0.15 8 50 4
LL-HD10S-1.4R0.15x50N10 1.4 0.15 10 50 4
LL-HD10S-1.4R0.15x50N12 1.4 0.15 12 50 4
LL-HD10S-1.4R0.15x50N14 1.4 0.15 14 50 4
LL-HD10S-1.4R0.15x50N16 1.4 0.15 16 50 4
LL-HD10S-1.5R0.1x50 1.5 0.1 50 4
LL-HD10S-1.5R0.1x50N6 1.5 0.1 6 50 1.4 4
LL-HD10S-1.5R0.1x50N8 1.5 0.1 8 50 1.4 4
LL-HD10S-1.5R0.1x50N12 1.5 0.1 12 50 1.4 4
LL-HD10S-1.5R0.1x50N16 1.5 0.1 16 50 1.4 4
LL-HD10S-1.5R0.1x60 1.5 0.1 60 4
LL-HD10S-1.5R0.1x60N20 1.5 0.1 2.3 20 60 1.4 4
LL-HD10S-1.5R0.15x50 1.5 0.15 50 4
LL-HD10S-1.5R0.15x50N6 1.5 0.15 6 50 4
LL-HD10S-1.5R0.15x50N8 1.5 0.15 8 50 4
LL-HD10S-1.5R0.15x50N10 1.5 0.15 10 50 4
LL-HD10S-1.5R0.15x50N12 1.5 0.15 12 50 4
LL-HD10S-1.5R0.15x50N14 1.5 0.15 14 50 4
LL-HD10S-1.5R0.15x50N16 1.5 0.15 16 50 4
LL-HD10S-1.5R0.15x60 1.5 0.15 60 4
LL-HD10S-1.5R0.15x60N20 1.5 0.15 20 60 4
LL-HD10S-1.5R0.2x50 1.5 0.2 2.3 50 4
LL-HD10S-1.5R0.2x50N6 1.5 0.2 2.3 6 50 1.4 4
LL-HD10S-1.5R0.2x50N8 1.5 0.2 2.3 8 50 1.4 4
LL-HD10S-1.5R0.2x50N10 1.5 0.2 2.3 10 50 1.4 4
LL-HD10S-1.5R0.2x50N12 1.5 0.2 2.3 12 50 1.4 4
LL-HD10S-1.5R0.2x50N14 1.5 0.2 2.3 14 50 1.4 4
LL-HD10S-1.5R0.2x50N16 1.5 0.2 2.3 16 50 1.4 4
LL-HD10S-1.5R0.2x60 1.5 0.2 2.3 60 4
LL-HD10S-1.5R0.2x60N18 1.5 0.2 2.3 18 60 1.4 4
LL-HD10S-1.5R0.2x60N20 1.5 0.2 20 60 1.4 4
LL-HD10S-1.5R0.3x50 1.5 0.3 50 4
LL-HD10S-1.5R0.3x50N8 1.5 0.3 8 50 1.4 4
LL-HD10S-1.5R0.3x50N16 1.5 0.3 16 50 1.4 4
LL-HD10S-1.5R0.3x60 1.5 0.3 60 4
LL-HD10S-1.5R0.3x60N20 1.5 0.3 20 60 1.4 4
LL-HD10S-1.6R0.1x50 1.6 0.1 2.4 50 4
LL-HD10S-1.6R0.1x50N6 1.6 0.1 2.4 6 50 1.5 4
LL-HD10S-1.6R0.1x50N8 1.6 0.1 2.4 8 50 1.5 4
LL-HD10S-1.6R0.1x50N10 1.6 0.1 2.4 10 50 1.5 4
LL-HD10S-1.6R0.1x50N12 1.6 0.1 2.4 12 50 1.5 4
LL-HD10S-1.6R0.1x50N14 1.6 0.1 2.4 14 50 1.5 4
LL-HD10S-1.6R0.1x50N16 1.6 0.1 2.4 16 50 1.5 4
LL-HD10S-1.6R0.1x60 1.6 0.1 2.4 60 4
LL-HD10S-1.6R0.1x60N18 1.6 0.1 2.4 18 60 1.5 4
LL-HD10S-1.6R0.1x60N20 1.6 0.1 2.4 20 60 1.5 4
LL-HD10S-1.6R0.15x50 1.6 0.15 50 4
LL-HD10S-1.6R0.15x50N6 1.6 0.15 6 50 4
LL-HD10S-1.6R0.15x50N8 1.6 0.15 8 50 4
LL-HD10S-1.6R0.15x50N10 1.6 0.15 10 50 4
LL-HD10S-1.6R0.15x50N12 1.6 0.15 12 50 4
LL-HD10S-1.6R0.15x50N14 1.6 0.15 14 50 4
LL-HD10S-1.6R0.15x50N16 1.6 0.15 16 50 4
LL-HD10S-1.6R0.15x60 1.6 0.15 60 4
LL-HD10S-1.6R0.15x60N18 1.6 0.15 18 60 4
LL-HD10S-1.6R0.15x60N20 1.6 0.15 20 60 4
LL-HD10S-1.8R0.2x50 1.8 0.2 2.7 50 4
LL-HD10S-1.8R0.2x50N6 1.8 0.2 2.7 6 50 1.7 4
LL-HD10S-1.8R0.2x50N8 1.8 0.2 2.7 8 50 1.7 4
LL-HD10S-1.8R0.2x50N10 1.8 0.2 2.7 10 50 1.7 4
LL-HD10S-1.8R0.2x50N12 1.8 0.2 2.7 12 50 1.7 4
LL-HD10S-1.8R0.2x50N14 1.8 0.2 2.7 14 50 1.7 4
LL-HD10S-1.8R0.2x50N16 1.8 0.2 2.7 16 50 1.7 4
LL-HD10S-1.8R0.2x60 1.8 0.2 2.7 60 4
LL-HD10S-1.8R0.2x60N18 1.8 0.2 2.7 18 60 1.7 4
LL-HD10S-1.8R0.2x60N20 1.8 0.2 2.7 20 60 1.7 4
LL-HD10S-2R0.2x50 2 0.2 50 4
LL-HD10S-2R0.2x50N6 2 0.2 3 6 50 1.9 4
LL-HD10S-2R0.2x50N8 2 0.2 3 8 50 1.9 4
LL-HD10S-2R0.2x50N10 2 0.2 3 10 50 1.9 4
LL-HD10S-2R0.2x50N12 2 0.2 3 12 50 1.9 4
LL-HD10S-2R0.2x50N14 2 0.2 3 14 50 1.9 4
LL-HD10S-2R0.2x50N16 2 0.2 3 16 50 1.9 4
LL-HD10S-2R0.2x60 2 0.2 3 60 4
LL-HD10S-2R0.2x60N18 2 0.2 3 18 60 1.9 4
LL-HD10S-2R0.2x60N20 2 0.2 3 20 60 1.9 4
LL-HD10S-2R0.2x75 2 0.2 3 75 4
LL-HD10S-2R0.2x75N25 2 0.2 3 25 75 1.9 4
LL-HD10S-2R0.2x75N30 2 0.2 30 75 1.9 4
LL-HD10S-2R0.3x50 2 0.3 50 4
LL-HD10S-2R0.3x50N8 2 0.3 8 50 1.9 4
LL-HD10S-2R0.3x50N16 2 0.3 3 16 50 1.9 4
LL-HD10S-2R0.3x60 2 0.3 3 60 4
LL-HD10S-2R0.3x60N20 2 0.3 3 20 60 1.9 4
LL-HD10S-2R0.5x50 2 0.5 3 50 4
LL-HD10S-2R0.5x50N6 2 0.5 3 6 50 1.9 4
LL-HD10S-2R0.5x50N8 2 0.5 3 8 50 1.9 4
LL-HD10S-2R0.5x50N12 2 0.5 3 12 50 1.9 4
LL-HD10S-2R0.5x50N16 2 0.5 3 16 50 1.9 4
LL-HD10S-2R0.5x60 2 0.5 3 60 4
LL-HD10S-2R0.5x60N20 2 0.5 3 20 60 1.9 4
LL-HD10S-2R0.5x75 2 0.5 3 75 4
LL-HD10S-2R0.5x75N25 2 0.5 25 75 1.9 4
LL-HD10S-2R0.5x75N30 2 0.5 30 75 1.9 4
LL-HD10S-2.5R0.3x50 2.5 0.3 50 4
LL-HD10S-2.5R0.3x50N8 2.5 0.3 8 50 2.4 4
LL-HD10S-2.5R0.3x50N10 2.5 0.3 10 50 2.4 4
LL-HD10S-2.5R0.3x50N12 2.5 0.3 12 50 2.4 4
LL-HD10S-2.5R0.3x50N14 2.5 0.3 14 50 2.4 4
LL-HD10S-2.5R0.3x50N16 2.5 0.3 3.7 16 50 2.4 4
LL-HD10S-2.5R0.3x60 2.5 0.3 3.7 60 4
LL-HD10S-2.5R0.3x60N18 2.5 0.3 3.7 18 60 2.4 4
LL-HD10S-2.5R0.3x60N20 2.5 0.3 3.7 20 60 2.4 4
LL-HD10S-2.5R0.3x60N25 2.5 0.3 3.7 25 60 2.4 4
LL-HD10S-2.5R0.3x75 2.5 0.3 3.7 75 4
LL-HD10S-2.5R0.3x75N30 2.5 0.3 3.7 30 75 2.4 4
LL-HD10S-2.5R0.5x50 2.5 0.5 3.7 50 4
LL-HD10S-2.5R0.5x50N8 2.5 0.5 3.7 8 50 2.4 4
LL-HD10S-2.5R0.5x50N12 2.5 0.5 3.7 12 50 2.4 4
LL-HD10S-2.5R0.5x50N16 2.5 0.5 3.7 16 50 2.4 4
LL-HD10S-2.5R0.5x60 2.5 0.5 60 4
LL-HD10S-2.5R0.5x60N20 2.5 0.5 20 60 2.4 4
LL-HD10S-2.5R0.5x60N25 2.5 0.5 25 60 2.4 4
LL-HD10S-2.5R0.5x75 2.5 0.5 75 4
LL-HD10S-2.5R0.5x75N30 2.5 0.5 30 75 2.4 4
LL-HD10S-3R0.2x50 3 0.2 50 6
LL-HD10S-3R0.2x50N8 3 0.2 8 50 2.8 6
LL-HD10S-3R0.2x50N10 3 0.2 10 50 2.8 6
LL-HD10S-3R0.2x50N12 3 0.2 12 50 2.8 6
LL-HD10S-3R0.2x50N14 3 0.2 4.5 14 50 2.8 6
LL-HD10S-3R0.2x60 3 0.2 4.5 60 6
LL-HD10S-3R0.2x60N16 3 0.2 4.5 16 60 2.8 6
LL-HD10S-3R0.2x60N18 3 0.2 4.5 18 60 2.8 6
LL-HD10S-3R0.2x60N20 3 0.2 4.5 20 60 2.8 6
LL-HD10S-3R0.2x75 3 0.2 4.5 75 6
LL-HD10S-3R0.2x75N25 3 0.2 4.5 25 75 2.8 6
LL-HD10S-3R0.3x50 3 0.3 4.5 50 6
LL-HD10S-3R0.3x50N8 3 0.3 4.5 8 50 2.8 6
LL-HD10S-3R0.3x50N10 3 0.3 4.5 10 50 2.8 6
LL-HD10S-3R0.3x50N12 3 0.3 4.5 12 50 2.8 6
LL-HD10S-3R0.3x50N14 3 0.3 14 50 2.8 6
LL-HD10S-3R0.3x60 3 0.3 60 6
LL-HD10S-3R0.3x60N16 3 0.3 16 60 2.8 6
LL-HD10S-3R0.3x60N18 3 0.3 18 60 2.8 6
LL-HD10S-3R0.3x60N20 3 0.3 20 60 2.8 6
LL-HD10S-3R0.3x75 3 0.3 75 6
LL-HD10S-3R0.3x75N25 3 0.3 25 75 2.8 6
LL-HD10S-3R0.5x50 3 0.5 50 6
LL-HD10S-3R0.5x50N8 3 0.5 8 50 2.8 6
LL-HD10S-3R0.5x50N10 3 0.5 10 50 2.8 6
LL-HD10S-3R0.5x50N12 3 0.5 12 50 2.8 6
LL-HD10S-3R0.5x50N14 3 0.5 14 50 2.8 6
LL-HD10S-3R0.5x60 3 0.5 60 6
LL-HD10S-3R0.5x60N16 3 0.5 16 60 2.8 6
LL-HD10S-3R0.5x60N18 3 0.5 4.5 18 60 2.8 6
LL-HD10S-3R0.5x60N20 3 0.5 4.5 20 60 2.8 6
LL-HD10S-3R0.5x75 3 0.5 4.5 75 6
LL-HD10S-3R0.5x75N25 3 0.5 4.5 25 75 2.8 6
LL-HD10S-4R0.3x60 4 0.3 4.5 60 6
LL-HD10S-4R0.3x60N10 4 0.3 4.5 10 60 3.7 6
LL-HD10S-4R0.3x60N15 4 0.3 4.5 15 60 3.7 6
LL-HD10S-4R0.3x60N20 4 0.3 4.5 20 60 3.7 6
LL-HD10S-4R0.3x75 4 0.3 4.5 75 6
LL-HD10S-4R0.3x75N25 4 0.3 4.5 25 75 3.7 6
LL-HD10S-4R0.3x75N30 4 0.3 30 75 3.7 6
LL-HD10S-4R0.3x75N40 4 0.3 40 75 3.7 6
LL-HD10S-4R0.4x60 4 0.4 60 6
LL-HD10S-4R0.4x60N10 4 0.4 10 60 6
LL-HD10S-4R0.4x60N15 4 0.4 15 60 6
LL-HD10S-4R0.4x60N20 4 0.4 20 60 6
LL-HD10S-4R0.4x75 4 0.4 75 6
LL-HD10S-4R0.4x75N25 4 0.4 25 75 6
LL-HD10S-4R0.4x75N30 4 0.4 30 75 6
LL-HD10S-4R0.4x75N40 4 0.4 40 75 6
LL-HD10S-4R0.5x60 4 0.5 60 6
LL-HD10S-4R0.5x60N10 4 0.5 10 60 3.7 6
LL-HD10S-4R0.5x60N15 4 0.5 15 60 3.7 6
LL-HD10S-4R0.5x60N20 4 0.5 20 60 3.7 6
LL-HD10S-4R0.5x75 4 0.5 75 6
LL-HD10S-4R0.5x75N25 4 0.5 25 75 3.7 6
LL-HD10S-4R0.5x75N30 4 0.5 30 75 3.7 6
LL-HD10S-4R0.5x75N40 4 0.5 40 75 3.7 6
LL-HD10A-0.2R0.05x50 0.2 0.05 0.3 50 4
LL-HD10A-0.2R0.05x50N0.5 0.2 0.05 0.3 0.5 50 0.17 4
LL-HD10A-0.2R0.05x50N1 0.2 0.05 0.3 1 50 0.17 4
LL-HD10A-0.2R0.05x50N1.5 0.2 0.05 0.3 1.5 50 0.17 4
LL-HD10A-0.2R0.05x50N2 0.2 0.05 0.3 2 50 0.17 4
LL-HD10A-0.3R0.05x50 0.3 0.05 0.3 50 4
LL-HD10A-0.3R0.05x50N1 0.3 0.05 0.3 1 50 0.27 4
LL-HD10A-0.3R0.05x50N1.5 0.3 0.05 0.4 1.5 50 0.27 4
LL-HD10A-0.3R0.05x50N2 0.3 0.05 0.4 2 50 0.27 4
LL-HD10A-0.3R0.05x50N2.5 0.3 0.05 0.4 2.5 50 0.27 4
LL-HD10A-0.3R0.05x50N3 0.3 0.05 0.4 3 50 0.27 4
LL-HD10A-0.3R0.1x50 0.3 0.1 0.4 50 4
LL-HD10A-0.3R0.1x50N1 0.3 0.1 0.4 1 50 0.27 4
LL-HD10A-0.3R0.1x50N1.5 0.3 0.1 0.4 1.5 50 0.27 4
LL-HD10A-0.3R0.1x50N2 0.3 0.1 0.4 2 50 0.27 4
LL-HD10A-0.3R0.1x50N2.5 0.3 0.1 0.4 2.5 50 0.27 4
LL-HD10A-0.3R0.1x50N3 0.3 0.1 3 50 4
LL-HD10A-0.4R0.05x50 0.4 0.05 50 4
LL-HD10A-0.4R0.05x50N1 0.4 0.05 1 50 0.37 4
LL-HD10A-0.4R0.05x50N1.5 0.4 0.05 1.5 50 0.37 4
LL-HD10A-0.4R0.05x50N2 0.4 0.05 0.6 2 50 0.37 4
LL-HD10A-0.4R0.05x50N2.5 0.4 0.05 0.6 2.5 50 0.37 4
LL-HD10A-0.4R0.05x50N3 0.4 0.05 0.6 3 50 0.37 4
LL-HD10A-0.4R0.05x50N3.5 0.4 0.05 0.6 3.5 50 0.37 4
LL-HD10A-0.4R0.05x50N4 0.4 0.05 0.6 4 50 0.37 4
LL-HD10A-0.4R0.1x50 0.4 0.1 0.6 50 4
LL-HD10A-0.4R0.1x50N1 0.4 0.1 0.6 1 50 0.37 4
LL-HD10A-0.4R0.1x50N1.5 0.4 0.1 0.6 1.5 50 0.37 4
LL-HD10A-0.4R0.1x50N2 0.4 0.1 0.6 2 50 0.37 4
LL-HD10A-0.4R0.1x50N2.5 0.4 0.1 0.6 2.5 50 0.37 4
LL-HD10A-0.4R0.1x50N3 0.4 0.1 3 50 0.37 4
LL-HD10A-0.4R0.1x50N3.5 0.4 0.1 3.5 50 0.37 4
LL-HD10A-0.4R0.1x50N4 0.4 0.1 4 50 0.37 4
LL-HD10A-0.5R0.05x50 0.5 0.05 0.7 50 4
LL-HD10A-0.5R0.05x50N2 0.5 0.05 0.7 2 50 0.45 4
LL-HD10A-0.5R0.05x50N4 0.5 0.05 0.7 4 50 0.45 4
LL-HD10A-0.5R0.05x50N6 0.5 0.05 0.7 6 50 0.45 4
LL-HD10A-0.5R0.05x50N8 0.5 0.05 0.7 8 50 0.45 4
LL-HD10A-0.5R0.1x50 0.5 0.1 50 4
LL-HD10A-0.5R0.1x50N2 0.5 0.1 0.7 2 50 0.45 4
LL-HD10A-0.5R0.1x50N4 0.5 0.1 0.7 4 50 0.45 4
LL-HD10A-0.5R0.1x50N6 0.5 0.1 0.7 6 50 0.45 4
LL-HD10A-0.5R0.1x50N8 0.5 0.1 0.9 8 50 0.45 4
LL-HD10A-0.6R0.1x50 0.6 0.1 50 4
LL-HD10A-0.6R0.1x50N2 0.6 0.1 0.9 2 50 0.55 4
LL-HD10A-0.6R0.1x50N4 0.6 0.1 0.9 4 50 0.55 4
LL-HD10A-0.6R0.1x50N6 0.6 0.1 0.9 6 50 0.55 4
LL-HD10A-0.6R0.1x50N8 0.6 0.1 0.9 8 50 0.55 4
LL-HD10A-0.6R0.1x50N10 0.6 0.1 0.9 10 50 0.55 4
LL-HD10A-0.7R0.1x50 0.7 0.1 1 50 4
LL-HD10A-0.7R0.1x50N2 0.7 0.1 1 2 50 0.65 4
LL-HD10A-0.7R0.1x50N4 0.7 0.1 1 4 50 0.65 4
LL-HD10A-0.7R0.1x50N6 0.7 0.1 1 6 50 0.65 4
LL-HD10A-0.7R0.1x50N8 0.7 0.1 1 8 50 0.65 4
LL-HD10A-0.7R0.1x50N10 0.7 0.1 1 10 50 0.65 4
LL-HD10A-0.8R0.05x50 0.8 0.05 50 4
LL-HD10A-0.8R0.05x50N4 0.8 0.05 1.2 4 50 0.75 4
LL-HD10A-0.8R0.05x50N6 0.8 0.05 1.2 6 50 0.75 4
LL-HD10A-0.8R0.05x50N8 0.8 0.05 1.2 8 50 0.75 4
LL-HD10A-0.8R0.05x50N10 0.8 0.05 1.2 10 50 0.75 4
LL-HD10A-0.8R0.05x50N12 0.8 0.05 1.2 12 50 0.75 4
LL-HD10A-0.8R0.1x50 0.8 0.1 1.2 50 4
LL-HD10A-0.8R0.1x50N4 0.8 0.1 1.2 4 50 0.75 4
LL-HD10A-0.8R0.1x50N6 0.8 0.1 1.2 6 50 0.75 4
LL-HD10A-0.8R0.1x50N8 0.8 0.1 1.2 8 50 0.75 4
LL-HD10A-0.8R0.1x50N10 0.8 0.1 1.4 10 50 0.75 4
LL-HD10A-0.8R0.1x50N12 0.8 0.1 1.4 12 50 0.75 4
LL-HD10A-0.9R0.1x50 0.9 0.1 1.4 50 4
LL-HD10A-0.9R0.1x50N6 0.9 0.1 1.4 6 50 0.85 4
LL-HD10A-0.9R0.1x50N8 0.9 0.1 1.4 8 50 0.85 4
LL-HD10A-0.9R0.1x50N10 0.9 0.1 1.4 10 50 0.85 4
LL-HD10A-0.9R0.1x50N15 0.9 0.1 1.4 15 50 0.85 4
LL-HD10A-1R0.1x50 1 0.1 1.4 50 4
LL-HD10A-1R0.1x50N4 1 0.1 1.4 4 50 0.9 4
LL-HD10A-1R0.1x50N6 1 0.1 1.4 6 50 0.9 4
LL-HD10A-1R0.1x50N8 1 0.1 8 50 0.9 4
LL-HD10A-1R0.1x50N10 1 0.1 10 50 0.9 4
LL-HD10A-1R0.1x50N12 1 0.1 12 50 0.9 4
LL-HD10A-1R0.1x50N14 1 0.1 14 50 0.9 4
LL-HD10A-1R0.1x50N16 1 0.1 16 50 0.9 4
LL-HD10A-1R0.1x60 1 0.1 1.5 60 4
LL-HD10A-1R0.1x60N20 1 0.1 1.5 20 60 0.9 4
LL-HD10A-1R0.2x50 1 0.2 1.5 50 4
LL-HD10A-1R0.2x50N4 1 0.2 1.5 4 50 0.9 4
LL-HD10A-1R0.2x50N6 1 0.2 1.5 6 50 0.9 4
LL-HD10A-1R0.2x50N8 1 0.2 1.5 8 50 0.9 4
LL-HD10A-1R0.2x50N10 1 0.2 1.5 10 50 0.9 4
LL-HD10A-1R0.2x50N12 1 0.2 1.5 12 50 0.9 4
LL-HD10A-1R0.2x50N14 1 0.2 1.5 14 50 0.9 4
LL-HD10A-1R0.2x50N16 1 0.2 1.5 16 50 0.9 4
LL-HD10A-1R0.2x60 1 0.2 60 4
LL-HD10A-1R0.2x60N20 1 0.2 20 60 0.9 4
LL-HD10A-1R0.3x50 1 0.3 50 4
LL-HD10A-1R0.3x50N6 1 0.3 6 50 0.9 4
LL-HD10A-1R0.3x50N10 1 0.3 10 50 0.9 4
LL-HD10A-1R0.3x50N16 1 0.3 1.8 16 50 0.9 4
LL-HD10A-1R0.3x60 1 0.3 1.8 60 4
LL-HD10A-1R0.3x60N20 1 0.3 1.8 20 60 0.9 4
LL-HD10A-1.2R0.1x50 1.2 0.1 1.8 50 4
LL-HD10A-1.2R0.1x50N6 1.2 0.1 1.8 6 50 1.1 4
LL-HD10A-1.2R0.1x50N8 1.2 0.1 1.8 8 50 1.1 4
LL-HD10A-1.2R0.1x50N10 1.2 0.1 1.8 10 50 1.1 4
LL-HD10A-1.2R0.1x50N12 1.2 0.1 1.8 12 50 1.1 4
LL-HD10A-1.4R0.1x50 1.4 0.1 1.8 50 4
LL-HD10A-1.4R0.1x50N6 1.4 0.1 2.1 6 50 1.3 4
LL-HD10A-1.4R0.1x50N8 1.4 0.1 2.1 8 50 1.3 4
LL-HD10A-1.4R0.1x50N10 1.4 0.1 2.1 10 50 1.3 4
LL-HD10A-1.4R0.1x50N12 1.4 0.1 2.1 12 50 1.3 4
LL-HD10A-1.4R0.1x50N14 1.4 0.1 2.1 14 50 1.3 4
LL-HD10A-1.4R0.1x50N16 1.4 0.1 2.1 16 50 1.3 4
LL-HD10A-1.5R0.1x50 1.5 0.1 50 4
LL-HD10A-1.5R0.1x50N6 1.5 0.1 6 50 1.4 4
LL-HD10A-1.5R0.1x50N8 1.5 0.1 8 50 1.4 4
LL-HD10A-1.5R0.1x50N12 1.5 0.1 12 50 1.4 4
LL-HD10A-1.5R0.1x50N16 1.5 0.1 16 50 1.4 4
LL-HD10A-1.5R0.1x60 1.5 0.1 60 4
LL-HD10A-1.5R0.1x60N20 1.5 0.1 2.3 20 60 1.4 4
LL-HD10A-1.5R0.2x50 1.5 0.2 2.3 50 4
LL-HD10A-1.5R0.2x50N6 1.5 0.2 2.3 6 50 1.4 4
LL-HD10A-1.5R0.2x50N8 1.5 0.2 2.3 8 50 1.4 4
LL-HD10A-1.5R0.2x50N10 1.5 0.2 2.3 10 50 1.4 4
LL-HD10A-1.5R0.2x50N12 1.5 0.2 2.3 12 50 1.4 4
LL-HD10A-1.5R0.2x50N14 1.5 0.2 2.3 14 50 1.4 4
LL-HD10A-1.5R0.2x50N16 1.5 0.2 2.3 16 50 1.4 4
LL-HD10A-1.5R0.2x60 1.5 0.2 2.3 60 4
LL-HD10A-1.5R0.2x60N18 1.5 0.2 2.3 18 60 1.4 4
LL-HD10A-1.5R0.2x60N20 1.5 0.2 20 60 4
LL-HD10A-1.5R0.3x50 1.5 0.3 50 4
LL-HD10A-1.5R0.3x50N8 1.5 0.3 8 50 1.4 4
LL-HD10A-1.5R0.3x50N16 1.5 0.3 16 50 1.4 4
LL-HD10A-1.5R0.3x60 1.5 0.3 60 4
LL-HD10A-1.5R0.3x60N20 1.5 0.3 20 60 1.4 4
LL-HD10A-1.6R0.1x50 1.6 0.1 2.4 50 4
LL-HD10A-1.6R0.1x50N6 1.6 0.1 2.4 6 50 1.5 4
LL-HD10A-1.6R0.1x50N8 1.6 0.1 2.4 8 50 1.5 4
LL-HD10A-1.6R0.1x50N10 1.6 0.1 2.4 10 50 1.5 4
LL-HD10A-1.6R0.1x50N12 1.6 0.1 2.4 12 50 1.5 4
LL-HD10A-1.6R0.1x50N14 1.6 0.1 2.4 14 50 1.5 4
LL-HD10A-1.6R0.1x50N16 1.6 0.1 2.4 16 50 1.5 4
LL-HD10A-1.6R0.1x60 1.6 0.1 2.4 60 4
LL-HD10A-1.6R0.1x60N18 1.6 0.1 2.4 18 60 1.5 4
LL-HD10A-1.6R0.1x60N20 1.6 0.1 2.4 20 60 1.5 4
LL-HD10A-1.8R0.2x50 1.8 0.2 2.7 50 4
LL-HD10A-1.8R0.2x50N6 1.8 0.2 2.7 6 50 1.7 4
LL-HD10A-1.8R0.2x50N8 1.8 0.2 2.7 8 50 1.7 4
LL-HD10A-1.8R0.2x50N10 1.8 0.2 2.7 10 50 1.7 4
LL-HD10A-1.8R0.2x50N12 1.8 0.2 2.7 12 50 1.7 4
LL-HD10A-1.8R0.2x50N14 1.8 0.2 2.7 14 50 1.7 4
LL-HD10A-1.8R0.2x50N16 1.8 0.2 16 50 4
LL-HD10A-1.8R0.2x60 1.8 0.2 2.7 60 4
LL-HD10A-1.8R0.2x60N18 1.8 0.2 2.7 18 60 1.7 4
LL-HD10A-1.8R0.2x60N20 1.8 0.2 2.7 20 60 1.7 4
LL-HD10A-2R0.2x50 2 0.2 50 4
LL-HD10A-2R0.2x50N6 2 0.2 6 50 4
LL-HD10A-2R0.2x50N8 2 0.2 3 8 50 1.9 4
LL-HD10A-2R0.2x50N10 2 0.2 3 10 50 1.9 4
LL-HD10A-2R0.2x50N12 2 0.2 3 12 50 1.9 4
LL-HD10A-2R0.2x50N14 2 0.2 3 14 50 1.9 4
LL-HD10A-2R0.2x50N16 2 0.2 3 16 50 1.9 4
LL-HD10A-2R0.2x60 2 0.2 3 60 4
LL-HD10A-2R0.2x60N18 2 0.2 3 18 60 1.9 4
LL-HD10A-2R0.2x60N20 2 0.2 3 20 60 1.9 4
LL-HD10A-2R0.2x75 2 0.2 3 75 4
LL-HD10A-2R0.2x75N25 2 0.2 3 25 75 1.9 4
LL-HD10A-2R0.2x75N30 2 0.2 30 75 1.9 4
LL-HD10A-2R0.3x50 2 0.3 50 4
LL-HD10A-2R0.3x50N8 2 0.3 8 50 1.9 4
LL-HD10A-2R0.3x50N16 2 0.3 3 16 50 1.9 4
LL-HD10A-2R0.3x60 2 0.3 3 60 4
LL-HD10A-2R0.3x60N20 2 0.3 3 20 60 1.9 4
LL-HD10A-2R0.5x50 2 0.5 3 50 4
LL-HD10A-2R0.5x50N6 2 0.5 3 6 50 1.9 4
LL-HD10A-2R0.5x50N8 2 0.5 3 8 50 1.9 4
LL-HD10A-2R0.5x50N12 2 0.5 3 12 50 1.9 4
LL-HD10A-2R0.5x50N16 2 0.5 3 16 50 1.9 4
LL-HD10A-2R0.5x60 2 0.5 3 60 4
LL-HD10A-2R0.5x60N20 2 0.5 3 20 60 1.9 4
LL-HD10A-2R0.5x75 2 0.5 3 75 4
LL-HD10A-2R0.5x75N25 2 0.5 25 75 1.9 4
LL-HD10A-2R0.5x75N30 2 0.5 30 75 1.9 4
LL-HD10A-2.5R0.3x50 2.5 0.3 50 4
LL-HD10A-2.5R0.3x50N8 2.5 0.3 8 50 2.4 4
LL-HD10A-2.5R0.3x50N10 2.5 0.3 10 50 2.4 4
LL-HD10A-2.5R0.3x50N12 2.5 0.3 12 50 2.4 4
LL-HD10A-2.5R0.3x50N14 2.5 0.3 14 50 2.4 4
LL-HD10A-2.5R0.3x50N16 2.5 0.3 3.7 16 50 2.4 4
LL-HD10A-2.5R0.3x60 2.5 0.3 3.7 60 4
LL-HD10A-2.5R0.3x60N18 2.5 0.3 3.7 18 60 2.4 4
LL-HD10A-2.5R0.3x60N20 2.5 0.3 3.7 20 60 2.4 4
LL-HD10A-2.5R0.3x60N25 2.5 0.3 3.7 25 60 2.4 4
LL-HD10A-2.5R0.3x75 2.5 0.3 3.7 75 4
LL-HD10A-2.5R0.3x75N30 2.5 0.3 3.7 30 75 2.4 4
LL-HD10A-2.5R0.5x50 2.5 0.5 3.7 50 4
LL-HD10A-2.5R0.5x50N8 2.5 0.5 3.7 8 50 2.4 4
LL-HD10A-2.5R0.5x50N12 2.5 0.5 3.7 12 50 2.4 4
LL-HD10A-2.5R0.5x50N16 2.5 0.5 3.7 16 50 2.4 4
LL-HD10A-2.5R0.5x60 2.5 0.5 60 4
LL-HD10A-2.5R0.5x60N20 2.5 0.5 20 60 2.4 4
LL-HD10A-2.5R0.5x60N25 2.5 0.5 25 60 2.4 4
LL-HD10A-2.5R0.5x75 2.5 0.5 75 4
LL-HD10A-2.5R0.5x75N30 2.5 0.5 30 75 2.4 4
LL-HD10A-3R0.2x50 3 0.2 50 6
LL-HD10A-3R0.2x50N8 3 0.2 8 50 2.8 6
LL-HD10A-3R0.2x50N10 3 0.2 10 50 2.8 6
LL-HD10A-3R0.2x50N12 3 0.2 12 50 2.8 6
LL-HD10A-3R0.2x50N14 3 0.2 4.5 14 50 2.8 6
LL-HD10A-3R0.2x60 3 0.2 4.5 60 6
LL-HD10A-3R0.2x60N16 3 0.2 4.5 16 60 2.8 6
LL-HD10A-3R0.2x60N18 3 0.2 4.5 18 60 2.8 6
LL-HD10A-3R0.2x60N20 3 0.2 4.5 20 60 2.8 6
LL-HD10A-3R0.2x75 3 0.2 4.5 75 6
LL-HD10A-3R0.2x75N25 3 0.2 4.5 25 75 2.8 6
LL-HD10A-3R0.3x50 3 0.3 4.5 50 6
LL-HD10A-3R0.3x50N8 3 0.3 4.5 8 50 2.8 6
LL-HD10A-3R0.3x50N10 3 0.3 4.5 10 50 2.8 6
LL-HD10A-3R0.3x50N12 3 0.3 4.5 12 50 2.8 6
LL-HD10A-3R0.3x50N14 3 0.3 14 50 2.8 6
LL-HD10A-3R0.3x60 3 0.3 60 6
LL-HD10A-3R0.3x60N16 3 0.3 16 60 2.8 6
LL-HD10A-3R0.3x60N18 3 0.3 18 60 2.8 6
LL-HD10A-3R0.3x60N20 3 0.3 20 60 2.8 6
LL-HD10A-3R0.3x75 3 0.3 75 6
LL-HD10A-3R0.3x75N25 3 0.3 25 75 2.8 6
LL-HD10A-3R0.5x50 3 0.5 50 6
LL-HD10A-3R0.5x50N8 3 0.5 8 50 2.8 6
LL-HD10A-3R0.5x50N10 3 0.5 10 50 2.8 6
LL-HD10A-3R0.5x50N12 3 0.5 12 50 2.8 6
LL-HD10A-3R0.5x50N14 3 0.5 14 50 2.8 6
LL-HD10A-3R0.5x60 3 0.5 60 6
LL-HD10A-3R0.5x60N16 3 0.5 16 60 2.8 6
LL-HD10A-3R0.5x60N18 3 0.5 4.5 18 60 2.8 6
LL-HD10A-3R0.5x60N20 3 0.5 4.5 20 60 2.8 6
LL-HD10A-3R0.5x75 3 0.5 4.5 75 6
LL-HD10A-3R0.5x75N25 3 0.5 4.5 25 75 2.8 6
LL-HD10A-4R0.3x60 4 0.3 4.5 60 6
LL-HD10A-4R0.3x60N10 4 0.3 4.5 10 60 3.7 6
LL-HD10A-4R0.3x60N15 4 0.3 15 60 6
LL-HD10A-4R0.3x60N20 4 0.3 4.5 20 60 3.7 6
LL-HD10A-4R0.3x75 4 0.3 4.5 75 6
LL-HD10A-4R0.3x75N25 4 0.3 4.5 25 75 3.7 6
LL-HD10A-4R0.3x75N30 4 0.3 30 75 3.7 6
LL-HD10A-4R0.3x75N40 4 0.3 40 75 3.7 6
LL-HD10A-4R0.5x60 4 0.5 60 6
LL-HD10A-4R0.5x60N10 4 0.5 10 60 3.7 6
LL-HD10A-4R0.5x60N15 4 0.5 15 60 3.7 6
LL-HD10A-4R0.5x60N20 4 0.5 20 60 3.7 6
LL-HD10A-4R0.5x75 4 0.5 75 6
LL-HD10A-4R0.5x75N25 4 0.5 25 75 3.7 6
LL-HD10A-4R0.5x75N30 4 0.5 30 75 3.7 6
LL-HD10A-4R0.5x75N40 4 0.5 40 75 3.7 6

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.

LATHELAND®
