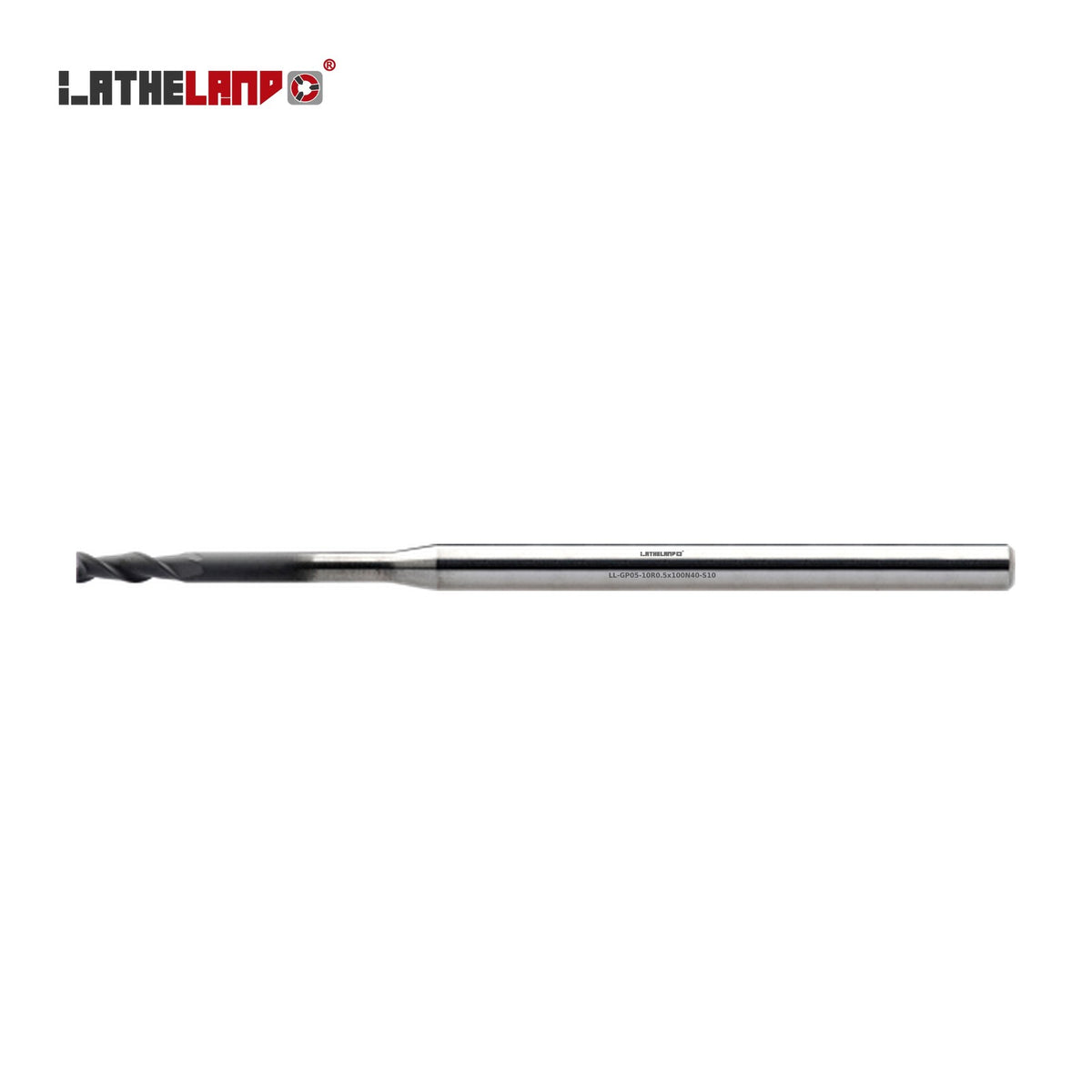

Graphite: Diamond-coated end mills and ball nose cutters for graphite electrodes and abrasive materials.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | GP05 |
| Material | Solid carbide |
| Coating | Diamond (CVD) |
| Flutes | 4 |
| Helix angle | 40° |
| Best for | graphite & plastics |
| Range | Ø1–12 mm |
| Sizes available | 51 |
| Price | On request – supplied on quotation |

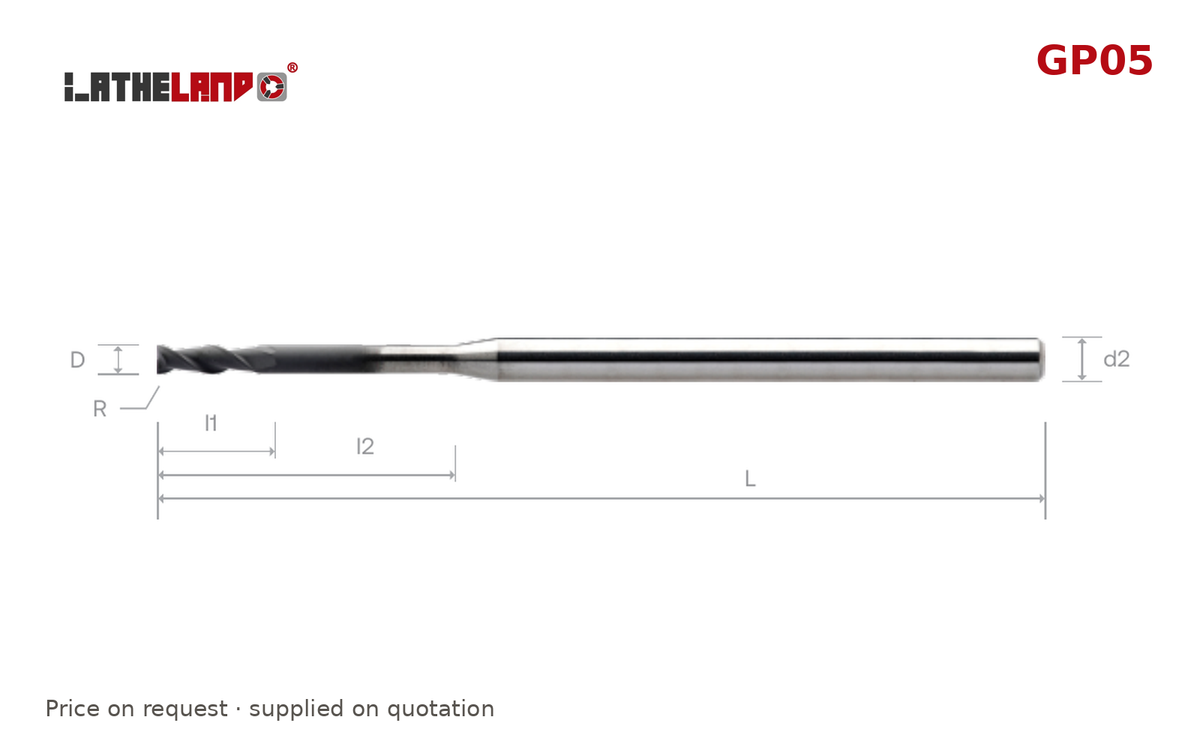

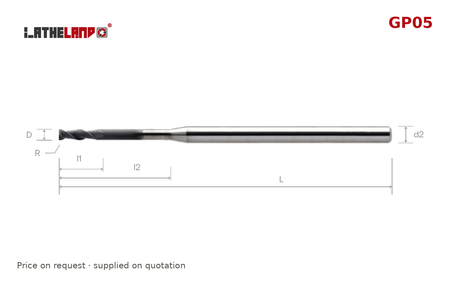

| SKU | Ø D | R | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-GP05-1R0.05x60N10-S3 | 1 | 0.05 | 10 | 60 | 3 |
| LL-GP05-1R0.1x60N10-S3 | 1 | 0.1 | 10 | 60 | 3 |
| LL-GP05-1R0.05x60N15-S3 | 1 | 0.05 | 15 | 60 | 3 |
| LL-GP05-1R0.1x60N15-S3 | 1 | 0.1 | 15 | 60 | 3 |
| LL-GP05-1R0.05x60N10-S4 | 1 | 0.05 | 10 | 60 | 4 |
| LL-GP05-1R0.1x60N10-S4 | 1 | 0.1 | 10 | 60 | 4 |
| LL-GP05-1R0.05x60N15-S4 | 1 | 0.05 | 15 | 60 | 4 |
| LL-GP05-1R0.1x60N15-S4 | 1 | 0.1 | 15 | 60 | 4 |
| LL-GP05-1.5R0.05x60N10-S3 | 1.5 | 0.05 | 10 | 60 | 3 |
| LL-GP05-1.5R0.1x60N10-S3 | 1.5 | 0.1 | 10 | 60 | 3 |
| LL-GP05-1.5R0.05x60N15-S3 | 1.5 | 0.05 | 15 | 60 | 3 |
| LL-GP05-1.5R0.1x60N15-S3 | 1.5 | 0.1 | 15 | 60 | 3 |
| LL-GP05-1.5R0.05x60N10-S4 | 1.5 | 0.05 | 10 | 60 | 4 |
| LL-GP05-1.5R0.1x60N10-S4 | 1.5 | 0.1 | 10 | 60 | 4 |
| LL-GP05-1.5R0.05x60N15-S4 | 1.5 | 0.05 | 15 | 60 | 4 |
| LL-GP05-1.5R0.1x60N15-S4 | 1.5 | 0.1 | 15 | 60 | 4 |
| LL-GP05-2R0.05x60N20-S3 | 2 | 0.05 | 20 | 60 | 3 |
| LL-GP05-2R0.1x60N20-S3 | 2 | 0.1 | 20 | 60 | 3 |
| LL-GP05-2R0.05x60N30-S3 | 2 | 0.05 | 30 | 60 | 3 |
| LL-GP05-2R0.1x60N30-S3 | 2 | 0.1 | 30 | 60 | 3 |
| LL-GP05-2R0.05x60N20-S4 | 2 | 0.05 | 20 | 60 | 4 |
| LL-GP05-2R0.1x60N20-S4 | 2 | 0.1 | 20 | 60 | 4 |
| LL-GP05-2R0.05x60N30-S4 | 2 | 0.05 | 30 | 60 | 4 |
| LL-GP05-2R0.1x60N30-S4 | 2 | 0.1 | 30 | 60 | 4 |
| LL-GP05-3R0.2x60N20-S3 | 3 | 0.2 | 20 | 60 | 3 |
| LL-GP05-3R0.2x60N20-S4 | 3 | 0.2 | 20 | 60 | 4 |
| LL-GP05-3R0.2x75N15-S3 | 3 | 0.2 | 15 | 75 | 3 |
| LL-GP05-3R0.5x75N15-S3 | 3 | 0.5 | 15 | 75 | 3 |
| LL-GP05-3R0.2x75N30-S3 | 3 | 0.2 | 30 | 75 | 3 |
| LL-GP05-3R0.5x75N30-S3 | 3 | 0.5 | 30 | 75 | 3 |
| LL-GP05-3R0.2x75N15-S4 | 3 | 0.2 | 15 | 75 | 4 |
| LL-GP05-3R0.5x75N15-S4 | 3 | 0.5 | 15 | 75 | 4 |
| LL-GP05-3R0.2x75N30-S4 | 3 | 0.2 | 30 | 75 | 4 |
| LL-GP05-3R0.5x75N30-S4 | 3 | 0.5 | 30 | 75 | 4 |
| LL-GP05-4R0.3x60N20-S4 | 4 | 0.3 | 20 | 60 | 4 |
| LL-GP05-4R0.2x75N32-S4 | 4 | 0.2 | 32 | 75 | 4 |
| LL-GP05-4R0.3x75N32-S4 | 4 | 0.3 | 32 | 75 | 4 |
| LL-GP05-4R0.5x75N32-S4 | 4 | 0.5 | 32 | 75 | 4 |
| LL-GP05-4R0.2x100N40-S4 | 4 | 0.2 | 40 | 100 | 4 |
| LL-GP05-4R0.3x100N40-S4 | 4 | 0.3 | 40 | 100 | 4 |
| LL-GP05-4R0.5x100N40-S4 | 4 | 0.5 | 40 | 100 | 4 |
| LL-GP05-6R0.3x75N40-S6 | 6 | 0.3 | 40 | 75 | 6 |
| LL-GP05-6R0.5x75N40-S6 | 6 | 0.5 | 40 | 75 | 6 |
| LL-GP05-6R0.3x100N40-S6 | 6 | 0.3 | 40 | 100 | 6 |
| LL-GP05-6R0.5x100N40-S6 | 6 | 0.5 | 40 | 100 | 6 |
| LL-GP05-8R0.5x100N40-S8 | 8 | 0.5 | 40 | 100 | 8 |
| LL-GP05-8R0.5x150N40-S8 | 8 | 0.5 | 40 | 150 | 8 |
| LL-GP05-10R0.5x100N40-S10 | 10 | 0.5 | 40 | 100 | 10 |
| LL-GP05-10R0.5x150N40-S10 | 10 | 0.5 | 40 | 150 | 10 |
| LL-GP05-12R0.5x100N40-S12 | 12 | 0.5 | 40 | 100 | 12 |
| LL-GP05-12R0.5x150N40-S12 | 12 | 0.5 | 40 | 150 | 12 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
