General machining up to 35 HRC: Everyday end mills for steels and cast iron, plus multi-purpose and corner-rounding tools.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | GE08 |
| Material | Solid carbide |
| Coating | AlTiN |
| Flutes | 4 |
| Helix angle | 40° |
| Workpiece hardness | up to 35 HRC |
| Best for | steel, cast iron |
| Also suitable for | aluminium & non-ferrous |
| Range | Ø3–20 mm |
| Sizes available | 16 |
| Price | On request – supplied on quotation |

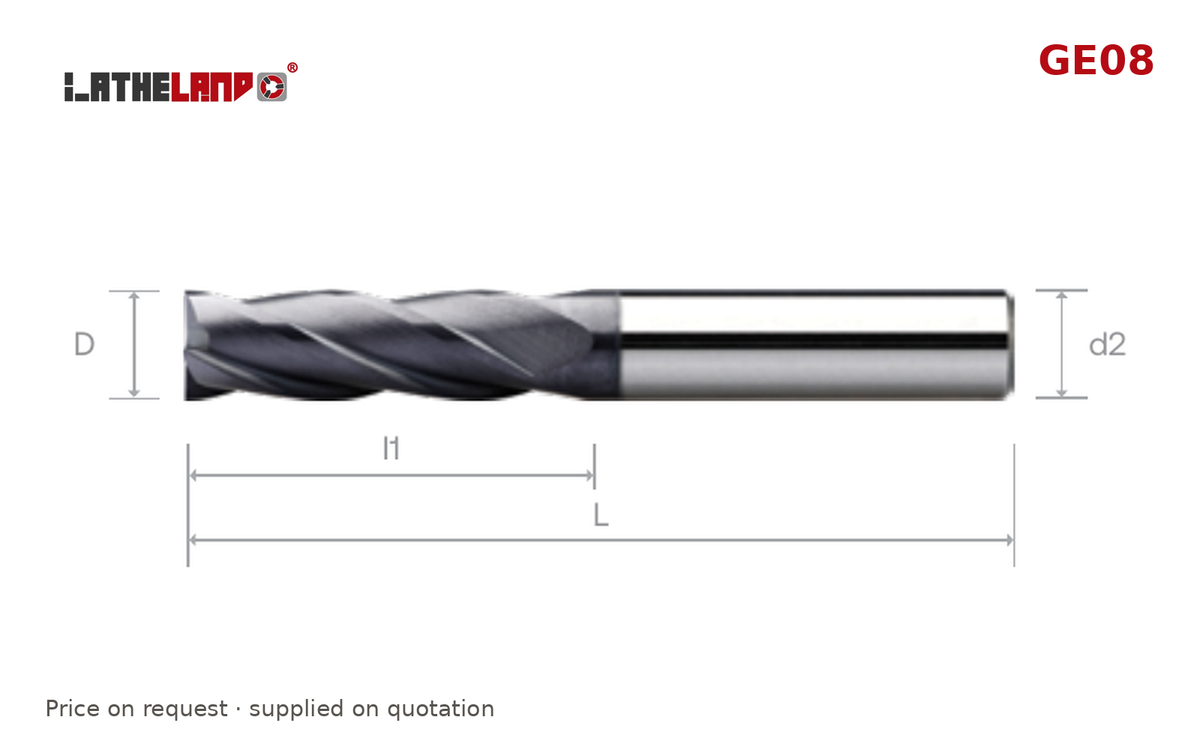

| SKU | Ø D | L | d2 |
|---|---|---|---|
| LL-GE08-3 | 3 | ||
| LL-GE08-3x60 | 3 | 60 | 4 |
| LL-GE08-3x75 | 3 | 75 | 6 |
| LL-GE08-4 | 4 | ||
| LL-GE08-4x75 | 4 | 75 | 6 |
| LL-GE08-5 | 5 | ||
| LL-GE08-5x75 | 5 | 75 | 6 |
| LL-GE08-6 | 6 | ||
| LL-GE08-8 | 8 | ||
| LL-GE08-10x75 | 10 | 75 | |
| LL-GE08-10x100 | 10 | 100 | |
| LL-GE08-12 | 12 | ||
| LL-GE08-14 | 14 | ||
| LL-GE08-16 | 16 | ||
| LL-GE08-18 | 18 | ||
| LL-GE08-20 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
