Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

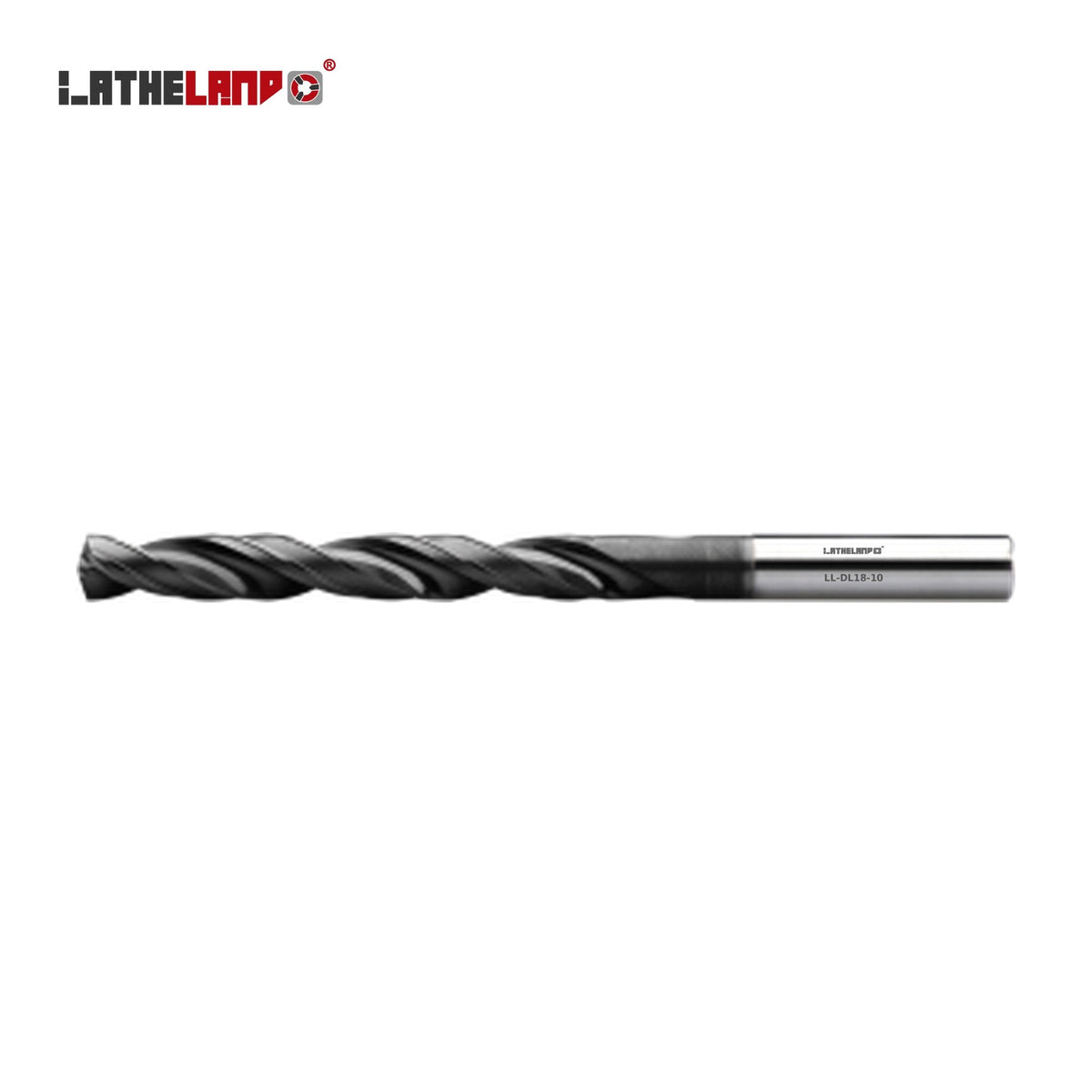

| Series | DL18 |
| Material | Solid carbide |
| Coating | AlCrN |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | steel, stainless steel, cast iron, titanium & superalloys |
| Range | Ø3–16 mm |
| Sizes available | 100 |
| Price | On request – supplied on quotation |

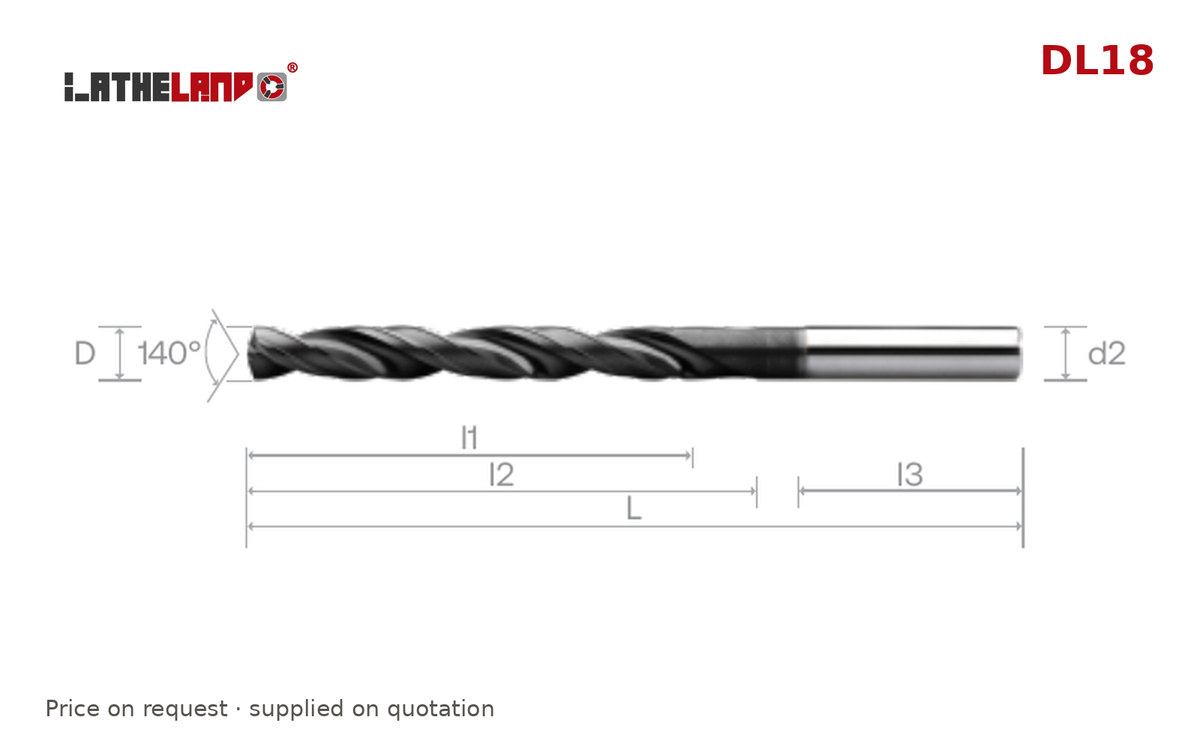

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-DL18-3x85 | 3 | 32 | 40 | 85 | 3 |
| LL-DL18-3 | 3 | 32 | 40 | 85 | 6 |
| LL-DL18-3.1x85 | 3.1 | 32 | 40 | 85 | 3 |
| LL-DL18-3.1 | 3.1 | 32 | 40 | 85 | 6 |
| LL-DL18-3.2x85 | 3.2 | 32 | 40 | 85 | 3 |
| LL-DL18-3.2 | 3.2 | 32 | 40 | 85 | 6 |
| LL-DL18-3.3 | 3.3 | 32 | 40 | 85 | 6 |
| LL-DL18-3.4 | 3.4 | 32 | 40 | 85 | 6 |
| LL-DL18-3.5 | 3.5 | 36 | 40 | 85 | 6 |
| LL-DL18-3.6 | 3.6 | 36 | 40 | 85 | 6 |
| LL-DL18-3.7 | 3.7 | 36 | 40 | 85 | 6 |
| LL-DL18-3.8 | 3.8 | 36 | 40 | 85 | 6 |
| LL-DL18-3.9 | 3.9 | 36 | 40 | 85 | 6 |
| LL-DL18-4x85 | 4 | 38 | 40 | 85 | 4 |
| LL-DL18-4 | 4 | 38 | 46 | 85 | 6 |
| LL-DL18-4.1x85 | 4.1 | 36 | 40 | 85 | 4 |
| LL-DL18-4.1 | 4.1 | 38 | 46 | 85 | 6 |
| LL-DL18-4.2x85 | 4.2 | 36 | 40 | 85 | 4 |
| LL-DL18-4.2 | 4.2 | 38 | 46 | 85 | 6 |
| LL-DL18-4.3 | 4.3 | 40 | 46 | 97 | 6 |
| LL-DL18-4.4 | 4.4 | 40 | 46 | 97 | 6 |
| LL-DL18-4.5 | 4.5 | 40 | 46 | 97 | 6 |
| LL-DL18-4.6 | 4.6 | 44 | 46 | 97 | 6 |
| LL-DL18-4.7 | 4.7 | 44 | 46 | 97 | 6 |
| LL-DL18-4.8 | 4.8 | 44 | 46 | 97 | 6 |
| LL-DL18-4.9 | 4.9 | 44 | 46 | 97 | 6 |
| LL-DL18-5 | 5 | 44 | 57 | 97 | 6 |
| LL-DL18-5.1 | 5.1 | 44 | 57 | 97 | 6 |
| LL-DL18-5.2 | 5.2 | 48 | 57 | 97 | 6 |
| LL-DL18-5.3 | 5.3 | 48 | 57 | 97 | 6 |
| LL-DL18-5.4 | 5.4 | 48 | 57 | 97 | 6 |
| LL-DL18-5.5 | 5.5 | 48 | 57 | 97 | 6 |
| LL-DL18-5.6 | 5.6 | 48 | 57 | 97 | 6 |
| LL-DL18-5.7 | 5.7 | 48 | 57 | 97 | 6 |
| LL-DL18-5.8 | 5.8 | 48 | 57 | 97 | 6 |
| LL-DL18-5.9 | 5.9 | 48 | 57 | 97 | 6 |
| LL-DL18-6 | 6 | 48 | 57 | 97 | 6 |
| LL-DL18-6.1 | 6.1 | 76 | 116 | 8 | |
| LL-DL18-6.1x97 | 6.1 | 57 | 97 | 6 | |
| LL-DL18-6.2 | 6.2 | 64 | 76 | 116 | 8 |
| LL-DL18-6.3 | 6.3 | 64 | 76 | 116 | 8 |
| LL-DL18-6.4 | 6.4 | 64 | 76 | 116 | 8 |
| LL-DL18-6.5 | 6.5 | 64 | 76 | 116 | 8 |
| LL-DL18-6.6 | 6.6 | 64 | 76 | 116 | 8 |
| LL-DL18-6.7 | 6.7 | 64 | 76 | 116 | 8 |
| LL-DL18-6.8 | 6.8 | 64 | 76 | 116 | 8 |
| LL-DL18-6.9 | 6.9 | 64 | 76 | 116 | 8 |
| LL-DL18-7 | 7 | 64 | 76 | 116 | 8 |
| LL-DL18-7.1 | 7.1 | 64 | 76 | 116 | 8 |
| LL-DL18-7.2 | 7.2 | 76 | 116 | 8 | |
| LL-DL18-7.3 | 7.3 | 64 | 76 | 116 | 8 |
| LL-DL18-7.4 | 7.4 | 64 | 76 | 116 | 8 |
| LL-DL18-7.5 | 7.5 | 64 | 76 | 116 | 8 |
| LL-DL18-7.6 | 7.6 | 64 | 76 | 116 | 8 |
| LL-DL18-7.7 | 7.7 | 64 | 76 | 116 | 8 |
| LL-DL18-7.8 | 7.8 | 64 | 76 | 116 | 8 |
| LL-DL18-7.9 | 7.9 | 64 | 76 | 116 | 8 |
| LL-DL18-8 | 8 | 64 | 76 | 116 | 8 |
| LL-DL18-8.1x116 | 8.1 | 64 | 76 | 116 | 8 |
| LL-DL18-8.1 | 8.1 | 64 | 95 | 142 | 10 |
| LL-DL18-8.2 | 8.2 | 95 | 142 | 10 | |
| LL-DL18-8.3 | 8.3 | 95 | 142 | 10 | |
| LL-DL18-8.4 | 8.4 | 95 | 142 | 10 | |
| LL-DL18-8.5 | 8.5 | 95 | 142 | 10 | |
| LL-DL18-8.6 | 8.6 | 80 | 95 | 142 | 10 |
| LL-DL18-8.7 | 8.7 | 80 | 95 | 142 | 10 |
| LL-DL18-8.8 | 8.8 | 80 | 95 | 142 | 10 |
| LL-DL18-8.9 | 8.9 | 80 | 95 | 142 | 10 |
| LL-DL18-9 | 9 | 80 | 95 | 142 | 10 |
| LL-DL18-9.1 | 9.1 | 80 | 95 | 142 | 10 |
| LL-DL18-9.2 | 9.2 | 80 | 95 | 142 | 10 |
| LL-DL18-9.3 | 9.3 | 80 | 95 | 142 | 10 |
| LL-DL18-9.4 | 9.4 | 80 | 95 | 142 | 10 |
| LL-DL18-9.5 | 9.5 | 80 | 95 | 142 | 10 |
| LL-DL18-9.6 | 9.6 | 95 | 142 | 10 | |
| LL-DL18-9.7 | 9.7 | 95 | 142 | 10 | |
| LL-DL18-9.8 | 9.8 | 95 | 142 | 10 | |
| LL-DL18-9.9 | 9.9 | 95 | 142 | 10 | |
| LL-DL18-10 | 10 | 96 | 95 | 142 | 10 |
| LL-DL18-10.2 | 10.2 | 96 | 114 | 163 | 12 |
| LL-DL18-10.5 | 10.5 | 96 | 114 | 163 | 12 |
| LL-DL18-10.8 | 10.8 | 96 | 114 | 163 | 12 |
| LL-DL18-11 | 11 | 96 | 114 | 163 | 12 |
| LL-DL18-11.2 | 11.2 | 96 | 114 | 163 | 12 |
| LL-DL18-11.3 | 11.3 | 96 | 114 | 163 | 12 |
| LL-DL18-11.5 | 11.5 | 96 | 114 | 163 | 12 |
| LL-DL18-11.8 | 11.8 | 96 | 114 | 163 | 12 |
| LL-DL18-12 | 12 | 96 | 114 | 163 | 12 |
| LL-DL18-12.2 | 12.2 | 112 | 133 | 182 | 14 |
| LL-DL18-12.5 | 12.5 | 112 | 133 | 182 | 14 |
| LL-DL18-12.7 | 12.7 | 112 | 133 | 182 | 14 |
| LL-DL18-12.8 | 12.8 | 112 | 133 | 182 | 14 |
| LL-DL18-13 | 13 | 112 | 133 | 182 | 14 |
| LL-DL18-13.5 | 13.5 | 112 | 133 | 182 | 14 |
| LL-DL18-13.7 | 13.7 | 112 | 133 | 182 | 14 |
| LL-DL18-14 | 14 | 128 | 133 | 182 | 14 |
| LL-DL18-14.5 | 14.5 | 128 | 152 | 204 | 16 |
| LL-DL18-15 | 15 | 128 | 152 | 204 | 16 |
| LL-DL18-15.5 | 15.5 | 128 | 152 | 204 | 16 |
| LL-DL18-16 | 16 | 128 | 152 | 204 | 16 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
