Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | DL17 |
| Material | Solid carbide |
| Coating | TiAlN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | steel, stainless steel, cast iron, aluminium & non-ferrous, titanium & superalloys, graphite & plastics |
| Range | Ø3–10 mm |
| Sizes available | 153 |
| Price | On request – supplied on quotation |

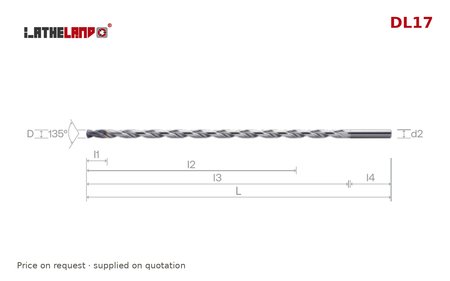

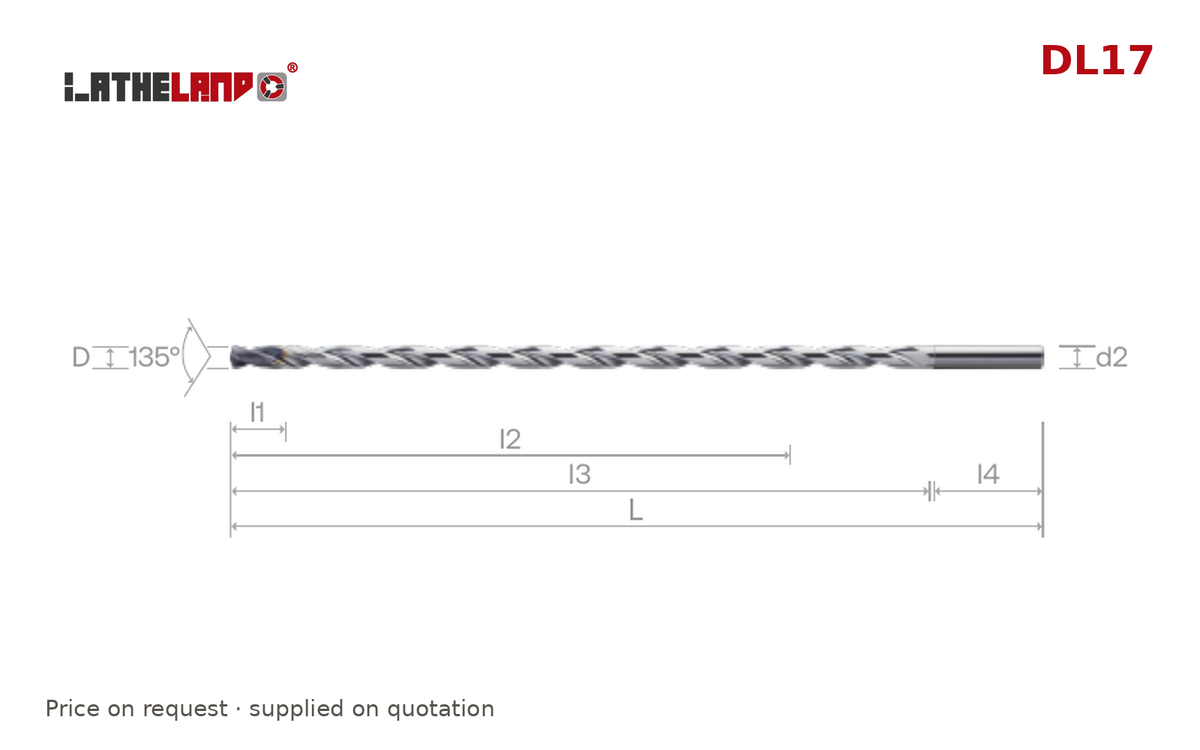

| SKU | Ø D | l1 | L | d2 | Depth |
|---|---|---|---|---|---|
| LL-DL17-3-12xD | 3 | 12×D | |||
| LL-DL17-3-15xD | 3 | 90 | 3 | 15×D | |
| LL-DL17-3-20xD | 3 | 20×D | |||
| LL-DL17-3-25xD | 3 | 25×D | |||
| LL-DL17-3-30xD | 3 | 30×D | |||
| LL-DL17-3.1-12xD | 3.1 | 85 | 4 | 12×D | |
| LL-DL17-3.1-15xD | 3.1 | 15×D | |||
| LL-DL17-3.1-20xD | 3.1 | 20×D | |||
| LL-DL17-3.1-25xD | 3.1 | 25×D | |||
| LL-DL17-3.1-30xD | 3.1 | 30×D | |||
| LL-DL17-3.2-12xD | 3.2 | 16 | 85 | 4 | 12×D |
| LL-DL17-3.3-12xD | 3.3 | 12×D | |||
| LL-DL17-3.4-12xD | 3.4 | 17 | 90 | 4 | 12×D |
| LL-DL17-3.5-12xD | 3.5 | 90 | 4 | 12×D | |
| LL-DL17-3.5-15xD | 3.5 | 15×D | |||
| LL-DL17-3.5-20xD | 3.5 | 20×D | |||
| LL-DL17-3.5-25xD | 3.5 | 25×D | |||
| LL-DL17-3.5-30xD | 3.5 | 30×D | |||
| LL-DL17-3.6-12xD | 3.6 | 18 | 90 | 4 | 12×D |
| LL-DL17-3.7-12xD | 3.7 | 18.5 | 90 | 4 | 12×D |
| LL-DL17-3.8-12xD | 3.8 | 100 | 4 | 12×D | |
| LL-DL17-3.8-15xD | 3.8 | 15×D | |||
| LL-DL17-3.8-20xD | 3.8 | 20×D | |||
| LL-DL17-3.8-25xD | 3.8 | 25×D | |||
| LL-DL17-3.8-30xD | 3.8 | 30×D | |||
| LL-DL17-3.9-12xD | 3.9 | 100 | 4 | 12×D | |
| LL-DL17-4-12xD | 4 | 100 | 4 | 12×D | |
| LL-DL17-4-15xD | 4 | 15×D | |||
| LL-DL17-4-20xD | 4 | 20×D | |||
| LL-DL17-4-25xD | 4 | 25×D | |||
| LL-DL17-4-30xD | 4 | 30×D | |||
| LL-DL17-4.1-12xD | 4.1 | 100 | 5 | 12×D | |
| LL-DL17-4.1-15xD | 4.1 | 15×D | |||
| LL-DL17-4.2-12xD | 4.2 | 12×D | |||
| LL-DL17-4.2-15xD | 4.2 | 15×D | |||
| LL-DL17-4.2-20xD | 4.2 | 20×D | |||
| LL-DL17-4.2-25xD | 4.2 | 25×D | |||
| LL-DL17-4.2-30xD | 4.2 | 170 | 5 | 30×D | |
| LL-DL17-4.3-12xD | 4.3 | 21.5 | 100 | 5 | 12×D |
| LL-DL17-4.4-12xD | 4.4 | 22 | 100 | 5 | 12×D |
| LL-DL17-4.5-12xD | 4.5 | 12×D | |||
| LL-DL17-4.5-15xD | 4.5 | 15×D | |||
| LL-DL17-4.5-20xD | 4.5 | 135 | 5 | 20×D | |
| LL-DL17-4.5-25xD | 4.5 | 25×D | |||
| LL-DL17-4.5-30xD | 4.5 | 30×D | |||
| LL-DL17-4.6-12xD | 4.6 | 23 | 100 | 5 | 12×D |
| LL-DL17-4.7-12xD | 4.7 | 23.5 | 100 | 5 | 12×D |
| LL-DL17-4.8-12xD | 4.8 | 24 | 110 | 5 | 12×D |
| LL-DL17-4.9-12xD | 4.9 | 24.5 | 120 | 5 | 12×D |
| LL-DL17-5-12xD | 5 | 12×D | |||
| LL-DL17-5-15xD | 5 | 15×D | |||
| LL-DL17-5-20xD | 5 | 20×D | |||
| LL-DL17-5-25xD | 5 | 25×D | |||
| LL-DL17-5-30xD | 5 | 195 | 5 | 30×D | |
| LL-DL17-5.1-12xD | 5.1 | 120 | 6 | 12×D | |
| LL-DL17-5.1-15xD | 5.1 | 125 | 6 | 15×D | |
| LL-DL17-5.1-20xD | 5.1 | 20×D | |||
| LL-DL17-5.1-25xD | 5.1 | 25×D | |||
| LL-DL17-5.1-30xD | 5.1 | 30×D | |||
| LL-DL17-5.2-12xD | 5.2 | 26 | 120 | 6 | 12×D |
| LL-DL17-5.3-12xD | 5.3 | 12×D | |||
| LL-DL17-5.4-12xD | 5.4 | 27 | 120 | 6 | 12×D |
| LL-DL17-5.5-12xD | 5.5 | 12×D | |||
| LL-DL17-5.5-15xD | 5.5 | 130 | 6 | 15×D | |
| LL-DL17-5.5-20xD | 5.5 | 20×D | |||
| LL-DL17-5.5-25xD | 5.5 | 25×D | |||
| LL-DL17-5.5-30xD | 5.5 | 30×D | |||
| LL-DL17-5.6-12xD | 5.6 | 28 | 120 | 6 | 12×D |
| LL-DL17-5.7-12xD | 5.7 | 28.5 | 120 | 6 | 12×D |
| LL-DL17-5.8-12xD | 5.8 | 29 | 120 | 6 | 12×D |
| LL-DL17-5.9-12xD | 5.9 | 29.5 | 120 | 6 | 12×D |
| LL-DL17-6-12xD | 6 | 12×D | |||
| LL-DL17-6-15xD | 6 | 15×D | |||
| LL-DL17-6-20xD | 6 | 20×D | |||
| LL-DL17-6-25xD | 6 | 25×D | |||
| LL-DL17-6-30xD | 6 | 230 | 6 | 30×D | |
| LL-DL17-6.1-12xD | 6.1 | 30.5 | 135 | 8 | 12×D |
| LL-DL17-6.2-12xD | 6.2 | 31 | 135 | 8 | 12×D |
| LL-DL17-6.3-12xD | 6.3 | 31.5 | 135 | 8 | 12×D |
| LL-DL17-6.3-15xD | 6.3 | 15×D | |||
| LL-DL17-6.3-20xD | 6.3 | 175 | 8 | 20×D | |
| LL-DL17-6.3-25xD | 6.3 | 25×D | |||
| LL-DL17-6.3-30xD | 6.3 | 30×D | |||
| LL-DL17-6.4-12xD | 6.4 | 32 | 145 | 8 | 12×D |
| LL-DL17-6.5-12xD | 6.5 | 12×D | |||
| LL-DL17-6.5-15xD | 6.5 | 150 | 8 | 15×D | |
| LL-DL17-6.5-20xD | 6.5 | 180 | 8 | 20×D | |
| LL-DL17-6.5-25xD | 6.5 | 25×D | |||
| LL-DL17-6.5-30xD | 6.5 | 30×D | |||
| LL-DL17-6.6-12xD | 6.6 | 33 | 145 | 8 | 12×D |
| LL-DL17-6.7-12xD | 6.7 | 33.5 | 145 | 8 | 12×D |
| LL-DL17-6.8-12xD | 6.8 | 34 | 145 | 8 | 12×D |
| LL-DL17-6.9-12xD | 6.9 | 34.5 | 145 | 8 | 12×D |
| LL-DL17-7-12xD | 7 | 12×D | |||
| LL-DL17-7-15xD | 7 | 15×D | |||
| LL-DL17-7-20xD | 7 | 20×D | |||
| LL-DL17-7-25xD | 7 | 230 | 8 | 25×D | |
| LL-DL17-7-30xD | 7 | 30×D | |||
| LL-DL17-7.1-12xD | 7.1 | 35.5 | 145 | 8 | 12×D |
| LL-DL17-7.2-12xD | 7.2 | 36 | 145 | 8 | 12×D |
| LL-DL17-7.3-12xD | 7.3 | 36.5 | 145 | 8 | 12×D |
| LL-DL17-7.4-12xD | 7.4 | 37 | 145 | 8 | 12×D |
| LL-DL17-7.5-12xD | 7.5 | 12×D | |||
| LL-DL17-7.5-15xD | 7.5 | 15×D | |||
| LL-DL17-7.5-20xD | 7.5 | 20×D | |||
| LL-DL17-7.5-25xD | 7.5 | 25×D | |||
| LL-DL17-7.5-30xD | 7.5 | 30×D | |||
| LL-DL17-7.6-12xD | 7.6 | 38 | 145 | 8 | 12×D |
| LL-DL17-7.7-12xD | 7.7 | 38.5 | 145 | 8 | 12×D |
| LL-DL17-7.8-12xD | 7.8 | 39 | 145 | 8 | 12×D |
| LL-DL17-7.9-12xD | 7.9 | 39.5 | 145 | 8 | 12×D |
| LL-DL17-8-12xD | 8 | 12×D | |||
| LL-DL17-8-15xD | 8 | 15×D | |||
| LL-DL17-8-20xD | 8 | 215 | 8 | 20×D | |
| LL-DL17-8-25xD | 8 | 25×D | |||
| LL-DL17-8-30xD | 8 | 30×D | |||
| LL-DL17-8.1-12xD | 8.1 | 40.5 | 170 | 10 | 12×D |
| LL-DL17-8.2-12xD | 8.2 | 41 | 180 | 10 | 12×D |
| LL-DL17-8.3-12xD | 8.3 | 41.5 | 180 | 10 | 12×D |
| LL-DL17-8.4-12xD | 8.4 | 42 | 180 | 10 | 12×D |
| LL-DL17-8.5-12xD | 8.5 | 12×D | |||
| LL-DL17-8.5-15xD | 8.5 | 15×D | |||
| LL-DL17-8.5-20xD | 8.5 | 20×D | |||
| LL-DL17-8.5-25xD | 8.5 | 25×D | |||
| LL-DL17-8.5-30xD | 8.5 | 315 | 10 | 30×D | |
| LL-DL17-8.6-12xD | 8.6 | 43 | 180 | 10 | 12×D |
| LL-DL17-8.7-12xD | 8.7 | 43.5 | 180 | 10 | 12×D |
| LL-DL17-8.8-12xD | 8.8 | 44 | 180 | 10 | 12×D |
| LL-DL17-8.8-15xD | 8.8 | 15×D | |||
| LL-DL17-8.8-20xD | 8.8 | 20×D | |||
| LL-DL17-8.8-25xD | 8.8 | 25×D | |||
| LL-DL17-8.9-12xD | 8.9 | 44.5 | 180 | 10 | 12×D |
| LL-DL17-9-12xD | 9 | 12×D | |||
| LL-DL17-9-15xD | 9 | 15×D | |||
| LL-DL17-9-20xD | 9 | 20×D | |||
| LL-DL17-9-25xD | 9 | 25×D | |||
| LL-DL17-9.1-12xD | 9.1 | 45.5 | 180 | 10 | 12×D |
| LL-DL17-9.2-12xD | 9.2 | 46 | 180 | 10 | 12×D |
| LL-DL17-9.3-12xD | 9.3 | 46.5 | 180 | 10 | 12×D |
| LL-DL17-9.4-12xD | 9.4 | 47 | 180 | 10 | 12×D |
| LL-DL17-9.5-12xD | 9.5 | 12×D | |||
| LL-DL17-9.5-15xD | 9.5 | 15×D | |||
| LL-DL17-9.5-20xD | 9.5 | 20×D | |||
| LL-DL17-9.5-25xD | 9.5 | 25×D | |||
| LL-DL17-9.6-12xD | 9.6 | 48 | 180 | 10 | 12×D |
| LL-DL17-9.7-12xD | 9.7 | 48.5 | 180 | 10 | 12×D |
| LL-DL17-9.8-12xD | 9.8 | 12×D | |||
| LL-DL17-9.8-15xD | 9.8 | 15×D | |||
| LL-DL17-9.9-12xD | 9.9 | 12×D | |||
| LL-DL17-10-12xD | 10 | 12×D | |||
| LL-DL17-10-15xD | 10 | 15×D | |||
| LL-DL17-10-20xD | 10 | 20×D | |||
| LL-DL17-10-25xD | 10 | 25×D |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
