Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

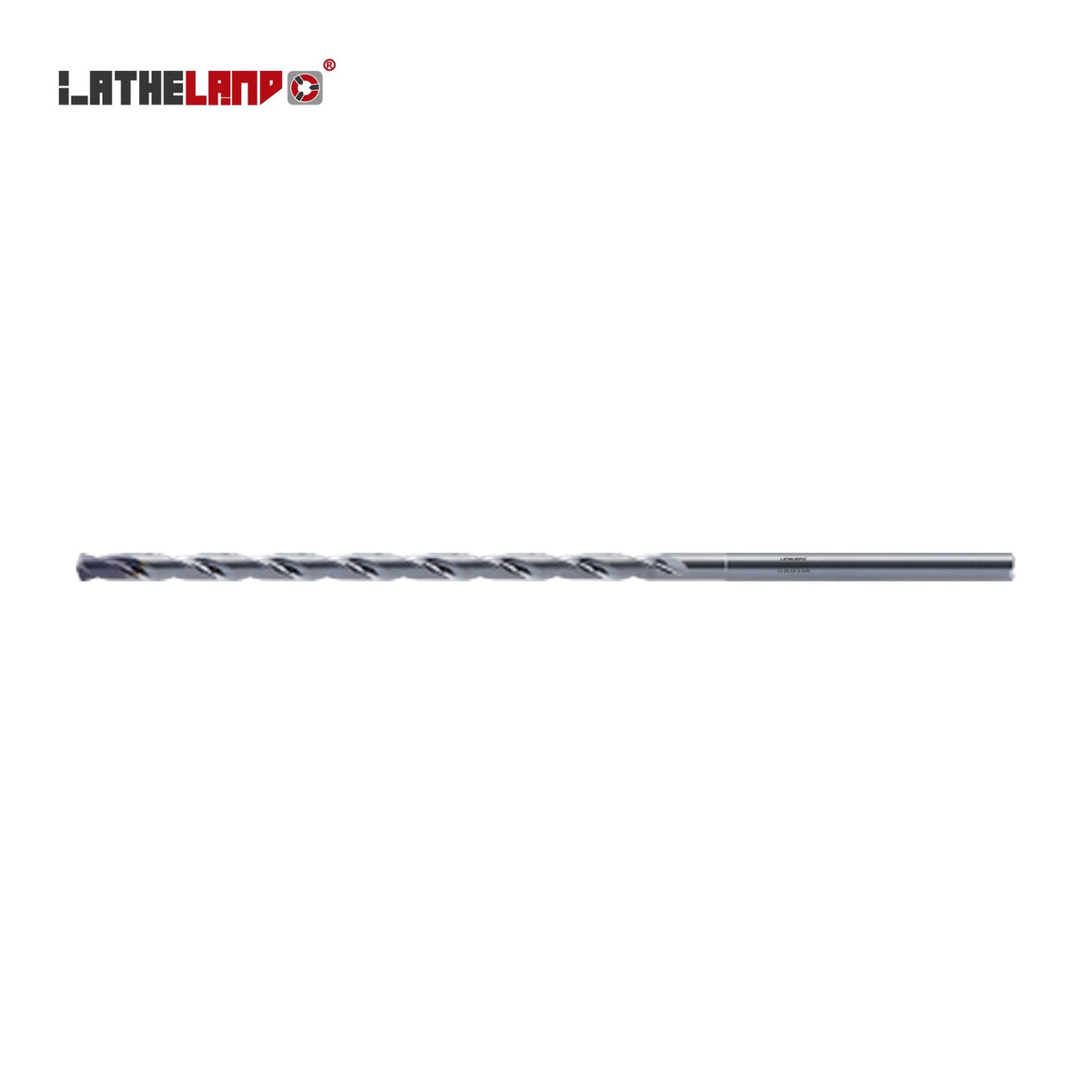

| Series | DL16 |
| Material | Solid carbide |
| Coating | AlCrN |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | steel, stainless steel, cast iron, aluminium & non-ferrous, titanium & superalloys |
| Range | Ø1–3 mm |
| Sizes available | 126 |
| Price | On request – supplied on quotation |

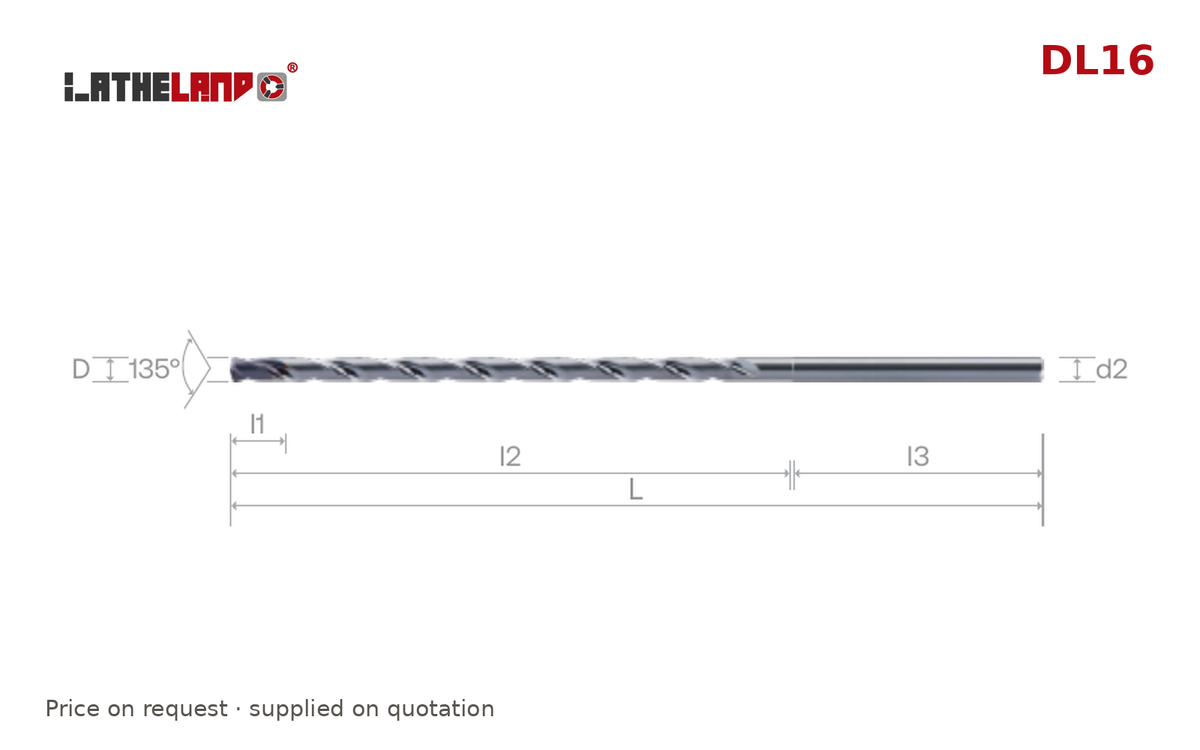

| SKU | Ø D | L | d2 | Depth |
|---|---|---|---|---|
| LL-DL16-1-5xD | 1 | 50 | 3 | 5×D |
| LL-DL16-1-8xD | 1 | 8×D | ||
| LL-DL16-1-12xD | 1 | 12×D | ||
| LL-DL16-1-20xD | 1 | 20×D | ||
| LL-DL16-1-25xD | 1 | 25×D | ||
| LL-DL16-1-30xD | 1 | 75 | 3 | 30×D |
| LL-DL16-1.1-5xD | 1.1 | 5×D | ||
| LL-DL16-1.1-8xD | 1.1 | 8×D | ||
| LL-DL16-1.1-12xD | 1.1 | 12×D | ||
| LL-DL16-1.1-20xD | 1.1 | 20×D | ||
| LL-DL16-1.1-25xD | 1.1 | 25×D | ||
| LL-DL16-1.1-30xD | 1.1 | 30×D | ||
| LL-DL16-1.2-5xD | 1.2 | 5×D | ||
| LL-DL16-1.2-8xD | 1.2 | 8×D | ||
| LL-DL16-1.2-12xD | 1.2 | 12×D | ||
| LL-DL16-1.2-20xD | 1.2 | 20×D | ||
| LL-DL16-1.2-25xD | 1.2 | 25×D | ||
| LL-DL16-1.2-30xD | 1.2 | 30×D | ||
| LL-DL16-1.3-5xD | 1.3 | 5×D | ||
| LL-DL16-1.3-8xD | 1.3 | 8×D | ||
| LL-DL16-1.3-12xD | 1.3 | 12×D | ||
| LL-DL16-1.3-20xD | 1.3 | 65 | 3 | 20×D |
| LL-DL16-1.3-25xD | 1.3 | 25×D | ||
| LL-DL16-1.3-30xD | 1.3 | 30×D | ||
| LL-DL16-1.4-5xD | 1.4 | 5×D | ||
| LL-DL16-1.4-8xD | 1.4 | 8×D | ||
| LL-DL16-1.4-12xD | 1.4 | 12×D | ||
| LL-DL16-1.4-20xD | 1.4 | 20×D | ||
| LL-DL16-1.4-25xD | 1.4 | 25×D | ||
| LL-DL16-1.4-30xD | 1.4 | 30×D | ||
| LL-DL16-1.5-5xD | 1.5 | 5×D | ||
| LL-DL16-1.5-8xD | 1.5 | 8×D | ||
| LL-DL16-1.5-12xD | 1.5 | 12×D | ||
| LL-DL16-1.5-20xD | 1.5 | 20×D | ||
| LL-DL16-1.5-25xD | 1.5 | 25×D | ||
| LL-DL16-1.5-30xD | 1.5 | 30×D | ||
| LL-DL16-1.6-5xD | 1.6 | 5×D | ||
| LL-DL16-1.6-8xD | 1.6 | 50 | 3 | 8×D |
| LL-DL16-1.6-12xD | 1.6 | 12×D | ||
| LL-DL16-1.6-20xD | 1.6 | 20×D | ||
| LL-DL16-1.6-25xD | 1.6 | 25×D | ||
| LL-DL16-1.6-30xD | 1.6 | 30×D | ||
| LL-DL16-1.7-5xD | 1.7 | 5×D | ||
| LL-DL16-1.7-8xD | 1.7 | 8×D | ||
| LL-DL16-1.7-12xD | 1.7 | 12×D | ||
| LL-DL16-1.7-20xD | 1.7 | 20×D | ||
| LL-DL16-1.7-25xD | 1.7 | 25×D | ||
| LL-DL16-1.7-30xD | 1.7 | 30×D | ||
| LL-DL16-1.8-5xD | 1.8 | 5×D | ||
| LL-DL16-1.8-8xD | 1.8 | 8×D | ||
| LL-DL16-1.8-12xD | 1.8 | 12×D | ||
| LL-DL16-1.8-20xD | 1.8 | 20×D | ||
| LL-DL16-1.8-25xD | 1.8 | 25×D | ||
| LL-DL16-1.8-30xD | 1.8 | 100 | 3 | 30×D |
| LL-DL16-1.9-5xD | 1.9 | 55 | 3 | 5×D |
| LL-DL16-1.9-8xD | 1.9 | 8×D | ||
| LL-DL16-1.9-12xD | 1.9 | 12×D | ||
| LL-DL16-1.9-20xD | 1.9 | 20×D | ||
| LL-DL16-1.9-25xD | 1.9 | 25×D | ||
| LL-DL16-1.9-30xD | 1.9 | 100 | 3 | 30×D |
| LL-DL16-2-5xD | 2 | 55 | 3 | 5×D |
| LL-DL16-2-8xD | 2 | 8×D | ||
| LL-DL16-2-12xD | 2 | 12×D | ||
| LL-DL16-2-20xD | 2 | 20×D | ||
| LL-DL16-2-25xD | 2 | 25×D | ||
| LL-DL16-2-30xD | 2 | 100 | 3 | 30×D |
| LL-DL16-2.1-5xD | 2.1 | 5×D | ||
| LL-DL16-2.1-8xD | 2.1 | 8×D | ||
| LL-DL16-2.1-12xD | 2.1 | 12×D | ||
| LL-DL16-2.1-20xD | 2.1 | 20×D | ||
| LL-DL16-2.1-25xD | 2.1 | 100 | 3 | 25×D |
| LL-DL16-2.1-30xD | 2.1 | 30×D | ||
| LL-DL16-2.2-5xD | 2.2 | 5×D | ||
| LL-DL16-2.2-8xD | 2.2 | 8×D | ||
| LL-DL16-2.2-12xD | 2.2 | 12×D | ||
| LL-DL16-2.2-20xD | 2.2 | 82 | 3 | 20×D |
| LL-DL16-2.2-25xD | 2.2 | 25×D | ||
| LL-DL16-2.2-30xD | 2.2 | 30×D | ||
| LL-DL16-2.3-5xD | 2.3 | 5×D | ||
| LL-DL16-2.3-8xD | 2.3 | 8×D | ||
| LL-DL16-2.3-12xD | 2.3 | 12×D | ||
| LL-DL16-2.3-20xD | 2.3 | 100 | 3 | 20×D |
| LL-DL16-2.3-25xD | 2.3 | 25×D | ||
| LL-DL16-2.3-30xD | 2.3 | 30×D | ||
| LL-DL16-2.4-5xD | 2.4 | 5×D | ||
| LL-DL16-2.4-8xD | 2.4 | 8×D | ||
| LL-DL16-2.4-12xD | 2.4 | 75 | 3 | 12×D |
| LL-DL16-2.4-20xD | 2.4 | 20×D | ||
| LL-DL16-2.4-25xD | 2.4 | 25×D | ||
| LL-DL16-2.4-30xD | 2.4 | 30×D | ||
| LL-DL16-2.5-5xD | 2.5 | 5×D | ||
| LL-DL16-2.5-8xD | 2.5 | 60 | 3 | 8×D |
| LL-DL16-2.5-12xD | 2.5 | 12×D | ||
| LL-DL16-2.5-20xD | 2.5 | 20×D | ||
| LL-DL16-2.5-25xD | 2.5 | 25×D | ||
| LL-DL16-2.5-30xD | 2.5 | 30×D | ||
| LL-DL16-2.6-5xD | 2.6 | 5×D | ||
| LL-DL16-2.6-8xD | 2.6 | 60 | 3 | 8×D |
| LL-DL16-2.6-12xD | 2.6 | 12×D | ||
| LL-DL16-2.6-20xD | 2.6 | 20×D | ||
| LL-DL16-2.6-25xD | 2.6 | 25×D | ||
| LL-DL16-2.6-30xD | 2.6 | 30×D | ||
| LL-DL16-2.7-5xD | 2.7 | 55 | 3 | 5×D |
| LL-DL16-2.7-8xD | 2.7 | 8×D | ||
| LL-DL16-2.7-12xD | 2.7 | 12×D | ||
| LL-DL16-2.7-20xD | 2.7 | 20×D | ||
| LL-DL16-2.7-25xD | 2.7 | 25×D | ||
| LL-DL16-2.7-30xD | 2.7 | 130 | 3 | 30×D |
| LL-DL16-2.8-5xD | 2.8 | 5×D | ||
| LL-DL16-2.8-8xD | 2.8 | 8×D | ||
| LL-DL16-2.8-12xD | 2.8 | 12×D | ||
| LL-DL16-2.8-20xD | 2.8 | 20×D | ||
| LL-DL16-2.8-25xD | 2.8 | 25×D | ||
| LL-DL16-2.8-30xD | 2.8 | 30×D | ||
| LL-DL16-2.9-5xD | 2.9 | 5×D | ||
| LL-DL16-2.9-8xD | 2.9 | 8×D | ||
| LL-DL16-2.9-12xD | 2.9 | 12×D | ||
| LL-DL16-2.9-20xD | 2.9 | 20×D | ||
| LL-DL16-2.9-25xD | 2.9 | 25×D | ||
| LL-DL16-2.9-30xD | 2.9 | 30×D | ||
| LL-DL16-3-5xD | 3 | 5×D | ||
| LL-DL16-3-8xD | 3 | 8×D | ||
| LL-DL16-3-12xD | 3 | 12×D | ||
| LL-DL16-3-20xD | 3 | 20×D | ||
| LL-DL16-3-25xD | 3 | 25×D | ||
| LL-DL16-3-30xD | 3 | 30×D |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
