Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

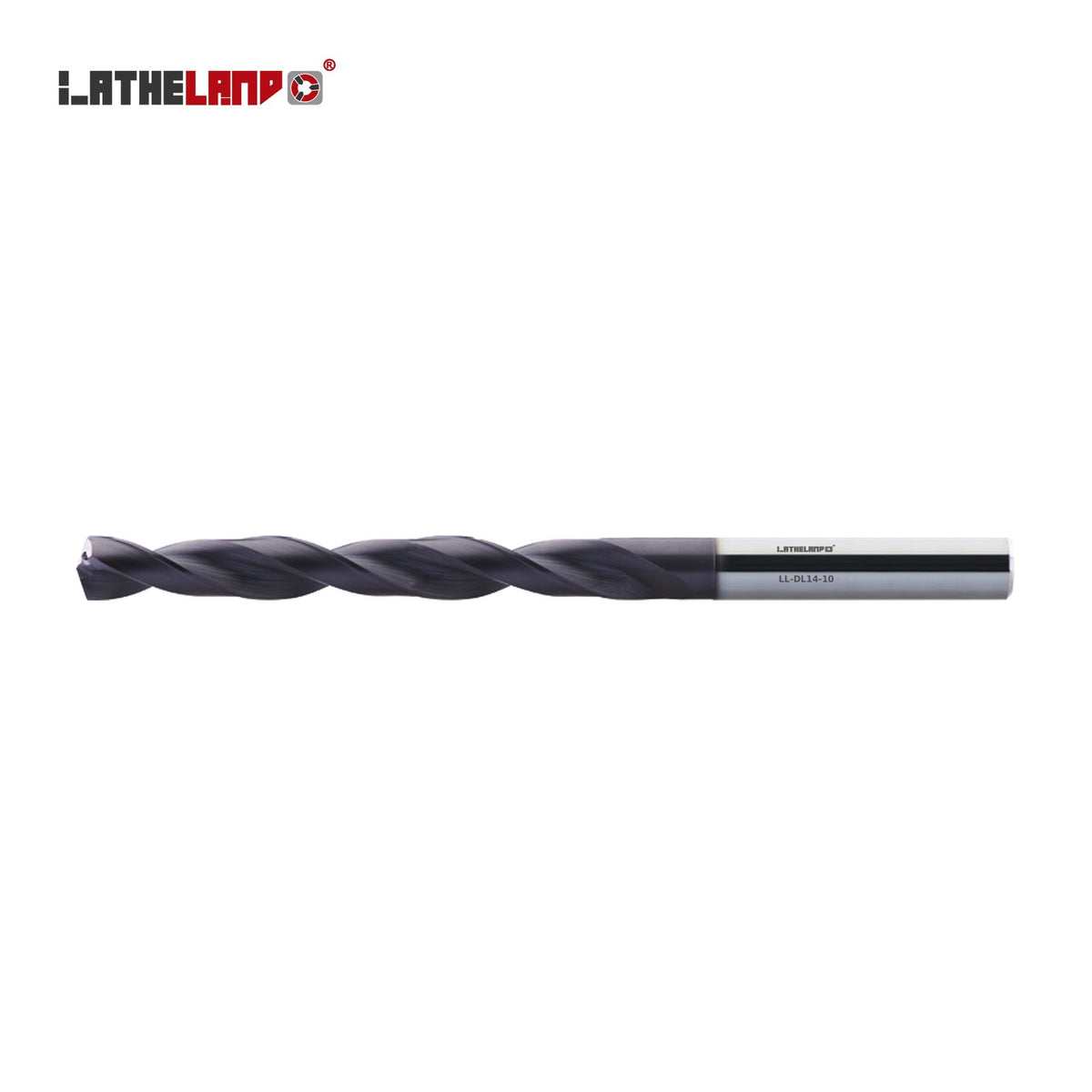

| Series | DL14 |
| Material | Solid carbide |
| Coating | TiAlN multilayer |
| Workpiece hardness | up to 45 HRC |
| Range | Ø3–20 mm |
| Sizes available | 105 |
| Price | On request – supplied on quotation |

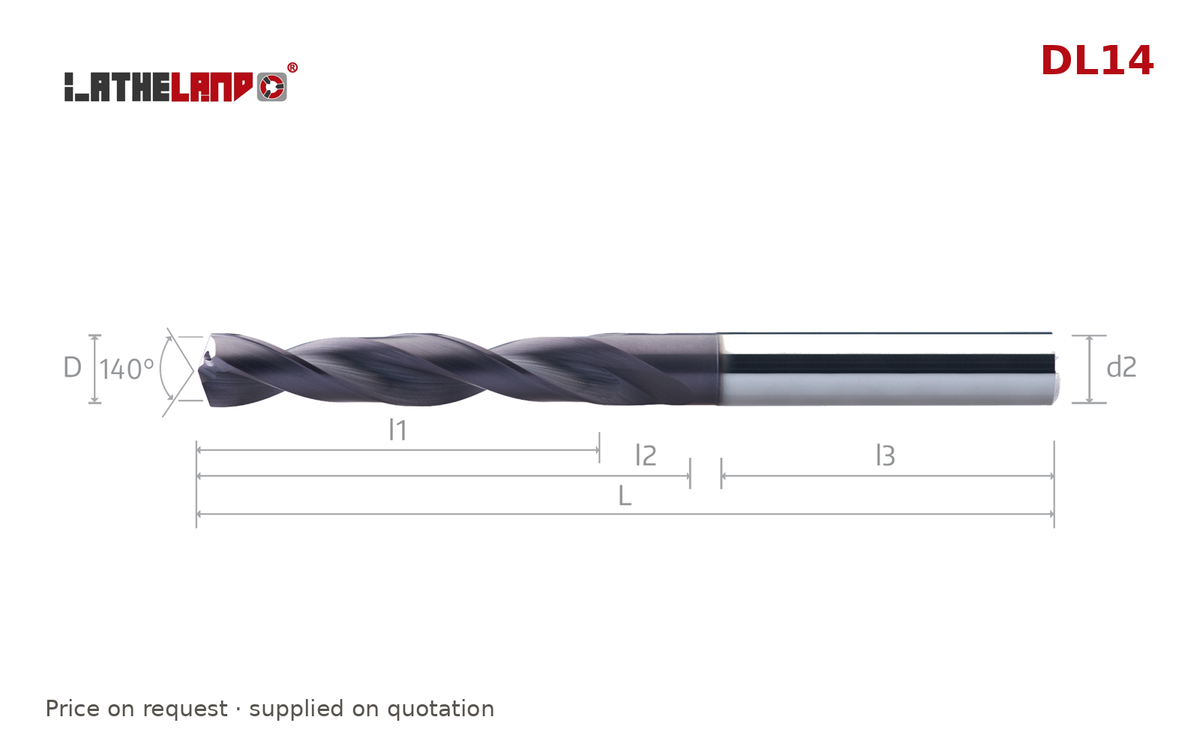

| SKU | Ø D | L | d2 |
|---|---|---|---|
| LL-DL14-3 | 3 | 85 | 6 |
| LL-DL14-3.1 | 3.1 | 85 | 6 |
| LL-DL14-3.2 | 3.2 | 85 | 6 |
| LL-DL14-3.3 | 3.3 | 85 | 6 |
| LL-DL14-3.4 | 3.4 | 85 | 6 |
| LL-DL14-3.5 | 3.5 | 85 | 6 |
| LL-DL14-3.6 | 3.6 | 85 | 6 |
| LL-DL14-3.7 | 3.7 | 85 | 6 |
| LL-DL14-3.8 | 3.8 | 85 | 6 |
| LL-DL14-3.9 | 3.9 | 85 | 6 |
| LL-DL14-4 | 4 | 85 | 6 |
| LL-DL14-4.1 | 4.1 | 85 | 6 |
| LL-DL14-4.2 | 4.2 | 85 | 6 |
| LL-DL14-4.3 | 4.3 | 97 | 6 |
| LL-DL14-4.4 | 4.4 | 97 | 6 |
| LL-DL14-4.5 | 4.5 | 97 | 6 |
| LL-DL14-4.6 | 4.6 | 97 | 6 |
| LL-DL14-4.7 | 4.7 | 97 | 6 |
| LL-DL14-4.8 | 4.8 | 97 | 6 |
| LL-DL14-4.9 | 4.9 | 97 | 6 |
| LL-DL14-5 | 5 | 97 | 6 |
| LL-DL14-5.1 | 5.1 | 97 | 6 |
| LL-DL14-5.2 | 5.2 | 97 | 6 |
| LL-DL14-5.3 | 5.3 | 97 | 6 |
| LL-DL14-5.4 | 5.4 | 97 | 6 |
| LL-DL14-5.5 | 5.5 | 97 | 6 |
| LL-DL14-5.6 | 5.6 | 97 | 6 |
| LL-DL14-5.7 | 5.7 | 97 | 6 |
| LL-DL14-5.8 | 5.8 | 97 | 6 |
| LL-DL14-5.9 | 5.9 | 97 | 6 |
| LL-DL14-6 | 6 | 97 | 6 |
| LL-DL14-6.1 | 6.1 | 116 | 8 |
| LL-DL14-6.2 | 6.2 | 116 | 8 |
| LL-DL14-6.3 | 6.3 | 116 | 8 |
| LL-DL14-6.4 | 6.4 | 116 | 8 |
| LL-DL14-6.5 | 6.5 | 116 | 8 |
| LL-DL14-6.6 | 6.6 | 116 | 8 |
| LL-DL14-6.7 | 6.7 | 116 | 8 |
| LL-DL14-6.8 | 6.8 | 116 | 8 |
| LL-DL14-6.9 | 6.9 | 116 | 8 |
| LL-DL14-7 | 7 | 116 | 8 |
| LL-DL14-7.1 | 7.1 | 116 | 8 |
| LL-DL14-7.2 | 7.2 | 116 | 8 |
| LL-DL14-7.3 | 7.3 | 116 | 8 |
| LL-DL14-7.4 | 7.4 | 116 | 8 |
| LL-DL14-7.5 | 7.5 | 116 | 8 |
| LL-DL14-7.6 | 7.6 | 116 | 8 |
| LL-DL14-7.7 | 7.7 | 116 | 8 |
| LL-DL14-7.8 | 7.8 | 116 | 8 |
| LL-DL14-7.9 | 7.9 | 116 | 8 |
| LL-DL14-8 | 8 | 116 | 8 |
| LL-DL14-8.1 | 8.1 | 142 | 10 |
| LL-DL14-8.2 | 8.2 | 142 | 10 |
| LL-DL14-8.3 | 8.3 | 142 | 10 |
| LL-DL14-8.4 | 8.4 | 142 | 10 |
| LL-DL14-8.5 | 8.5 | 142 | 10 |
| LL-DL14-8.6 | 8.6 | 142 | 10 |
| LL-DL14-8.7 | 8.7 | 142 | 10 |
| LL-DL14-8.8 | 8.8 | 142 | 10 |
| LL-DL14-8.9 | 8.9 | 142 | 10 |
| LL-DL14-9 | 9 | 142 | 10 |
| LL-DL14-9.1 | 9.1 | 142 | 10 |
| LL-DL14-9.2 | 9.2 | 142 | 10 |
| LL-DL14-9.3 | 9.3 | 142 | 10 |
| LL-DL14-9.4 | 9.4 | 142 | 10 |
| LL-DL14-9.5 | 9.5 | 142 | 10 |
| LL-DL14-9.6 | 9.6 | 142 | 10 |
| LL-DL14-9.7 | 9.7 | 142 | 10 |
| LL-DL14-9.8 | 9.8 | 142 | 10 |
| LL-DL14-9.9 | 9.9 | 142 | 10 |
| LL-DL14-10 | 10 | 142 | 10 |
| LL-DL14-10.2 | 10.2 | 163 | 12 |
| LL-DL14-10.3 | 10.3 | 163 | 12 |
| LL-DL14-10.5 | 10.5 | 163 | 12 |
| LL-DL14-10.8 | 10.8 | 163 | 12 |
| LL-DL14-11 | 11 | 163 | 12 |
| LL-DL14-11.2 | 11.2 | 163 | 12 |
| LL-DL14-11.3 | 11.3 | 163 | 12 |
| LL-DL14-11.5 | 11.5 | 163 | 12 |
| LL-DL14-11.8 | 11.8 | 163 | 12 |
| LL-DL14-12 | 12 | 163 | 12 |
| LL-DL14-12.2 | 12.2 | 182 | 12 |
| LL-DL14-12.5 | 12.5 | 182 | 12 |
| LL-DL14-12.7 | 12.7 | 182 | 12 |
| LL-DL14-12.8 | 12.8 | 182 | 12 |
| LL-DL14-13 | 13 | 182 | 14 |
| LL-DL14-13.3 | 13.3 | 182 | 14 |
| LL-DL14-13.5 | 13.5 | 182 | 14 |
| LL-DL14-13.7 | 13.7 | 182 | 14 |
| LL-DL14-13.8 | 13.8 | 182 | 14 |
| LL-DL14-14 | 14 | 182 | 14 |
| LL-DL14-14.5 | 14.5 | 204 | 16 |
| LL-DL14-15 | 15 | 204 | 16 |
| LL-DL14-15.3 | 15.3 | 204 | 16 |
| LL-DL14-15.5 | 15.5 | 204 | 16 |
| LL-DL14-15.8 | 15.8 | 204 | 16 |
| LL-DL14-16 | 16 | 204 | 16 |
| LL-DL14-16.5 | 16.5 | 222 | 18 |
| LL-DL14-17 | 17 | 222 | 18 |
| LL-DL14-17.5 | 17.5 | 222 | 18 |
| LL-DL14-18 | 18 | 222 | 18 |
| LL-DL14-18.5 | 18.5 | 243 | 20 |
| LL-DL14-19 | 19 | 243 | 20 |
| LL-DL14-19.5 | 19.5 | 243 | 20 |
| LL-DL14-20 | 20 | 243 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
