Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

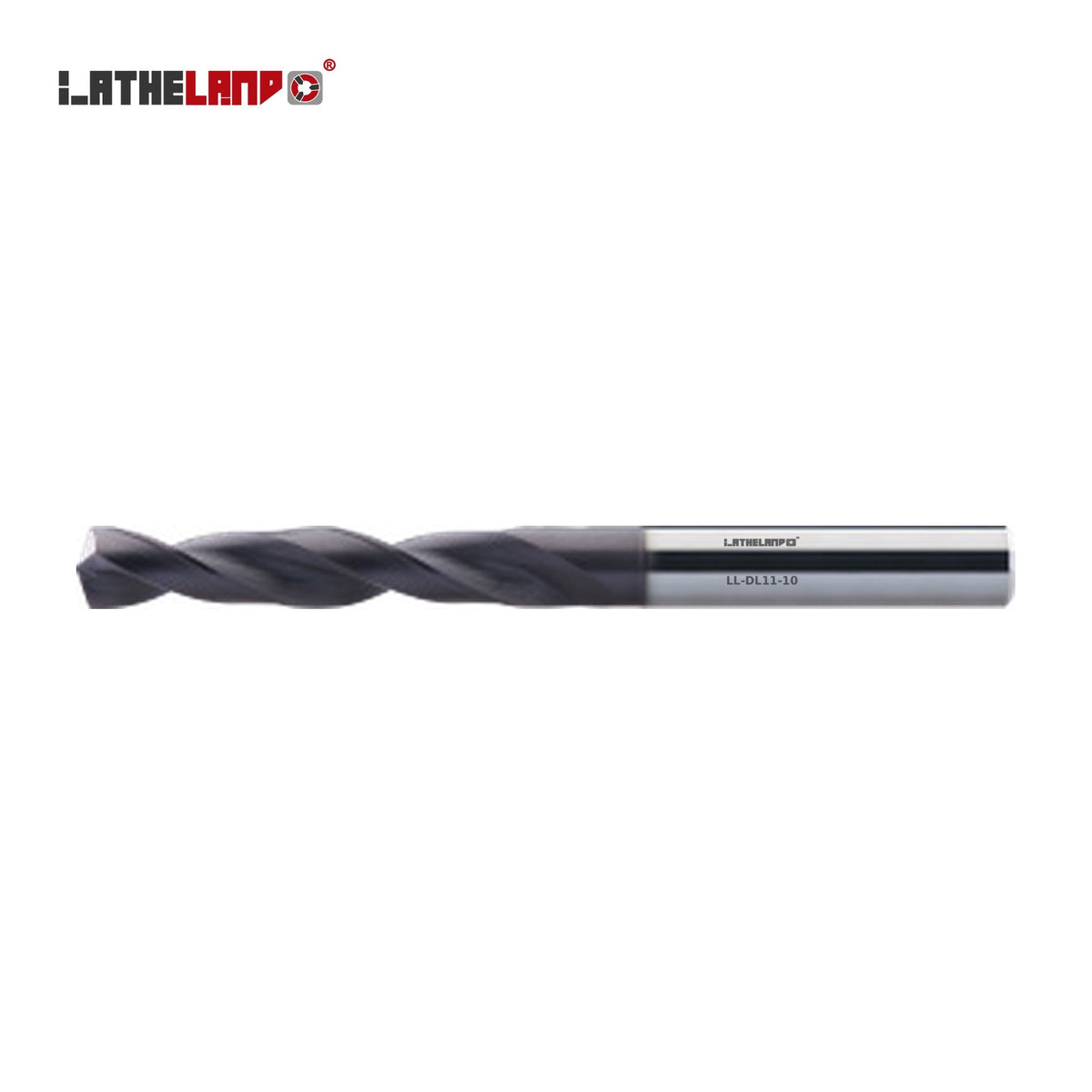

| Series | DL11 |
| Material | Solid carbide |
| Coating | TiAlN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | up to 45 HRC |
| Best for | steel, cast iron, titanium & superalloys |
| Also suitable for | stainless steel, aluminium & non-ferrous |
| Range | Ø3–20 mm |
| Sizes available | 105 |
| Price | On request – supplied on quotation |

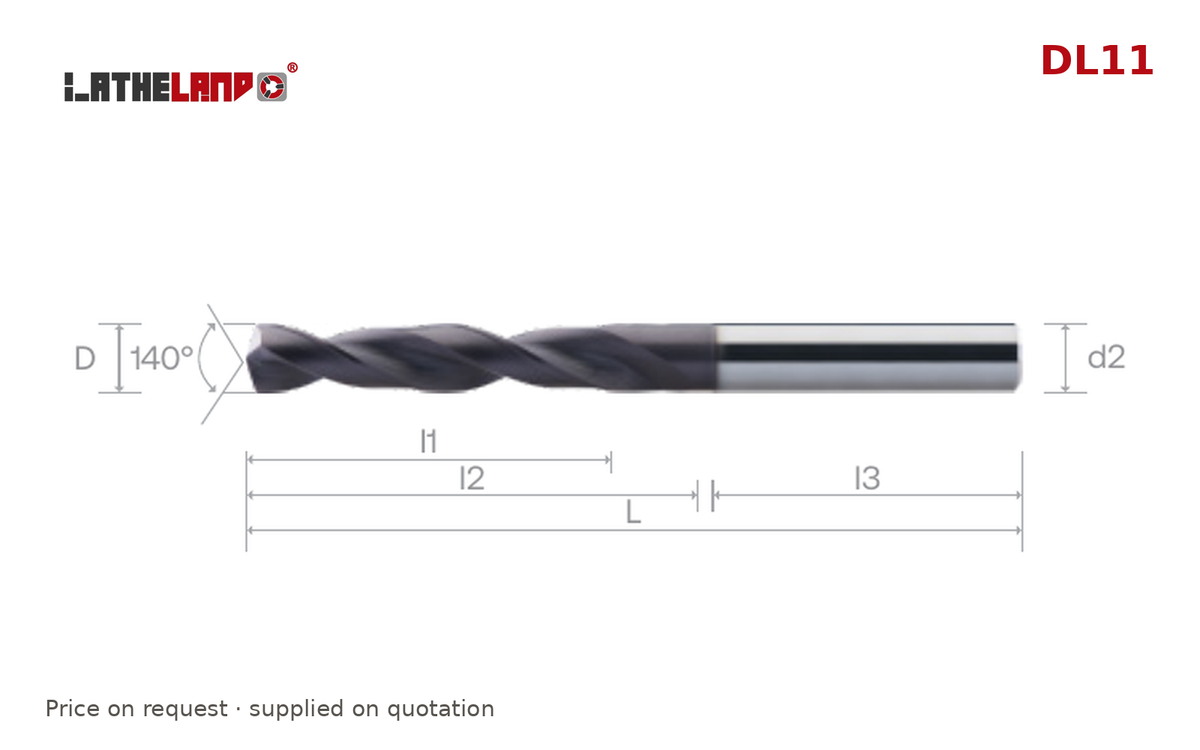

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-DL11-3 | 3 | 23 | 28 | 66 | 6 |
| LL-DL11-3.1 | 3.1 | 23 | 28 | 66 | 6 |
| LL-DL11-3.2 | 3.2 | 23 | 28 | 66 | 6 |
| LL-DL11-3.3 | 3.3 | 23 | 28 | 66 | 6 |
| LL-DL11-3.4 | 3.4 | 23 | 28 | 66 | 6 |
| LL-DL11-3.5 | 3.5 | 23 | 28 | 66 | 6 |
| LL-DL11-3.6 | 3.6 | 23 | 28 | 66 | 6 |
| LL-DL11-3.7 | 3.7 | 23 | 28 | 66 | 6 |
| LL-DL11-3.8 | 3.8 | 23 | 36 | 74 | 6 |
| LL-DL11-3.9 | 3.9 | 29 | 36 | 74 | 6 |
| LL-DL11-4 | 4 | 29 | 36 | 74 | 6 |
| LL-DL11-4.1 | 4.1 | 29 | 36 | 74 | 6 |
| LL-DL11-4.2 | 4.2 | 29 | 36 | 74 | 6 |
| LL-DL11-4.3 | 4.3 | 29 | 36 | 74 | 6 |
| LL-DL11-4.4 | 4.4 | 29 | 36 | 74 | 6 |
| LL-DL11-4.5 | 4.5 | 29 | 36 | 74 | 6 |
| LL-DL11-4.6 | 4.6 | 29 | 36 | 74 | 6 |
| LL-DL11-4.7 | 4.7 | 29 | 36 | 74 | 6 |
| LL-DL11-4.8 | 4.8 | 44 | 82 | 6 | |
| LL-DL11-4.9 | 4.9 | 35 | 44 | 82 | 6 |
| LL-DL11-5 | 5 | 35 | 44 | 82 | 6 |
| LL-DL11-5.1 | 5.1 | 35 | 44 | 82 | 6 |
| LL-DL11-5.2 | 5.2 | 35 | 44 | 82 | 6 |
| LL-DL11-5.3 | 5.3 | 35 | 44 | 82 | 6 |
| LL-DL11-5.4 | 5.4 | 35 | 44 | 82 | 6 |
| LL-DL11-5.5 | 5.5 | 35 | 44 | 82 | 6 |
| LL-DL11-5.6 | 5.6 | 35 | 44 | 82 | 6 |
| LL-DL11-5.7 | 5.7 | 35 | 44 | 82 | 6 |
| LL-DL11-5.8 | 5.8 | 35 | 44 | 82 | 6 |
| LL-DL11-5.9 | 5.9 | 35 | 44 | 82 | 6 |
| LL-DL11-6 | 6 | 44 | 82 | 6 | |
| LL-DL11-6.1 | 6.1 | 53 | 91 | 8 | |
| LL-DL11-6.2 | 6.2 | 53 | 91 | 8 | |
| LL-DL11-6.3 | 6.3 | 53 | 91 | 8 | |
| LL-DL11-6.4 | 6.4 | 53 | 91 | 8 | |
| LL-DL11-6.5 | 6.5 | 53 | 91 | 8 | |
| LL-DL11-6.6 | 6.6 | 43 | 53 | 91 | 8 |
| LL-DL11-6.7 | 6.7 | 43 | 53 | 91 | 8 |
| LL-DL11-6.8 | 6.8 | 43 | 53 | 91 | 8 |
| LL-DL11-6.9 | 6.9 | 43 | 53 | 91 | 8 |
| LL-DL11-7 | 7 | 43 | 53 | 91 | 8 |
| LL-DL11-7.1 | 7.1 | 43 | 53 | 91 | 8 |
| LL-DL11-7.2 | 7.2 | 43 | 53 | 91 | 8 |
| LL-DL11-7.3 | 7.3 | 43 | 53 | 91 | 8 |
| LL-DL11-7.4 | 7.4 | 43 | 53 | 91 | 8 |
| LL-DL11-7.5 | 7.5 | 43 | 53 | 91 | 8 |
| LL-DL11-7.6 | 7.6 | 49 | 53 | 91 | 8 |
| LL-DL11-7.7 | 7.7 | 49 | 53 | 91 | 8 |
| LL-DL11-7.8 | 7.8 | 49 | 53 | 91 | 8 |
| LL-DL11-7.9 | 7.9 | 49 | 53 | 91 | 8 |
| LL-DL11-8 | 8 | 49 | 53 | 91 | 8 |
| LL-DL11-8.1 | 8.1 | 49 | 61 | 103 | 10 |
| LL-DL11-8.2 | 8.2 | 61 | 103 | 10 | |
| LL-DL11-8.3 | 8.3 | 61 | 103 | 10 | |
| LL-DL11-8.4 | 8.4 | 61 | 103 | 10 | |
| LL-DL11-8.5 | 8.5 | 61 | 103 | 10 | |
| LL-DL11-8.6 | 8.6 | 49 | 61 | 103 | 10 |
| LL-DL11-8.7 | 8.7 | 49 | 61 | 103 | 10 |
| LL-DL11-8.8 | 8.8 | 49 | 61 | 103 | 10 |
| LL-DL11-8.9 | 8.9 | 49 | 61 | 103 | 10 |
| LL-DL11-9 | 9 | 49 | 61 | 103 | 10 |
| LL-DL11-9.1 | 9.1 | 49 | 61 | 103 | 10 |
| LL-DL11-9.2 | 9.2 | 49 | 61 | 103 | 10 |
| LL-DL11-9.3 | 9.3 | 49 | 61 | 103 | 10 |
| LL-DL11-9.4 | 9.4 | 49 | 61 | 103 | 10 |
| LL-DL11-9.5 | 9.5 | 49 | 61 | 103 | 10 |
| LL-DL11-9.6 | 9.6 | 49 | 61 | 103 | 10 |
| LL-DL11-9.7 | 9.7 | 61 | 103 | 10 | |
| LL-DL11-9.8 | 9.8 | 61 | 103 | 10 | |
| LL-DL11-9.9 | 9.9 | 61 | 103 | 10 | |
| LL-DL11-10 | 10 | 56 | 61 | 103 | 10 |
| LL-DL11-10.2 | 10.2 | 56 | 71 | 118 | 12 |
| LL-DL11-10.3 | 10.3 | ||||
| LL-DL11-10.5 | 10.5 | 56 | 71 | 118 | 12 |
| LL-DL11-10.8 | 10.8 | 56 | 71 | 118 | 12 |
| LL-DL11-11 | 11 | 56 | 71 | 118 | 12 |
| LL-DL11-11.2 | 11.2 | 56 | 71 | 118 | 12 |
| LL-DL11-11.3 | 11.3 | 56 | 71 | 118 | 12 |
| LL-DL11-11.5 | 11.5 | 56 | 71 | 118 | 12 |
| LL-DL11-11.8 | 11.8 | 56 | 71 | 118 | 12 |
| LL-DL11-12 | 12 | 56 | 71 | 118 | 12 |
| LL-DL11-12.2 | 12.2 | 60 | 77 | 124 | 14 |
| LL-DL11-12.5 | 12.5 | 60 | 77 | 124 | 14 |
| LL-DL11-12.7 | 12.7 | 60 | 77 | 124 | 14 |
| LL-DL11-12.8 | 12.8 | 60 | 77 | 124 | 14 |
| LL-DL11-13 | 13 | 60 | 77 | 124 | 14 |
| LL-DL11-13.3 | 13.3 | 60 | 77 | 124 | 14 |
| LL-DL11-13.5 | 13.5 | 60 | 77 | 124 | 14 |
| LL-DL11-13.7 | 13.7 | 60 | 77 | 124 | 14 |
| LL-DL11-13.8 | 13.8 | 60 | 77 | 124 | 14 |
| LL-DL11-14 | 14 | 63 | 77 | 124 | 14 |
| LL-DL11-14.5 | 14.5 | 63 | 83 | 133 | 16 |
| LL-DL11-15 | 15 | 63 | 83 | 133 | 16 |
| LL-DL11-15.3 | 15.3 | 63 | 83 | 133 | 16 |
| LL-DL11-15.5 | 15.5 | 63 | 83 | 133 | 16 |
| LL-DL11-15.8 | 15.8 | 63 | 83 | 133 | 16 |
| LL-DL11-16 | 16 | 71 | 83 | 133 | 16 |
| LL-DL11-16.5 | 16.5 | 71 | 93 | 143 | 18 |
| LL-DL11-17 | 17 | 71 | 93 | 143 | 18 |
| LL-DL11-17.5 | 17.5 | 71 | 93 | 143 | 18 |
| LL-DL11-18 | 18 | 71 | 93 | 143 | 18 |
| LL-DL11-18.5 | 18.5 | 77 | 101 | 153 | 20 |
| LL-DL11-19 | 19 | 77 | 101 | 153 | 20 |
| LL-DL11-19.5 | 19.5 | 77 | 101 | 153 | 20 |
| LL-DL11-20 | 20 | 77 | 101 | 153 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
