Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

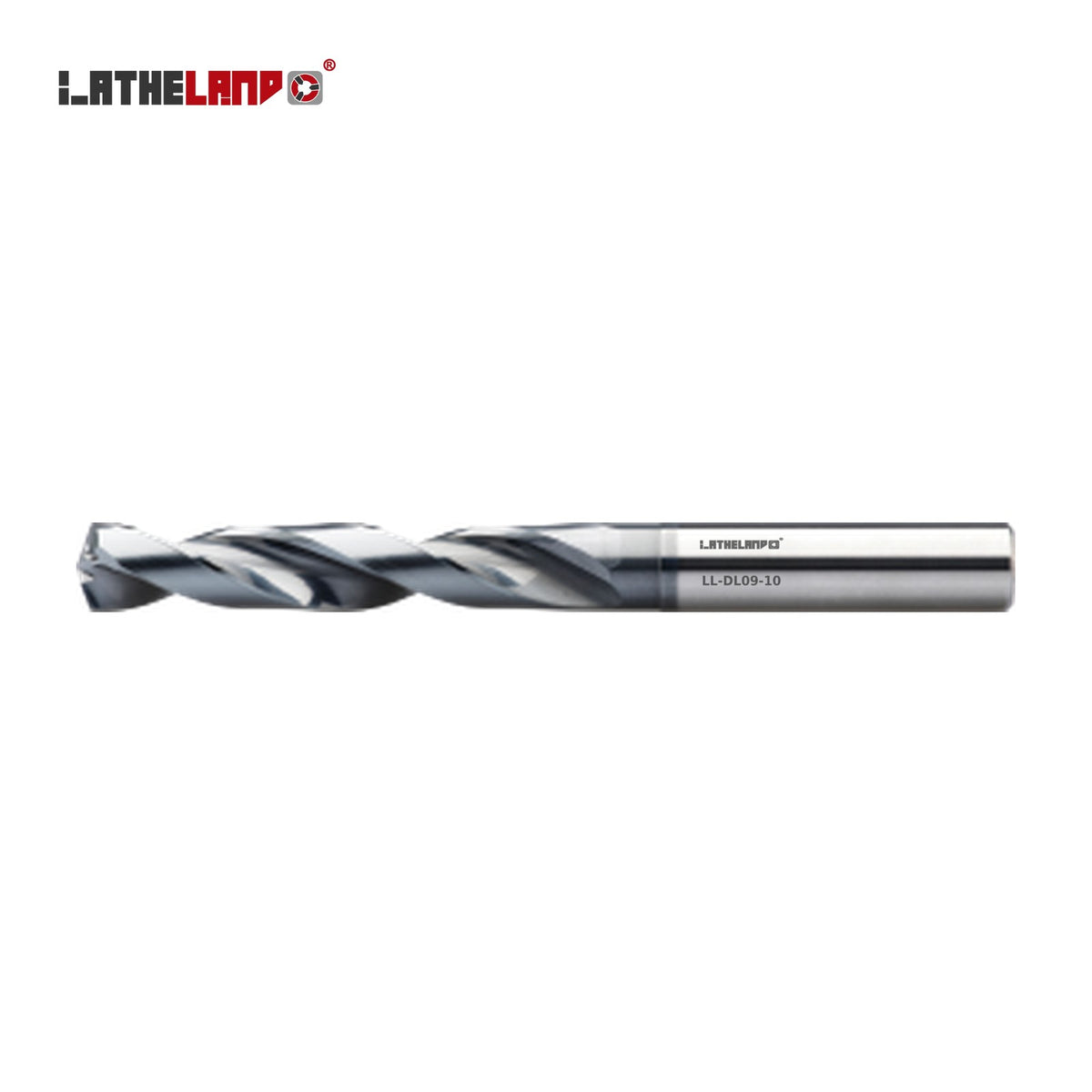

| Series | DL09 |
| Material | Solid carbide |
| Coating | AlCrN |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | steel, stainless steel, titanium & superalloys |
| Range | Ø3–20 mm |
| Sizes available | 112 |
| Price | On request – supplied on quotation |

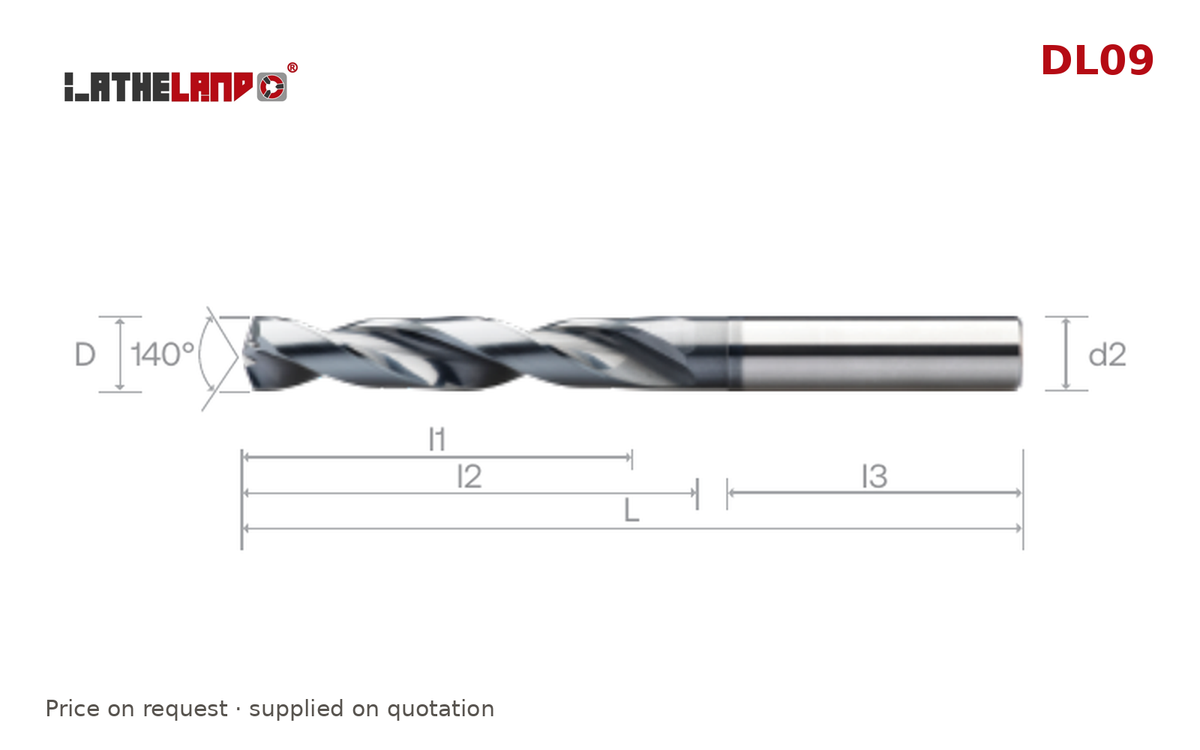

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-DL09-3x66 | 3 | 66 | 3 | ||
| LL-DL09-3 | 3 | 23 | 28 | 66 | 6 |
| LL-DL09-3.1x66 | 3.1 | 66 | 3 | ||
| LL-DL09-3.1 | 3.1 | 23 | 28 | 66 | 6 |
| LL-DL09-3.2x66 | 3.2 | 66 | 3 | ||
| LL-DL09-3.2 | 3.2 | 23 | 28 | 66 | 6 |
| LL-DL09-3.3 | 3.3 | 23 | 28 | 66 | 6 |
| LL-DL09-3.4 | 3.4 | 23 | 28 | 66 | 6 |
| LL-DL09-3.5 | 3.5 | 23 | 28 | 66 | 6 |
| LL-DL09-3.6 | 3.6 | 23 | 28 | 66 | 6 |
| LL-DL09-3.7 | 3.7 | 23 | 28 | 66 | 6 |
| LL-DL09-3.8 | 3.8 | 36 | 74 | 6 | |
| LL-DL09-3.9 | 3.9 | 29 | 36 | 74 | 6 |
| LL-DL09-4x74 | 4 | 74 | 4 | ||
| LL-DL09-4 | 4 | 29 | 36 | 74 | 6 |
| LL-DL09-4.1x74 | 4.1 | 74 | 4 | ||
| LL-DL09-4.1 | 4.1 | 29 | 36 | 74 | 6 |
| LL-DL09-4.2x74 | 4.2 | 74 | 4 | ||
| LL-DL09-4.2 | 4.2 | 29 | 36 | 74 | 6 |
| LL-DL09-4.3 | 4.3 | 29 | 36 | 74 | 6 |
| LL-DL09-4.4 | 4.4 | 29 | 36 | 74 | 6 |
| LL-DL09-4.5 | 4.5 | 29 | 36 | 74 | 6 |
| LL-DL09-4.6 | 4.6 | 29 | 36 | 74 | 6 |
| LL-DL09-4.7 | 4.7 | 36 | 74 | 6 | |
| LL-DL09-4.8 | 4.8 | 44 | 82 | 6 | |
| LL-DL09-4.9 | 4.9 | 44 | 82 | 6 | |
| LL-DL09-5 | 5 | 35 | 44 | 82 | 6 |
| LL-DL09-5.1 | 5.1 | 35 | 44 | 82 | 6 |
| LL-DL09-5.2 | 5.2 | 35 | 44 | 82 | 6 |
| LL-DL09-5.3 | 5.3 | 35 | 44 | 82 | 6 |
| LL-DL09-5.4 | 5.4 | 35 | 44 | 82 | 6 |
| LL-DL09-5.5 | 5.5 | 35 | 44 | 82 | 6 |
| LL-DL09-5.6 | 5.6 | 35 | 44 | 82 | 6 |
| LL-DL09-5.7 | 5.7 | 35 | 44 | 82 | 6 |
| LL-DL09-5.8 | 5.8 | 35 | 44 | 82 | 6 |
| LL-DL09-5.9 | 5.9 | 35 | 44 | 82 | 6 |
| LL-DL09-6 | 6 | 44 | 82 | 6 | |
| LL-DL09-6.1x82 | 6.1 | 82 | 6 | ||
| LL-DL09-6.1 | 6.1 | 53 | 91 | 8 | |
| LL-DL09-6.2 | 6.2 | 53 | 91 | 8 | |
| LL-DL09-6.3 | 6.3 | 53 | 91 | 8 | |
| LL-DL09-6.4 | 6.4 | 53 | 91 | 8 | |
| LL-DL09-6.5 | 6.5 | 43 | 53 | 91 | 8 |
| LL-DL09-6.6 | 6.6 | 43 | 53 | 91 | 8 |
| LL-DL09-6.7 | 6.7 | 43 | 53 | 91 | 8 |
| LL-DL09-6.8 | 6.8 | 43 | 53 | 91 | 8 |
| LL-DL09-6.9 | 6.9 | 43 | 53 | 91 | 8 |
| LL-DL09-7 | 7 | 43 | 53 | 91 | 8 |
| LL-DL09-7.1 | 7.1 | 43 | 53 | 91 | 8 |
| LL-DL09-7.2 | 7.2 | 43 | 53 | 91 | 8 |
| LL-DL09-7.3 | 7.3 | 43 | 53 | 91 | 8 |
| LL-DL09-7.4 | 7.4 | 43 | 53 | 91 | 8 |
| LL-DL09-7.5 | 7.5 | 53 | 91 | 8 | |
| LL-DL09-7.6 | 7.6 | 53 | 91 | 8 | |
| LL-DL09-7.7 | 7.7 | 53 | 91 | 8 | |
| LL-DL09-7.8 | 7.8 | 53 | 91 | 8 | |
| LL-DL09-7.9 | 7.9 | 43 | 53 | 91 | 8 |
| LL-DL09-8 | 8 | 43 | 53 | 91 | 8 |
| LL-DL09-8.1x91 | 8.1 | 91 | 8 | ||
| LL-DL09-8.1 | 8.1 | 43 | 61 | 103 | 10 |
| LL-DL09-8.2 | 8.2 | 43 | 61 | 103 | 10 |
| LL-DL09-8.3 | 8.3 | 43 | 61 | 103 | 10 |
| LL-DL09-8.4 | 8.4 | 43 | 61 | 103 | 10 |
| LL-DL09-8.5 | 8.5 | 61 | 103 | 10 | |
| LL-DL09-8.6 | 8.6 | 49 | 61 | 103 | 10 |
| LL-DL09-8.7 | 8.7 | 49 | 61 | 103 | 10 |
| LL-DL09-8.8 | 8.8 | 49 | 61 | 103 | 10 |
| LL-DL09-8.9 | 8.9 | 49 | 61 | 103 | 10 |
| LL-DL09-9 | 9 | 49 | 61 | 103 | 10 |
| LL-DL09-9.1 | 9.1 | 49 | 61 | 103 | 10 |
| LL-DL09-9.2 | 9.2 | 49 | 61 | 103 | 10 |
| LL-DL09-9.3 | 9.3 | 49 | 61 | 103 | 10 |
| LL-DL09-9.4 | 9.4 | 49 | 61 | 103 | 10 |
| LL-DL09-9.5 | 9.5 | 49 | 61 | 103 | 10 |
| LL-DL09-9.6 | 9.6 | 61 | 103 | 10 | |
| LL-DL09-9.7 | 9.7 | 61 | 103 | 10 | |
| LL-DL09-9.8 | 9.8 | 61 | 103 | 10 | |
| LL-DL09-9.9 | 9.9 | 61 | 103 | 10 | |
| LL-DL09-10 | 10 | 56 | 61 | 103 | 10 |
| LL-DL09-10.2 | 10.2 | 56 | 71 | 118 | 12 |
| LL-DL09-10.5 | 10.5 | 56 | 71 | 118 | 12 |
| LL-DL09-10.8 | 10.8 | 56 | 71 | 118 | 12 |
| LL-DL09-11 | 11 | 56 | 71 | 118 | 12 |
| LL-DL09-11.2 | 11.2 | 56 | 71 | 118 | 12 |
| LL-DL09-11.3 | 11.3 | 56 | 71 | 118 | 12 |
| LL-DL09-11.5 | 11.5 | 56 | 71 | 118 | 12 |
| LL-DL09-11.8 | 11.8 | 56 | 71 | 118 | 12 |
| LL-DL09-12 | 12 | 56 | 71 | 118 | 12 |
| LL-DL09-12.2 | 12.2 | 60 | 77 | 124 | 14 |
| LL-DL09-12.5 | 12.5 | 60 | 77 | 124 | 14 |
| LL-DL09-12.7 | 12.7 | 60 | 77 | 124 | 14 |
| LL-DL09-12.8 | 12.8 | 60 | 77 | 124 | 14 |
| LL-DL09-13 | 13 | 60 | 77 | 124 | 14 |
| LL-DL09-13.3 | 13.3 | 60 | 77 | 124 | 14 |
| LL-DL09-13.5 | 13.5 | 60 | 77 | 124 | 14 |
| LL-DL09-13.7 | 13.7 | 60 | 77 | 124 | 14 |
| LL-DL09-13.8 | 13.8 | 60 | 77 | 124 | 14 |
| LL-DL09-14 | 14 | 63 | 77 | 124 | 14 |
| LL-DL09-14.5 | 14.5 | 63 | 83 | 133 | 16 |
| LL-DL09-15 | 15 | 63 | 83 | 133 | 16 |
| LL-DL09-15.3 | 15.3 | 63 | 83 | 133 | 16 |
| LL-DL09-15.5 | 15.5 | 63 | 83 | 133 | 16 |
| LL-DL09-15.8 | 15.8 | 63 | 83 | 133 | 16 |
| LL-DL09-16 | 16 | 63 | 83 | 133 | 16 |
| LL-DL09-16.5 | 16.5 | 71 | 93 | 143 | 18 |
| LL-DL09-17 | 17 | 71 | 93 | 143 | 18 |
| LL-DL09-17.5 | 17.5 | 71 | 93 | 143 | 18 |
| LL-DL09-18 | 18 | 71 | 93 | 143 | 18 |
| LL-DL09-18.5 | 18.5 | 77 | 101 | 153 | 20 |
| LL-DL09-19 | 19 | 77 | 101 | 153 | 20 |
| LL-DL09-19.5 | 19.5 | 77 | 101 | 153 | 20 |
| LL-DL09-20 | 20 | 77 | 101 | 153 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
