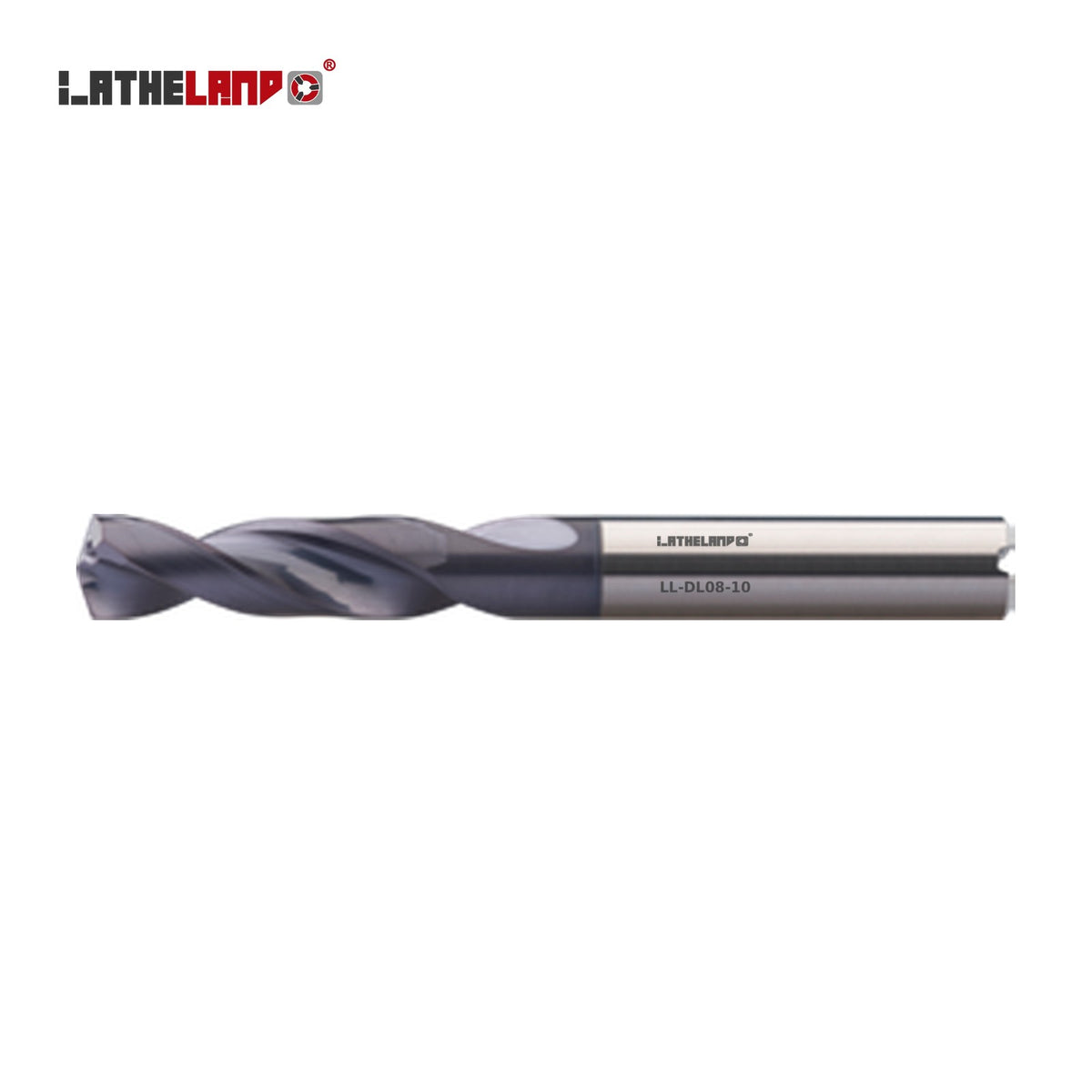

LATHELAND® Coolant-Through Stainless Drill 3×D, DIN 6537K – DL08

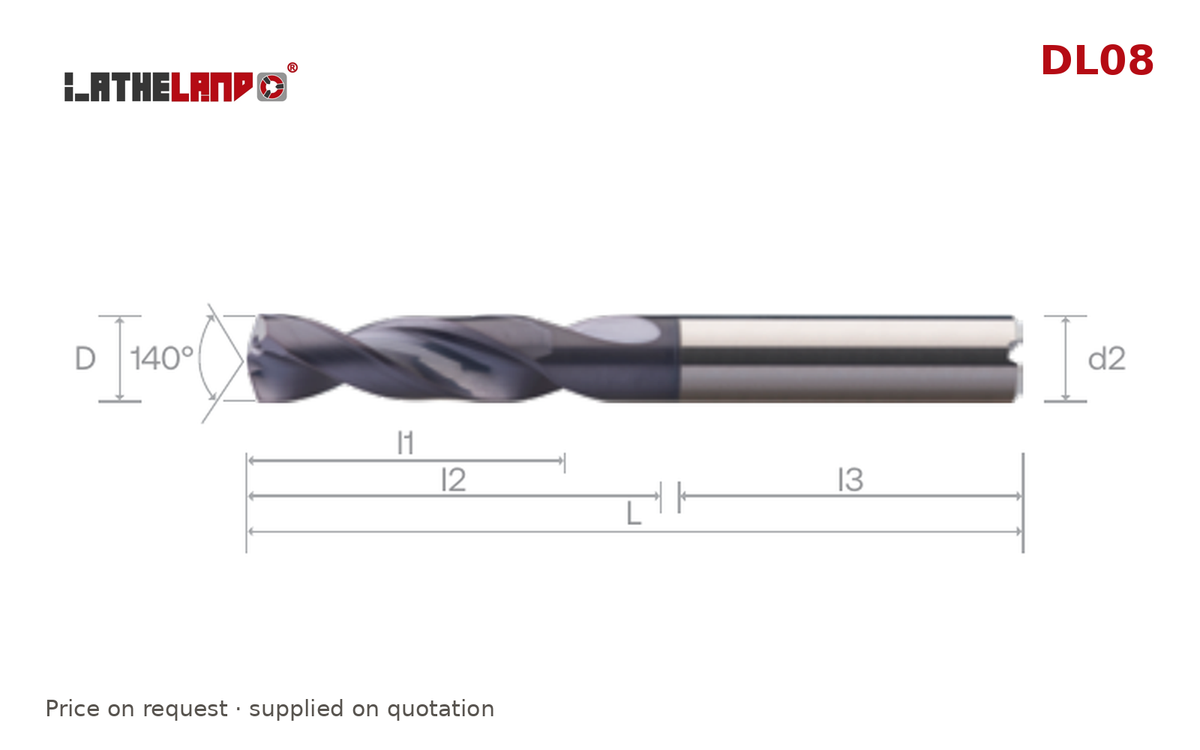

LATHELAND® Coolant-Through Stainless Drill 3×D, DIN 6537K – DL08 – dimension drawing
LATHELAND® Coolant-Through Stainless Drill 3×D, DIN 6537K – DL08
LATHELAND® Coolant-Through Stainless Drill 3×D, DIN 6537K – DL08 – dimension drawing
LATHELAND

LATHELAND® Coolant-Through Stainless Drill 3×D, DIN 6537K – DL08

Out of stock
SKU: LL-DL08-3x62
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedØ3 · L62 SKULL-DL08-3x62

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.

Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

Specifications

Series DL08
Material Solid carbide
Coating AlCrN
Flutes 2
Helix angle 30°
Best for steel, stainless steel, titanium & superalloys
Range Ø3–20 mm
Sizes available 112
Price On request – supplied on quotation

Size table (all dimensions in mm)

SKU Ø D l1 l2 L d2
LL-DL08-3x62 3 14 20 62 3
LL-DL08-3 3 14 20 62 6
LL-DL08-3.1x62 3.1 14 20 62 3
LL-DL08-3.1 3.1 14 20 62 6
LL-DL08-3.2x62 3.2 14 20 62 3
LL-DL08-3.2 3.2 14 20 62 6
LL-DL08-3.3 3.3 14 20 62 6
LL-DL08-3.4 3.4 14 20 62 6
LL-DL08-3.5 3.5 14 20 62 6
LL-DL08-3.6 3.6 14 20 62 6
LL-DL08-3.7 3.7 14 20 62 6
LL-DL08-3.8 3.8 24 66 6
LL-DL08-3.9 3.9 17 24 66 6
LL-DL08-4x66 4 17 24 66 4
LL-DL08-4 4 17 24 66 6
LL-DL08-4.1x66 4.1 17 24 66 4
LL-DL08-4.1 4.1 17 24 66 6
LL-DL08-4.2x66 4.2 17 24 66 4
LL-DL08-4.2 4.2 17 24 66 6
LL-DL08-4.3 4.3 17 24 66 6
LL-DL08-4.4 4.4 17 24 66 6
LL-DL08-4.5 4.5 17 24 66 6
LL-DL08-4.6 4.6 17 24 66 6
LL-DL08-4.7 4.7 24 66 6
LL-DL08-4.8 4.8 28 66 6
LL-DL08-4.9 4.9 28 66 6
LL-DL08-5 5 20 28 66 6
LL-DL08-5.1 5.1 20 28 66 6
LL-DL08-5.2 5.2 20 28 66 6
LL-DL08-5.3 5.3 20 28 66 6
LL-DL08-5.4 5.4 20 28 66 6
LL-DL08-5.5 5.5 20 28 66 6
LL-DL08-5.6 5.6 20 28 66 6
LL-DL08-5.7 5.7 20 28 66 6
LL-DL08-5.8 5.8 20 28 66 6
LL-DL08-5.9 5.9 20 28 66 6
LL-DL08-6 6 28 66 6
LL-DL08-6.1x66 6.1 28 66 6
LL-DL08-6.1 6.1 24 34 79 8
LL-DL08-6.2 6.2 24 34 79 8
LL-DL08-6.3 6.3 24 34 79 8
LL-DL08-6.4 6.4 24 34 79 8
LL-DL08-6.5 6.5 24 34 79 8
LL-DL08-6.6 6.6 24 34 79 8
LL-DL08-6.7 6.7 24 34 79 8
LL-DL08-6.8 6.8 24 34 79 8
LL-DL08-6.9 6.9 24 34 79 8
LL-DL08-7 7 24 34 79 8
LL-DL08-7.1 7.1 29 41 79 8
LL-DL08-7.2 7.2 29 41 79 8
LL-DL08-7.3 7.3 29 41 79 8
LL-DL08-7.4 7.4 29 41 79 8
LL-DL08-7.5 7.5 29 41 79 8
LL-DL08-7.6 7.6 29 41 79 8
LL-DL08-7.7 7.7 29 41 79 8
LL-DL08-7.8 7.8 29 41 79 8
LL-DL08-7.9 7.9 29 41 79 8
LL-DL08-8 8 29 41 79 8
LL-DL08-8.1x79 8.1 29 41 79 8
LL-DL08-8.1 8.1 29 47 89 10
LL-DL08-8.2 8.2 29 47 89 10
LL-DL08-8.3 8.3 29 47 89 10
LL-DL08-8.4 8.4 29 47 89 10
LL-DL08-8.5 8.5 47 89 10
LL-DL08-8.6 8.6 35 47 89 10
LL-DL08-8.7 8.7 35 47 89 10
LL-DL08-8.8 8.8 35 47 89 10
LL-DL08-8.9 8.9 35 47 89 10
LL-DL08-9 9 35 47 89 10
LL-DL08-9.1 9.1 35 47 89 10
LL-DL08-9.2 9.2 35 47 89 10
LL-DL08-9.3 9.3 35 47 89 10
LL-DL08-9.4 9.4 35 47 89 10
LL-DL08-9.5 9.5 35 47 89 10
LL-DL08-9.6 9.6 47 89 10
LL-DL08-9.7 9.7 47 89 10
LL-DL08-9.8 9.8 47 89 10
LL-DL08-9.9 9.9 47 89 10
LL-DL08-10 10 40 47 89 10
LL-DL08-10.2 10.2 40 55 102 12
LL-DL08-10.5 10.5 40 55 102 12
LL-DL08-10.8 10.8 40 55 102 12
LL-DL08-11 11 40 55 102 12
LL-DL08-11.2 11.2 40 55 102 12
LL-DL08-11.3 11.3 40 55 102 12
LL-DL08-11.5 11.5 40 55 102 12
LL-DL08-11.8 11.8 40 55 102 12
LL-DL08-12 12 40 55 102 12
LL-DL08-12.2 12.2 43 60 107 14
LL-DL08-12.5 12.5 43 60 107 14
LL-DL08-12.7 12.7 43 60 107 14
LL-DL08-12.8 12.8 43 60 107 14
LL-DL08-13 13 43 60 107 14
LL-DL08-13.3 13.3 43 60 107 14
LL-DL08-13.5 13.5 43 60 107 14
LL-DL08-13.7 13.7 43 60 107 14
LL-DL08-13.8 13.8 43 60 107 14
LL-DL08-14 14 45 60 107 14
LL-DL08-14.5 14.5 45 65 115 16
LL-DL08-15 15 45 65 115 16
LL-DL08-15.3 15.3 45 65 115 16
LL-DL08-15.5 15.5 45 65 115 16
LL-DL08-15.8 15.8 45 65 115 16
LL-DL08-16 16 45 65 115 16
LL-DL08-16.5 16.5 51 73 123 18
LL-DL08-17 17 51 73 123 18
LL-DL08-17.5 17.5 51 73 123 18
LL-DL08-18 18 51 73 123 18
LL-DL08-18.5 18.5 55 79 131 20
LL-DL08-19 19 55 79 131 20
LL-DL08-19.5 19.5 55 79 131 20
LL-DL08-20 20 55 79 131 20

Dimensions are confirmed on each quotation.

Need a special tool design?

Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
