Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

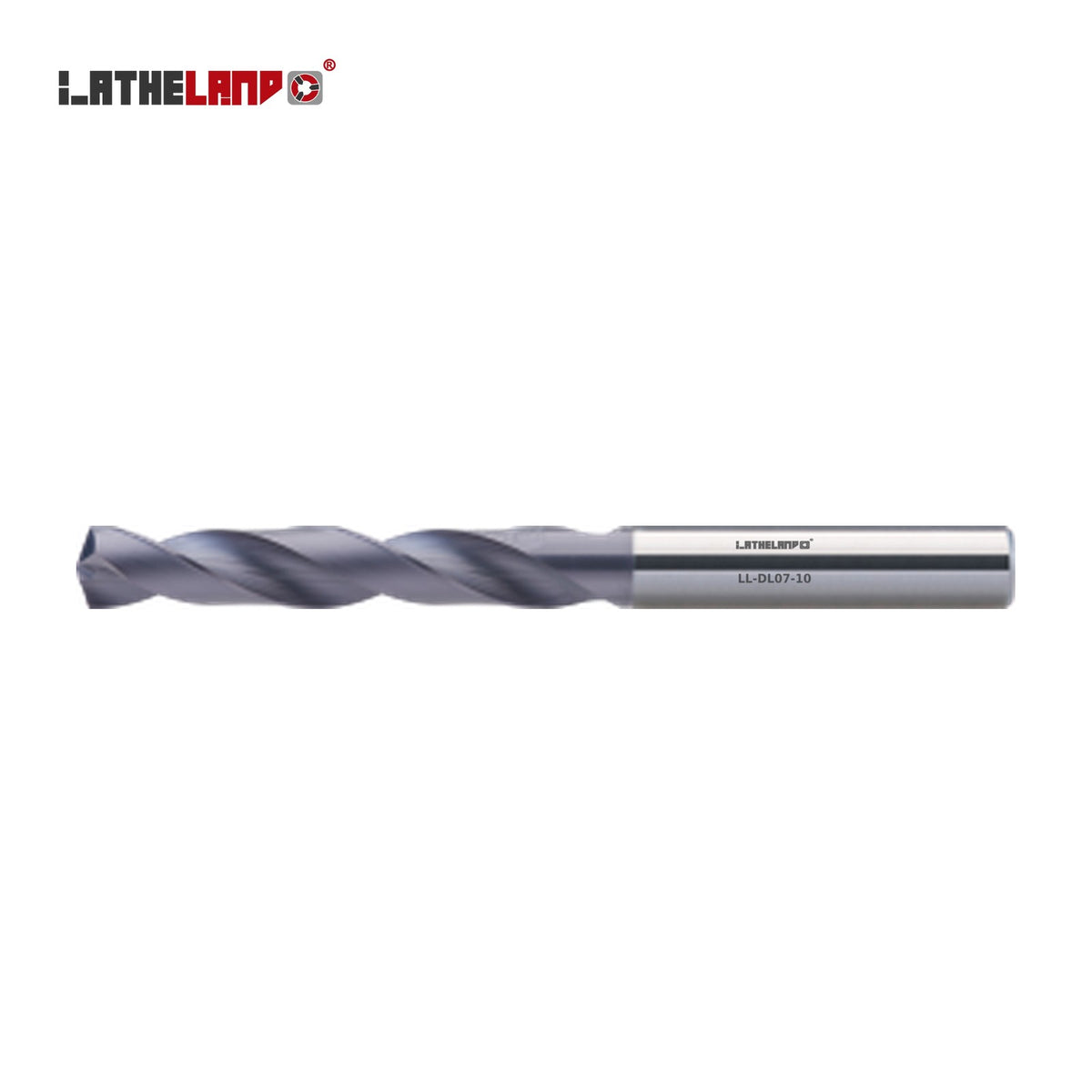

| Series | DL07 |
| Material | Solid carbide |
| Coating | TiAlN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | up to 35 HRC |
| Best for | steel, cast iron, aluminium & non-ferrous, graphite & plastics |
| Range | Ø1–16 mm |
| Sizes available | 130 |
| Price | On request – supplied on quotation |

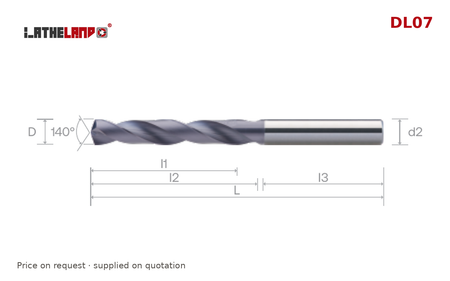

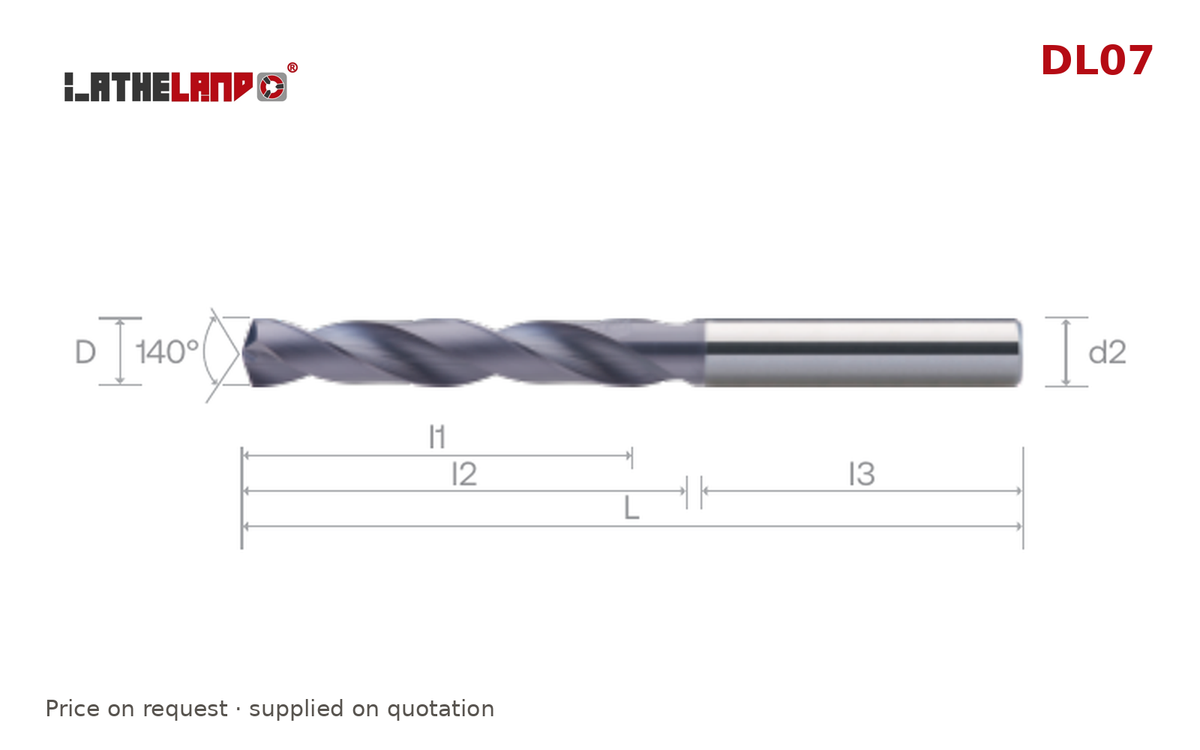

| SKU | Ø D | l1 | L | d2 |
|---|---|---|---|---|
| LL-DL07-1 | 1 | 8 | 55 | 3 |
| LL-DL07-1.1 | 1.1 | 8 | 55 | 3 |
| LL-DL07-1.2 | 1.2 | 12 | 55 | 3 |
| LL-DL07-1.3 | 1.3 | 12 | 55 | 3 |
| LL-DL07-1.4 | 1.4 | 12 | 55 | 3 |
| LL-DL07-1.5 | 1.5 | 16 | 55 | 3 |
| LL-DL07-1.6 | 1.6 | 16 | 55 | 3 |
| LL-DL07-1.7 | 1.7 | 16 | 55 | 3 |
| LL-DL07-1.8 | 1.8 | 16 | 55 | 3 |
| LL-DL07-1.9 | 1.9 | 16 | 55 | 3 |
| LL-DL07-2 | 2 | 16 | 57 | 4 |
| LL-DL07-2.1 | 2.1 | 21 | 57 | 4 |
| LL-DL07-2.2 | 2.2 | 21 | 57 | 4 |
| LL-DL07-2.3 | 2.3 | 21 | 57 | 4 |
| LL-DL07-2.4 | 2.4 | 21 | 57 | 4 |
| LL-DL07-2.5 | 2.5 | 21 | 57 | 4 |
| LL-DL07-2.6 | 2.6 | 21 | 57 | 4 |
| LL-DL07-2.7 | 2.7 | 21 | 57 | 4 |
| LL-DL07-2.8 | 2.8 | 21 | 57 | 4 |
| LL-DL07-2.9 | 2.9 | 21 | 57 | 4 |
| LL-DL07-3 | 3 | 28 | 66 | 6 |
| LL-DL07-3.1 | 3.1 | 28 | 66 | 6 |
| LL-DL07-3.2 | 3.2 | 28 | 66 | 6 |
| LL-DL07-3.3 | 3.3 | 28 | 66 | 6 |
| LL-DL07-3.4 | 3.4 | 28 | 66 | 6 |
| LL-DL07-3.5 | 3.5 | 28 | 66 | 6 |
| LL-DL07-3.6 | 3.6 | 28 | 66 | 6 |
| LL-DL07-3.7 | 3.7 | 28 | 66 | 6 |
| LL-DL07-3.8 | 3.8 | 36 | 74 | 6 |
| LL-DL07-3.9 | 3.9 | 36 | 74 | 6 |
| LL-DL07-4 | 4 | 36 | 74 | 6 |
| LL-DL07-4.1 | 4.1 | 36 | 74 | 6 |
| LL-DL07-4.2 | 4.2 | 36 | 74 | 6 |
| LL-DL07-4.3 | 4.3 | 36 | 74 | 6 |
| LL-DL07-4.4 | 4.4 | 36 | 74 | 6 |
| LL-DL07-4.5 | 4.5 | 36 | 74 | 6 |
| LL-DL07-4.6 | 4.6 | 36 | 74 | 6 |
| LL-DL07-4.7 | 4.7 | 36 | 74 | 6 |
| LL-DL07-4.8 | 4.8 | 82 | 6 | |
| LL-DL07-4.9 | 4.9 | 44 | 82 | 6 |
| LL-DL07-5 | 5 | 44 | 82 | 6 |
| LL-DL07-5.1 | 5.1 | 44 | 82 | 6 |
| LL-DL07-5.2 | 5.2 | 44 | 82 | 6 |
| LL-DL07-5.3 | 5.3 | 44 | 82 | 6 |
| LL-DL07-5.4 | 5.4 | 44 | 82 | 6 |
| LL-DL07-5.5 | 5.5 | 44 | 82 | 6 |
| LL-DL07-5.6 | 5.6 | 44 | 82 | 6 |
| LL-DL07-5.7 | 5.7 | 44 | 82 | 6 |
| LL-DL07-5.8 | 5.8 | 44 | 82 | 6 |
| LL-DL07-5.9 | 5.9 | 44 | 82 | 6 |
| LL-DL07-6 | 6 | 82 | 6 | |
| LL-DL07-6.1 | 6.1 | 91 | 8 | |
| LL-DL07-6.2 | 6.2 | 91 | 8 | |
| LL-DL07-6.3 | 6.3 | 91 | 8 | |
| LL-DL07-6.4 | 6.4 | 91 | 8 | |
| LL-DL07-6.5 | 6.5 | 91 | 8 | |
| LL-DL07-6.6 | 6.6 | 53 | 91 | 8 |
| LL-DL07-6.7 | 6.7 | 53 | 91 | 8 |
| LL-DL07-6.8 | 6.8 | 53 | 91 | 8 |
| LL-DL07-6.9 | 6.9 | 53 | 91 | 8 |
| LL-DL07-7 | 7 | 53 | 91 | 8 |
| LL-DL07-7.1 | 7.1 | 53 | 91 | 8 |
| LL-DL07-7.2 | 7.2 | 53 | 91 | 8 |
| LL-DL07-7.3 | 7.3 | 53 | 91 | 8 |
| LL-DL07-7.4 | 7.4 | 53 | 91 | 8 |
| LL-DL07-7.5 | 7.5 | 53 | 91 | 8 |
| LL-DL07-7.6 | 7.6 | 91 | 8 | |
| LL-DL07-7.7 | 7.7 | 91 | 8 | |
| LL-DL07-7.8 | 7.8 | 91 | 8 | |
| LL-DL07-7.9 | 7.9 | 91 | 8 | |
| LL-DL07-8 | 8 | 91 | 8 | |
| LL-DL07-8.1 | 8.1 | 103 | 10 | |
| LL-DL07-8.2 | 8.2 | 103 | 10 | |
| LL-DL07-8.3 | 8.3 | 103 | 10 | |
| LL-DL07-8.4 | 8.4 | 103 | 10 | |
| LL-DL07-8.5 | 8.5 | 103 | 10 | |
| LL-DL07-8.6 | 8.6 | 61 | 103 | 10 |
| LL-DL07-8.7 | 8.7 | 61 | 103 | 10 |
| LL-DL07-8.8 | 8.8 | 61 | 103 | 10 |
| LL-DL07-8.9 | 8.9 | 61 | 103 | 10 |
| LL-DL07-9 | 9 | 61 | 103 | 10 |
| LL-DL07-9.1 | 9.1 | 61 | 103 | 10 |
| LL-DL07-9.2 | 9.2 | 61 | 103 | 10 |
| LL-DL07-9.3 | 9.3 | 61 | 103 | 10 |
| LL-DL07-9.4 | 9.4 | 61 | 103 | 10 |
| LL-DL07-9.5 | 9.5 | 61 | 103 | 10 |
| LL-DL07-9.6 | 9.6 | 103 | 10 | |
| LL-DL07-9.7 | 9.7 | 103 | 10 | |
| LL-DL07-9.8 | 9.8 | 103 | 10 | |
| LL-DL07-9.9 | 9.9 | 103 | 10 | |
| LL-DL07-10 | 10 | 103 | 10 | |
| LL-DL07-10.1 | 10.1 | 71 | 118 | 12 |
| LL-DL07-10.2 | 10.2 | 71 | 118 | 12 |
| LL-DL07-10.3 | 10.3 | 71 | 118 | 12 |
| LL-DL07-10.4 | 10.4 | 71 | 118 | 12 |
| LL-DL07-10.5 | 10.5 | 71 | 118 | 12 |
| LL-DL07-10.6 | 10.6 | 71 | 118 | 12 |
| LL-DL07-10.7 | 10.7 | 71 | 118 | 12 |
| LL-DL07-10.8 | 10.8 | 71 | 118 | 12 |
| LL-DL07-10.9 | 10.9 | 71 | 118 | 12 |
| LL-DL07-11 | 11 | 71 | 118 | 12 |
| LL-DL07-11.1 | 11.1 | 71 | 118 | 12 |
| LL-DL07-11.2 | 11.2 | 71 | 118 | 12 |
| LL-DL07-11.3 | 11.3 | 71 | 118 | 12 |
| LL-DL07-11.4 | 11.4 | 71 | 118 | 12 |
| LL-DL07-11.5 | 11.5 | 71 | 118 | 12 |
| LL-DL07-11.6 | 11.6 | 71 | 118 | 12 |
| LL-DL07-11.7 | 11.7 | 71 | 118 | 12 |
| LL-DL07-11.8 | 11.8 | 71 | 118 | 12 |
| LL-DL07-11.9 | 11.9 | |||
| LL-DL07-12 | 12 | 71 | 118 | 12 |
| LL-DL07-12.2 | 12.2 | 77 | 124 | 14 |
| LL-DL07-12.5 | 12.5 | 77 | 124 | 14 |
| LL-DL07-12.7 | 12.7 | 77 | 124 | 14 |
| LL-DL07-12.8 | 12.8 | 77 | 124 | 14 |
| LL-DL07-13 | 13 | 77 | 124 | 14 |
| LL-DL07-13.3 | 13.3 | 77 | 124 | 14 |
| LL-DL07-13.5 | 13.5 | 77 | 124 | 14 |
| LL-DL07-13.7 | 13.7 | 77 | 124 | 14 |
| LL-DL07-13.8 | 13.8 | 77 | 124 | 14 |
| LL-DL07-14 | 14 | 77 | 124 | 14 |
| LL-DL07-14.2 | 14.2 | 83 | 133 | 16 |
| LL-DL07-14.5 | 14.5 | 83 | 133 | 16 |
| LL-DL07-14.8 | 14.8 | 83 | 133 | 16 |
| LL-DL07-15 | 15 | 83 | 133 | 16 |
| LL-DL07-15.1 | 15.1 | 83 | 133 | 16 |
| LL-DL07-15.3 | 15.3 | 83 | 133 | 16 |
| LL-DL07-15.5 | 15.5 | 83 | 133 | 16 |
| LL-DL07-15.8 | 15.8 | 83 | 133 | 16 |
| LL-DL07-16 | 16 | 83 | 133 | 16 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
