This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.
Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

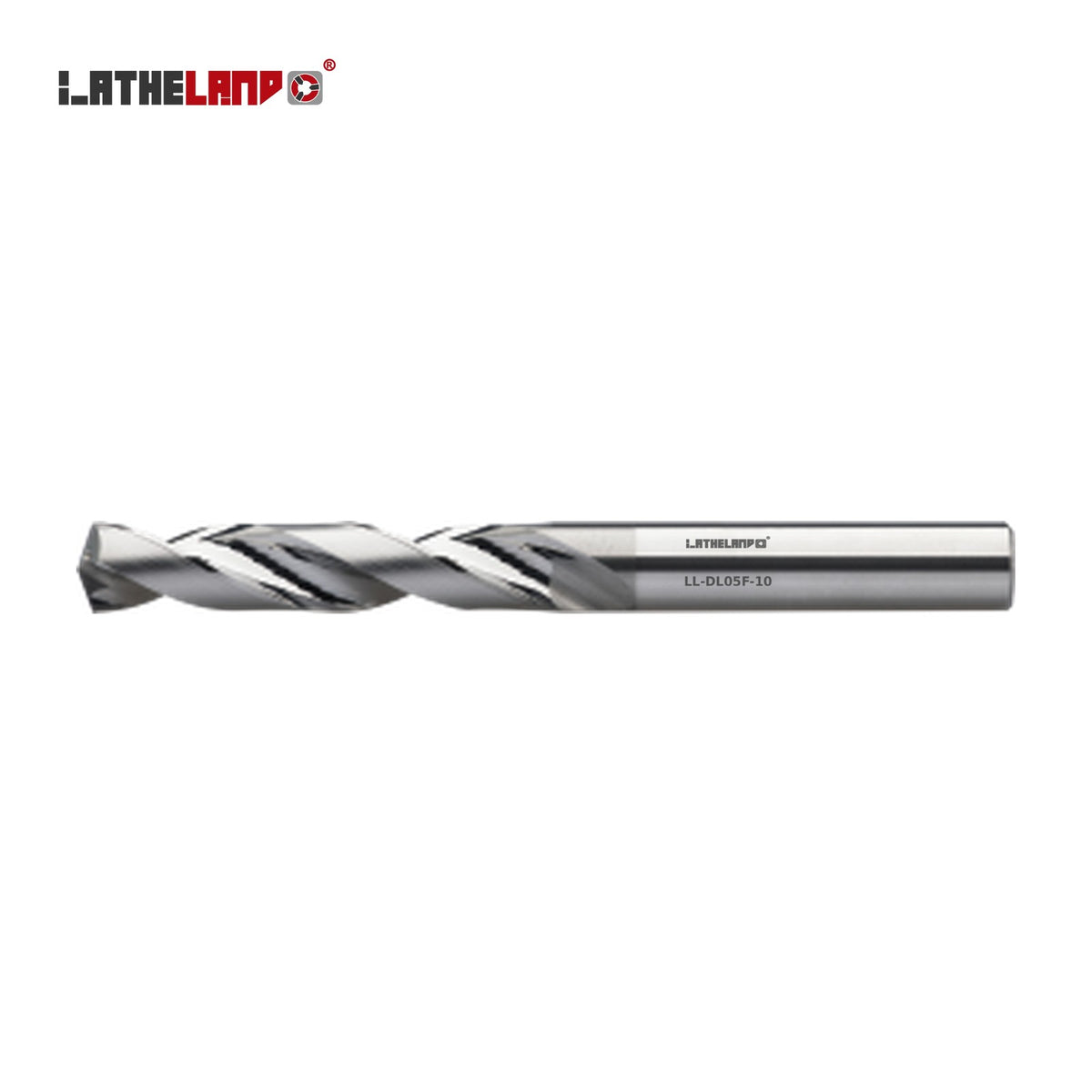

| Series | DL05 |
| Material | Solid carbide |
| Coating | Low-friction (non-ferrous) / Uncoated, polished |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | aluminium & non-ferrous |
| Also suitable for | graphite & plastics |
| Range | Ø1–20 mm |
| Sizes available | 248 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| DL05F | Low-friction (non-ferrous), coolant-through | 124 |
| DL05U | Uncoated, polished, coolant-through | 124 |

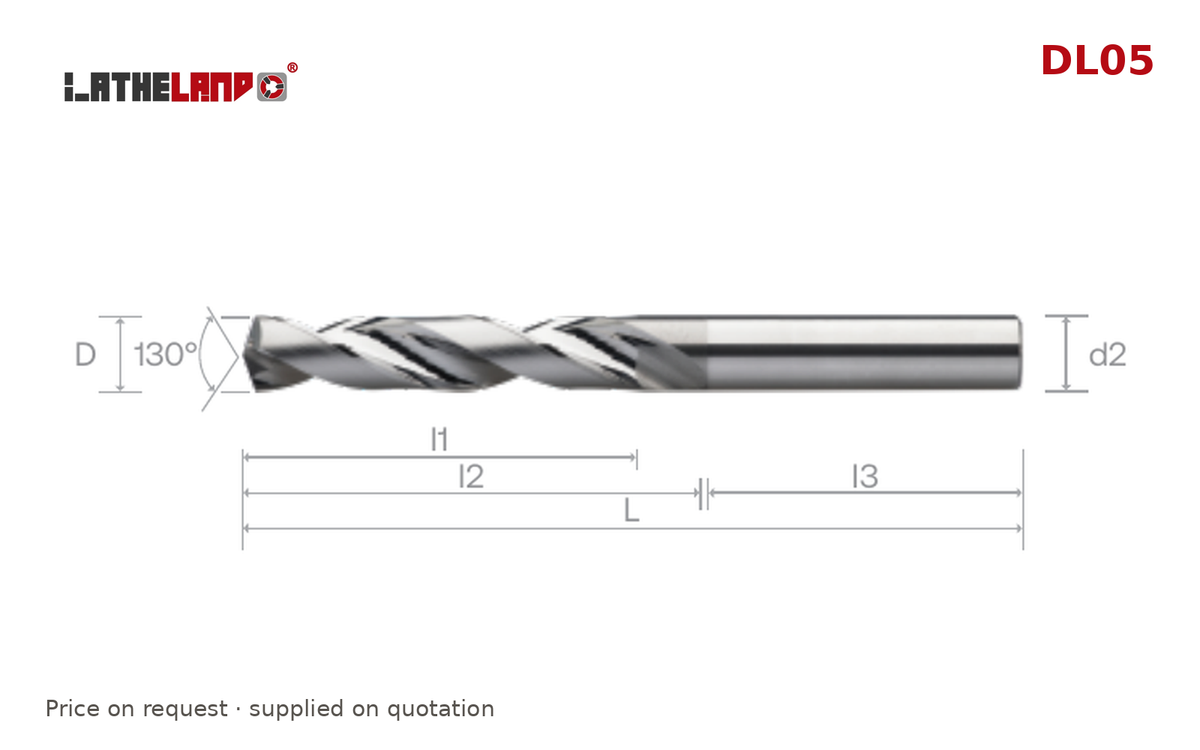

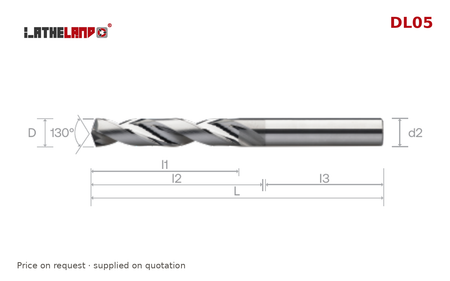

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-DL05F-1 | 1 | ||||
| LL-DL05F-1.1 | 1.1 | ||||
| LL-DL05F-1.2 | 1.2 | ||||
| LL-DL05F-1.3 | 1.3 | ||||
| LL-DL05F-1.4 | 1.4 | ||||
| LL-DL05F-1.5 | 1.5 | ||||
| LL-DL05F-1.6 | 1.6 | ||||
| LL-DL05F-1.7 | 1.7 | ||||
| LL-DL05F-1.8 | 1.8 | ||||
| LL-DL05F-1.9 | 1.9 | ||||
| LL-DL05F-2 | 2 | ||||
| LL-DL05F-2.1 | 2.1 | ||||
| LL-DL05F-2.2 | 2.2 | ||||
| LL-DL05F-2.3 | 2.3 | ||||
| LL-DL05F-2.4 | 2.4 | ||||
| LL-DL05F-2.5 | 2.5 | ||||
| LL-DL05F-2.6 | 2.6 | ||||
| LL-DL05F-2.7 | 2.7 | ||||
| LL-DL05F-2.8 | 2.8 | ||||
| LL-DL05F-2.9 | 2.9 | ||||
| LL-DL05F-3 | 3 | ||||
| LL-DL05F-3.1 | 3.1 | ||||
| LL-DL05F-3.2 | 3.2 | ||||
| LL-DL05F-3.3 | 3.3 | ||||
| LL-DL05F-3.4 | 3.4 | ||||
| LL-DL05F-3.5 | 3.5 | ||||
| LL-DL05F-3.6 | 3.6 | ||||
| LL-DL05F-3.7 | 3.7 | ||||
| LL-DL05F-3.8 | 3.8 | ||||
| LL-DL05F-3.9 | 3.9 | ||||
| LL-DL05F-4 | 4 | ||||
| LL-DL05F-4.1 | 4.1 | ||||
| LL-DL05F-4.2 | 4.2 | ||||
| LL-DL05F-4.3 | 4.3 | ||||
| LL-DL05F-4.4 | 4.4 | ||||
| LL-DL05F-4.5 | 4.5 | ||||
| LL-DL05F-4.6 | 4.6 | ||||
| LL-DL05F-4.7 | 4.7 | ||||
| LL-DL05F-4.8 | 4.8 | ||||
| LL-DL05F-4.9 | 4.9 | ||||
| LL-DL05F-5 | 5 | ||||
| LL-DL05F-5.1 | 5.1 | ||||
| LL-DL05F-5.2 | 5.2 | ||||
| LL-DL05F-5.3 | 5.3 | ||||
| LL-DL05F-5.4 | 5.4 | ||||
| LL-DL05F-5.5 | 5.5 | ||||
| LL-DL05F-5.6 | 5.6 | ||||
| LL-DL05F-5.7 | 5.7 | ||||
| LL-DL05F-5.8 | 5.8 | ||||
| LL-DL05F-5.9 | 5.9 | ||||
| LL-DL05F-6 | 6 | ||||
| LL-DL05F-6.1 | 6.1 | ||||
| LL-DL05F-6.2 | 6.2 | ||||
| LL-DL05F-6.3 | 6.3 | ||||
| LL-DL05F-6.4 | 6.4 | ||||
| LL-DL05F-6.5 | 6.5 | ||||
| LL-DL05F-6.6 | 6.6 | ||||
| LL-DL05F-6.7 | 6.7 | ||||
| LL-DL05F-6.8 | 6.8 | ||||
| LL-DL05F-6.9 | 6.9 | ||||
| LL-DL05F-7 | 7 | ||||
| LL-DL05F-7.1 | 7.1 | ||||
| LL-DL05F-7.2 | 7.2 | ||||
| LL-DL05F-7.3 | 7.3 | ||||
| LL-DL05F-7.4 | 7.4 | ||||
| LL-DL05F-7.5 | 7.5 | ||||
| LL-DL05F-7.6 | 7.6 | ||||
| LL-DL05F-7.7 | 7.7 | ||||
| LL-DL05F-7.8 | 7.8 | ||||
| LL-DL05F-7.9 | 7.9 | ||||
| LL-DL05F-8 | 8 | ||||
| LL-DL05F-8.1 | 8.1 | ||||
| LL-DL05F-8.2 | 8.2 | ||||
| LL-DL05F-8.3 | 8.3 | ||||
| LL-DL05F-8.4 | 8.4 | ||||
| LL-DL05F-8.5 | 8.5 | ||||
| LL-DL05F-8.6 | 8.6 | ||||
| LL-DL05F-8.7 | 8.7 | ||||
| LL-DL05F-8.8 | 8.8 | ||||
| LL-DL05F-8.9 | 8.9 | ||||
| LL-DL05F-9 | 9 | ||||
| LL-DL05F-9.1 | 9.1 | ||||
| LL-DL05F-9.2 | 9.2 | ||||
| LL-DL05F-9.3 | 9.3 | ||||
| LL-DL05F-9.4 | 9.4 | ||||
| LL-DL05F-9.5 | 9.5 | ||||
| LL-DL05F-9.6 | 9.6 | ||||
| LL-DL05F-9.7 | 9.7 | ||||
| LL-DL05F-9.8 | 9.8 | ||||
| LL-DL05F-9.9 | 9.9 | ||||
| LL-DL05F-10 | 10 | ||||
| LL-DL05F-10.2 | 10.2 | ||||
| LL-DL05F-10.5 | 10.5 | ||||
| LL-DL05F-10.8 | 10.8 | ||||
| LL-DL05F-11 | 11 | ||||
| LL-DL05F-11.2 | 11.2 | ||||
| LL-DL05F-11.3 | 11.3 | ||||
| LL-DL05F-11.5 | 11.5 | ||||
| LL-DL05F-11.8 | 11.8 | ||||
| LL-DL05F-12 | 12 | ||||
| LL-DL05F-12.2 | 12.2 | ||||
| LL-DL05F-12.5 | 12.5 | ||||
| LL-DL05F-12.7 | 12.7 | ||||
| LL-DL05F-12.8 | 12.8 | ||||
| LL-DL05F-13 | 13 | ||||
| LL-DL05F-13.3 | 13.3 | ||||
| LL-DL05F-13.5 | 13.5 | ||||
| LL-DL05F-13.7 | 13.7 | ||||
| LL-DL05F-13.8 | 13.8 | ||||
| LL-DL05F-14 | 14 | ||||
| LL-DL05F-14.5 | 14.5 | ||||
| LL-DL05F-15 | 15 | ||||
| LL-DL05F-15.3 | 15.3 | ||||
| LL-DL05F-15.5 | 15.5 | ||||
| LL-DL05F-15.8 | 15.8 | ||||
| LL-DL05F-16 | 16 | ||||
| LL-DL05F-16.5 | 16.5 | ||||
| LL-DL05F-17 | 17 | ||||
| LL-DL05F-17.5 | 17.5 | ||||
| LL-DL05F-18 | 18 | ||||
| LL-DL05F-18.5 | 18.5 | ||||
| LL-DL05F-19 | 19 | ||||
| LL-DL05F-19.5 | 19.5 | ||||
| LL-DL05F-20 | 20 | ||||
| LL-DL05U-1 | 1 | ||||
| LL-DL05U-1.1 | 1.1 | ||||
| LL-DL05U-1.2 | 1.2 | ||||
| LL-DL05U-1.3 | 1.3 | ||||
| LL-DL05U-1.4 | 1.4 | ||||
| LL-DL05U-1.5 | 1.5 | ||||
| LL-DL05U-1.6 | 1.6 | ||||
| LL-DL05U-1.7 | 1.7 | ||||
| LL-DL05U-1.8 | 1.8 | ||||
| LL-DL05U-1.9 | 1.9 | ||||
| LL-DL05U-2 | 2 | ||||
| LL-DL05U-2.1 | 2.1 | ||||
| LL-DL05U-2.2 | 2.2 | ||||
| LL-DL05U-2.3 | 2.3 | ||||
| LL-DL05U-2.4 | 2.4 | ||||
| LL-DL05U-2.5 | 2.5 | ||||
| LL-DL05U-2.6 | 2.6 | ||||
| LL-DL05U-2.7 | 2.7 | ||||
| LL-DL05U-2.8 | 2.8 | ||||
| LL-DL05U-2.9 | 2.9 | ||||
| LL-DL05U-3 | 3 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.1 | 3.1 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.2 | 3.2 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.3 | 3.3 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.4 | 3.4 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.5 | 3.5 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.6 | 3.6 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.7 | 3.7 | 23 | 28 | 66 | 6 |
| LL-DL05U-3.8 | 3.8 | 36 | 74 | 6 | |
| LL-DL05U-3.9 | 3.9 | 29 | 36 | 74 | 6 |
| LL-DL05U-4 | 4 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.1 | 4.1 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.2 | 4.2 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.3 | 4.3 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.4 | 4.4 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.5 | 4.5 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.6 | 4.6 | 29 | 36 | 74 | 6 |
| LL-DL05U-4.7 | 4.7 | 36 | 74 | 6 | |
| LL-DL05U-4.8 | 4.8 | 44 | 82 | 6 | |
| LL-DL05U-4.9 | 4.9 | 44 | 82 | 6 | |
| LL-DL05U-5 | 5 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.1 | 5.1 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.2 | 5.2 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.3 | 5.3 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.4 | 5.4 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.5 | 5.5 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.6 | 5.6 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.7 | 5.7 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.8 | 5.8 | 35 | 44 | 82 | 6 |
| LL-DL05U-5.9 | 5.9 | 35 | 44 | 82 | 6 |
| LL-DL05U-6 | 6 | 44 | 82 | 6 | |
| LL-DL05U-6.1 | 6.1 | 53 | 91 | 8 | |
| LL-DL05U-6.2 | 6.2 | 53 | 91 | 8 | |
| LL-DL05U-6.3 | 6.3 | 53 | 91 | 8 | |
| LL-DL05U-6.4 | 6.4 | 53 | 91 | 8 | |
| LL-DL05U-6.5 | 6.5 | 43 | 53 | 91 | 8 |
| LL-DL05U-6.6 | 6.6 | 43 | 53 | 91 | 8 |
| LL-DL05U-6.7 | 6.7 | 43 | 53 | 91 | 8 |
| LL-DL05U-6.8 | 6.8 | 43 | 53 | 91 | 8 |
| LL-DL05U-6.9 | 6.9 | 43 | 53 | 91 | 8 |
| LL-DL05U-7 | 7 | 43 | 53 | 91 | 8 |
| LL-DL05U-7.1 | 7.1 | 43 | 53 | 91 | 8 |
| LL-DL05U-7.2 | 7.2 | 43 | 53 | 91 | 8 |
| LL-DL05U-7.3 | 7.3 | 43 | 53 | 91 | 8 |
| LL-DL05U-7.4 | 7.4 | 43 | 53 | 91 | 8 |
| LL-DL05U-7.5 | 7.5 | 53 | 91 | 8 | |
| LL-DL05U-7.6 | 7.6 | 53 | 91 | 8 | |
| LL-DL05U-7.7 | 7.7 | 53 | 91 | 8 | |
| LL-DL05U-7.8 | 7.8 | 53 | 91 | 8 | |
| LL-DL05U-7.9 | 7.9 | 43 | 53 | 91 | 8 |
| LL-DL05U-8 | 8 | 43 | 53 | 91 | 8 |
| LL-DL05U-8.1 | 8.1 | 43 | 61 | 103 | 10 |
| LL-DL05U-8.2 | 8.2 | 43 | 61 | 103 | 10 |
| LL-DL05U-8.3 | 8.3 | 43 | 61 | 103 | 10 |
| LL-DL05U-8.4 | 8.4 | 43 | 61 | 103 | 10 |
| LL-DL05U-8.5 | 8.5 | 61 | 103 | 10 | |
| LL-DL05U-8.6 | 8.6 | 49 | 61 | 103 | 10 |
| LL-DL05U-8.7 | 8.7 | 49 | 61 | 103 | 10 |
| LL-DL05U-8.8 | 8.8 | 49 | 61 | 103 | 10 |
| LL-DL05U-8.9 | 8.9 | 49 | 61 | 103 | 10 |
| LL-DL05U-9 | 9 | 49 | 61 | 103 | 10 |
| LL-DL05U-9.1 | 9.1 | 49 | 61 | 103 | 10 |
| LL-DL05U-9.2 | 9.2 | 49 | 61 | 103 | 10 |
| LL-DL05U-9.3 | 9.3 | 49 | 61 | 103 | 10 |
| LL-DL05U-9.4 | 9.4 | 49 | 61 | 103 | 10 |
| LL-DL05U-9.5 | 9.5 | 49 | 61 | 103 | 10 |
| LL-DL05U-9.6 | 9.6 | 61 | 103 | 10 | |
| LL-DL05U-9.7 | 9.7 | 61 | 103 | 10 | |
| LL-DL05U-9.8 | 9.8 | 61 | 103 | 10 | |
| LL-DL05U-9.9 | 9.9 | 61 | 103 | 10 | |
| LL-DL05U-10 | 10 | 56 | 61 | 103 | 10 |
| LL-DL05U-10.2 | 10.2 | 56 | 71 | 118 | 12 |
| LL-DL05U-10.5 | 10.5 | 56 | 71 | 118 | 12 |
| LL-DL05U-10.8 | 10.8 | 56 | 71 | 118 | 12 |
| LL-DL05U-11 | 11 | 56 | 71 | 118 | 12 |
| LL-DL05U-11.2 | 11.2 | 56 | 71 | 118 | 12 |
| LL-DL05U-11.3 | 11.3 | 56 | 71 | 118 | 12 |
| LL-DL05U-11.5 | 11.5 | 56 | 71 | 118 | 12 |
| LL-DL05U-11.8 | 11.8 | 56 | 71 | 118 | 12 |
| LL-DL05U-12 | 12 | 56 | 71 | 118 | 12 |
| LL-DL05U-12.2 | 12.2 | 60 | 77 | 124 | 14 |
| LL-DL05U-12.5 | 12.5 | 60 | 77 | 124 | 14 |
| LL-DL05U-12.7 | 12.7 | 60 | 77 | 124 | 14 |
| LL-DL05U-12.8 | 12.8 | 60 | 77 | 124 | 14 |
| LL-DL05U-13 | 13 | 60 | 77 | 124 | 14 |
| LL-DL05U-13.3 | 13.3 | 60 | 77 | 124 | 14 |
| LL-DL05U-13.5 | 13.5 | 60 | 77 | 124 | 14 |
| LL-DL05U-13.7 | 13.7 | 60 | 77 | 124 | 14 |
| LL-DL05U-13.8 | 13.8 | 60 | 77 | 124 | 14 |
| LL-DL05U-14 | 14 | 63 | 77 | 124 | 14 |
| LL-DL05U-14.5 | 14.5 | 63 | 83 | 133 | 16 |
| LL-DL05U-15 | 15 | 63 | 83 | 133 | 16 |
| LL-DL05U-15.3 | 15.3 | 63 | 83 | 133 | 16 |
| LL-DL05U-15.5 | 15.5 | 63 | 83 | 133 | 16 |
| LL-DL05U-15.8 | 15.8 | 63 | 83 | 133 | 16 |
| LL-DL05U-16 | 16 | 63 | 83 | 133 | 16 |
| LL-DL05U-16.5 | 16.5 | 63 | 93 | 143 | 18 |
| LL-DL05U-17 | 17 | 71 | 93 | 143 | 18 |
| LL-DL05U-17.5 | 17.5 | 71 | 93 | 143 | 18 |
| LL-DL05U-18 | 18 | 71 | 93 | 143 | 18 |
| LL-DL05U-18.5 | 18.5 | 71 | 101 | 153 | 20 |
| LL-DL05U-19 | 19 | 71 | 101 | 153 | 20 |
| LL-DL05U-19.5 | 19.5 | 71 | 101 | 153 | 20 |
| LL-DL05U-20 | 20 | 71 | 101 | 153 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
