Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

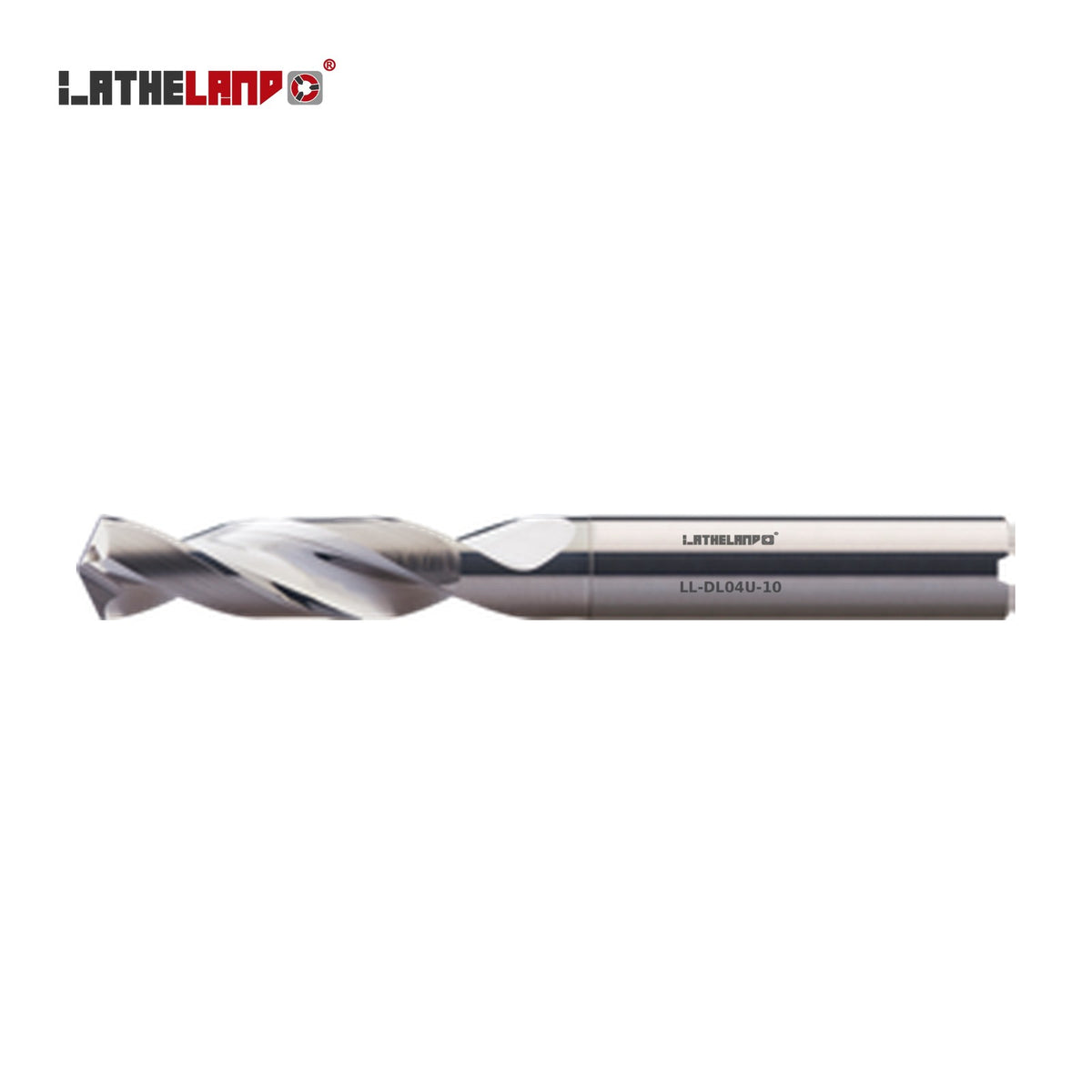

| Series | DL04 |
| Material | Solid carbide |
| Coating | Uncoated, polished / Low-friction (non-ferrous) |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | aluminium & non-ferrous, graphite & plastics |
| Range | Ø3–20 mm |
| Sizes available | 208 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| DL04U | Uncoated, polished, coolant-through | 104 |
| DL04F | Low-friction (non-ferrous), coolant-through | 104 |

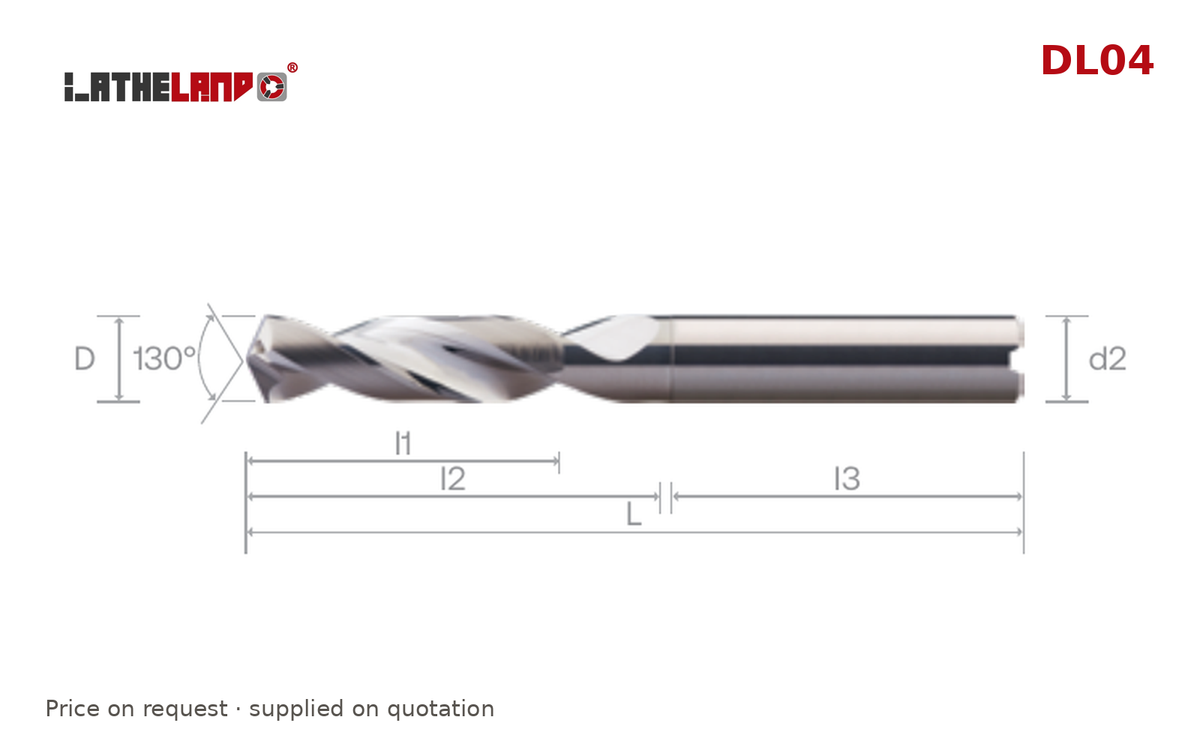

| SKU | Ø D | l1 | l2 | L | d2 |
|---|---|---|---|---|---|
| LL-DL04U-3 | 3 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.1 | 3.1 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.2 | 3.2 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.3 | 3.3 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.4 | 3.4 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.5 | 3.5 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.6 | 3.6 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.7 | 3.7 | 14 | 20 | 62 | 6 |
| LL-DL04U-3.8 | 3.8 | 24 | 66 | 6 | |
| LL-DL04U-3.9 | 3.9 | 17 | 24 | 66 | 6 |
| LL-DL04U-4 | 4 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.1 | 4.1 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.2 | 4.2 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.3 | 4.3 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.4 | 4.4 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.5 | 4.5 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.6 | 4.6 | 17 | 24 | 66 | 6 |
| LL-DL04U-4.7 | 4.7 | 24 | 66 | 6 | |
| LL-DL04U-4.8 | 4.8 | 28 | 66 | 6 | |
| LL-DL04U-4.9 | 4.9 | 28 | 66 | 6 | |
| LL-DL04U-5 | 5 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.1 | 5.1 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.2 | 5.2 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.3 | 5.3 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.4 | 5.4 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.5 | 5.5 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.6 | 5.6 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.7 | 5.7 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.8 | 5.8 | 20 | 28 | 66 | 6 |
| LL-DL04U-5.9 | 5.9 | 20 | 28 | 66 | 6 |
| LL-DL04U-6 | 6 | 28 | 66 | 6 | |
| LL-DL04U-6.1 | 6.1 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.2 | 6.2 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.3 | 6.3 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.4 | 6.4 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.5 | 6.5 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.6 | 6.6 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.7 | 6.7 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.8 | 6.8 | 24 | 34 | 79 | 8 |
| LL-DL04U-6.9 | 6.9 | 24 | 34 | 79 | 8 |
| LL-DL04U-7 | 7 | 24 | 34 | 79 | 8 |
| LL-DL04U-7.1 | 7.1 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.2 | 7.2 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.3 | 7.3 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.4 | 7.4 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.5 | 7.5 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.6 | 7.6 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.7 | 7.7 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.8 | 7.8 | 29 | 41 | 79 | 8 |
| LL-DL04U-7.9 | 7.9 | 29 | 41 | 79 | 8 |
| LL-DL04U-8 | 8 | 29 | 41 | 79 | 8 |
| LL-DL04U-8.1 | 8.1 | 29 | 47 | 89 | 10 |
| LL-DL04U-8.2 | 8.2 | 29 | 47 | 89 | 10 |
| LL-DL04U-8.3 | 8.3 | 29 | 47 | 89 | 10 |
| LL-DL04U-8.4 | 8.4 | 29 | 47 | 89 | 10 |
| LL-DL04U-8.5 | 8.5 | 47 | 89 | 10 | |
| LL-DL04U-8.6 | 8.6 | 35 | 47 | 89 | 10 |
| LL-DL04U-8.7 | 8.7 | 35 | 47 | 89 | 10 |
| LL-DL04U-8.8 | 8.8 | 35 | 47 | 89 | 10 |
| LL-DL04U-8.9 | 8.9 | 35 | 47 | 89 | 10 |
| LL-DL04U-9 | 9 | 35 | 47 | 89 | 10 |
| LL-DL04U-9.1 | 9.1 | 35 | 47 | 89 | 10 |
| LL-DL04U-9.2 | 9.2 | 35 | 47 | 89 | 10 |
| LL-DL04U-9.3 | 9.3 | 35 | 47 | 89 | 10 |
| LL-DL04U-9.4 | 9.4 | 35 | 47 | 89 | 10 |
| LL-DL04U-9.5 | 9.5 | 35 | 47 | 89 | 10 |
| LL-DL04U-9.6 | 9.6 | 47 | 89 | 10 | |
| LL-DL04U-9.7 | 9.7 | 47 | 89 | 10 | |
| LL-DL04U-9.8 | 9.8 | 47 | 89 | 10 | |
| LL-DL04U-9.9 | 9.9 | 47 | 89 | 10 | |
| LL-DL04U-10 | 10 | 40 | 47 | 89 | 10 |
| LL-DL04U-10.2 | 10.2 | 40 | 55 | 102 | 12 |
| LL-DL04U-10.5 | 10.5 | 40 | 55 | 102 | 12 |
| LL-DL04U-10.8 | 10.8 | 40 | 55 | 102 | 12 |
| LL-DL04U-11 | 11 | 40 | 55 | 102 | 12 |
| LL-DL04U-11.2 | 11.2 | 40 | 55 | 102 | 12 |
| LL-DL04U-11.3 | 11.3 | 40 | 55 | 102 | 12 |
| LL-DL04U-11.5 | 11.5 | 40 | 55 | 102 | 12 |
| LL-DL04U-11.8 | 11.8 | 40 | 55 | 102 | 12 |
| LL-DL04U-12 | 12 | 40 | 55 | 102 | 12 |
| LL-DL04U-12.2 | 12.2 | 43 | 60 | 107 | 14 |
| LL-DL04U-12.5 | 12.5 | 43 | 60 | 107 | 14 |
| LL-DL04U-12.7 | 12.7 | 43 | 60 | 107 | 14 |
| LL-DL04U-12.8 | 12.8 | 43 | 60 | 107 | 14 |
| LL-DL04U-13 | 13 | 43 | 60 | 107 | 14 |
| LL-DL04U-13.3 | 13.3 | 43 | 60 | 107 | 14 |
| LL-DL04U-13.5 | 13.5 | 43 | 60 | 107 | 14 |
| LL-DL04U-13.7 | 13.7 | 43 | 60 | 107 | 14 |
| LL-DL04U-13.8 | 13.8 | 43 | 60 | 107 | 14 |
| LL-DL04U-14 | 14 | 45 | 60 | 107 | 14 |
| LL-DL04U-14.5 | 14.5 | 45 | 65 | 115 | 16 |
| LL-DL04U-15 | 15 | 45 | 65 | 115 | 16 |
| LL-DL04U-15.3 | 15.3 | 45 | 65 | 115 | 16 |
| LL-DL04U-15.5 | 15.5 | 45 | 65 | 115 | 16 |
| LL-DL04U-15.8 | 15.8 | 45 | 65 | 115 | 16 |
| LL-DL04U-16 | 16 | 45 | 65 | 115 | 16 |
| LL-DL04U-16.5 | 16.5 | 51 | 73 | 123 | 18 |
| LL-DL04U-17 | 17 | 51 | 73 | 123 | 18 |
| LL-DL04U-17.5 | 17.5 | 51 | 73 | 123 | 18 |
| LL-DL04U-18 | 18 | 51 | 73 | 123 | 18 |
| LL-DL04U-18.5 | 18.5 | 55 | 79 | 131 | 20 |
| LL-DL04U-19 | 19 | 55 | 79 | 131 | 20 |
| LL-DL04U-19.5 | 19.5 | 55 | 79 | 131 | 20 |
| LL-DL04U-20 | 20 | 55 | 79 | 131 | 20 |
| LL-DL04F-3 | 3 | ||||
| LL-DL04F-3.1 | 3.1 | ||||
| LL-DL04F-3.2 | 3.2 | ||||
| LL-DL04F-3.3 | 3.3 | ||||
| LL-DL04F-3.4 | 3.4 | ||||
| LL-DL04F-3.5 | 3.5 | ||||
| LL-DL04F-3.6 | 3.6 | ||||
| LL-DL04F-3.7 | 3.7 | ||||
| LL-DL04F-3.8 | 3.8 | ||||
| LL-DL04F-3.9 | 3.9 | ||||
| LL-DL04F-4 | 4 | ||||
| LL-DL04F-4.1 | 4.1 | ||||
| LL-DL04F-4.2 | 4.2 | ||||
| LL-DL04F-4.3 | 4.3 | ||||
| LL-DL04F-4.4 | 4.4 | ||||
| LL-DL04F-4.5 | 4.5 | ||||
| LL-DL04F-4.6 | 4.6 | ||||
| LL-DL04F-4.7 | 4.7 | ||||
| LL-DL04F-4.8 | 4.8 | ||||
| LL-DL04F-4.9 | 4.9 | ||||
| LL-DL04F-5 | 5 | ||||
| LL-DL04F-5.1 | 5.1 | ||||
| LL-DL04F-5.2 | 5.2 | ||||
| LL-DL04F-5.3 | 5.3 | ||||
| LL-DL04F-5.4 | 5.4 | ||||
| LL-DL04F-5.5 | 5.5 | ||||
| LL-DL04F-5.6 | 5.6 | ||||
| LL-DL04F-5.7 | 5.7 | ||||
| LL-DL04F-5.8 | 5.8 | ||||
| LL-DL04F-5.9 | 5.9 | ||||
| LL-DL04F-6 | 6 | ||||
| LL-DL04F-6.1 | 6.1 | ||||
| LL-DL04F-6.2 | 6.2 | ||||
| LL-DL04F-6.3 | 6.3 | ||||
| LL-DL04F-6.4 | 6.4 | ||||
| LL-DL04F-6.5 | 6.5 | ||||
| LL-DL04F-6.6 | 6.6 | ||||
| LL-DL04F-6.7 | 6.7 | ||||
| LL-DL04F-6.8 | 6.8 | ||||
| LL-DL04F-6.9 | 6.9 | ||||
| LL-DL04F-7 | 7 | ||||
| LL-DL04F-7.1 | 7.1 | ||||
| LL-DL04F-7.2 | 7.2 | ||||
| LL-DL04F-7.3 | 7.3 | ||||
| LL-DL04F-7.4 | 7.4 | ||||
| LL-DL04F-7.5 | 7.5 | ||||
| LL-DL04F-7.6 | 7.6 | ||||
| LL-DL04F-7.7 | 7.7 | ||||
| LL-DL04F-7.8 | 7.8 | ||||
| LL-DL04F-7.9 | 7.9 | ||||
| LL-DL04F-8 | 8 | ||||
| LL-DL04F-8.1 | 8.1 | ||||
| LL-DL04F-8.2 | 8.2 | ||||
| LL-DL04F-8.3 | 8.3 | ||||
| LL-DL04F-8.4 | 8.4 | ||||
| LL-DL04F-8.5 | 8.5 | ||||
| LL-DL04F-8.6 | 8.6 | ||||
| LL-DL04F-8.7 | 8.7 | ||||
| LL-DL04F-8.8 | 8.8 | ||||
| LL-DL04F-8.9 | 8.9 | ||||
| LL-DL04F-9 | 9 | ||||
| LL-DL04F-9.1 | 9.1 | ||||
| LL-DL04F-9.2 | 9.2 | ||||
| LL-DL04F-9.3 | 9.3 | ||||
| LL-DL04F-9.4 | 9.4 | ||||
| LL-DL04F-9.5 | 9.5 | ||||
| LL-DL04F-9.6 | 9.6 | ||||
| LL-DL04F-9.7 | 9.7 | ||||
| LL-DL04F-9.8 | 9.8 | ||||
| LL-DL04F-9.9 | 9.9 | ||||
| LL-DL04F-10 | 10 | ||||
| LL-DL04F-10.2 | 10.2 | ||||
| LL-DL04F-10.5 | 10.5 | ||||
| LL-DL04F-10.8 | 10.8 | ||||
| LL-DL04F-11 | 11 | ||||
| LL-DL04F-11.2 | 11.2 | ||||
| LL-DL04F-11.3 | 11.3 | ||||
| LL-DL04F-11.5 | 11.5 | ||||
| LL-DL04F-11.8 | 11.8 | ||||
| LL-DL04F-12 | 12 | ||||
| LL-DL04F-12.2 | 12.2 | ||||
| LL-DL04F-12.5 | 12.5 | ||||
| LL-DL04F-12.7 | 12.7 | ||||
| LL-DL04F-12.8 | 12.8 | ||||
| LL-DL04F-13 | 13 | ||||
| LL-DL04F-13.3 | 13.3 | ||||
| LL-DL04F-13.5 | 13.5 | ||||
| LL-DL04F-13.7 | 13.7 | ||||
| LL-DL04F-13.8 | 13.8 | ||||
| LL-DL04F-14 | 14 | ||||
| LL-DL04F-14.5 | 14.5 | ||||
| LL-DL04F-15 | 15 | ||||
| LL-DL04F-15.3 | 15.3 | ||||
| LL-DL04F-15.5 | 15.5 | ||||
| LL-DL04F-15.8 | 15.8 | ||||
| LL-DL04F-16 | 16 | ||||
| LL-DL04F-16.5 | 16.5 | ||||
| LL-DL04F-17 | 17 | ||||
| LL-DL04F-17.5 | 17.5 | ||||
| LL-DL04F-18 | 18 | ||||
| LL-DL04F-18.5 | 18.5 | ||||
| LL-DL04F-19 | 19 | ||||
| LL-DL04F-19.5 | 19.5 | ||||
| LL-DL04F-20 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
