Drills & spot drills: Twist drills from 3×D to 30×D, coolant-through and economy versions, NC spot drills, flat-bottom and hard-material drills.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.

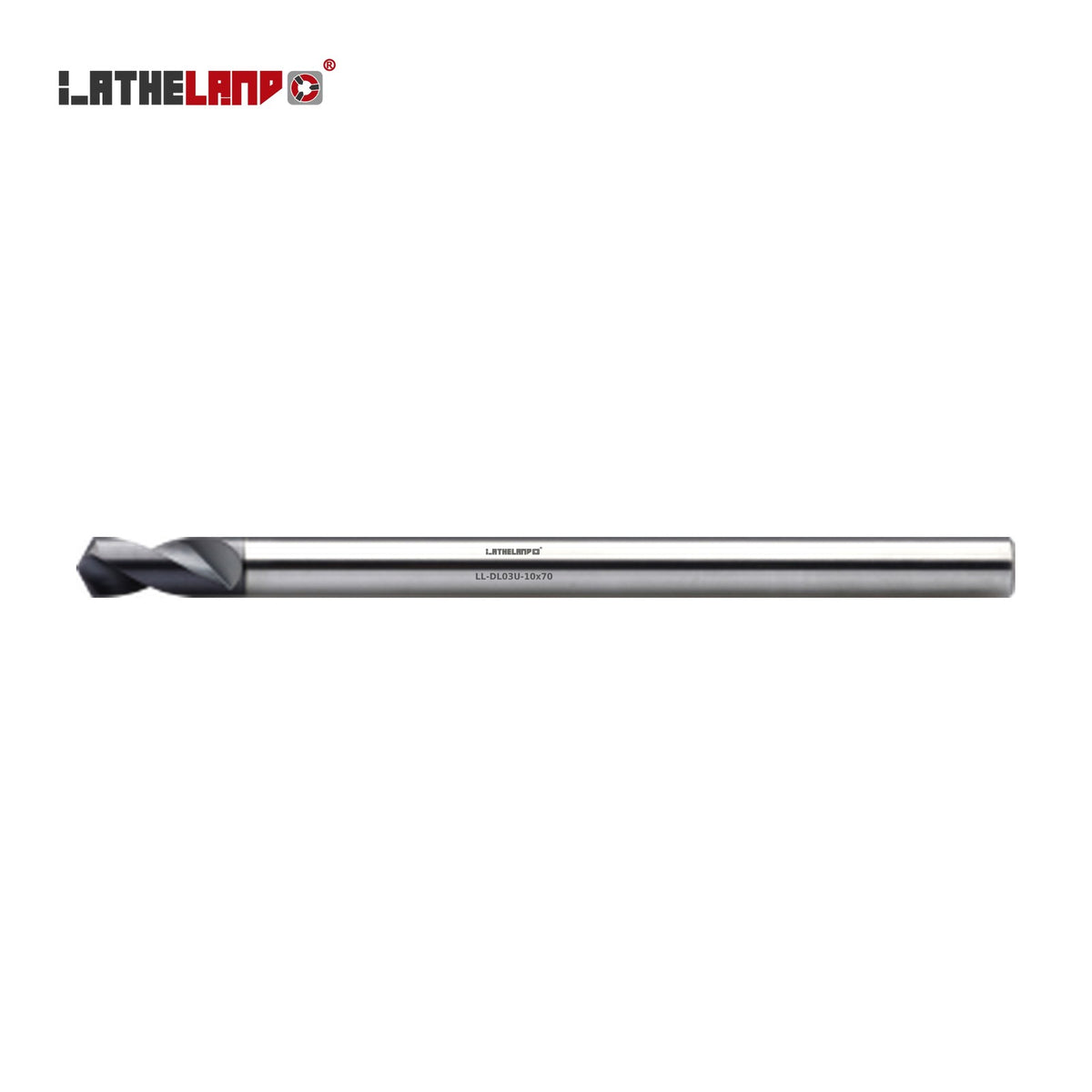

| Series | DL03 |
| Material | Solid carbide |
| Coating | Uncoated, polished / AlTiN |
| Flutes | 2 |
| Helix angle | 30° |
| Best for | steel, stainless steel, cast iron, aluminium & non-ferrous, titanium & superalloys, graphite & plastics |
| Range | Ø3–16 mm |
| Sizes available | 50 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| DL03U | Uncoated, polished | 25 |
| DL03A | AlTiN | 25 |

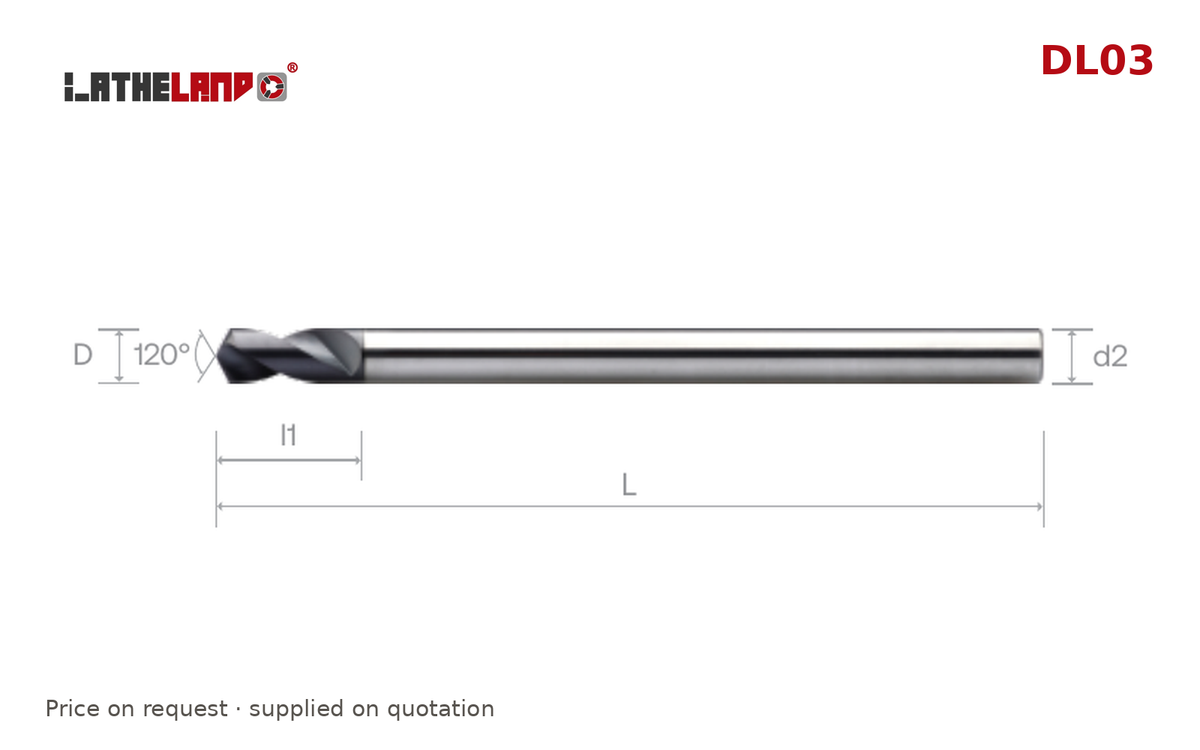

| SKU | Ø D | l1 | L | d2 |
|---|---|---|---|---|
| LL-DL03U-3x40 | 3 | 6 | 40 | 3 |
| LL-DL03U-3x60 | 3 | 6 | 60 | 3 |
| LL-DL03U-3x100 | 3 | 6 | 100 | 3 |
| LL-DL03U-4x50 | 4 | 8 | 50 | 4 |
| LL-DL03U-4x75 | 4 | 8 | 75 | 4 |
| LL-DL03U-4x100 | 4 | 8 | 100 | 4 |
| LL-DL03U-5x50 | 5 | 12 | 50 | 5 |
| LL-DL03U-5x75 | 5 | 75 | ||
| LL-DL03U-5x100 | 5 | 12 | 100 | 5 |
| LL-DL03U-6x50 | 6 | 16 | 50 | 6 |
| LL-DL03U-6x75 | 6 | 16 | 75 | 6 |
| LL-DL03U-6x100 | 6 | 16 | 100 | 6 |
| LL-DL03U-8x64 | 8 | 20 | 64 | 8 |
| LL-DL03U-8x100 | 8 | 20 | 100 | 8 |
| LL-DL03U-10x70 | 10 | 25 | 70 | 10 |
| LL-DL03U-10x100 | 10 | 25 | 100 | 10 |
| LL-DL03U-10x125 | 10 | 25 | 125 | 10 |
| LL-DL03U-10x150 | 10 | 150 | ||
| LL-DL03U-12x75 | 12 | 25 | 75 | 12 |
| LL-DL03U-12x100 | 12 | 25 | 100 | 12 |
| LL-DL03U-12x125 | 12 | 25 | 125 | 12 |
| LL-DL03U-12x150 | 12 | 25 | 150 | 12 |
| LL-DL03U-16x90 | 16 | 26 | 90 | 16 |
| LL-DL03U-16x125 | 16 | 26 | 125 | 16 |
| LL-DL03U-16x150 | 16 | 26 | 150 | 16 |
| LL-DL03A-3x40 | 3 | 6 | 40 | 3 |
| LL-DL03A-3x60 | 3 | 6 | 60 | 3 |
| LL-DL03A-3x100 | 3 | 6 | 100 | 3 |
| LL-DL03A-4x50 | 4 | 8 | 50 | 4 |
| LL-DL03A-4x75 | 4 | 8 | 75 | 4 |
| LL-DL03A-4x100 | 4 | 8 | 100 | 4 |
| LL-DL03A-5x50 | 5 | 12 | 50 | 5 |
| LL-DL03A-5x75 | 5 | 12 | 75 | 5 |
| LL-DL03A-5x100 | 5 | 12 | 100 | 5 |
| LL-DL03A-6x50 | 6 | 16 | 50 | 6 |
| LL-DL03A-6x75 | 6 | 16 | 75 | 6 |
| LL-DL03A-6x100 | 6 | 16 | 100 | 6 |
| LL-DL03A-8x64 | 8 | 20 | 64 | 8 |
| LL-DL03A-8x100 | 8 | 20 | 100 | 8 |
| LL-DL03A-10x70 | 10 | 25 | 70 | 10 |
| LL-DL03A-10x100 | 10 | 25 | 100 | 10 |
| LL-DL03A-10x125 | 10 | 25 | 125 | 10 |
| LL-DL03A-10x150 | 10 | 25 | 150 | 10 |
| LL-DL03A-12x75 | 12 | 25 | 75 | 12 |
| LL-DL03A-12x100 | 12 | 25 | 100 | 12 |
| LL-DL03A-12x125 | 12 | 25 | 125 | 12 |
| LL-DL03A-12x150 | 12 | 25 | 150 | 12 |
| LL-DL03A-16x90 | 16 | 26 | 90 | 16 |
| LL-DL03A-16x125 | 16 | 26 | 125 | 16 |
| LL-DL03A-16x150 | 16 | 26 | 150 | 16 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
