This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

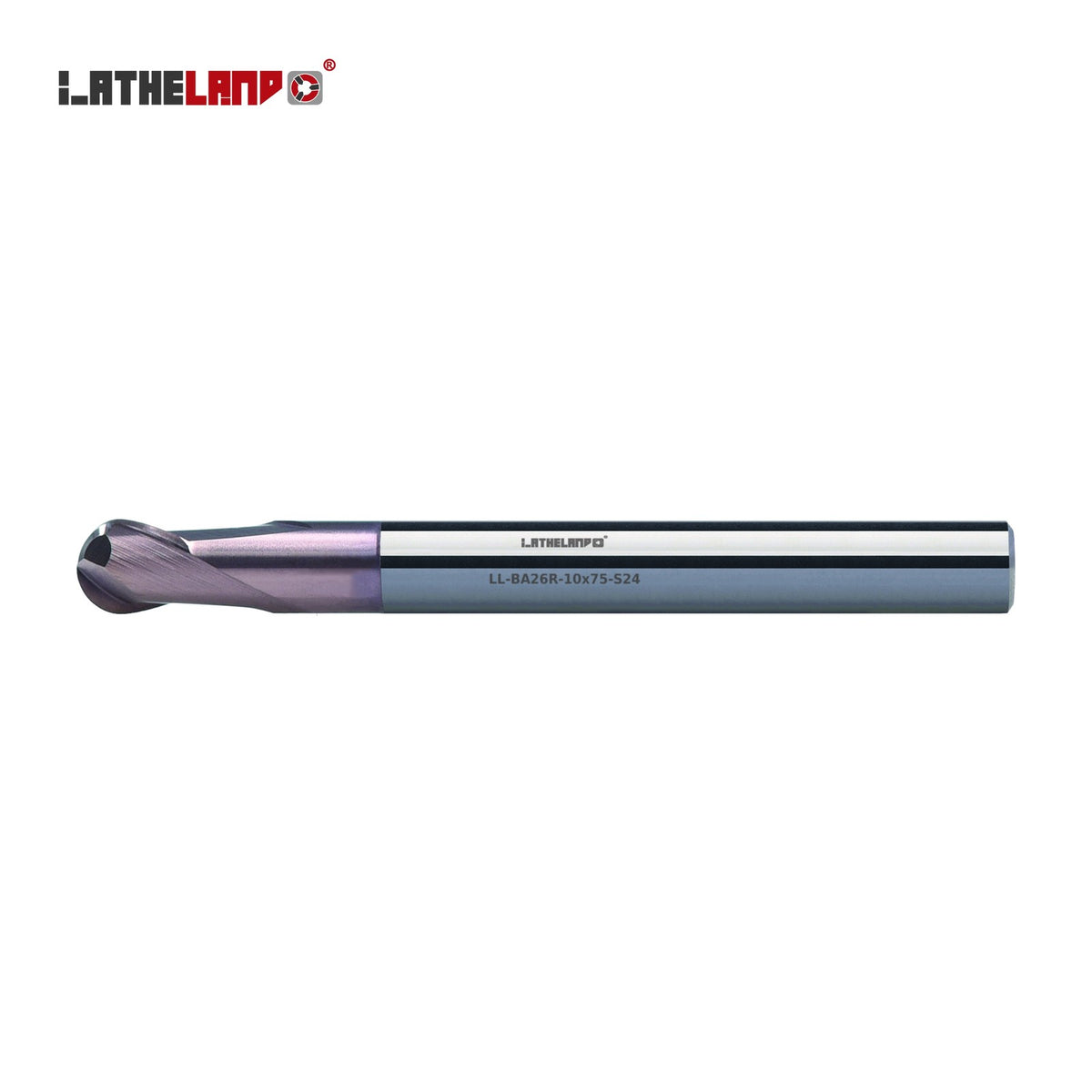

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
Also available from stock with online prices: Hard-Milling Ball Nose End Mill, 2 Flutes (BN2).
| Series | BA26 |
| Material | Solid carbide |
| Coating | AlTiSiN multilayer |
| Flutes | 2 |
| Workpiece hardness | 50–70 HRC |
| Best for | hardened steel |
| Also suitable for | steel |
| Range | Ø1–12 mm |
| Sizes available | 36 |
| Price | On request – supplied on quotation |

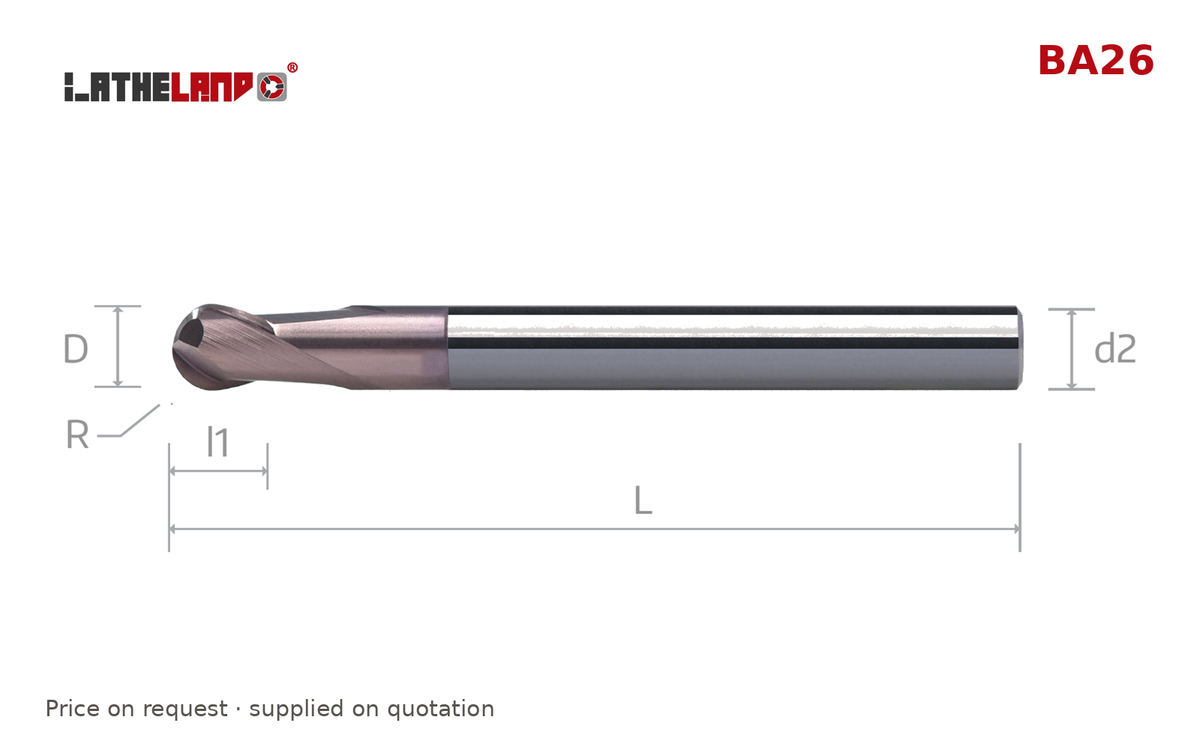

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-BA26R-1x50-S4 | 1 | 0.5 | 1 | 3 | 50 | 4 |
| LL-BA26R-1x50-S6 | 1 | 0.5 | 1 | 5 | 50 | 6 |
| LL-BA26R-1.5x50-S4-C3 | 1.5 | 0.75 | 50 | 4 | ||
| LL-BA26R-1.5x50-S4 | 1.5 | 0.75 | 1.5 | 4.5 | 50 | 4 |
| LL-BA26R-1.5x50-S6 | 1.5 | 0.75 | 1.5 | 7.5 | 50 | 6 |
| LL-BA26R-2x50-S4-C4 | 2 | 1 | 50 | 4 | ||
| LL-BA26R-2x50-S4 | 2 | 1 | 2 | 6 | 50 | 4 |
| LL-BA26R-2x50-S6 | 2 | 1 | 2 | 10 | 50 | 6 |
| LL-BA26R-2.5x50-S4 | 2.5 | 1.25 | 2.5 | 7.5 | 50 | 4 |
| LL-BA26R-2.5x50-S6 | 2.5 | 1.25 | 2.5 | 12.5 | 50 | 6 |
| LL-BA26R-3x50-S4-C6 | 3 | 1.5 | 50 | 4 | ||
| LL-BA26R-3x50-S4 | 3 | 1.5 | 3 | 9 | 50 | 4 |
| LL-BA26R-3x50-S6 | 3 | 1.5 | 3 | 15 | 50 | 6 |
| LL-BA26R-4x50-S4-C8 | 4 | 2 | 50 | 4 | ||
| LL-BA26R-4x50-S4 | 4 | 2 | 4 | 12 | 50 | 4 |
| LL-BA26R-4x60-S6 | 4 | 2 | 4 | 20 | 60 | 6 |
| LL-BA26R-5x60-S6 | 5 | 2.5 | 5 | 20 | 60 | 6 |
| LL-BA26R-6x60-S12 | 6 | 3 | 60 | 12 | ||
| LL-BA26R-6x60-S18 | 6 | 3 | 60 | 18 | ||
| LL-BA26R-6x60 | 6 | 3 | 5 | 24 | 60 | 6 |
| LL-BA26R-6x75-S12 | 6 | 3 | 75 | 12 | ||
| LL-BA26R-6x75 | 6 | 3 | 6 | 24 | 75 | 6 |
| LL-BA26R-6x100 | 6 | 3 | 6 | 24 | 100 | 6 |
| LL-BA26R-8x60-S16 | 8 | 4 | 60 | 16 | ||
| LL-BA26R-8x75 | 8 | 4 | 8 | 24 | 75 | 8 |
| LL-BA26R-8x100 | 8 | 4 | 8 | 24 | 100 | 8 |
| LL-BA26R-10x75-S24 | 10 | 5 | 75 | 24 | ||
| LL-BA26R-10x75 | 10 | 5 | 10 | 30 | 75 | 10 |
| LL-BA26R-10x100-S24 | 10 | 5 | 100 | 24 | ||
| LL-BA26R-10x100 | 10 | 5 | 10 | 30 | 100 | 10 |
| LL-BA26R-10x125 | 10 | 5 | 10 | 30 | 125 | 10 |
| LL-BA26R-10x150 | 10 | 5 | 10 | 30 | 150 | 10 |
| LL-BA26R-12x75-S30 | 12 | 6 | 75 | 30 | ||
| LL-BA26R-12x75 | 12 | 6 | 12 | 36 | 75 | 12 |
| LL-BA26R-12x100 | 12 | 6 | 12 | 36 | 100 | 12 |
| LL-BA26R-12x150 | 12 | 6 | 12 | 36 | 150 | 12 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
