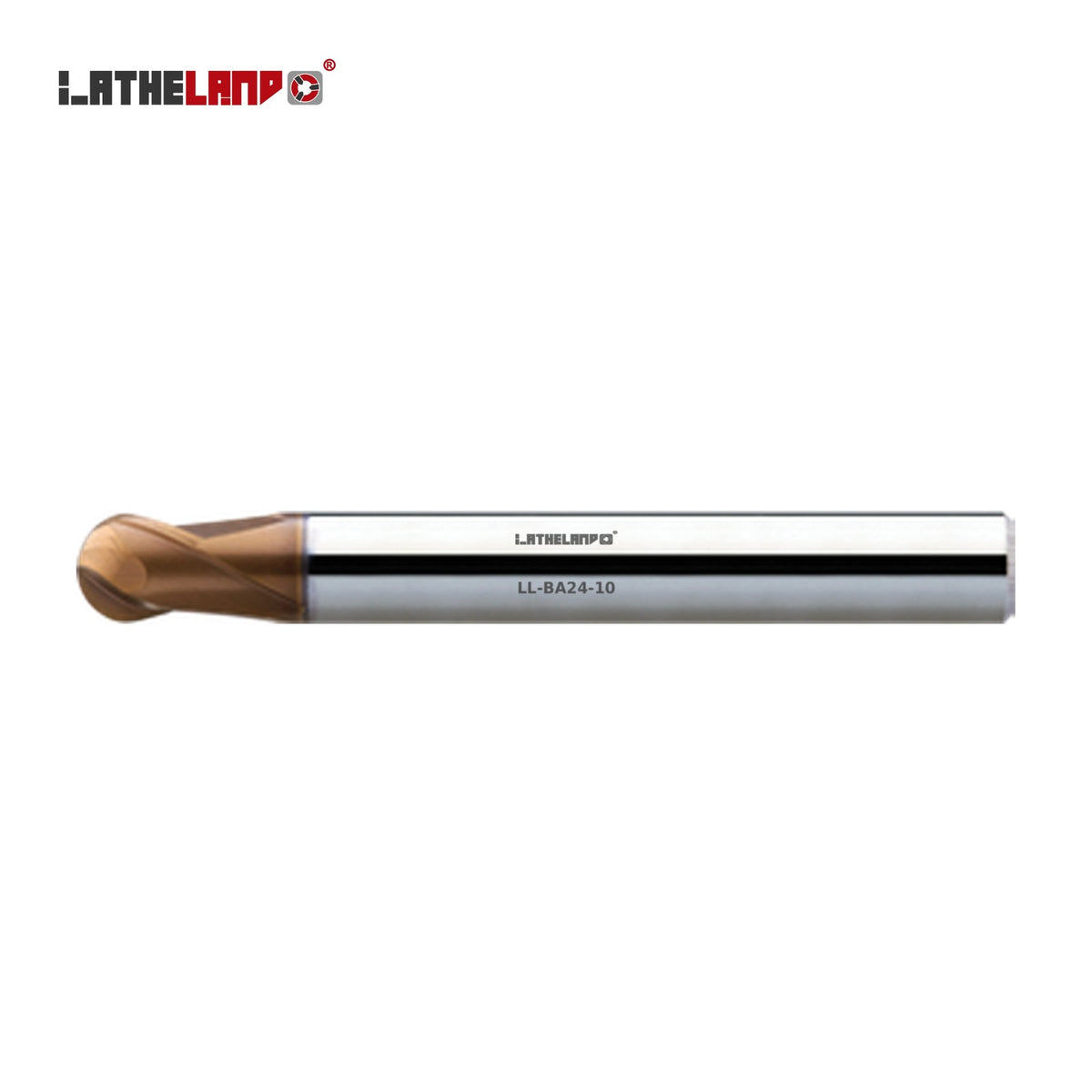

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA24 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 40–60 HRC |
| Best for | steel, hardened steel |
| Range | Ø0.5–20 mm |
| Sizes available | 35 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA24 | TiSiN multilayer | 19 |
| BA24R | TiSiN multilayer, neck recess | 16 |

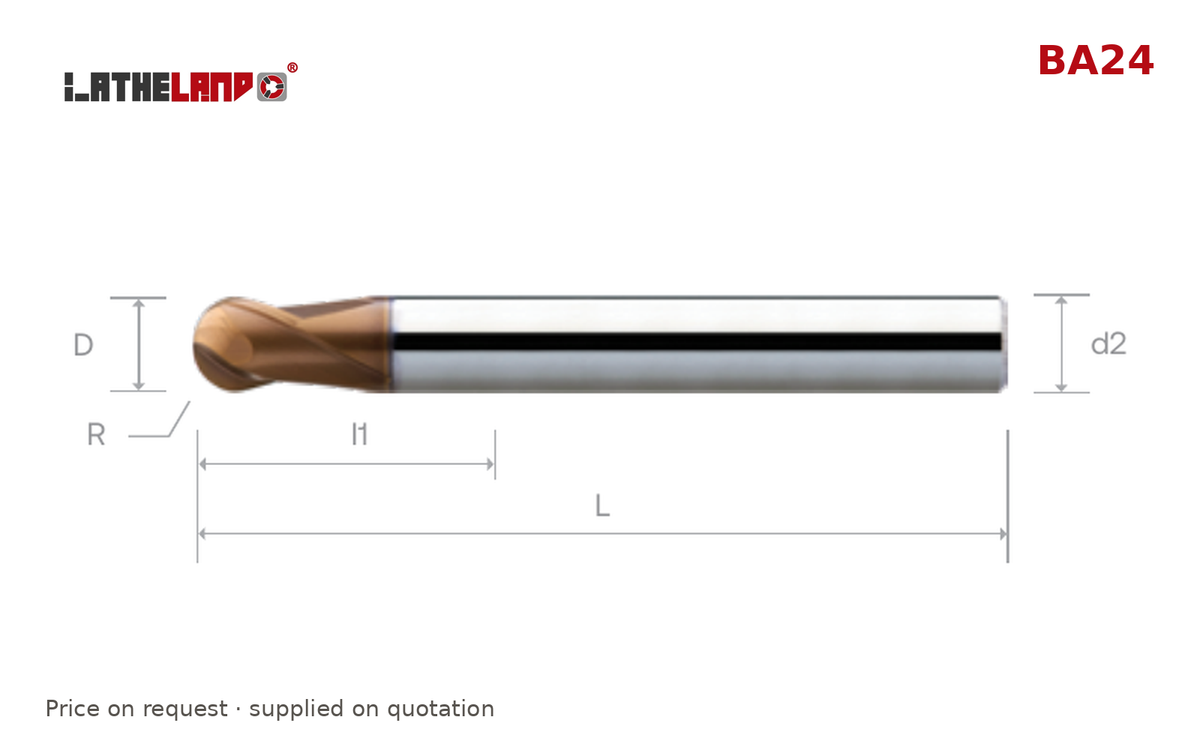

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-BA24-0.5 | 0.5 | 0.25 | 0.5 | 50 | 4 | |
| LL-BA24-0.6 | 0.6 | 0.3 | 0.6 | 50 | 4 | |
| LL-BA24-0.8 | 0.8 | 0.4 | 0.8 | 50 | 4 | |
| LL-BA24-1 | 1 | 0.5 | 1 | 50 | 4 | |
| LL-BA24-1.5 | 1.5 | 0.75 | 1.5 | 50 | 4 | |
| LL-BA24-2 | 2 | 1 | 2 | 50 | 4 | |
| LL-BA24-2.5 | 2.5 | 1.25 | 2.5 | 50 | 4 | |
| LL-BA24-3x50-S4 | 3 | 1.5 | 3 | 50 | 4 | |
| LL-BA24-3x50-S6 | 3 | 1.5 | 3 | 50 | 6 | |
| LL-BA24-4x50-S6 | 4 | 2 | 4 | 50 | 6 | |
| LL-BA24-5x50-S6 | 5 | 2.5 | 5 | 50 | 6 | |
| LL-BA24-6x50 | 6 | 3 | 6 | 50 | 6 | |
| LL-BA24-6x60 | 6 | 3 | 6 | 60 | 6 | |
| LL-BA24-8 | 8 | 4 | 8 | 64 | 8 | |
| LL-BA24-10 | 10 | 5 | 10 | 70 | 10 | |
| LL-BA24-12 | 12 | 6 | 12 | 75 | 12 | |
| LL-BA24-16 | 16 | 8 | 16 | 90 | 16 | |
| LL-BA24-18 | 18 | 9 | 18 | 100 | 18 | |
| LL-BA24-20 | 20 | 10 | 20 | 100 | 20 | |
| LL-BA24R-1 | 1 | 0.5 | 1 | 4 | 50 | 4 |
| LL-BA24R-1.5 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 |
| LL-BA24R-2 | 2 | 1 | 2 | 8 | 50 | 4 |
| LL-BA24R-2.5 | 2.5 | 1.25 | 2.5 | 10 | 50 | 4 |
| LL-BA24R-3x50-S4 | 3 | 1.5 | 3 | 14 | 50 | 4 |
| LL-BA24R-3x50-S6 | 3 | 1.5 | 3 | 14 | 50 | 6 |
| LL-BA24R-4x50-S6 | 4 | 2 | 4 | 20 | 50 | 6 |
| LL-BA24R-5x50-S6 | 5 | 2.5 | 5 | 20 | 50 | 6 |
| LL-BA24R-6x50 | 6 | 3 | 6 | 20 | 50 | 6 |
| LL-BA24R-6x60 | 6 | 3 | 6 | 30 | 60 | 6 |
| LL-BA24R-8 | 8 | 4 | 8 | 30 | 64 | 8 |
| LL-BA24R-10 | 10 | 5 | 10 | 32 | 70 | 10 |
| LL-BA24R-12 | 12 | 6 | 12 | 38 | 75 | 12 |
| LL-BA24R-16 | 16 | 8 | 16 | 46 | 90 | 16 |
| LL-BA24R-18 | 18 | 9 | 18 | 53 | 100 | 18 |
| LL-BA24R-20 | 20 | 10 | 20 | 58 | 100 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
