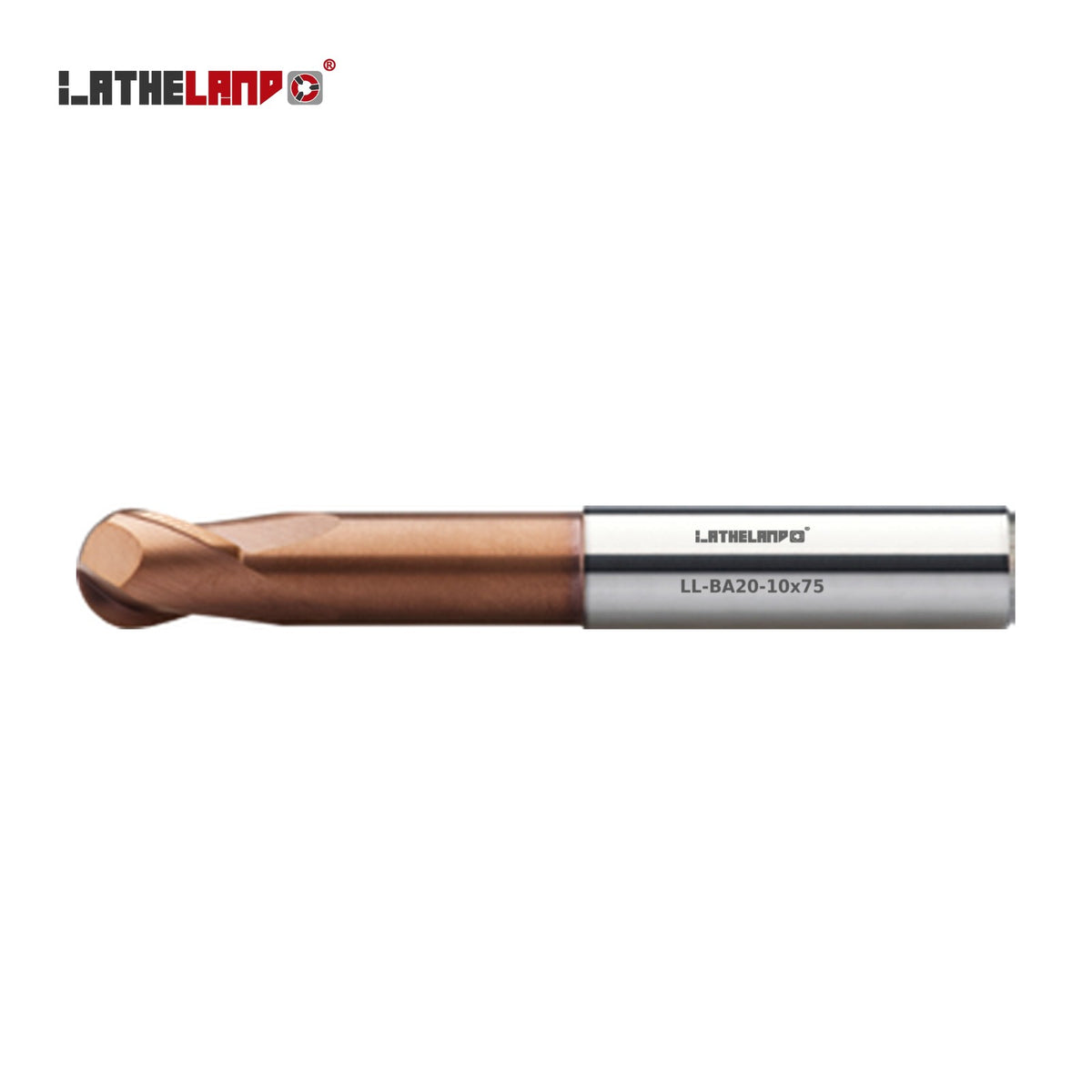

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA20 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 53–68 HRC |
| Best for | hardened steel |
| Range | Ø1–20 mm |
| Sizes available | 46 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA20 | TiSiN multilayer | 23 |
| BA20R | TiSiN multilayer, neck recess | 23 |

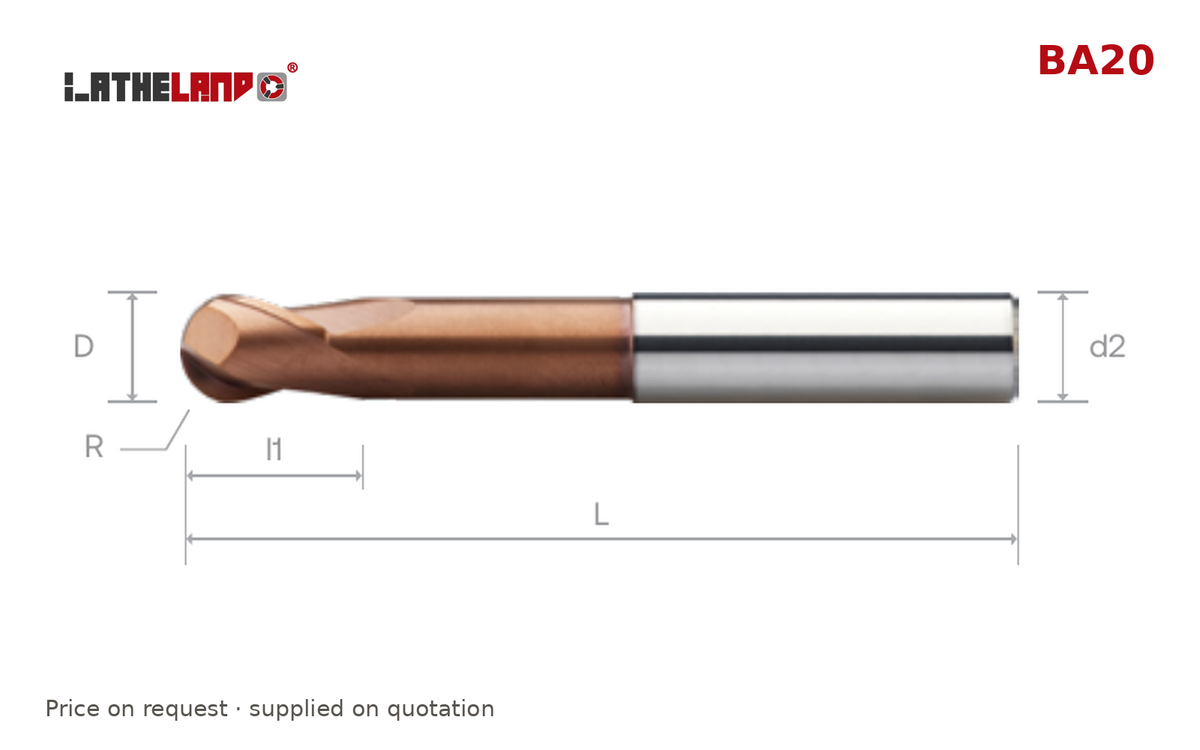

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-BA20-1 | 1 | 0.5 | 3 | 75 | 4 | |
| LL-BA20-1x75 | 1 | 0.5 | 3 | 75 | 6 | |
| LL-BA20-1.5 | 1.5 | 0.75 | 3 | 75 | 4 | |
| LL-BA20-1.5x75 | 1.5 | 0.75 | 3 | 75 | 6 | |
| LL-BA20-2 | 2 | 1 | 4 | 75 | 4 | |
| LL-BA20-2x75 | 2 | 1 | 4 | 75 | 6 | |
| LL-BA20-2.5 | 2.5 | 1.25 | 4 | 75 | 4 | |
| LL-BA20-2.5x75 | 2.5 | 1.25 | 5 | 75 | 6 | |
| LL-BA20-3 | 3 | 1.5 | 5 | 60 | 3 | |
| LL-BA20-3x75 | 3 | 1.5 | 5 | 75 | 6 | |
| LL-BA20-4 | 4 | 2 | 8 | 60 | 4 | |
| LL-BA20-4x75 | 4 | 2 | 8 | 75 | 6 | |
| LL-BA20-5 | 5 | 2.5 | 9 | 60 | 5 | |
| LL-BA20-5x75 | 5 | 2.5 | 9 | 75 | 6 | |
| LL-BA20-6 | 6 | 3 | 10 | 75 | 6 | |
| LL-BA20-8 | 8 | 4 | 12 | 75 | 8 | |
| LL-BA20-10x75 | 10 | 5 | 14 | 75 | 10 | |
| LL-BA20-10x100 | 10 | 5 | 14 | 100 | 10 | |
| LL-BA20-12 | 12 | 6 | 16 | 100 | 12 | |
| LL-BA20-14 | 14 | 7 | 32 | 125 | 14 | |
| LL-BA20-16 | 16 | 8 | 32 | 125 | 16 | |
| LL-BA20-18 | 18 | 9 | 38 | 125 | 18 | |
| LL-BA20-20 | 20 | 10 | 38 | 125 | 20 | |
| LL-BA20R-1 | 1 | 0.5 | 3 | 7 | 75 | 4 |
| LL-BA20R-1x75 | 1 | 0.5 | 3 | 7 | 75 | 6 |
| LL-BA20R-1.5 | 1.5 | 0.75 | 3 | 10 | 75 | 4 |
| LL-BA20R-1.5x75 | 1.5 | 0.75 | 3 | 10 | 75 | 6 |
| LL-BA20R-2 | 2 | 1 | 4 | 14 | 75 | 4 |
| LL-BA20R-2x75 | 2 | 1 | 4 | 14 | 75 | 6 |
| LL-BA20R-2.5 | 2.5 | 1.25 | 4 | 18 | 75 | 4 |
| LL-BA20R-2.5x75 | 2.5 | 1.25 | 5 | 18 | 75 | 6 |
| LL-BA20R-3 | 3 | 1.5 | 5 | 21 | 60 | 3 |
| LL-BA20R-3x75 | 3 | 1.5 | 5 | 21 | 75 | 6 |
| LL-BA20R-4 | 4 | 2 | 8 | 28 | 60 | 4 |
| LL-BA20R-4x75 | 4 | 2 | 8 | 28 | 75 | 6 |
| LL-BA20R-5 | 5 | 2.5 | 9 | 32 | 60 | 5 |
| LL-BA20R-5x75 | 5 | 2.5 | 9 | 32 | 75 | 6 |
| LL-BA20R-6 | 6 | 3 | 10 | 40 | 75 | 6 |
| LL-BA20R-8 | 8 | 4 | 12 | 40 | 75 | 8 |
| LL-BA20R-10x75 | 10 | 5 | 14 | 40 | 75 | 10 |
| LL-BA20R-10x100 | 10 | 5 | 14 | 60 | 100 | 10 |
| LL-BA20R-12 | 12 | 6 | 16 | 60 | 100 | 12 |
| LL-BA20R-14 | 14 | 7 | 32 | 80 | 125 | 14 |
| LL-BA20R-16 | 16 | 8 | 32 | 80 | 125 | 16 |
| LL-BA20R-18 | 18 | 9 | 38 | 80 | 125 | 18 |
| LL-BA20R-20 | 20 | 10 | 38 | 80 | 125 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
