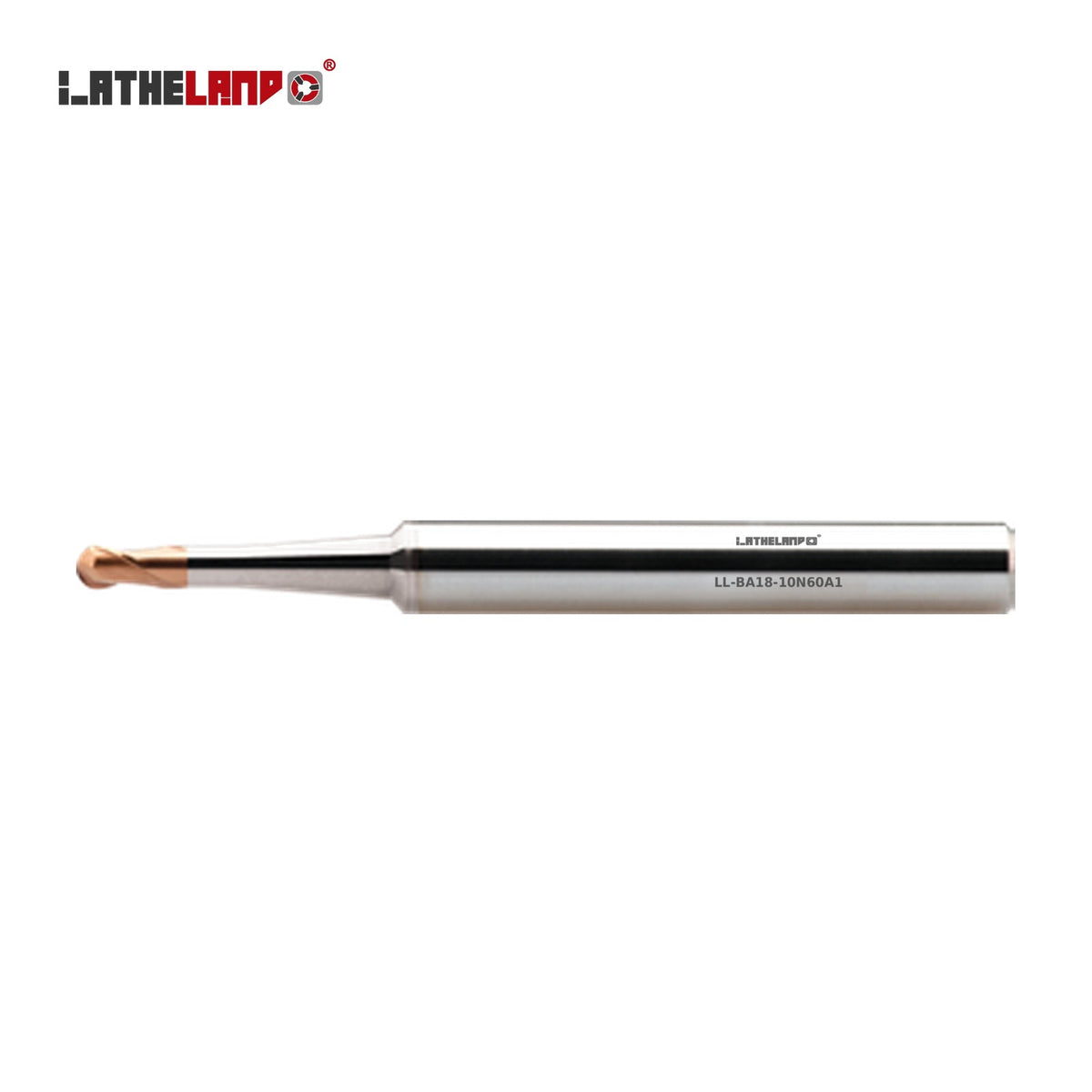

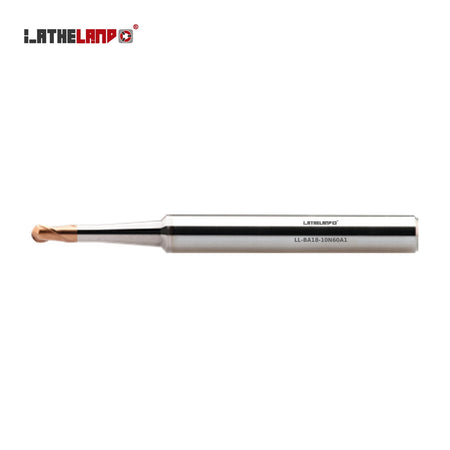

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA18 |
| Material | Solid carbide |
| Coating | TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–10 mm |
| Sizes available | 75 |
| Price | On request – supplied on quotation |

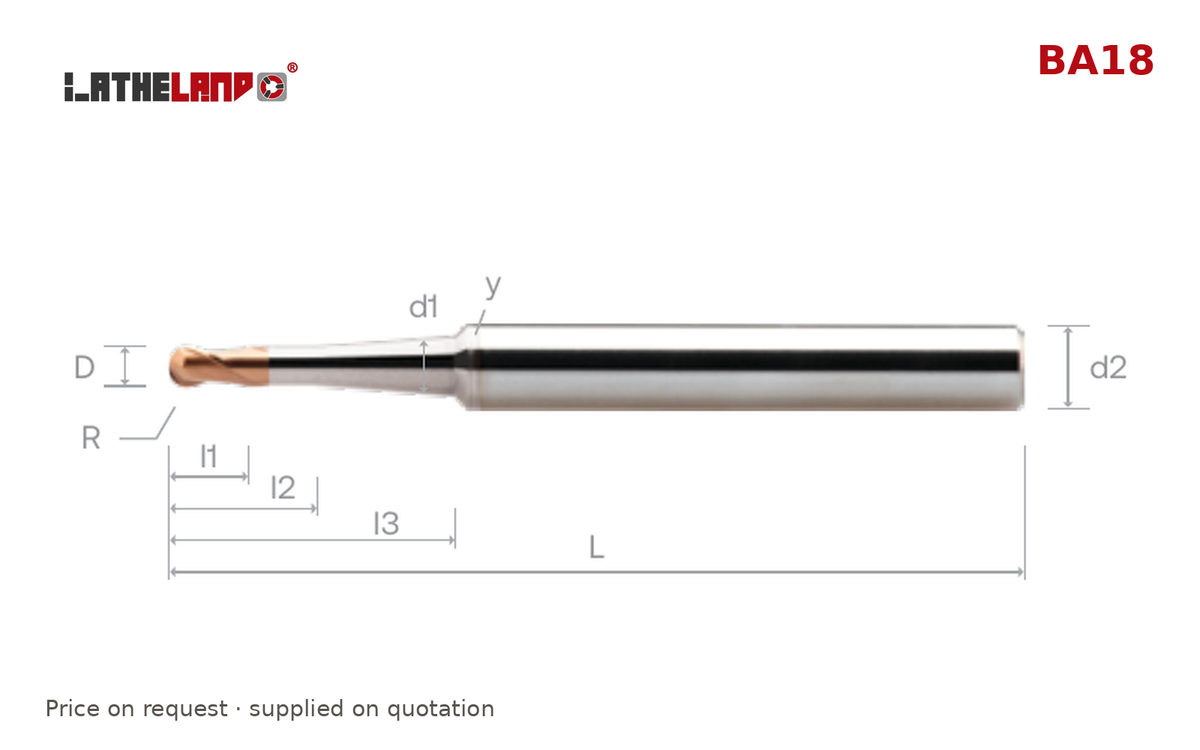

| SKU | Ø D | R | l2 | d2 |
|---|---|---|---|---|
| LL-BA18-1N10A1 | 1 | 0.5 | 10 | 6 |
| LL-BA18-1N15A1 | 1 | 0.5 | 15 | 6 |
| LL-BA18-1N20A1 | 1 | 0.5 | 20 | 6 |
| LL-BA18-1N25A1 | 1 | 0.5 | 25 | 6 |
| LL-BA18-1N10A1.5 | 1 | 0.5 | 10 | 6 |
| LL-BA18-1N15A1.5 | 1 | 0.5 | 15 | 6 |
| LL-BA18-1N20A1.5 | 1 | 0.5 | 20 | 6 |
| LL-BA18-1N25A1.5 | 1 | 0.5 | 25 | 6 |
| LL-BA18-1N10A2 | 1 | 0.5 | 10 | 6 |
| LL-BA18-1N15A2 | 1 | 0.5 | 15 | 6 |
| LL-BA18-1N20A2 | 1 | 0.5 | 20 | 6 |
| LL-BA18-1N10A3 | 1 | 0.5 | 10 | 6 |
| LL-BA18-1N15A3 | 1 | 0.5 | 15 | 6 |
| LL-BA18-1N20A3 | 1 | 0.5 | 20 | 6 |
| LL-BA18-1N15A5 | 1 | 0.5 | 15 | 6 |
| LL-BA18-1N20A5 | 1 | 0.5 | 20 | 6 |
| LL-BA18-1.5N10A1 | 1.5 | 0.75 | 10 | 6 |
| LL-BA18-1.5N15A1 | 1.5 | 0.75 | 15 | 6 |
| LL-BA18-1.5N20A1 | 1.5 | 0.75 | 20 | 6 |
| LL-BA18-1.5N30A1 | 1.5 | 0.75 | 30 | 6 |
| LL-BA18-1.5N10A2 | 1.5 | 0.75 | 10 | 6 |
| LL-BA18-1.5N15A2 | 1.5 | 0.75 | 15 | 6 |
| LL-BA18-1.5N20A2 | 1.5 | 0.75 | 20 | 6 |
| LL-BA18-1.5N30A2 | 1.5 | 0.75 | 30 | 6 |
| LL-BA18-1.5N15A3 | 1.5 | 0.75 | 15 | 6 |
| LL-BA18-1.5N20A3 | 1.5 | 0.75 | 20 | 6 |
| LL-BA18-1.5N30A3 | 1.5 | 0.75 | 30 | 6 |
| LL-BA18-1.5N15A5 | 1.5 | 0.75 | 15 | 6 |
| LL-BA18-1.5N20A5 | 1.5 | 0.75 | 20 | 6 |
| LL-BA18-2N12A1 | 2 | 1 | 12 | 6 |
| LL-BA18-2N16A1 | 2 | 1 | 16 | 6 |
| LL-BA18-2N20A1 | 2 | 1 | 20 | 6 |
| LL-BA18-2N25A1 | 2 | 1 | 25 | 6 |
| LL-BA18-2N30A1 | 2 | 1 | 30 | 6 |
| LL-BA18-2N35A1 | 2 | 1 | 35 | 6 |
| LL-BA18-2N40A1 | 2 | 1 | 40 | 6 |
| LL-BA18-2N12A2 | 2 | 1 | 12 | 6 |
| LL-BA18-2N16A2 | 2 | 1 | 16 | 6 |
| LL-BA18-2N20A2 | 2 | 1 | 20 | 6 |
| LL-BA18-2N30A2 | 2 | 1 | 30 | 6 |
| LL-BA18-2N40A2 | 2 | 1 | 40 | 6 |
| LL-BA18-2N12A3 | 2 | 1 | 12 | 6 |
| LL-BA18-2N16A3 | 2 | 1 | 16 | 6 |
| LL-BA18-2N20A3 | 2 | 1 | 20 | 6 |
| LL-BA18-2N30A3 | 2 | 1 | 30 | 6 |
| LL-BA18-2N40A3 | 2 | 1 | 40 | 6 |
| LL-BA18-2N20A5 | 2 | 1 | 20 | 6 |
| LL-BA18-3N15A1 | 3 | 1.5 | 15 | 6 |
| LL-BA18-3N20A1 | 3 | 1.5 | 20 | 6 |
| LL-BA18-3N30A1 | 3 | 1.5 | 30 | 6 |
| LL-BA18-3N40A1 | 3 | 1.5 | 40 | 6 |
| LL-BA18-3N50A1 | 3 | 1.5 | 50 | 6 |
| LL-BA18-3N15A2 | 3 | 1.5 | 15 | 6 |
| LL-BA18-3N20A2 | 3 | 1.5 | 20 | 6 |
| LL-BA18-3N30A2 | 3 | 1.5 | 30 | 6 |
| LL-BA18-3N40A2 | 3 | 1.5 | 40 | 6 |
| LL-BA18-3N20A3 | 3 | 1.5 | 20 | 6 |
| LL-BA18-3N30A3 | 3 | 1.5 | 30 | 6 |
| LL-BA18-3N50A3 | 3 | 1.5 | 50 | 6 |
| LL-BA18-3N18A5 | 3 | 1.5 | 18 | 6 |
| LL-BA18-4N20A1 | 4 | 2 | 20 | 6 |
| LL-BA18-4N40A1 | 4 | 2 | 40 | 6 |
| LL-BA18-4N60A1 | 4 | 2 | 60 | 6 |
| LL-BA18-5N30A1 | 5 | 2.5 | 30 | 6 |
| LL-BA18-5N40A1 | 5 | 2.5 | 40 | 6 |
| LL-BA18-5N60A1 | 5 | 2.5 | 60 | 6 |
| LL-BA18-6N30A1 | 6 | 3 | 30 | 8 |
| LL-BA18-6N40A1 | 6 | 3 | 40 | 8 |
| LL-BA18-6N60A1 | 6 | 3 | 60 | 8 |
| LL-BA18-8N50A1 | 8 | 4 | 50 | 10 |
| LL-BA18-8N60A1 | 8 | 4 | 60 | 10 |
| LL-BA18-8N70A1 | 8 | 4 | 70 | 10 |
| LL-BA18-8N80A1 | 8 | 4 | 80 | 10 |
| LL-BA18-10N60A1 | 10 | 5 | 60 | 12 |
| LL-BA18-10N75A1 | 10 | 5 | 75 | 12 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
