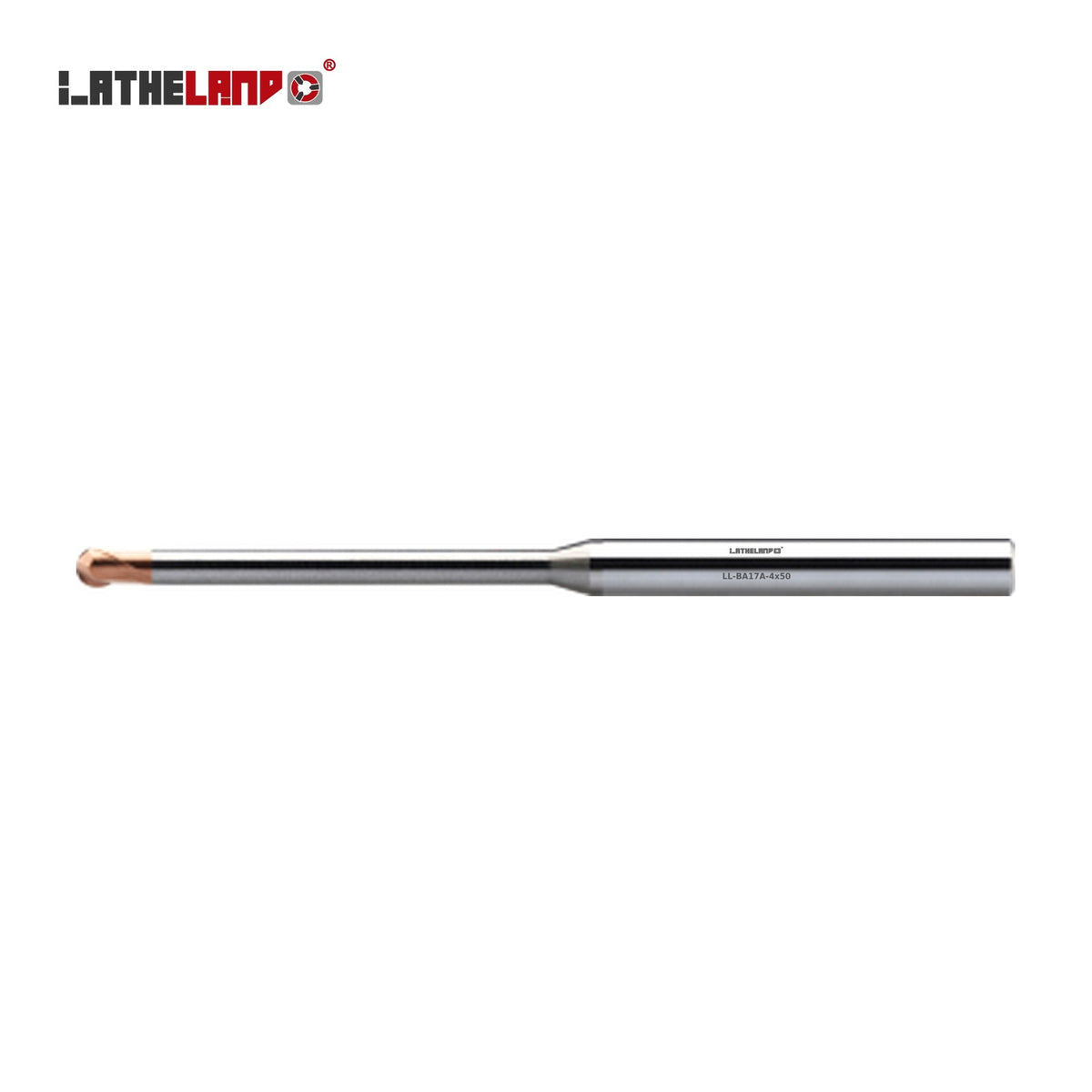

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA17 |
| Material | Solid carbide |
| Coating | AlTiN / TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø0.2–4 mm |
| Sizes available | 230 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA17A | AlTiN | 115 |
| BA17S | TiSiN multilayer | 115 |

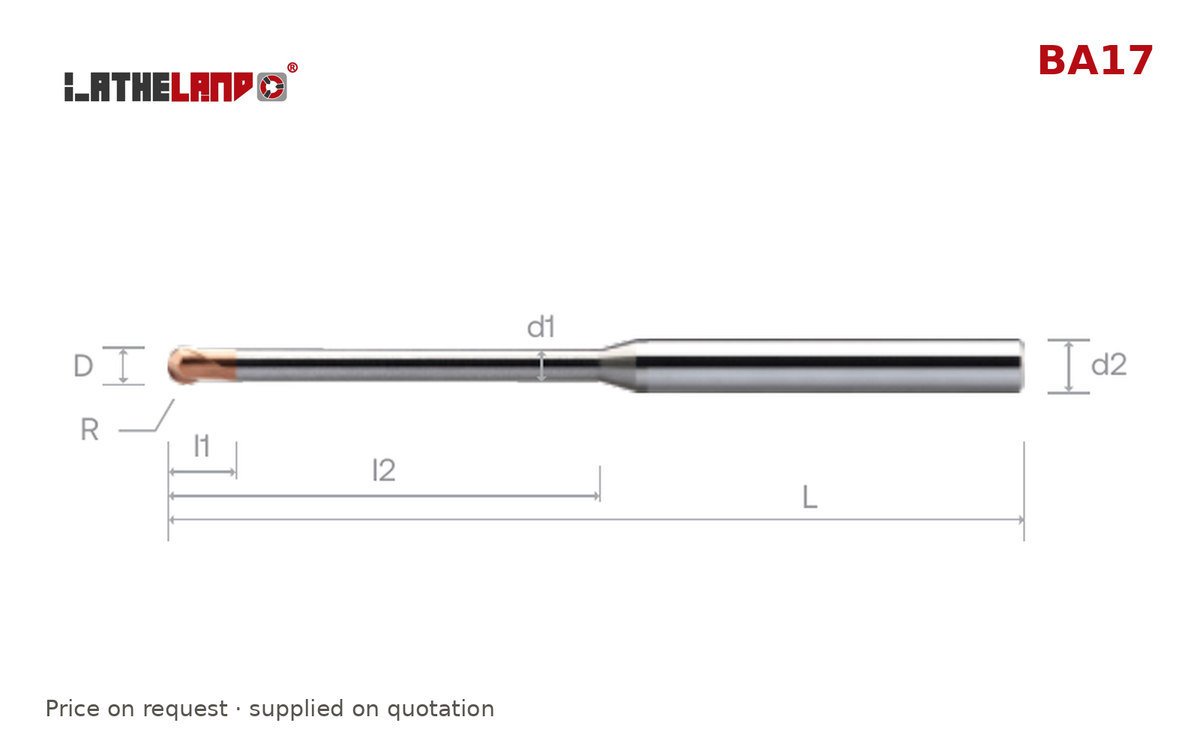

| SKU | Ø D | R | l1 | l2 | L | d1 | d2 |
|---|---|---|---|---|---|---|---|
| LL-BA17A-0.2x50 | 0.2 | 0.1 | 0.2 | 50 | 4 | ||
| LL-BA17A-0.2x50N0.5 | 0.2 | 0.1 | 0.2 | 0.5 | 50 | 0.17 | 4 |
| LL-BA17A-0.2x50N1 | 0.2 | 0.1 | 0.2 | 1 | 50 | 0.17 | 4 |
| LL-BA17A-0.2x50N1.5 | 0.2 | 0.1 | 0.2 | 1.5 | 50 | 0.17 | 4 |
| LL-BA17A-0.3x50 | 0.3 | 0.15 | 0.3 | 50 | 4 | ||
| LL-BA17A-0.3x50N1 | 0.3 | 0.15 | 0.3 | 1 | 50 | 0.27 | 4 |
| LL-BA17A-0.3x50N2 | 0.3 | 0.15 | 0.3 | 2 | 50 | 0.27 | 4 |
| LL-BA17A-0.3x50N3 | 0.3 | 0.15 | 0.3 | 3 | 50 | 0.27 | 4 |
| LL-BA17A-0.4x50 | 0.4 | 0.2 | 0.3 | 50 | 4 | ||
| LL-BA17A-0.4x50N1 | 0.4 | 0.2 | 0.3 | 1 | 50 | 0.37 | 4 |
| LL-BA17A-0.4x50N2 | 0.4 | 0.2 | 0.4 | 2 | 50 | 0.37 | 4 |
| LL-BA17A-0.4x50N3 | 0.4 | 0.2 | 0.4 | 3 | 50 | 0.37 | 4 |
| LL-BA17A-0.4x50N4 | 0.4 | 0.2 | 0.4 | 4 | 50 | 0.37 | 4 |
| LL-BA17A-0.4x50N5 | 0.4 | 0.2 | 0.4 | 5 | 50 | 0.37 | 4 |
| LL-BA17A-0.5x50 | 0.5 | 0.25 | 0.4 | 50 | 4 | ||
| LL-BA17A-0.5x50N2 | 0.5 | 0.25 | 0.4 | 2 | 50 | 0.45 | 4 |
| LL-BA17A-0.5x50N3 | 0.5 | 0.25 | 0.4 | 3 | 50 | 0.45 | 4 |
| LL-BA17A-0.5x50N4 | 0.5 | 0.25 | 0.4 | 4 | 50 | 0.45 | 4 |
| LL-BA17A-0.5x50N5 | 0.5 | 0.25 | 0.4 | 5 | 50 | 0.45 | 4 |
| LL-BA17A-0.5x50N6 | 0.5 | 0.25 | 0.4 | 6 | 50 | 0.45 | 4 |
| LL-BA17A-0.5x50N8 | 0.5 | 0.25 | 0.5 | 8 | 50 | 0.45 | 4 |
| LL-BA17A-0.6x50 | 0.6 | 0.3 | 0.5 | 50 | 4 | ||
| LL-BA17A-0.6x50N2 | 0.6 | 0.3 | 0.5 | 2 | 50 | 0.55 | 4 |
| LL-BA17A-0.6x50N3 | 0.6 | 0.3 | 0.5 | 3 | 50 | 0.55 | 4 |
| LL-BA17A-0.6x50N4 | 0.6 | 0.3 | 0.5 | 4 | 50 | 0.55 | 4 |
| LL-BA17A-0.6x50N5 | 0.6 | 0.3 | 0.5 | 5 | 50 | 0.55 | 4 |
| LL-BA17A-0.6x50N6 | 0.6 | 0.3 | 0.5 | 6 | 50 | 0.55 | 4 |
| LL-BA17A-0.6x50N8 | 0.6 | 0.3 | 0.5 | 8 | 50 | 0.55 | 4 |
| LL-BA17A-0.8x50 | 0.8 | 0.4 | 0.6 | 50 | 4 | ||
| LL-BA17A-0.8x50N2 | 0.8 | 0.4 | 0.6 | 2 | 50 | 0.75 | 4 |
| LL-BA17A-0.8x50N4 | 0.8 | 0.4 | 0.6 | 4 | 50 | 0.75 | 4 |
| LL-BA17A-0.8x50N5 | 0.8 | 0.4 | 0.6 | 5 | 50 | 0.75 | 4 |
| LL-BA17A-0.8x50N6 | 0.8 | 0.4 | 0.6 | 6 | 50 | 0.75 | 4 |
| LL-BA17A-0.8x50N7 | 0.8 | 0.4 | 0.6 | 7 | 50 | 0.75 | 4 |
| LL-BA17A-0.8x50N8 | 0.8 | 0.4 | 0.6 | 8 | 50 | 0.75 | 4 |
| LL-BA17A-0.8x50N10 | 0.8 | 0.4 | 0.6 | 10 | 50 | 0.75 | 4 |
| LL-BA17A-1x50 | 1 | 0.5 | 0.6 | 50 | 4 | ||
| LL-BA17A-1x50N3 | 1 | 0.5 | 3 | 50 | 0.9 | 4 | |
| LL-BA17A-1x50N4 | 1 | 0.5 | 0.8 | 4 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N5 | 1 | 0.5 | 0.8 | 5 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N6 | 1 | 0.5 | 0.8 | 6 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N7 | 1 | 0.5 | 0.8 | 7 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N8 | 1 | 0.5 | 0.8 | 8 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N9 | 1 | 0.5 | 0.8 | 9 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N10 | 1 | 0.5 | 0.8 | 10 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N12 | 1 | 0.5 | 0.8 | 12 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N14 | 1 | 0.5 | 0.8 | 14 | 50 | 0.9 | 4 |
| LL-BA17A-1x50N16 | 1 | 0.5 | 0.8 | 16 | 50 | 0.9 | 4 |
| LL-BA17A-1x60 | 1 | 0.5 | 1 | 60 | 4 | ||
| LL-BA17A-1x60N20 | 1 | 0.5 | 1 | 20 | 60 | 0.9 | 4 |
| LL-BA17A-1.2x50 | 1.2 | 0.6 | 1 | 50 | 4 | ||
| LL-BA17A-1.2x50N6 | 1.2 | 0.6 | 1 | 6 | 50 | 1.1 | 4 |
| LL-BA17A-1.2x50N8 | 1.2 | 0.6 | 1 | 8 | 50 | 1.1 | 4 |
| LL-BA17A-1.2x50N10 | 1.2 | 0.6 | 1 | 10 | 50 | 1.1 | 4 |
| LL-BA17A-1.2x50N12 | 1.2 | 0.6 | 1 | 12 | 50 | 1.1 | 4 |
| LL-BA17A-1.4x50 | 1.4 | 0.7 | 1.1 | 50 | 4 | ||
| LL-BA17A-1.4x50N8 | 1.4 | 0.7 | 1.1 | 8 | 50 | 1.3 | 4 |
| LL-BA17A-1.4x50N12 | 1.4 | 0.7 | 1.1 | 12 | 50 | 1.3 | 4 |
| LL-BA17A-1.4x50N16 | 1.4 | 0.7 | 1.1 | 16 | 50 | 1.3 | 4 |
| LL-BA17A-1.5x50 | 1.5 | 0.75 | 1.2 | 50 | 4 | ||
| LL-BA17A-1.5x50N8 | 1.5 | 0.75 | 1.2 | 8 | 50 | 1.4 | 4 |
| LL-BA17A-1.5x50N12 | 1.5 | 0.75 | 12 | 50 | 4 | ||
| LL-BA17A-1.5x50N16 | 1.5 | 0.75 | 1.2 | 16 | 50 | 1.4 | 4 |
| LL-BA17A-1.5x60 | 1.5 | 0.75 | 1.2 | 60 | 4 | ||
| LL-BA17A-1.5x60N18 | 1.5 | 0.75 | 1.2 | 18 | 60 | 1.4 | 4 |
| LL-BA17A-1.6x50 | 1.6 | 0.8 | 1.3 | 50 | 4 | ||
| LL-BA17A-1.6x50N8 | 1.6 | 0.8 | 8 | 50 | 4 | ||
| LL-BA17A-1.6x50N12 | 1.6 | 0.8 | 1.3 | 12 | 50 | 1.5 | 4 |
| LL-BA17A-1.6x50N16 | 1.6 | 0.8 | 1.3 | 16 | 50 | 1.5 | 4 |
| LL-BA17A-1.6x60 | 1.6 | 0.8 | 1.3 | 60 | 4 | ||
| LL-BA17A-1.6x60N20 | 1.6 | 0.8 | 1.3 | 20 | 60 | 1.5 | 4 |
| LL-BA17A-1.8x50 | 1.8 | 0.9 | 1.4 | 50 | 4 | ||
| LL-BA17A-1.8x50N8 | 1.8 | 0.9 | 1.4 | 8 | 50 | 1.7 | 4 |
| LL-BA17A-1.8x50N12 | 1.8 | 0.9 | 1.4 | 12 | 50 | 1.7 | 4 |
| LL-BA17A-1.8x50N16 | 1.8 | 0.9 | 1.4 | 16 | 50 | 1.7 | 4 |
| LL-BA17A-1.8x60 | 1.8 | 0.9 | 1.4 | 60 | 4 | ||
| LL-BA17A-1.8x60N20 | 1.8 | 0.9 | 1.4 | 20 | 60 | 1.7 | 4 |
| LL-BA17A-2x50 | 2 | 1 | 1.4 | 50 | 4 | ||
| LL-BA17A-2x50N4 | 2 | 1 | 1.4 | 4 | 50 | 1.9 | 4 |
| LL-BA17A-2x50N6 | 2 | 1 | 1.6 | 6 | 50 | 1.9 | 4 |
| LL-BA17A-2x50N8 | 2 | 1 | 1.6 | 8 | 50 | 1.9 | 4 |
| LL-BA17A-2x50N10 | 2 | 1 | 1.6 | 10 | 50 | 1.9 | 4 |
| LL-BA17A-2x50N12 | 2 | 1 | 1.6 | 12 | 50 | 1.9 | 4 |
| LL-BA17A-2x50N14 | 2 | 1 | 1.6 | 14 | 50 | 1.9 | 4 |
| LL-BA17A-2x50N16 | 2 | 1 | 1.6 | 16 | 50 | 1.9 | 4 |
| LL-BA17A-2x60 | 2 | 1 | 1.6 | 60 | 4 | ||
| LL-BA17A-2x60N18 | 2 | 1 | 1.6 | 18 | 60 | 1.9 | 4 |
| LL-BA17A-2x60N20 | 2 | 1 | 1.6 | 20 | 60 | 1.9 | 4 |
| LL-BA17A-2x60N22 | 2 | 1 | 1.6 | 22 | 60 | 1.9 | 4 |
| LL-BA17A-2x75 | 2 | 1 | 1.6 | 75 | 4 | ||
| LL-BA17A-2x75N25 | 2 | 1 | 25 | 75 | 1.9 | 4 | |
| LL-BA17A-2x75N30 | 2 | 1 | 30 | 75 | 1.9 | 4 | |
| LL-BA17A-3x50 | 3 | 1.5 | 2.4 | 50 | 6 | ||
| LL-BA17A-3x50N8 | 3 | 1.5 | 2.4 | 8 | 50 | 2.8 | 6 |
| LL-BA17A-3x50N10 | 3 | 1.5 | 2.4 | 10 | 50 | 2.8 | 6 |
| LL-BA17A-3x60 | 3 | 1.5 | 2.4 | 60 | 6 | ||
| LL-BA17A-3x60N16 | 3 | 1.5 | 2.4 | 16 | 60 | 2.8 | 6 |
| LL-BA17A-3x60N20 | 3 | 1.5 | 2.4 | 20 | 60 | 2.8 | 6 |
| LL-BA17A-3x75 | 3 | 1.5 | 2.4 | 75 | 6 | ||
| LL-BA17A-3x75N25 | 3 | 1.5 | 2.4 | 25 | 75 | 2.8 | 6 |
| LL-BA17A-3x75N30 | 3 | 1.5 | 2.4 | 30 | 75 | 2.8 | 6 |
| LL-BA17A-3x75N35 | 3 | 1.5 | 2.4 | 35 | 75 | 2.8 | 6 |
| LL-BA17A-4x50 | 4 | 2 | 50 | 6 | |||
| LL-BA17A-4x50N10 | 4 | 2 | 3.2 | 10 | 50 | 3.7 | 6 |
| LL-BA17A-4x60 | 4 | 2 | 3.2 | 60 | 6 | ||
| LL-BA17A-4x60N16 | 4 | 2 | 3.2 | 16 | 60 | 3.7 | 6 |
| LL-BA17A-4x60N20 | 4 | 2 | 3.2 | 20 | 60 | 3.7 | 6 |
| LL-BA17A-4x75 | 4 | 2 | 3.2 | 75 | 6 | ||
| LL-BA17A-4x75N25 | 4 | 2 | 3.2 | 25 | 75 | 3.7 | 6 |
| LL-BA17A-4x75N30 | 4 | 2 | 3.2 | 30 | 75 | 3.7 | 6 |
| LL-BA17A-4x75N35 | 4 | 2 | 3.2 | 35 | 75 | 3.7 | 6 |
| LL-BA17A-4x100 | 4 | 2 | 3.2 | 100 | 6 | ||
| LL-BA17A-4x100N40 | 4 | 2 | 3.2 | 40 | 100 | 3.7 | 6 |
| LL-BA17A-4x100N45 | 4 | 2 | 3.2 | 45 | 100 | 3.7 | 6 |
| LL-BA17A-4x100N50 | 4 | 2 | 50 | 100 | 3.7 | 6 | |
| LL-BA17S-0.2x50 | 0.2 | 0.1 | 0.2 | 50 | 4 | ||
| LL-BA17S-0.2x50N0.5 | 0.2 | 0.1 | 0.2 | 0.5 | 50 | 0.17 | 4 |
| LL-BA17S-0.2x50N1 | 0.2 | 0.1 | 0.2 | 1 | 50 | 0.17 | 4 |
| LL-BA17S-0.2x50N1.5 | 0.2 | 0.1 | 0.2 | 1.5 | 50 | 0.17 | 4 |
| LL-BA17S-0.3x50 | 0.3 | 0.15 | 0.3 | 50 | 4 | ||
| LL-BA17S-0.3x50N1 | 0.3 | 0.15 | 0.3 | 1 | 50 | 0.27 | 4 |
| LL-BA17S-0.3x50N2 | 0.3 | 0.15 | 0.3 | 2 | 50 | 0.27 | 4 |
| LL-BA17S-0.3x50N3 | 0.3 | 0.15 | 0.3 | 3 | 50 | 0.27 | 4 |
| LL-BA17S-0.4x50 | 0.4 | 0.2 | 0.3 | 50 | 4 | ||
| LL-BA17S-0.4x50N1 | 0.4 | 0.2 | 0.3 | 1 | 50 | 0.37 | 4 |
| LL-BA17S-0.4x50N2 | 0.4 | 0.2 | 0.4 | 2 | 50 | 0.37 | 4 |
| LL-BA17S-0.4x50N3 | 0.4 | 0.2 | 0.4 | 3 | 50 | 0.37 | 4 |
| LL-BA17S-0.4x50N4 | 0.4 | 0.2 | 0.4 | 4 | 50 | 0.37 | 4 |
| LL-BA17S-0.4x50N5 | 0.4 | 0.2 | 0.4 | 5 | 50 | 0.37 | 4 |
| LL-BA17S-0.5x50 | 0.5 | 0.25 | 0.4 | 50 | 4 | ||
| LL-BA17S-0.5x50N2 | 0.5 | 0.25 | 0.4 | 2 | 50 | 0.45 | 4 |
| LL-BA17S-0.5x50N3 | 0.5 | 0.25 | 0.4 | 3 | 50 | 0.45 | 4 |
| LL-BA17S-0.5x50N4 | 0.5 | 0.25 | 0.4 | 4 | 50 | 0.45 | 4 |
| LL-BA17S-0.5x50N5 | 0.5 | 0.25 | 0.4 | 5 | 50 | 0.45 | 4 |
| LL-BA17S-0.5x50N6 | 0.5 | 0.25 | 0.4 | 6 | 50 | 0.45 | 4 |
| LL-BA17S-0.5x50N8 | 0.5 | 0.25 | 0.5 | 8 | 50 | 0.45 | 4 |
| LL-BA17S-0.6x50 | 0.6 | 0.3 | 0.5 | 50 | 4 | ||
| LL-BA17S-0.6x50N2 | 0.6 | 0.3 | 0.5 | 2 | 50 | 0.55 | 4 |
| LL-BA17S-0.6x50N3 | 0.6 | 0.3 | 0.5 | 3 | 50 | 0.55 | 4 |
| LL-BA17S-0.6x50N4 | 0.6 | 0.3 | 0.5 | 4 | 50 | 0.55 | 4 |
| LL-BA17S-0.6x50N5 | 0.6 | 0.3 | 0.5 | 5 | 50 | 0.55 | 4 |
| LL-BA17S-0.6x50N6 | 0.6 | 0.3 | 0.5 | 6 | 50 | 0.55 | 4 |
| LL-BA17S-0.6x50N8 | 0.6 | 0.3 | 0.5 | 8 | 50 | 0.55 | 4 |
| LL-BA17S-0.8x50 | 0.8 | 0.4 | 0.6 | 50 | 4 | ||
| LL-BA17S-0.8x50N2 | 0.8 | 0.4 | 0.6 | 2 | 50 | 0.75 | 4 |
| LL-BA17S-0.8x50N4 | 0.8 | 0.4 | 0.6 | 4 | 50 | 0.75 | 4 |
| LL-BA17S-0.8x50N5 | 0.8 | 0.4 | 0.6 | 5 | 50 | 0.75 | 4 |
| LL-BA17S-0.8x50N6 | 0.8 | 0.4 | 0.6 | 6 | 50 | 0.75 | 4 |
| LL-BA17S-0.8x50N7 | 0.8 | 0.4 | 0.6 | 7 | 50 | 0.75 | 4 |
| LL-BA17S-0.8x50N8 | 0.8 | 0.4 | 0.6 | 8 | 50 | 0.75 | 4 |
| LL-BA17S-0.8x50N10 | 0.8 | 0.4 | 0.6 | 10 | 50 | 0.75 | 4 |
| LL-BA17S-1x50 | 1 | 0.5 | 0.6 | 50 | 4 | ||
| LL-BA17S-1x50N3 | 1 | 0.5 | 3 | 50 | 0.9 | 4 | |
| LL-BA17S-1x50N4 | 1 | 0.5 | 0.8 | 4 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N5 | 1 | 0.5 | 0.8 | 5 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N6 | 1 | 0.5 | 0.8 | 6 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N7 | 1 | 0.5 | 0.8 | 7 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N8 | 1 | 0.5 | 0.8 | 8 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N9 | 1 | 0.5 | 0.8 | 9 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N10 | 1 | 0.5 | 0.8 | 10 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N12 | 1 | 0.5 | 0.8 | 12 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N14 | 1 | 0.5 | 0.8 | 14 | 50 | 0.9 | 4 |
| LL-BA17S-1x50N16 | 1 | 0.5 | 0.8 | 16 | 50 | 0.9 | 4 |
| LL-BA17S-1x60 | 1 | 0.5 | 1 | 60 | 4 | ||
| LL-BA17S-1x60N20 | 1 | 0.5 | 1 | 20 | 60 | 0.9 | 4 |
| LL-BA17S-1.2x50 | 1.2 | 0.6 | 1 | 50 | 4 | ||
| LL-BA17S-1.2x50N6 | 1.2 | 0.6 | 1 | 6 | 50 | 1.1 | 4 |
| LL-BA17S-1.2x50N8 | 1.2 | 0.6 | 1 | 8 | 50 | 1.1 | 4 |
| LL-BA17S-1.2x50N10 | 1.2 | 0.6 | 1 | 10 | 50 | 1.1 | 4 |
| LL-BA17S-1.2x50N12 | 1.2 | 0.6 | 1 | 12 | 50 | 1.1 | 4 |
| LL-BA17S-1.4x50 | 1.4 | 0.7 | 1.1 | 50 | 4 | ||
| LL-BA17S-1.4x50N8 | 1.4 | 0.7 | 1.1 | 8 | 50 | 1.3 | 4 |
| LL-BA17S-1.4x50N12 | 1.4 | 0.7 | 1.1 | 12 | 50 | 1.3 | 4 |
| LL-BA17S-1.4x50N16 | 1.4 | 0.7 | 1.1 | 16 | 50 | 1.3 | 4 |
| LL-BA17S-1.5x50 | 1.5 | 0.75 | 1.2 | 50 | 4 | ||
| LL-BA17S-1.5x50N8 | 1.5 | 0.75 | 1.2 | 8 | 50 | 1.4 | 4 |
| LL-BA17S-1.5x50N12 | 1.5 | 0.75 | 1.2 | 12 | 50 | 1.4 | 4 |
| LL-BA17S-1.5x50N16 | 1.5 | 0.75 | 1.2 | 16 | 50 | 1.4 | 4 |
| LL-BA17S-1.5x60 | 1.5 | 0.75 | 1.2 | 60 | 4 | ||
| LL-BA17S-1.5x60N18 | 1.5 | 0.75 | 1.2 | 18 | 60 | 1.4 | 4 |
| LL-BA17S-1.6x50 | 1.6 | 0.8 | 1.3 | 50 | 4 | ||
| LL-BA17S-1.6x50N8 | 1.6 | 0.8 | 1.3 | 8 | 50 | 1.5 | 4 |
| LL-BA17S-1.6x50N12 | 1.6 | 0.8 | 1.3 | 12 | 50 | 1.5 | 4 |
| LL-BA17S-1.6x50N16 | 1.6 | 0.8 | 1.3 | 16 | 50 | 1.5 | 4 |
| LL-BA17S-1.6x60 | 1.6 | 0.8 | 1.3 | 60 | 4 | ||
| LL-BA17S-1.6x60N20 | 1.6 | 0.8 | 1.3 | 20 | 60 | 1.5 | 4 |
| LL-BA17S-1.8x50 | 1.8 | 0.9 | 1.4 | 50 | 4 | ||
| LL-BA17S-1.8x50N8 | 1.8 | 0.9 | 1.4 | 8 | 50 | 1.7 | 4 |
| LL-BA17S-1.8x50N12 | 1.8 | 0.9 | 1.4 | 12 | 50 | 1.7 | 4 |
| LL-BA17S-1.8x50N16 | 1.8 | 0.9 | 1.4 | 16 | 50 | 1.7 | 4 |
| LL-BA17S-1.8x60 | 1.8 | 0.9 | 1.4 | 60 | 4 | ||
| LL-BA17S-1.8x60N20 | 1.8 | 0.9 | 1.4 | 20 | 60 | 1.7 | 4 |
| LL-BA17S-2x50 | 2 | 1 | 1.4 | 50 | 4 | ||
| LL-BA17S-2x50N4 | 2 | 1 | 1.4 | 4 | 50 | 1.9 | 4 |
| LL-BA17S-2x50N6 | 2 | 1 | 1.6 | 6 | 50 | 1.9 | 4 |
| LL-BA17S-2x50N8 | 2 | 1 | 1.6 | 8 | 50 | 1.9 | 4 |
| LL-BA17S-2x50N10 | 2 | 1 | 1.6 | 10 | 50 | 1.9 | 4 |
| LL-BA17S-2x50N12 | 2 | 1 | 1.6 | 12 | 50 | 1.9 | 4 |
| LL-BA17S-2x50N14 | 2 | 1 | 1.6 | 14 | 50 | 1.9 | 4 |
| LL-BA17S-2x50N16 | 2 | 1 | 1.6 | 16 | 50 | 1.9 | 4 |
| LL-BA17S-2x60 | 2 | 1 | 1.6 | 60 | 4 | ||
| LL-BA17S-2x60N18 | 2 | 1 | 1.6 | 18 | 60 | 1.9 | 4 |
| LL-BA17S-2x60N20 | 2 | 1 | 1.6 | 20 | 60 | 1.9 | 4 |
| LL-BA17S-2x60N22 | 2 | 1 | 1.6 | 22 | 60 | 1.9 | 4 |
| LL-BA17S-2x75 | 2 | 1 | 1.6 | 75 | 4 | ||
| LL-BA17S-2x75N25 | 2 | 1 | 25 | 75 | 1.9 | 4 | |
| LL-BA17S-2x75N30 | 2 | 1 | 30 | 75 | 1.9 | 4 | |
| LL-BA17S-3x50 | 3 | 1.5 | 2.4 | 50 | 6 | ||
| LL-BA17S-3x50N8 | 3 | 1.5 | 2.4 | 8 | 50 | 2.8 | 6 |
| LL-BA17S-3x50N10 | 3 | 1.5 | 2.4 | 10 | 50 | 2.8 | 6 |
| LL-BA17S-3x60 | 3 | 1.5 | 2.4 | 60 | 6 | ||
| LL-BA17S-3x60N16 | 3 | 1.5 | 2.4 | 16 | 60 | 2.8 | 6 |
| LL-BA17S-3x60N20 | 3 | 1.5 | 2.4 | 20 | 60 | 2.8 | 6 |
| LL-BA17S-3x75 | 3 | 1.5 | 2.4 | 75 | 6 | ||
| LL-BA17S-3x75N25 | 3 | 1.5 | 2.4 | 25 | 75 | 2.8 | 6 |
| LL-BA17S-3x75N30 | 3 | 1.5 | 2.4 | 30 | 75 | 2.8 | 6 |
| LL-BA17S-3x75N35 | 3 | 1.5 | 2.4 | 35 | 75 | 2.8 | 6 |
| LL-BA17S-4x50 | 4 | 2 | 50 | 6 | |||
| LL-BA17S-4x50N10 | 4 | 2 | 3.2 | 10 | 50 | 3.7 | 6 |
| LL-BA17S-4x60 | 4 | 2 | 3.2 | 60 | 6 | ||
| LL-BA17S-4x60N16 | 4 | 2 | 3.2 | 16 | 60 | 3.7 | 6 |
| LL-BA17S-4x60N20 | 4 | 2 | 3.2 | 20 | 60 | 3.7 | 6 |
| LL-BA17S-4x75 | 4 | 2 | 3.2 | 75 | 6 | ||
| LL-BA17S-4x75N25 | 4 | 2 | 3.2 | 25 | 75 | 3.7 | 6 |
| LL-BA17S-4x75N30 | 4 | 2 | 3.2 | 30 | 75 | 3.7 | 6 |
| LL-BA17S-4x75N35 | 4 | 2 | 3.2 | 35 | 75 | 3.7 | 6 |
| LL-BA17S-4x100 | 4 | 2 | 3.2 | 100 | 6 | ||
| LL-BA17S-4x100N40 | 4 | 2 | 3.2 | 40 | 100 | 3.7 | 6 |
| LL-BA17S-4x100N45 | 4 | 2 | 3.2 | 45 | 100 | 3.7 | 6 |
| LL-BA17S-4x100N50 | 4 | 2 | 50 | 100 | 3.7 | 6 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
LATHELAND®
