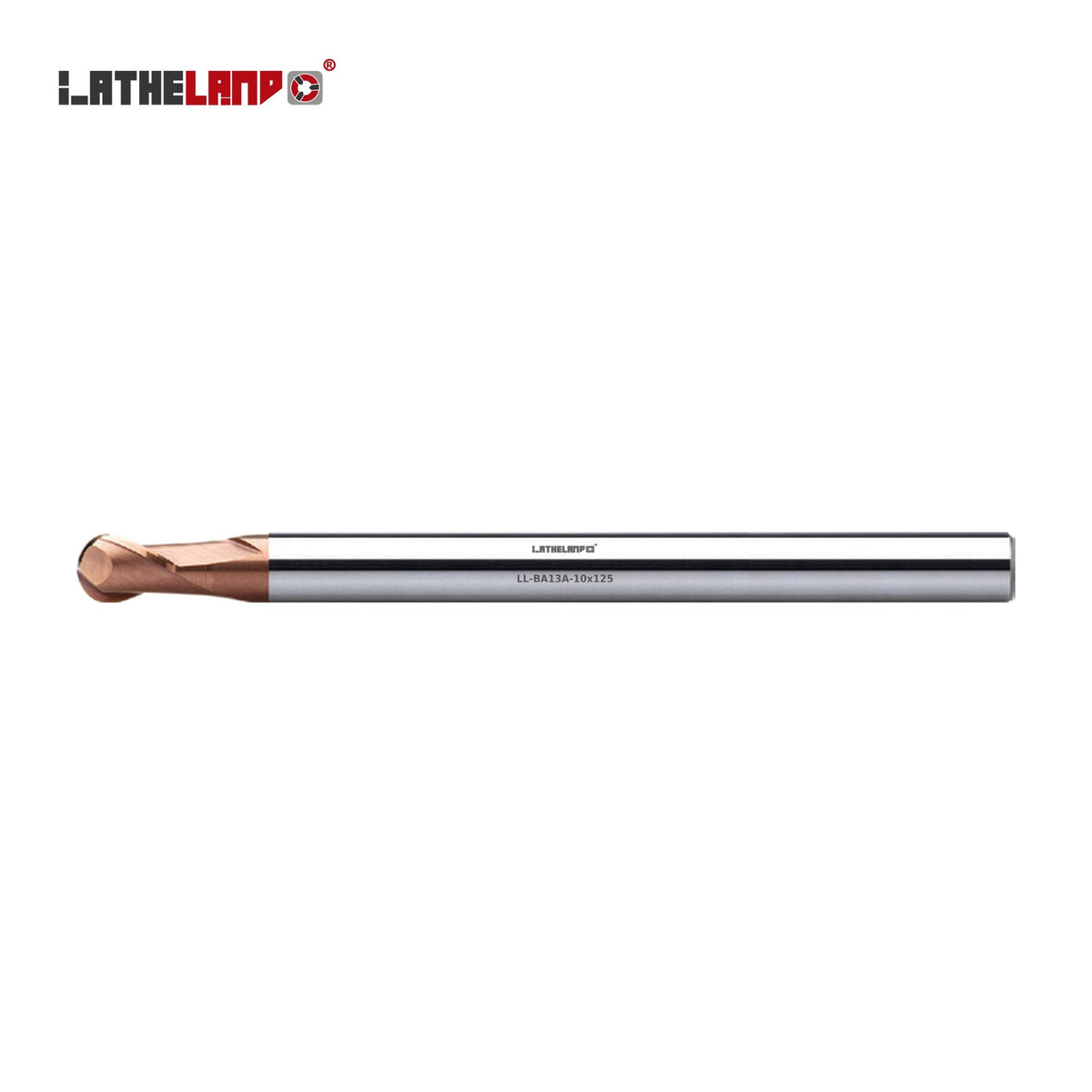

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA13 |
| Material | Solid carbide |
| Coating | AlTiN / TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–20 mm |
| Sizes available | 60 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA13A | AlTiN | 30 |
| BA13S | TiSiN multilayer | 30 |

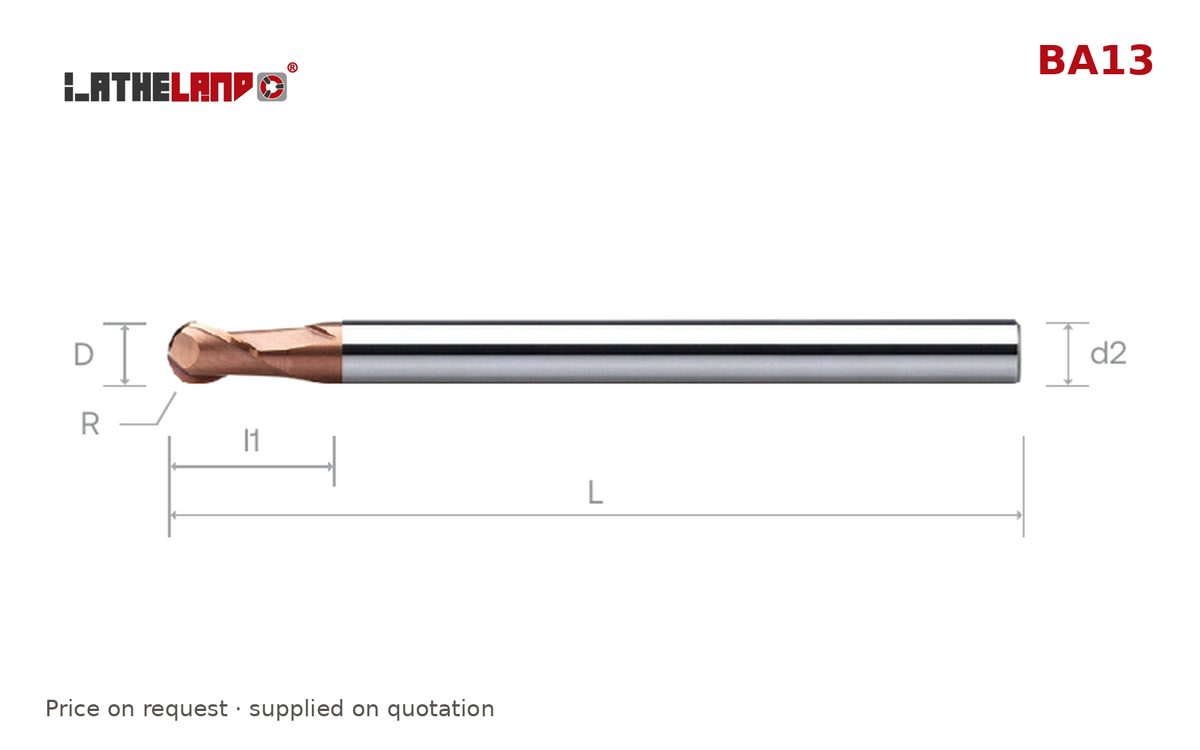

| SKU | Ø D | R | l1 | L | d2 |
|---|---|---|---|---|---|
| LL-BA13A-1x100-S3 | 1 | 0.5 | 3 | 100 | 3 |
| LL-BA13A-1x100-S4 | 1 | 0.5 | 3 | 100 | 4 |
| LL-BA13A-1.5x100-S3 | 1.5 | 0.75 | 3 | 100 | 3 |
| LL-BA13A-1.5x100-S4 | 1.5 | 0.75 | 3 | 100 | 4 |
| LL-BA13A-2x100-S3 | 2 | 1 | 4 | 100 | 3 |
| LL-BA13A-2x100-S4 | 2 | 1 | 4 | 100 | 4 |
| LL-BA13A-2.5x100-S3 | 2.5 | 1.25 | 4 | 100 | 3 |
| LL-BA13A-2.5x100-S4 | 2.5 | 1.25 | 4 | 100 | 4 |
| LL-BA13A-3 | 3 | 1.5 | 5 | 100 | 3 |
| LL-BA13A-3x100-S6 | 3 | 1.5 | 5 | 100 | 6 |
| LL-BA13A-4 | 4 | 2 | 8 | 100 | 4 |
| LL-BA13A-4x100-S6 | 4 | 2 | 8 | 100 | 6 |
| LL-BA13A-5 | 5 | 2.5 | 9 | 100 | 5 |
| LL-BA13A-5x100-S6 | 5 | 2.5 | 9 | 100 | 6 |
| LL-BA13A-6x100 | 6 | 3 | 10 | 100 | 6 |
| LL-BA13A-6x150 | 6 | 3 | 10 | 150 | 6 |
| LL-BA13A-8x100 | 8 | 4 | 12 | 100 | 8 |
| LL-BA13A-8x150 | 8 | 4 | 12 | 150 | 8 |
| LL-BA13A-10x125 | 10 | 5 | 14 | 125 | 10 |
| LL-BA13A-10x150 | 10 | 5 | 14 | 150 | 10 |
| LL-BA13A-12x125 | 12 | 6 | 16 | 125 | 12 |
| LL-BA13A-12x150 | 12 | 6 | 16 | 150 | 12 |
| LL-BA13A-14x150 | 14 | 7 | 32 | 150 | 14 |
| LL-BA13A-14x200 | 14 | 7 | 32 | 200 | 14 |
| LL-BA13A-16x150 | 16 | 8 | 32 | 150 | 16 |
| LL-BA13A-16x200 | 16 | 8 | 32 | 200 | 16 |
| LL-BA13A-18x150 | 18 | 9 | 38 | 150 | 18 |
| LL-BA13A-18x200 | 18 | 9 | 38 | 200 | 18 |
| LL-BA13A-20x150 | 20 | 10 | 38 | 150 | 20 |
| LL-BA13A-20x200 | 20 | 10 | 38 | 200 | 20 |
| LL-BA13S-1x100-S3 | 1 | 0.5 | 3 | 100 | 3 |
| LL-BA13S-1x100-S4 | 1 | 0.5 | 3 | 100 | 4 |
| LL-BA13S-1.5x100-S3 | 1.5 | 0.75 | 3 | 100 | 3 |
| LL-BA13S-1.5x100-S4 | 1.5 | 0.75 | 3 | 100 | 4 |
| LL-BA13S-2x100-S3 | 2 | 1 | 4 | 100 | 3 |
| LL-BA13S-2x100-S4 | 2 | 1 | 4 | 100 | 4 |
| LL-BA13S-2.5x100-S3 | 2.5 | 1.25 | 4 | 100 | 3 |
| LL-BA13S-2.5x100-S4 | 2.5 | 1.25 | 4 | 100 | 4 |
| LL-BA13S-3 | 3 | 1.5 | 5 | 100 | 3 |
| LL-BA13S-3x100-S6 | 3 | 1.5 | 5 | 100 | 6 |
| LL-BA13S-4 | 4 | 2 | 8 | 100 | 4 |
| LL-BA13S-4x100-S6 | 4 | 2 | 8 | 100 | 6 |
| LL-BA13S-5 | 5 | 2.5 | 9 | 100 | 5 |
| LL-BA13S-5x100-S6 | 5 | 2.5 | 9 | 100 | 6 |
| LL-BA13S-6x100 | 6 | 3 | 10 | 100 | 6 |
| LL-BA13S-6x150 | 6 | 3 | 10 | 150 | 6 |
| LL-BA13S-8x100 | 8 | 4 | 12 | 100 | 8 |
| LL-BA13S-8x150 | 8 | 4 | 12 | 150 | 8 |
| LL-BA13S-10x125 | 10 | 5 | 14 | 125 | 10 |
| LL-BA13S-10x150 | 10 | 5 | 14 | 150 | 10 |
| LL-BA13S-12x125 | 12 | 6 | 16 | 125 | 12 |
| LL-BA13S-12x150 | 12 | 6 | 16 | 150 | 12 |
| LL-BA13S-14x150 | 14 | 7 | 32 | 150 | 14 |
| LL-BA13S-14x200 | 14 | 7 | 32 | 200 | 14 |
| LL-BA13S-16x150 | 16 | 8 | 32 | 150 | 16 |
| LL-BA13S-16x200 | 16 | 8 | 32 | 200 | 16 |
| LL-BA13S-18x150 | 18 | 9 | 38 | 150 | 18 |
| LL-BA13S-18x200 | 18 | 9 | 38 | 200 | 18 |
| LL-BA13S-20x150 | 20 | 10 | 38 | 150 | 20 |
| LL-BA13S-20x200 | 20 | 10 | 38 | 200 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
